LINA-S
10mm Naked Single Cut LED Strip 100LED/m
LINA-S
Lighting Effects
- Products Specification:
- Type:10mm Naked Single Cut LED Strip 100LED/m
- Beam Angle:110D
- Power:2W/m 4W/m 6W/m 10W/m 12W/m 14.4W/m 18W/m
- CCT:2700K 3000K 4000K
- Weight:0.012 kg /roll
- PCB Width:10mm

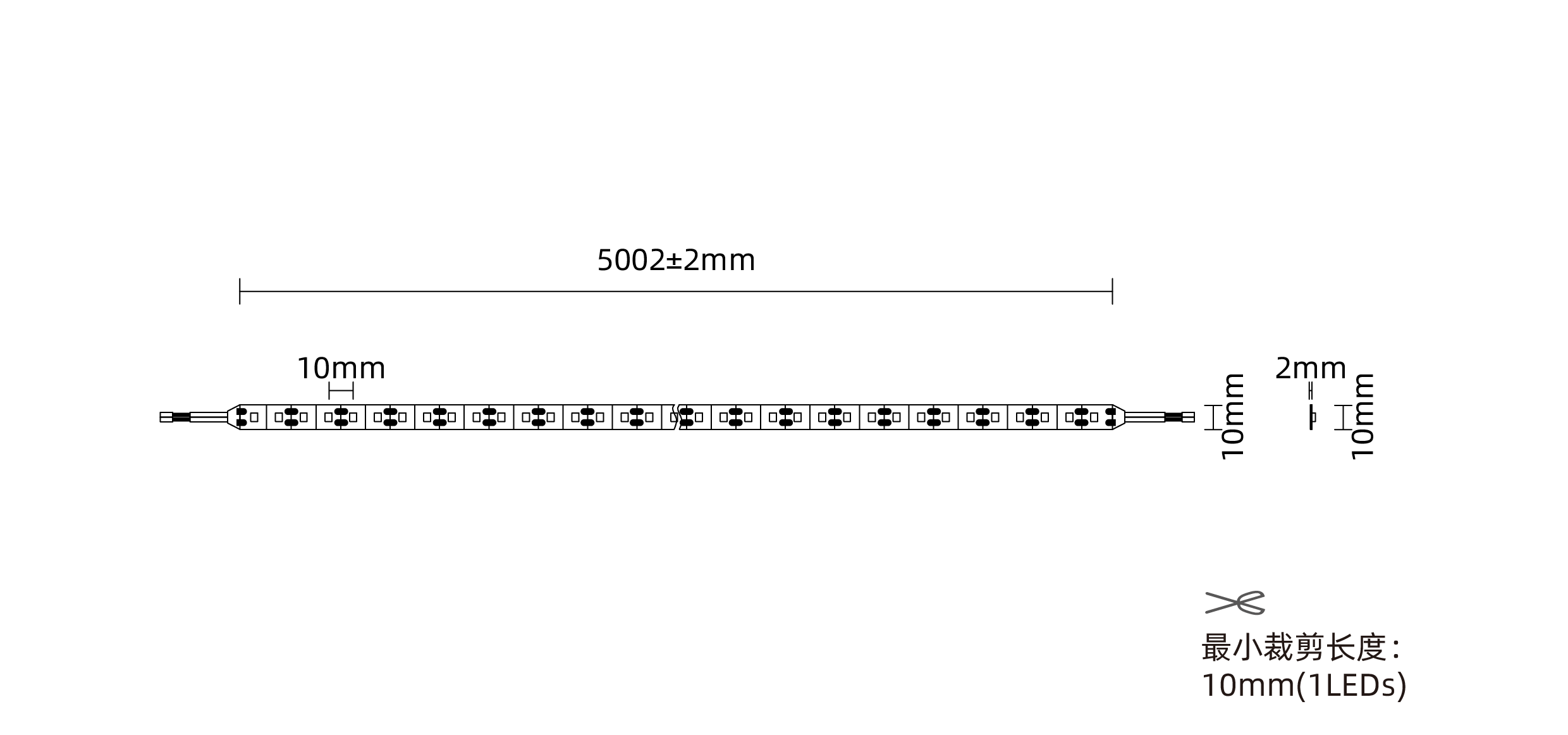

- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
Power(W)
- Power(W)
- 2W/m
- 4W/m
- 6W/m
- 10W/m
- 12W/m
- 14.4W/m
- 18W/m
Beam Angle
- Beam Angle
- 110°
CRI
- CRI
- Ra>90
Color
- Color
- 2700K
- 3000K
- 4000K
Dimming type
- Dimming type
- 1-Non Dim
- 2-Phase dimming
- 3-0-10V dimming
- 4-DALI dimming
- 5-DMX512
- 6-Bluetooth
Finish
- Finish
Reflector
- Reflector
IP Rating
- IP Rating
- 20-IP20
Accessory
- Accessory
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
- SS00213-02A19027
- SS00213-02A19030
- SS00213-02A19040
- SS00213-04A19027
- SS00213-04A19030
- SS00213-04A19040
- SS00213-06A19027
- SS00213-06A19030
- SS00213-06A19040
- SS00213-10A19027
- SS00213-10A19030
- SS00213-10A19040
- SS00213-12A19027
- SS00213-12A19030
- SS00213-12A19040
- SS00213-14.4A19027
- SS00213-14.4A19030
- SS00213-14.4A19040
- SS00213-18A19027
- SS00213-18A19030
- SS00213-18A19040
- Luminous Flux (LM)
187LM
197LM
207LM
401LM
422LM
443LM
553LM
582LM
611LM
944LM
994LM
1044LM
1094LM
1152LM
1210LM
1206LM
1269LM
1333LM
1504LM
1583LM
1663LM
- Power (W)
2W/m
2W/m
2W/m
4W/m
4W/m
4W/m
6W/m
6W/m
6W/m
10W/m
10W/m
10W/m
12W/m
12W/m
12W/m
14.4W/m
14.4W/m
14.4W/m
18W/m
18W/m
18W/m
- Beam Angle
110°
110°
110°
110°
110°
110°
110°
110°
110°
110°
110°
110°
110°
110°
110°
110°
110°
110°
110°
110°
110°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
- Specification
- IES
- DWG
- manual
- Favorite
