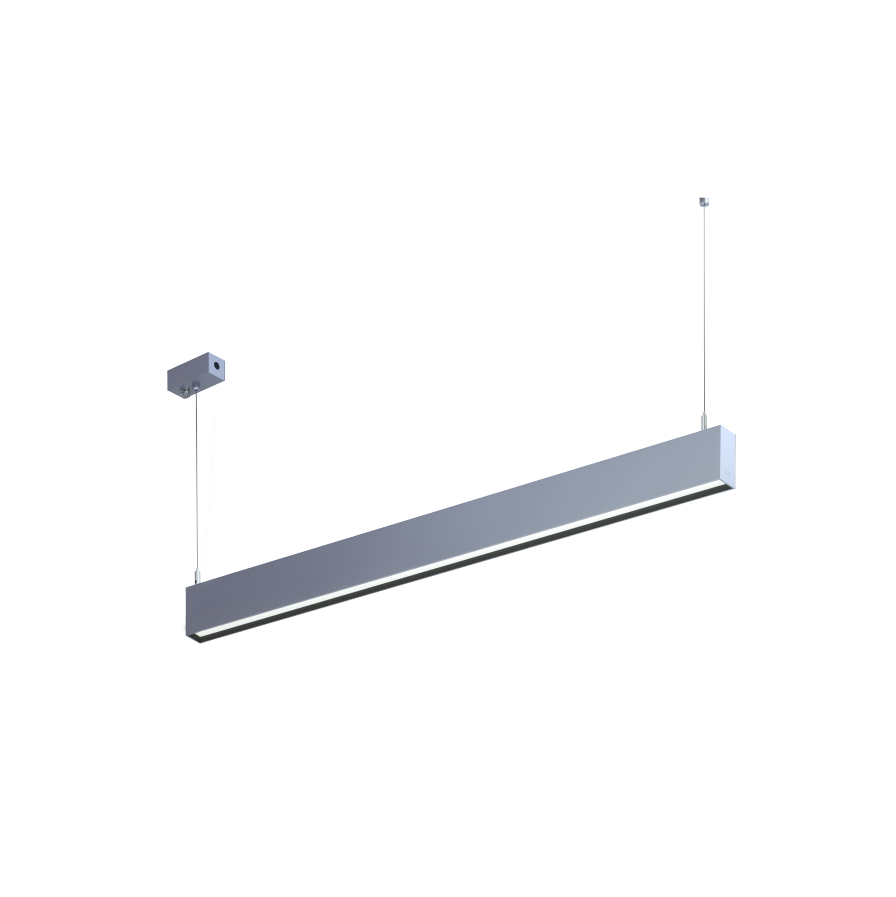

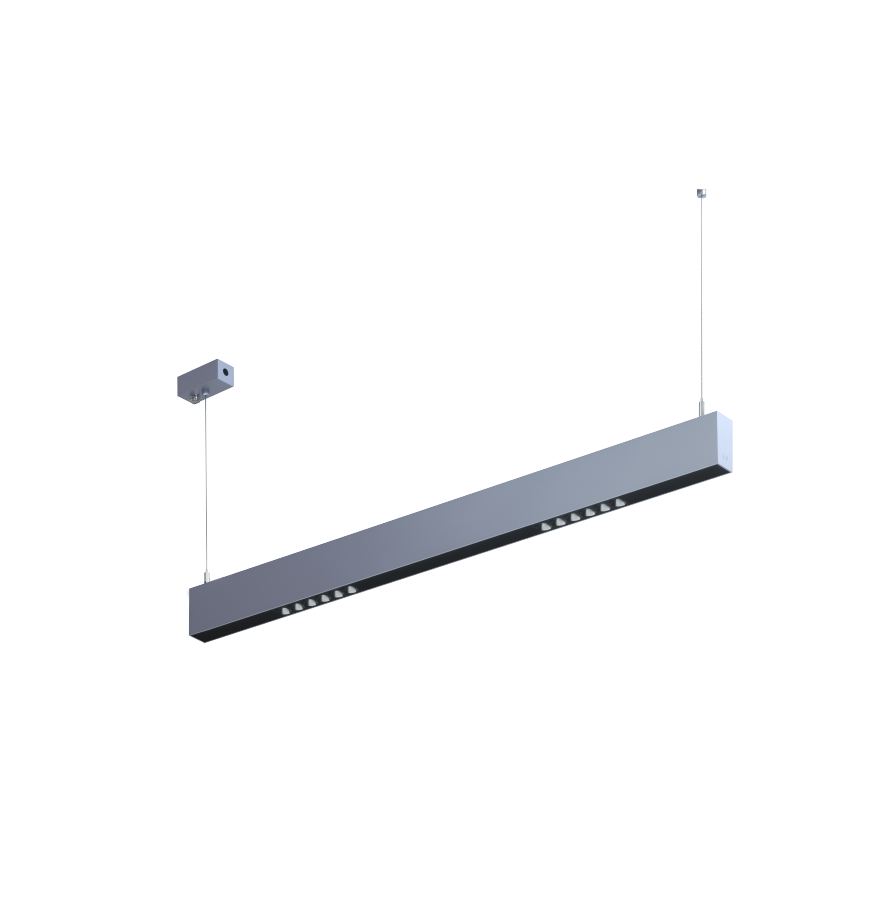

KLEE 36

Optical Units | Suspended Up & Down

KLEE 36

Optical Units | Suspended Up & Down

KLEE 36

Optical Units | Suspended Up & Down

KLEE 36 has exquisite appearance; multiple options for optics provides various aesthetic and visual comfort for offices. The 175° super wide flood upper light makes the indirect lighting extremely uniform. Three standard lengths(1M/1.5M) with multiple power options for each modular.

Easy-to-install structural design, quick-leveling functions, and optimized connection structure make the luminaires more convenient when connecting. KLEE 30 is equipped with a true flicker-free independently developed by VF, providing an excellent flicker-free environment for photographic equipment.

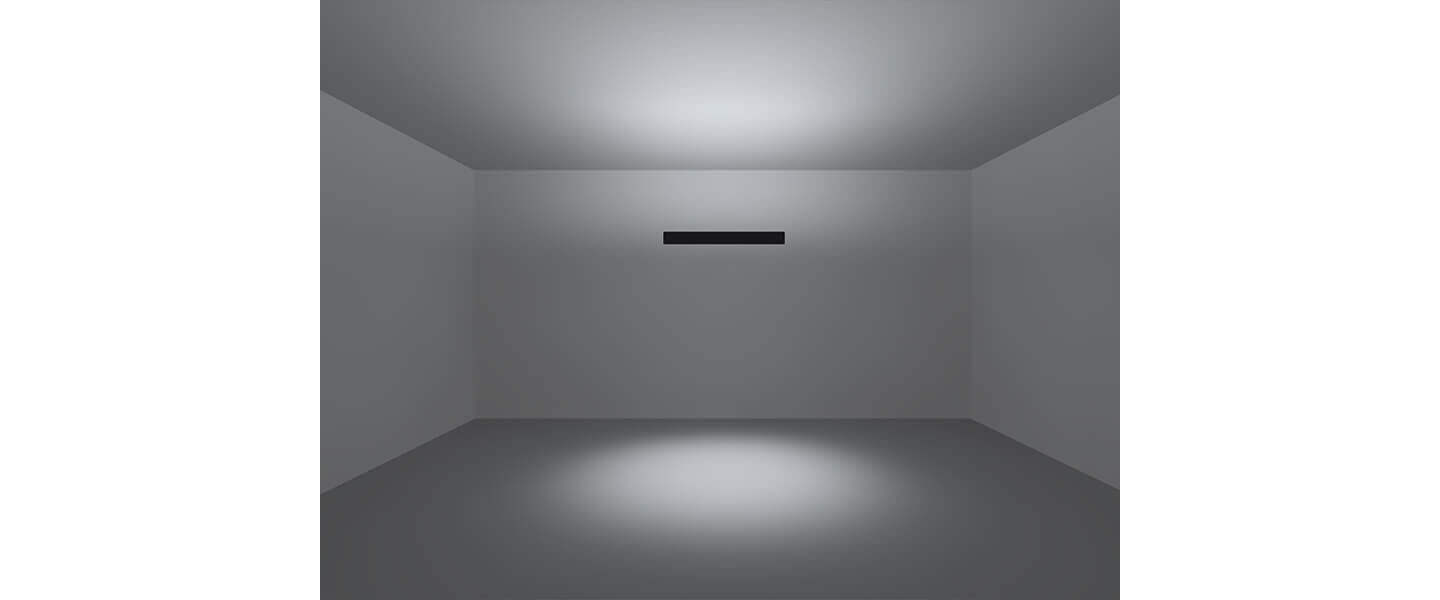

Lighting Effects

Products Specification:: Type:Optical Units | Suspended Up & Down; Beam Angle:UP/DOWN 100x150D/55D; Power:45W 63W 68W 90W; CCT:2700K 3000K 4000K; Weight:2.52kg 3.78kg; Heat-Sink:Aluminum; Surface-Treatment:Plating

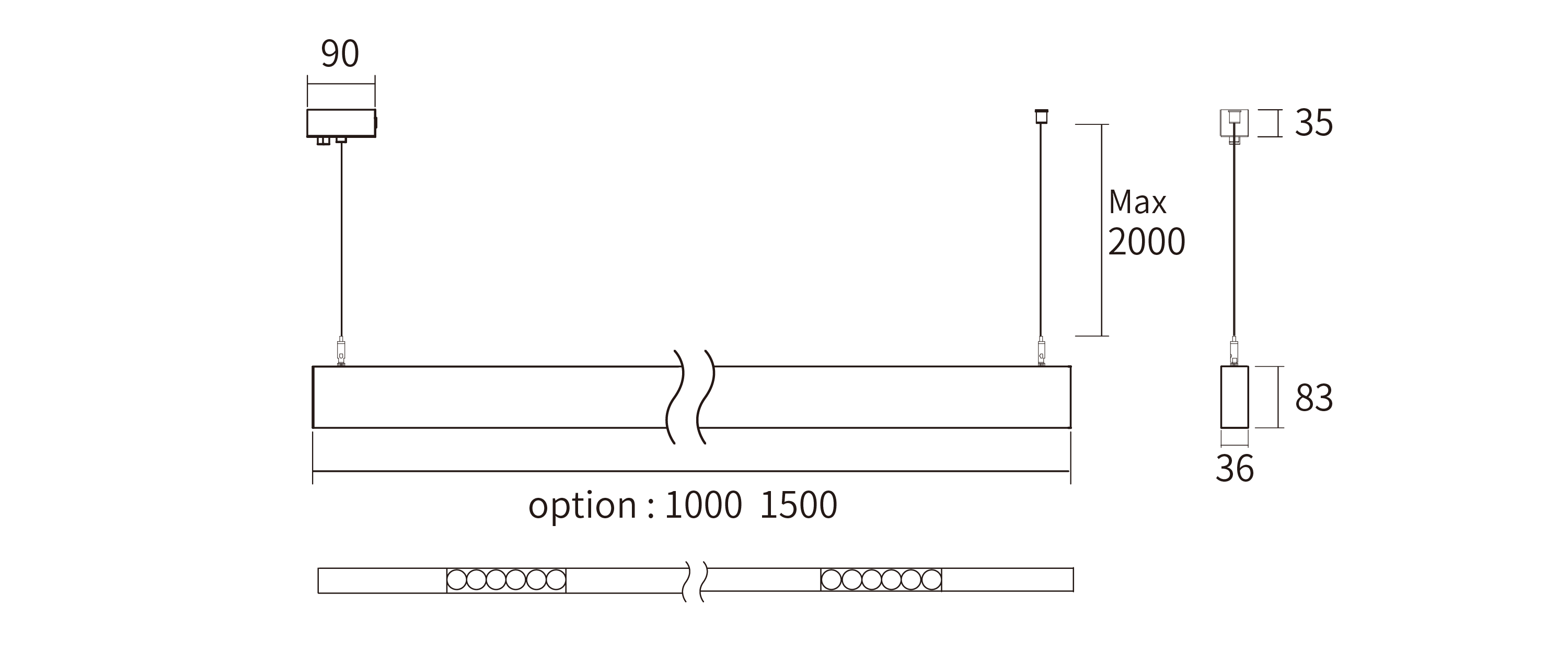

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
15W / 30W
22.5W / 45W
30W / 60W
30W / 15W
45W / 18W
60W / 30W

Beam Angle

Beam Angle
100x150°/55°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming

Finish

Finish
01-White
02-Black
03-Grey

Reflector

Reflector
N/A

IP Rating

IP Rating
20-IP20

Accessory

Accessory
N/A

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: LP00101-45B19027-1M; LP00101-45B19030-1M; LP00101-45B19040-1M; LP00101-45B29027-1M; LP00101-45B29030-1M; LP00101-45B29040-1M; LP00101-63B19027-1.5M; LP00101-63B19030-1.5M; LP00101-63B19040-1.5M; LP00101-68B29027-1.5M; LP00101-68B29030-1.5M; LP00101-68B29040-1.5M; LP00101-90B19027-2M; LP00101-90B19030-2M; LP00101-90B19040-2M; LP00101-90B29027-2M; LP00101-90B29030-2M; LP00101-90B29040-2M

Luminous Flux (LM): UP/DOWN 2891LM/911LM; UP/DOWN 3051LM/962LM; UP/DOWN 3212LM/1012LM; UP/DOWN 1485LM/1661LM; UP/DOWN 1568LM/1753LM; UP/DOWN 1650LM/1845LM; UP/DOWN 4348LM/1370LM; UP/DOWN 4577LM/1442LM; UP/DOWN 4818LM/1518LM; UP/DOWN 2234LM/2498LM; UP/DOWN 2352LM/2630LM; UP/DOWN 2475LM/2768LM; UP/DOWN 4348LM/1827LM; UP/DOWN 4577LM/1923LM; UP/DOWN 4818LM/2024LM; UP/DOWN 2234LM/3331LM; UP/DOWN 2352LM/3506LM; UP/DOWN 2475LM/3691LM

Power (W): 30W / 15W; 30W / 15W; 30W / 15W; 15W / 30W; 15W / 30W; 15W / 30W; 45W / 18W; 45W / 18W; 45W / 18W; 22.5W / 45W; 22.5W / 45W; 22.5W / 45W; 60W / 30W; 60W / 30W; 60W / 30W; 30W / 60W; 30W / 60W; 30W / 60W

Beam Angle: 100x150°/55°; 100x150°/55°; 100x150°/55°; 100x150°/55°; 100x150°/55°; 100x150°/55°; 100x150°/55°; 100x150°/55°; 100x150°/55°; 100x150°/55°; 100x150°/55°; 100x150°/55°; 100x150°/55°; 100x150°/55°; 100x150°/55°; 100x150°/55°; 100x150°/55°; 100x150°/55°
