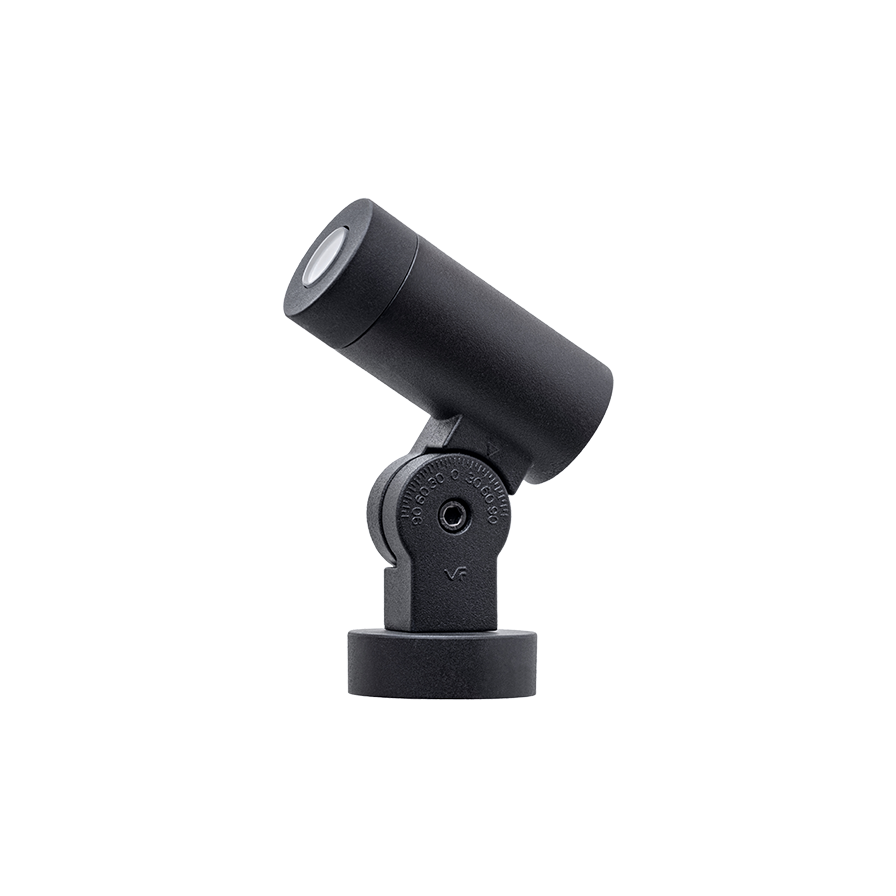

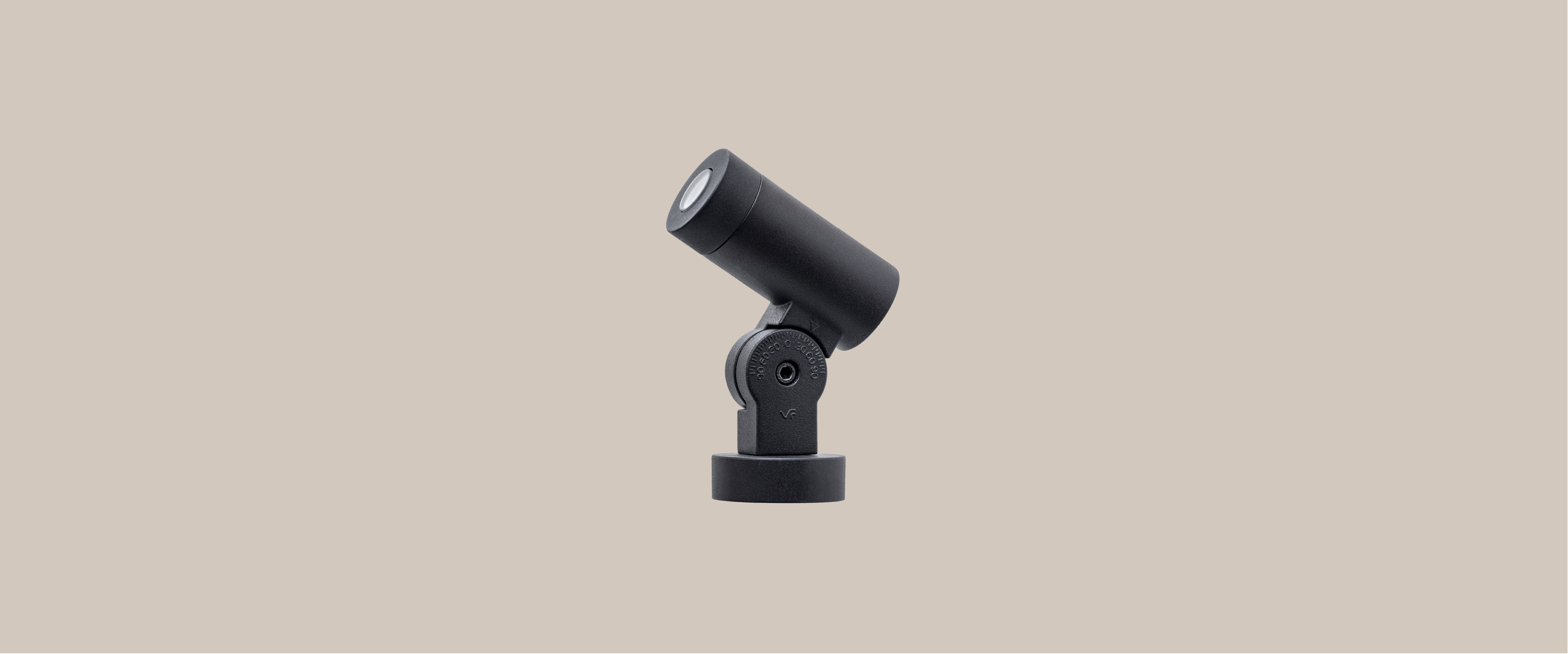

KONANE 70
Projector
KONANE 70
KONANE 70
KONANE 70
KONANE 70
KONANE 70

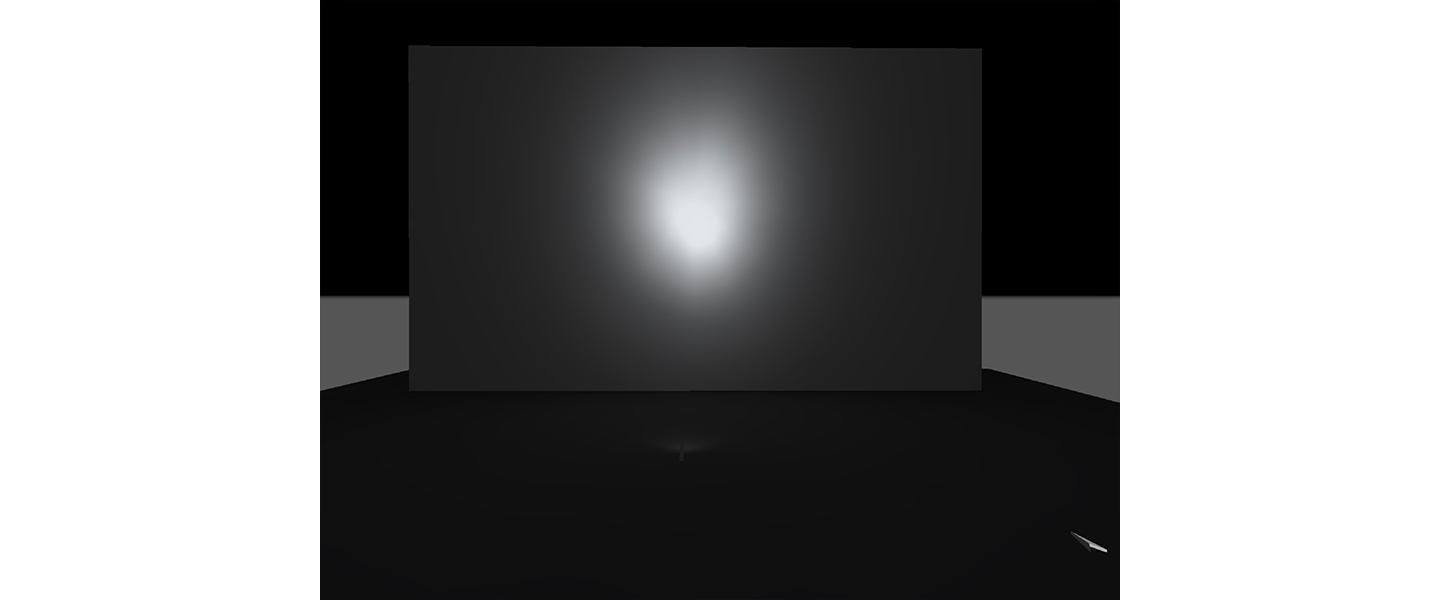

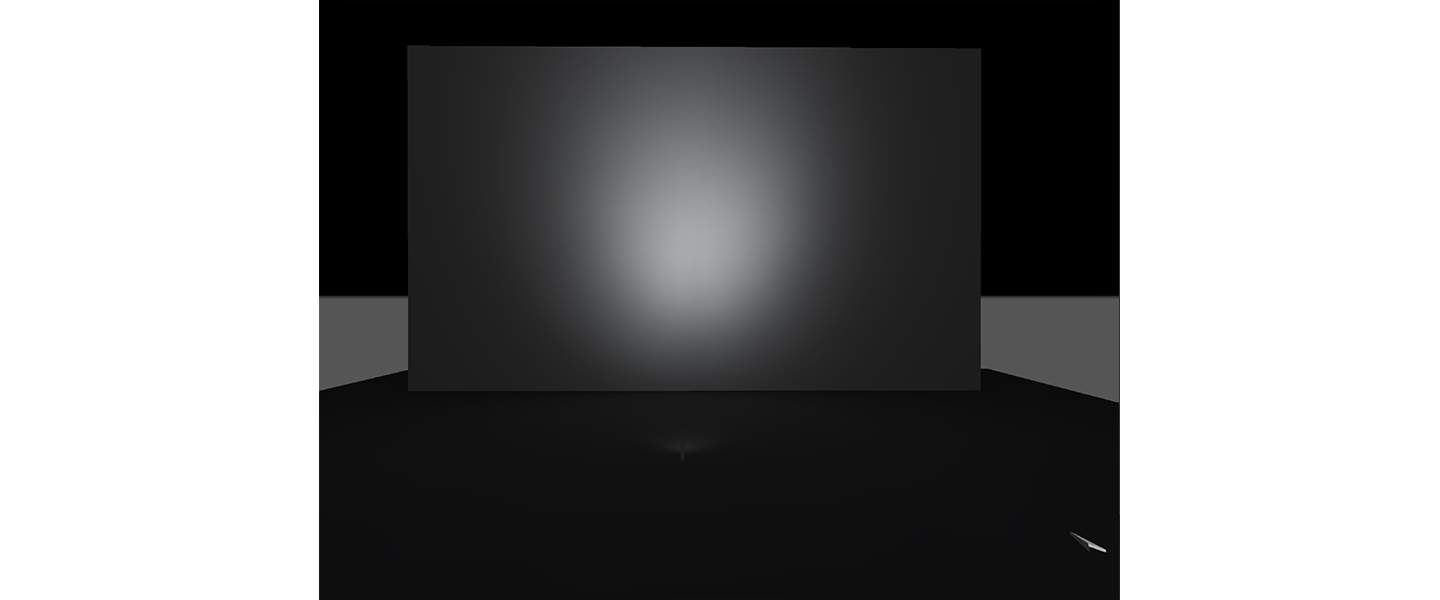

Lighting Effects
- Products Specification:
- Type:floodlighting
- Power:8W 12W 15W
- Beam Angle:15° 24° 36° 50°
- CCT:2400K 2700K 3000K 4000K
- Weight:1.00kg
- Heat-Sink:Aluminum
- Surface-Treatment:powder coating

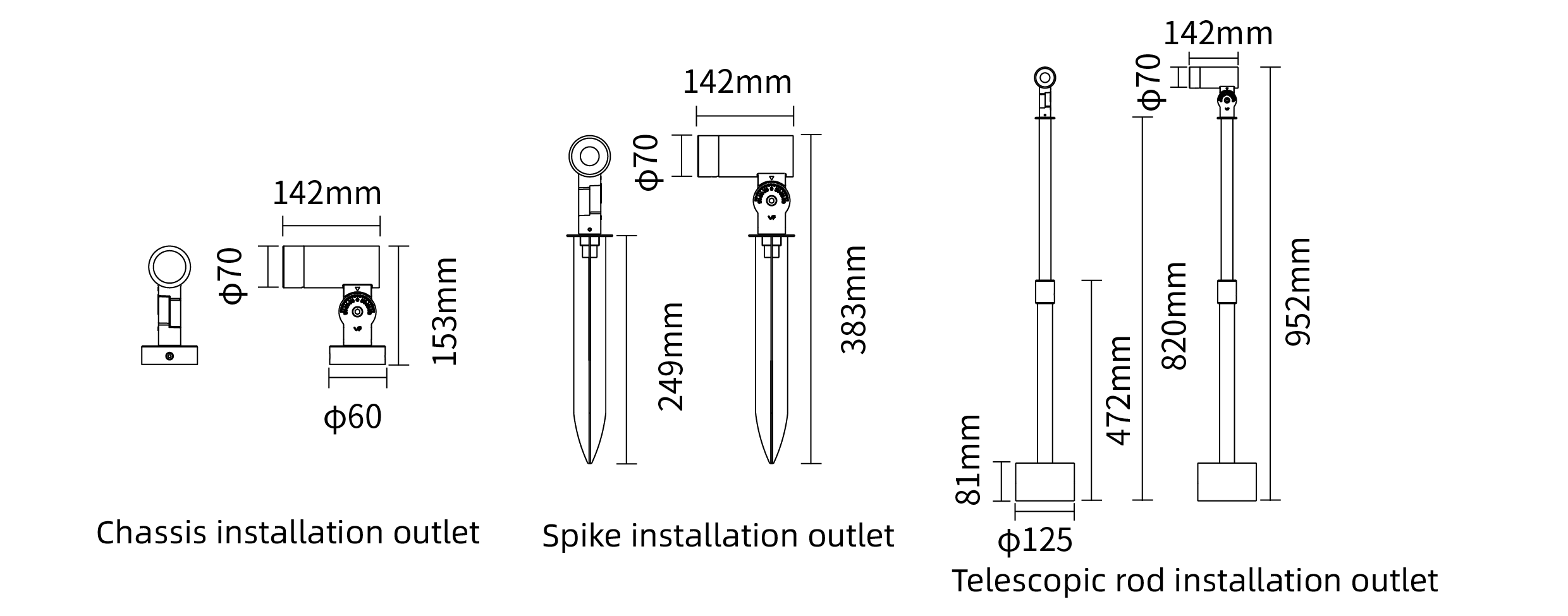

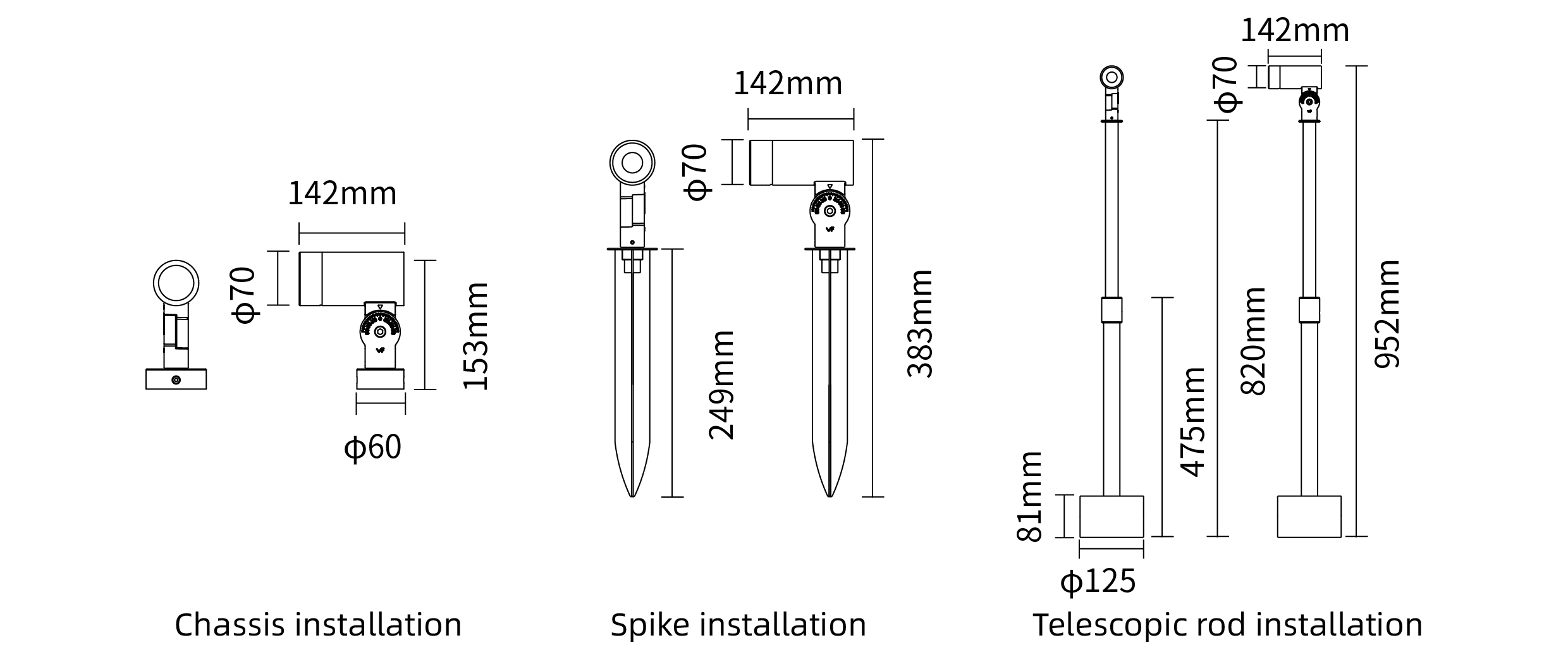

- Line Drawing:
- General Features:

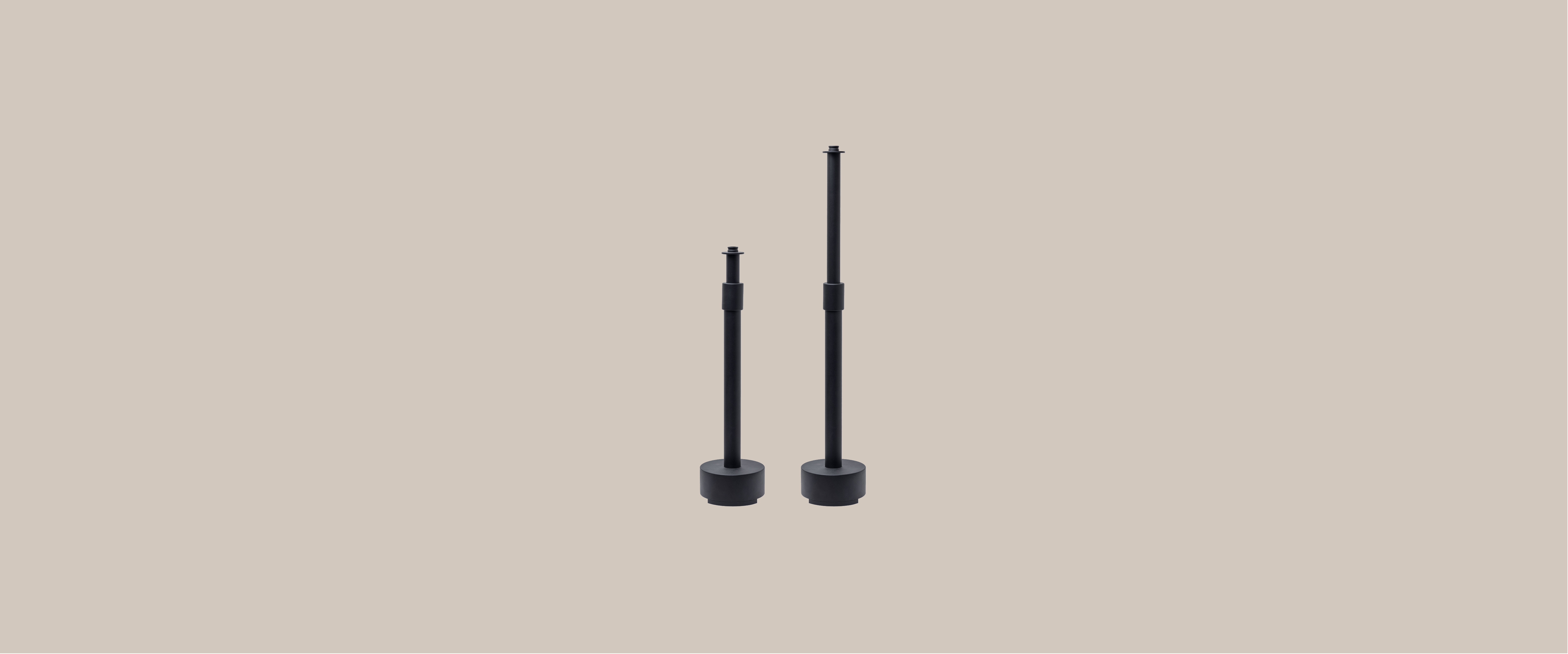

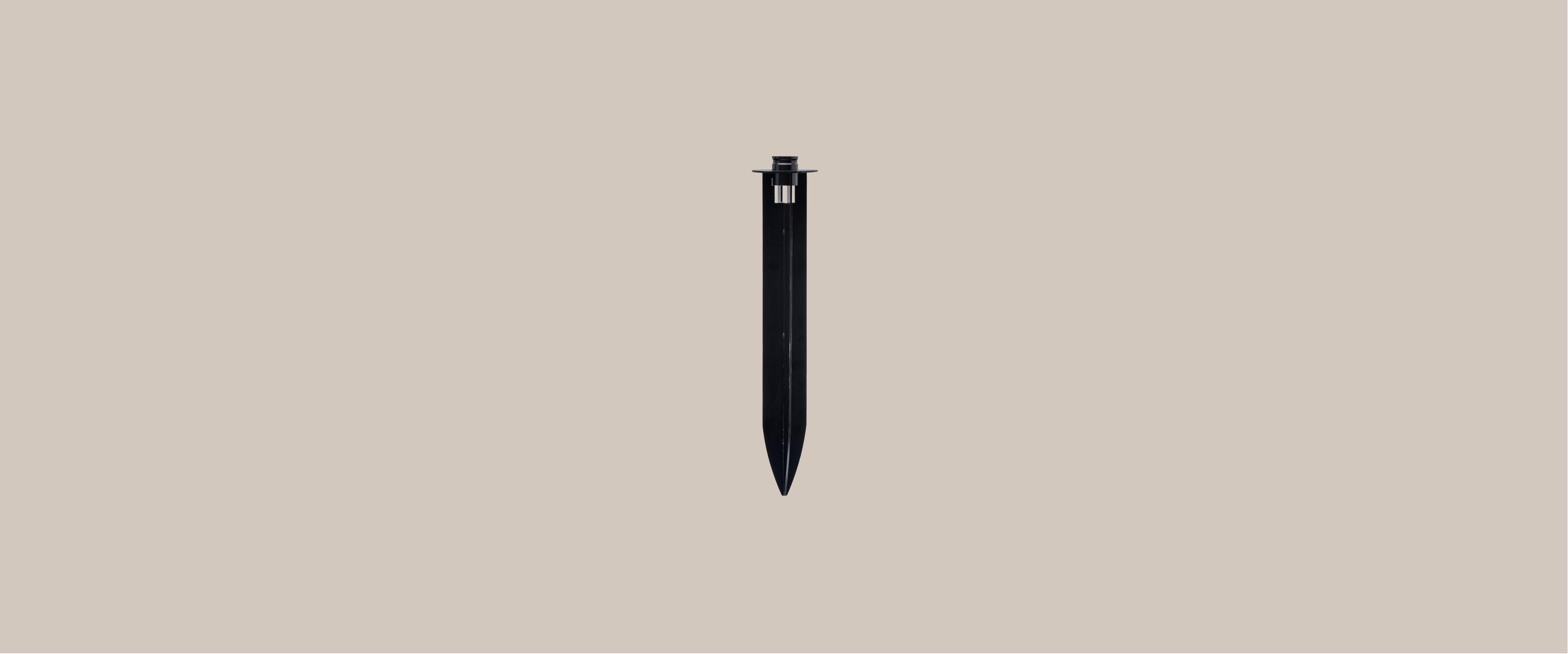

- Accessories:
- Reflector Color:
- Frame Color:
Select your Model No:Power(W)- Power(W)
- 8W
- 12W
- 15W
Beam Angle- Beam Angle
- 15°
- 24°
- 36°
- 50°
CRI- CRI
- Ra>80
Color- Color
- 2400K
- 2700K
- 3000K
- 4000K
Control- Control
Dimming type- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- 5-DMX512
Finish- Finish
- 93-Outdoor black
Reflector- Reflector
- 02-Black
IP Rating- IP Rating
- 65-IP65
Accessory- Accessory
- Honeycomb louver
- Cross louver
- Linear lens
- Soft lens
- Power(W)
- 8W
- 12W
- 15W
- Beam Angle
- 15°
- 24°
- 36°
- 50°
- CRI
- Ra>80
- Color
- 2400K
- 2700K
- 3000K
- 4000K
- Control
- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- 5-DMX512
- Finish
- 93-Outdoor black
- Reflector
- 02-Black
- IP Rating
- 65-IP65
- Accessory
- Honeycomb louver
- Cross louver
- Linear lens
- Soft lens
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite
- Model No
BL00302-08158024
BL00302-08158027
BL00302-08158030
BL00302-08158040
BL00302-12158024
BL00302-12158027
BL00302-12158030
BL00302-12158040
BL00302-15158024
BL00302-15158027
BL00302-15158030
BL00302-15158040
BL00302-08248024
BL00302-08248027
BL00302-08248030
BL00302-08248040
BL00302-12248024
BL00302-12248027
BL00302-12248030
BL00302-12248040
BL00302-15248024
BL00302-15248027
BL00302-15248030
BL00302-15248040
BL00302-08368024
BL00302-08368027
BL00302-08368030
BL00302-08368040
BL00302-12368024
BL00302-12368027
BL00302-12368030
BL00302-12368040
BL00302-15368024
BL00302-15368027
BL00302-15368030
BL00302-15368040
BL00302-08508024
BL00302-08508027
BL00302-08508030
BL00302-08508040
BL00302-12508024
BL00302-12508027
BL00302-12508030
BL00302-12508040
BL00302-15508024
BL00302-15508027
BL00302-15508030
BL00302-15508040
- Luminous Flux (LM)
471LM
498LM
525LM
573LM
761LM
775LM
816LM
883LM
884LM
908LM
956LM
996LM
672LM
710LM
748LM
765LM
949LM
967LM
1018LM
1073LM
1083LM
1113LM
1172LM
1235LM
694LM
734LM
773LM
805LM
997LM
1016LM
1070LM
1129LM
1136LM
1167LM
1229LM
1299LM
698LM
738LM
777LM
819LM
1016LM
1035LM
1090LM
1141LM
1153LM
1184LM
1247LM
1312LM
- Power (W)
8W
8W
8W
8W
12W
12W
12W
12W
15W
15W
15W
15W
8W
8W
8W
8W
12W
12W
12W
12W
15W
15W
15W
15W
8W
8W
8W
8W
12W
12W
12W
12W
15W
15W
15W
15W
8W
8W
8W
8W
12W
12W
12W
12W
15W
15W
15W
15W
- Beam Angle
15°
15°
15°
15°
15°
15°
15°
15°
15°
15°
15°
15°
24°
24°
24°
24°
24°
24°
24°
24°
24°
24°
24°
24°
36°
36°
36°
36°
36°
36°
36°
36°
36°
36°
36°
36°
50°
50°
50°
50°
50°
50°
50°
50°
50°
50°
50°
50°
- CRI
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
- Color
2400K
2700K
3000K
4000K
2400K
2700K
3000K
4000K
2400K
2700K
3000K
4000K
2400K
2700K
3000K
4000K
2400K
2700K
3000K
4000K
2400K
2700K
3000K
4000K
2400K
2700K
3000K
4000K
2400K
2700K
3000K
4000K
2400K
2700K
3000K
4000K
2400K
2700K
3000K
4000K
2400K
2700K
3000K
4000K
2400K
2700K
3000K
4000K
- Control
- Specification
- IES
- DWG
