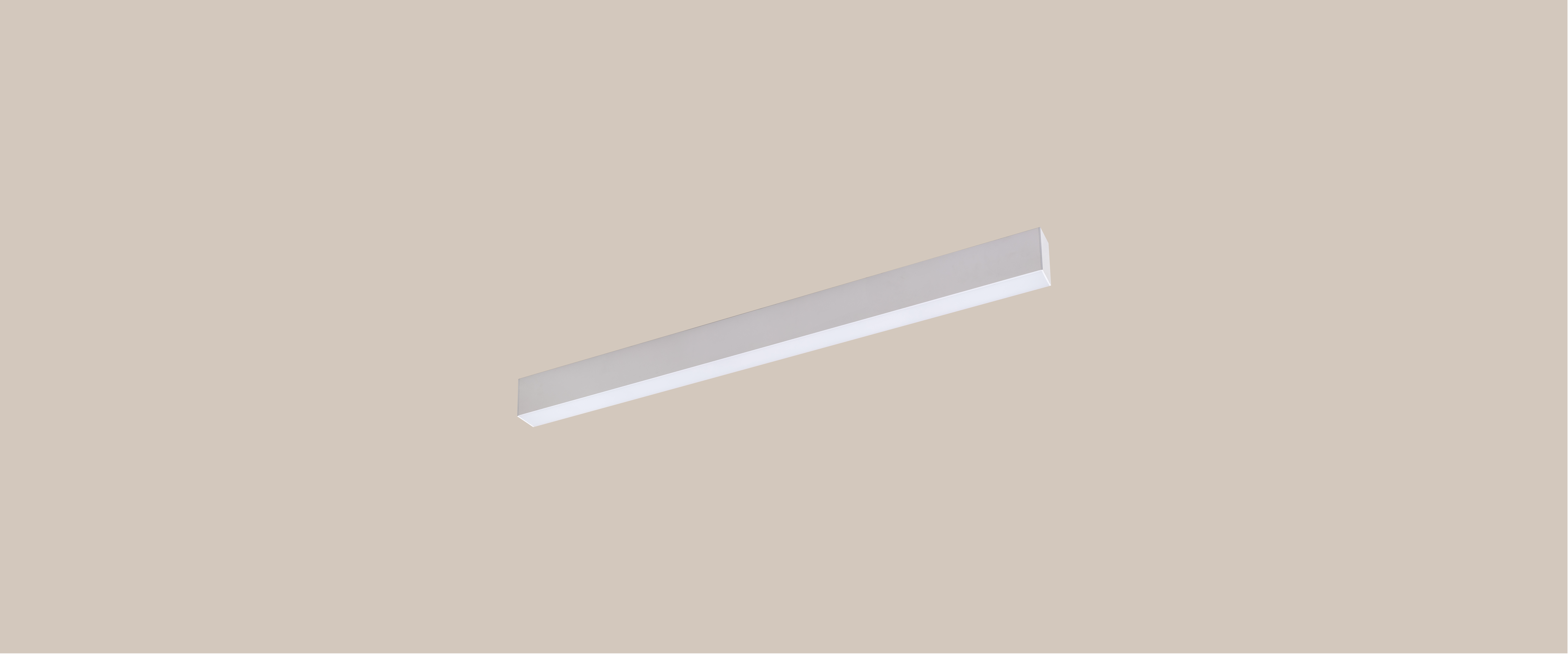

LINA-H 4380
Surfaced-mounted Linear Light-Frosted stripe cover
LINA-H 4380
Lighting Effects
- Products Specification:
- Type:Surfaced-mounted Linear Light-Frosted stripe cover
- Power:10W 15W 20W
- Beam Angle:110D
- CCT:3000K 3500K 4000K
- Weight:1.45kg
- Heat-Sink:Aluminum
- Surface-Treatment:Painting/Powder coating

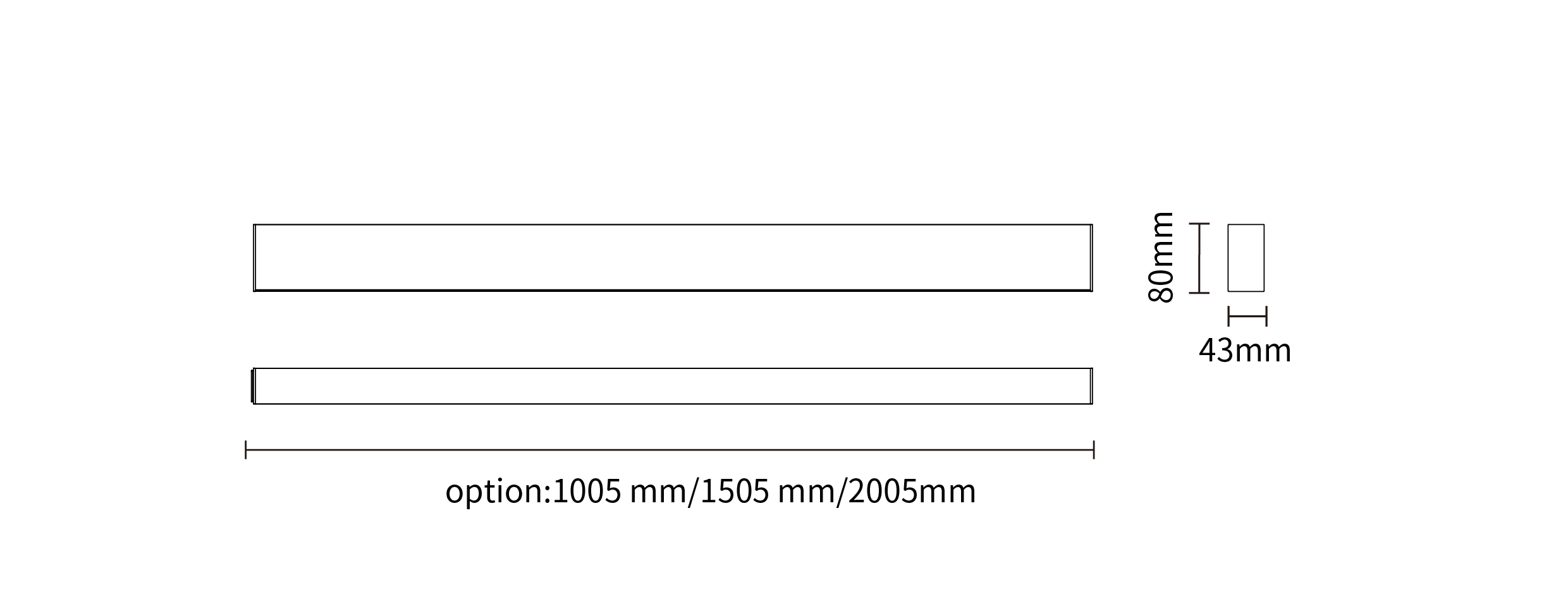

- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
Power(W)
- Power(W)
- 10W
- 15W
- 20W
Beam Angle
- Beam Angle
- 110°
CRI
- CRI
- Ra>90
Color
- Color
- 3000K
- 3500K
- 4000K
Dimming type
- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
Finish
- Finish
- Grey
- Black
- White
Reflector
- Reflector
- N/A
IP Rating
- IP Rating
- 20-IP20
Accessory
- Accessory
- Frosted stripe cover
- Prismatic cover
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
LS01004-10A19030-1M
LS01004-10A19035-1M
LS01004-10A19040-1M
LS01004-15A19030-1.5M
LS01004-15A19035-1.5M
LS01004-15A19040-1.5M
LS01004-20A19030-2M
LS01004-20A19035-2M
LS01004-20A19040-2M
- Luminous Flux (LM)
1053LM
1111LM
1170LM
1666LM
1754LM
1846LM
2153LM
2266LM
2385LM
- Power (W)
10W
10W
10W
15W
15W
15W
20W
20W
20W
- Beam Angle
110°
110°
110°
110°
110°
110°
110°
110°
110°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
3000K
3500K
4000K
3000K
3500K
4000K
3000K
3500K
4000K
- Specification
- IES
- DWG
- manual
- Favorite
