Home Products Indoor CESTA 55 - Adjustable Recessed Downlight H74

CESTA 55

Adjustable Recessed Downlight H74

CESTA 55

Lighting Effects

Products Specification:: Type:Adjustable Recessed Downlight H74; Cut-Out:ø55 mm; Beam Angle:10D 15D 24D 35D 50D; Power:5W 8W; Weight:0.12kg; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:Painting+Plating

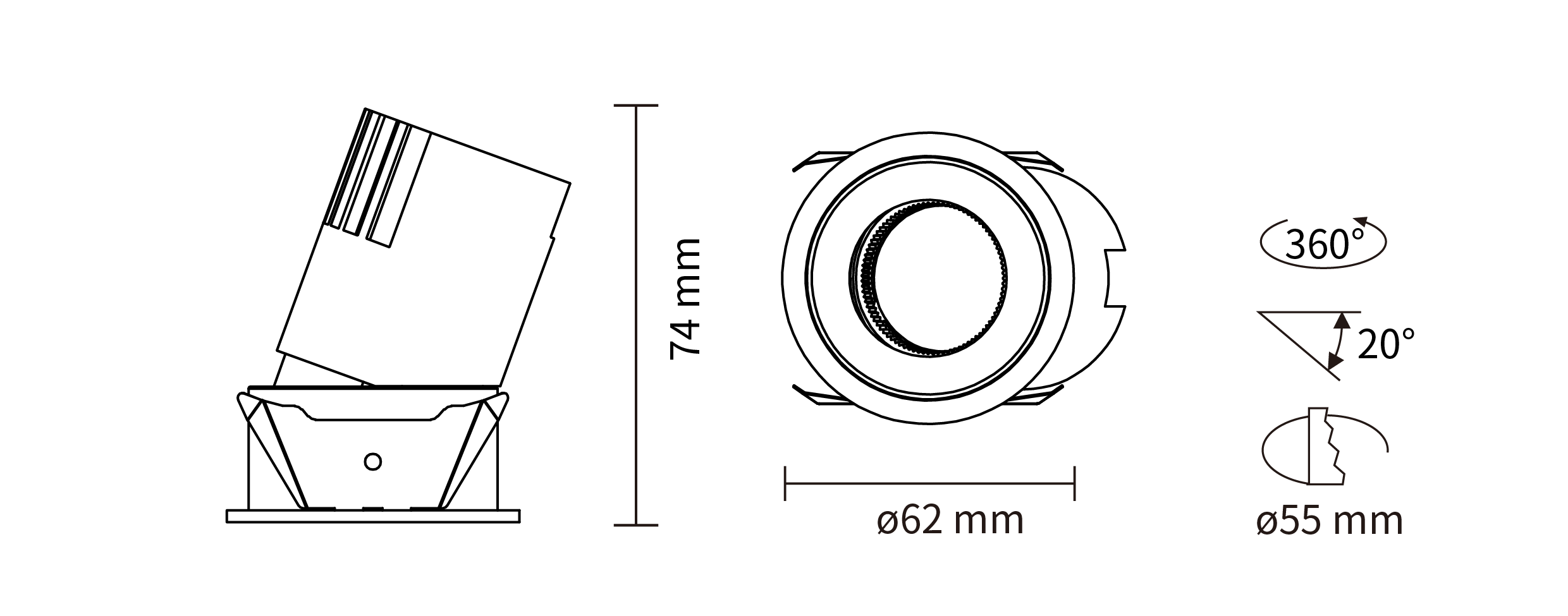

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
5W
8W

Beam Angle

Beam Angle
10°
15°
24°
35°
50°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
2-Phase dimming
3-0-10V dimming
4-DALI dimming

Finish

Finish
Black
White

Reflector

Reflector
Mirror
White
Black

IP Rating

IP Rating
20-IP20

Accessory

Accessory
Honeycomb louver
Linear lens
Soft lens

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: DR01310-05109027-H1; DR01310-05109030-H1; DR01310-05109040-H1; DR01310-05159027-H1; DR01310-05159030-H1; DR01310-05159040-H1; DR01310-05249027-H1; DR01310-05249030-H1; DR01310-05249040-H1; DR01310-05359027-H1; DR01310-05359030-H1; DR01310-05359040-H1; DR01310-05509027-H1; DR01310-05509030-H1; DR01310-05509040-H1; DR01310-08109027-H1; DR01310-08109030-H1; DR01310-08109040-H1; DR01310-08159027-H1; DR01310-08159030-H1; DR01310-08159040-H1; DR01310-08249027-H1; DR01310-08249030-H1; DR01310-08249040-H1; DR01310-08359027-H1; DR01310-08359030-H1; DR01310-08359040-H1; DR01310-08509027-H1; DR01310-08509030-H1; DR01310-08509040-H1

Luminous Flux (LM): 256LM; 270LM; 283LM; 317LM; 334LM; 350LM; 421LM; 443LM; 465LM; 412LM; 434LM; 455LM; 347LM; 365LM; 383LM; 349LM; 367LM; 385LM; 496LM; 523LM; 549LM; 681LM; 717LM; 752LM; 676LM; 712LM; 747LM; 555LM; 584LM; 613LM

Power (W): 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W

Beam Angle: 10°; 10°; 10°; 15°; 15°; 15°; 24°; 24°; 24°; 35°; 35°; 35°; 50°; 50°; 50°; 10°; 10°; 10°; 15°; 15°; 15°; 24°; 24°; 24°; 35°; 35°; 35°; 50°; 50°; 50°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K

Specification

IES

DWG

manual

Favorite
