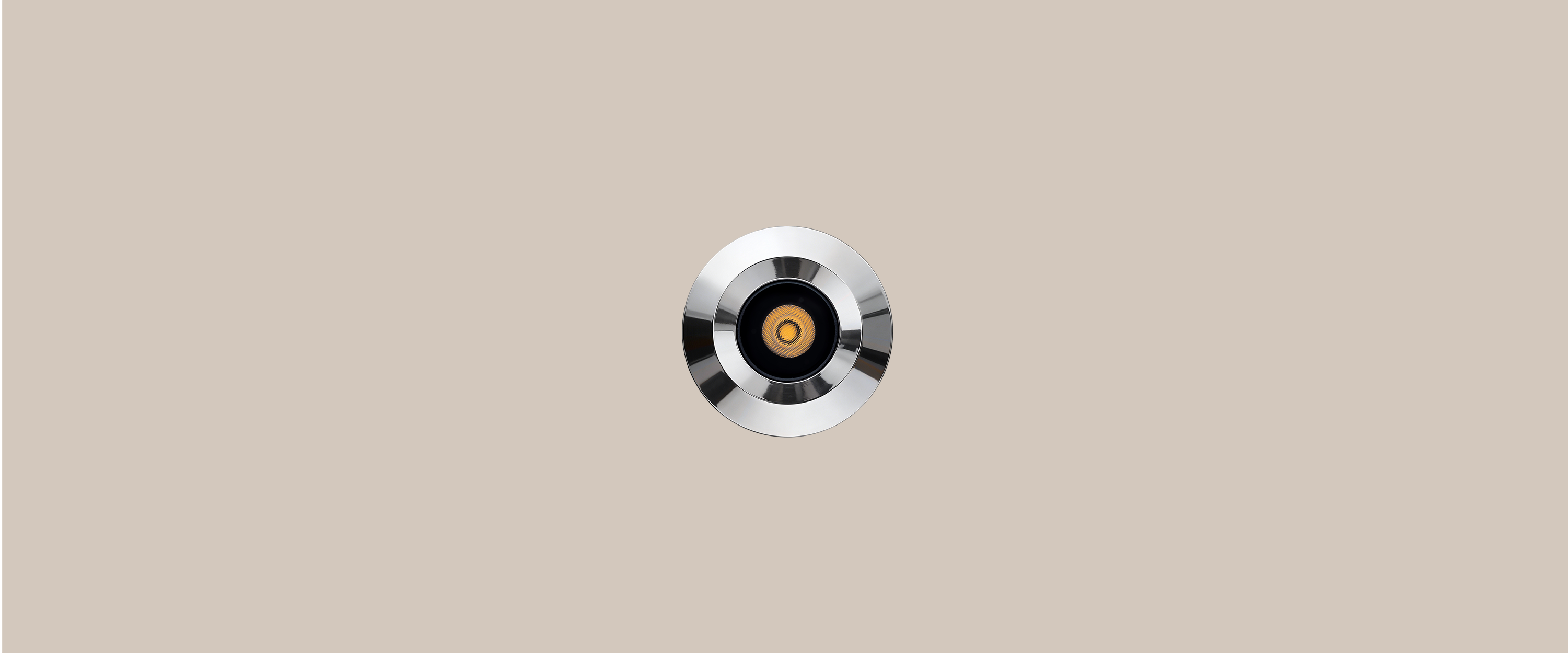

ASTA II 30
In-Ground Light
ASTA II 30
Lighting Effects
- Products Specification:
- Type:In-Ground Light
- Beam Angle:15D 20D 30D
- Power:1W
- Dimension:φ30x68mm
- Embedded Part Dimension:φ27x90mm/φ80x100mm
- Weight:0.1kg 0.16kg
- CCT:2700K 3000K 4000K
- Heat-Sink:①Indoor: Aluminum ②Outdoor: Stainless Steel
- Surface-Treatment:Powder Coating
- Line Drawing:
- General Features:
- Accessories:
- Reflector Color:
- Frame Color:
Select your Model No:Power(W)- Power(W)
- 1W
Beam Angle- Beam Angle
- 15°
- 20°
- 30°
CRI- CRI
- >90
Color- Color
- 2700K
- 3000K
- 4000K
Control- Control
- ON/OFF//0-10V/DALI/DMX
Dimming type- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- 5-DMX512
Finish- Finish
- A3-Stainless
Reflector- Reflector
- N/A
IP Rating- IP Rating
- 65-IP65
- 67-IP67
Accessory- Accessory
- Honeycomb louver
Power(W)
- Power(W)
- 1W
Beam Angle
- Beam Angle
- 15°
- 20°
- 30°
CRI
- CRI
- >90
Color
- Color
- 2700K
- 3000K
- 4000K
Control
- Control
- ON/OFF//0-10V/DALI/DMX
Dimming type
- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- 5-DMX512
Finish
- Finish
- A3-Stainless
Reflector
- Reflector
- N/A
IP Rating
- IP Rating
- 65-IP65
- 67-IP67
Accessory
- Accessory
- Honeycomb louver
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite
- Model No
BB00213-01159027
BB00213-01159030
BB00213-01159040
BB00213-01209027
BB00213-01209030
BB00213-01209040
BB00213-01309027
BB00213-01309030
BB00213-01309040
- Luminous Flux (LM)
27LM
29LM
30LM
32LM
34LM
36LM
38LM
41LM
43LM
- Power (W)
1W
1W
1W
1W
1W
1W
1W
1W
1W
- Beam Angle
15°
15°
15°
20°
20°
20°
30°
30°
30°
- CRI
>90
>90
>90
>90
>90
>90
>90
>90
>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
- Control
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
- Specification
- IES
- DWG
- manual
- Favorite
