Home Products Outdoor ASTA II 30 - In-Ground Light

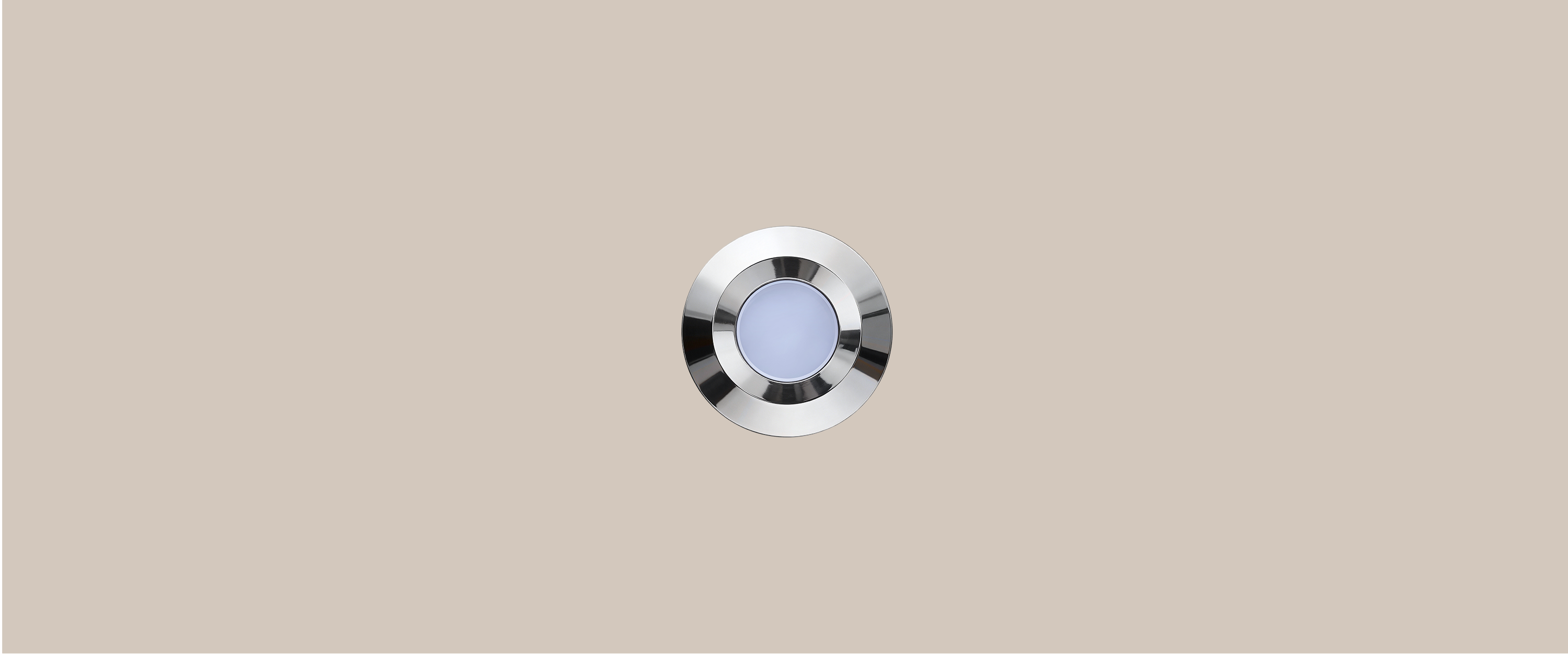

ASTA II 30

In-Ground Light

ASTA II 30

Lighting Effects

Products Specification:: Type:In-Ground Light; Beam Angle:diffuser; Power:0.1W 0.2W 0.3W; Dimension:φ30x42mm; Embedded Part Dimension:φ27x70mm/φ80x100mm; Weight:0.07kg 0.12kg; CCT:2700K 3000K 4000K; Heat-Sink:①Indoor: Aluminum ②Outdoor: Stainless Steel; Surface-Treatment:Powder Coating

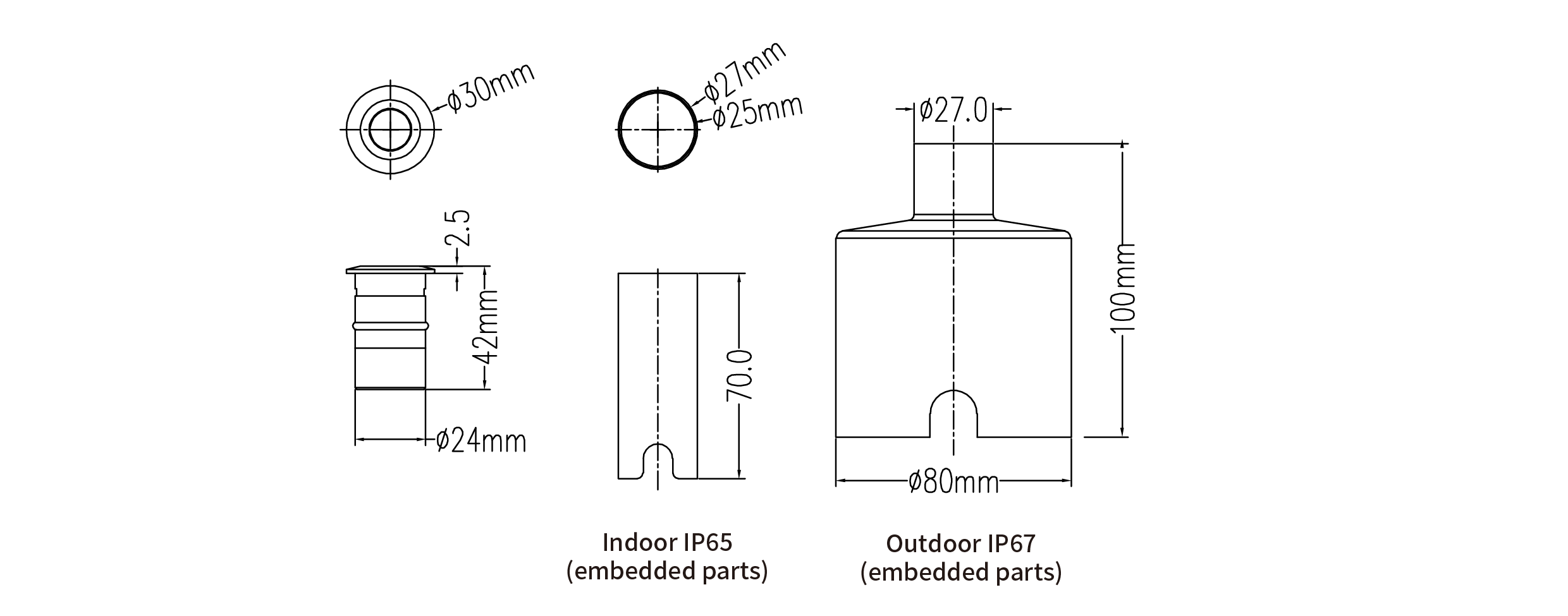

Line Drawing:

General Features:

Accessories:

Reflector Color:

Frame Color:

Select your Model No:

Power(W)

Power(W)
0.1W
0.2W
0.3W

Beam Angle

Beam Angle
diffuser

CRI

CRI
>90

Color

Color
2700K
3000K
4000K

Control

Control
ON/OFF//0-10V/DALI/DMX

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming
5-DMX512

Finish

Finish
A3-Stainless

Reflector

Reflector
N/A

IP Rating

IP Rating
65-IP65
67-IP67

Accessory

Accessory
N/A

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite

Model No: BB00213-00A19027; BB00213-00A19030; BB00213-00A19040; BB00213-00A29027; BB00213-00A29030; BB00213-00A29040; BB00213-00A39027; BB00213-00A39030; BB00213-00A39040

Luminous Flux (LM): 0.45LM; 0.47LM; 0.49LM; 0.89LM; 0.94LM; 0.99LM; 1.34LM; 1.41LM; 1.48LM

Power (W): 0.1W; 0.1W; 0.1W; 0.2W; 0.2W; 0.2W; 0.3W; 0.3W; 0.3W

Beam Angle: diffuser; diffuser; diffuser; diffuser; diffuser; diffuser; diffuser; diffuser; diffuser

CRI: >90; >90; >90; >90; >90; >90; >90; >90; >90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K

Control: ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX

Specification

IES

DWG

manual

Favorite
