ASTA II 50

In-Ground Light

ASTA II 50

Lighting Effects

Products Specification:: Type:In-Ground Light; Beam Angle:diffuser; Power:0.5W 1W 2W; Dimension:φ50x58mm; Embedded Part Dimension:φ45x85mm/φ100x120mm; Weight:0.22kg 0.40kg; CCT:2700K 3000K 4000K; Heat-Sink:①Indoor: Aluminum ②Outdoor: Stainless Steel; Surface-Treatment:Powder Coating

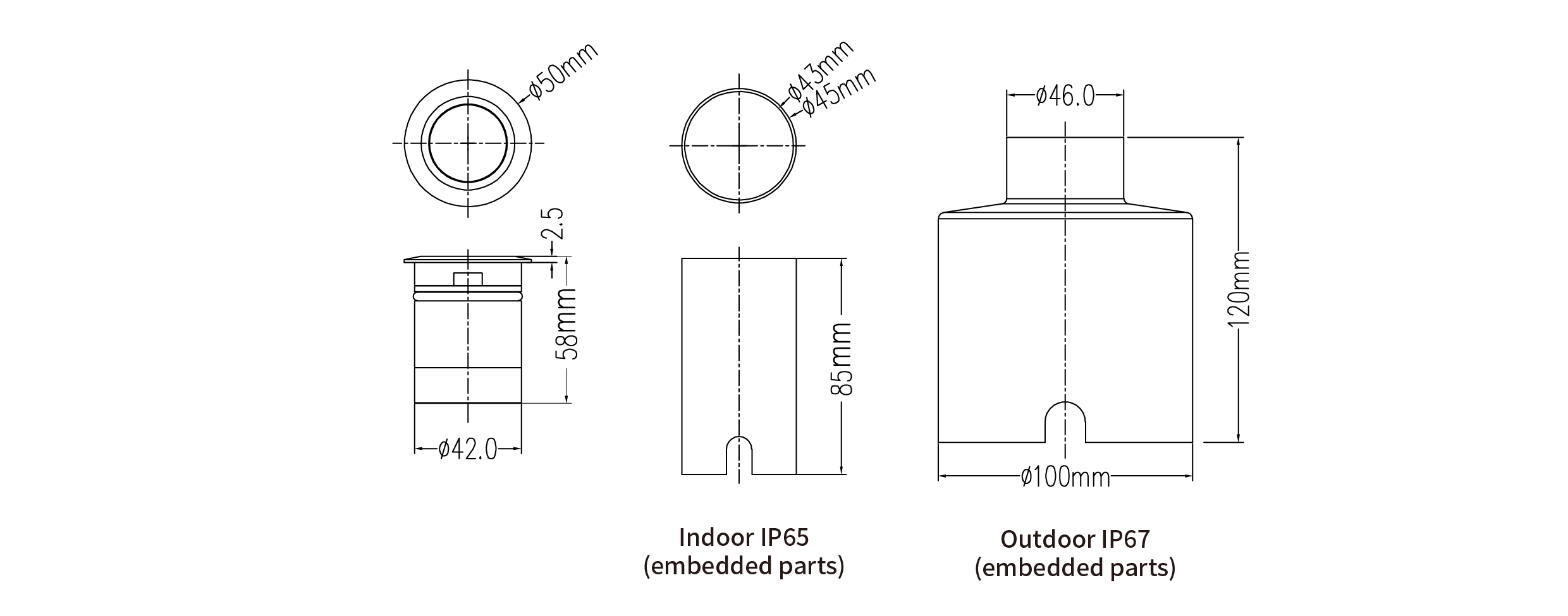

Line Drawing:

General Features:

Accessories:

Reflector Color:

Frame Color:

Select your Model No:

Power(W)

Power(W)
0.5W
1W
2W

Beam Angle

Beam Angle
diffuser

CRI

CRI
>90

Color

Color
2700K
3000K
4000K

Control

Control
ON/OFF//0-10V/DALI/DMX

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming
5-DMX512

Finish

Finish
A3-Stainless

Reflector

Reflector
N/A

IP Rating

IP Rating
65-IP65
67-IP67

Accessory

Accessory
N/A

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite

Model No: BB00210-00A19027; BB00210-00A19030; BB00210-00A19040; BB00210-01A19027; BB00210-01A19030; BB00210-01A19040; BB00210-02A19027; BB00210-02A19030; BB00210-02A19040

Luminous Flux (LM): 10LM; 10LM; 11LM; 20LM; 21LM; 22LM; 40LM; 42LM; 45LM

Power (W): 0.5W; 0.5W; 0.5W; 1W; 1W; 1W; 2W; 2W; 2W

Beam Angle: diffuser; diffuser; diffuser; diffuser; diffuser; diffuser; diffuser; diffuser; diffuser

CRI: >90; >90; >90; >90; >90; >90; >90; >90; >90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K

Control: ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX; ON/OFF//0-10V/DALI/DMX

Specification

IES

DWG

manual

Favorite

Application
