LINNOU 65
Round Fixed Trimless Recessed Downlight
LINNOU 65
Small & delicate great practicality
LINNOU 65
Small & delicate great practicality
Creative design with small, thin and deep style. LINNOU lamp's overall minimum size is only Ø 60 * H72mm. LINNOU is named for its compact shape, which saves the hole opening size when installing, effectively solves the problem that the big hole opening on the ceiling may destroy skyline integrity of the space. In addition, the delicate lamps can be lively coordinated with the reflector which has a variety of color. Designers can choose different reflector according to the comprehensive color of ceiling and space, to present both practicability and beauty.
Through the clever and ultra-thin design of adjustable lamps, and the minimum height of lamps is controlled in the range of 75 mm. In satisfying the inside height 80 mm under ceiling, it maximally saves the indoor space. And in view of the small size light's new spring design, under the condition of meet the polarization of 30 degrees, it can effectively solve the problem of installation requirements on thickness 8 ~ 20 mm of ceiling. Design innovation and practicality is presented incisively and vividly in the research and development and application of the LINNOU series downlight.
Lighting Effects
- Products Specification:
- Type:Round Fixed Trimless Recessed Downlight
- Cut-Out:ø 65mm
- Beam Angle:10D 15D 26D 36D 54D
- Power:5W 7W 10W
- Weight:0.27kg
- CCT:2700K 3000K 4000K
- Heat-Sink:Aluminum
- Surface-Treatment:painting+plating
- Remarks:accessories not available for 10D models

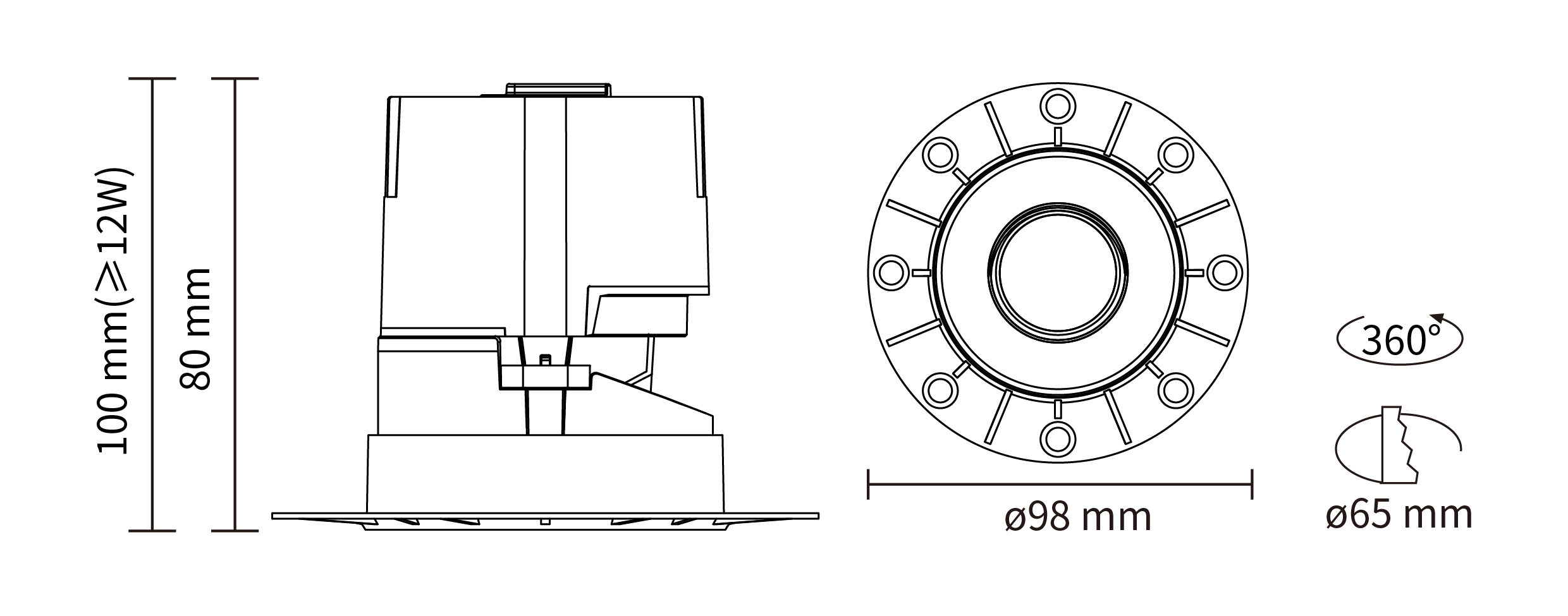

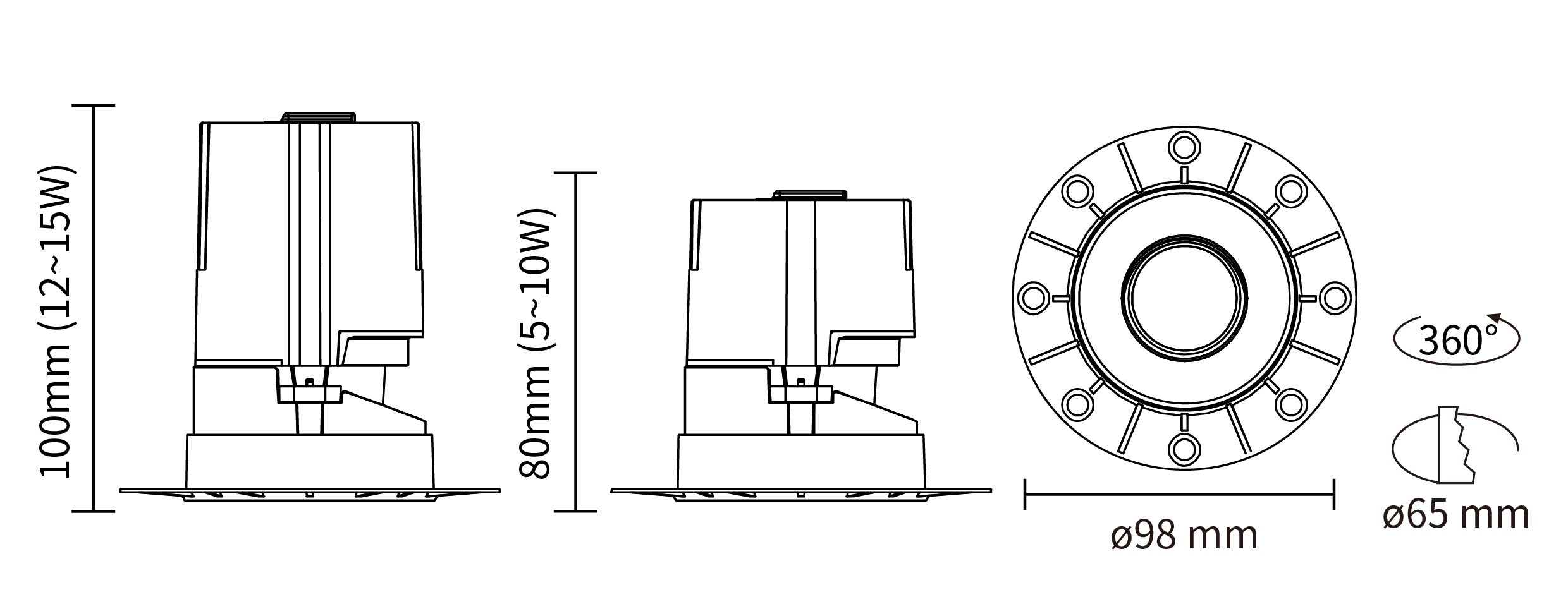

- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
- Power(W)
- 5W
- 7W
- 10W
- Beam Angle
- 10°
- 15°
- 26°
- 36°
- 54°
- CRI
- Ra>90
- Color
- 2700K
- 3000K
- 4000K
- Dimming type
- 1-Non Dim
- 2-Phase dimming
- 3-0-10V dimming
- 4-DALI dimming
- Finish
- White
- Black
- Reflector
- White
- Black
- Mirror
- IP Rating
- 20-IP20
- 44-IP44
- Accessory
- Honeycomb louver
- Linear lens
- Soft lens
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
DR00709-05102790
DR00709-05103090
DR00709-05104090
DR00709-05159027
DR00709-05159030
DR00709-05159040
DR00709-05269027
DR00709-05269030
DR00709-05269040
DR00709-05369027
DR00709-05369030
DR00709-05369040
DR00709-05549027
DR00709-05549030
DR00709-05549040
DR00709-07102790
DR00709-07103090
DR00709-07104090
DR00709-07159027
DR00709-07159030
DR00709-07159040
DR00709-07269027
DR00709-07269030
DR00709-07269040
DR00709-07369027
DR00709-07369030
DR00709-07369040
DR00709-07549027
DR00709-07549030
DR00709-07549040
DR00709-10102790
DR00709-10103090
DR00709-10104090
DR00709-10159027
DR00709-10159030
DR00709-10159040
DR00709-10269027
DR00709-10269030
DR00709-10269040
DR00709-10369027
DR00709-10369030
DR00709-10369040
DR00709-10549027
DR00709-10549030
DR00709-10549040
- Luminous Flux (LM)
161LM
170LM
171LM
365LM
385LM
441LM
334LM
352LM
440LM
393LM
414LM
442LM
377LM
397LM
405LM
197LM
207LM
212LM
457LM
482LM
504LM
422LM
445LM
510LM
460LM
485LM
513LM
438LM
462LM
471LM
288LM
303LM
308LM
694LM
731LM
741LM
658LM
693LM
807LM
736LM
775LM
808LM
698LM
735LM
756LM
- Power (W)
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
10W
10W
10W
10W
10W
10W
10W
10W
10W
10W
10W
10W
10W
10W
10W
- Beam Angle
10°
10°
10°
15°
15°
15°
26°
26°
26°
36°
36°
36°
54°
54°
54°
10°
10°
10°
15°
15°
15°
26°
26°
26°
36°
36°
36°
54°
54°
54°
10°
10°
10°
15°
15°
15°
26°
26°
26°
36°
36°
36°
54°
54°
54°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
- Specification
- IES
- DWG
- manual
- Favorite
