MAGIC 120

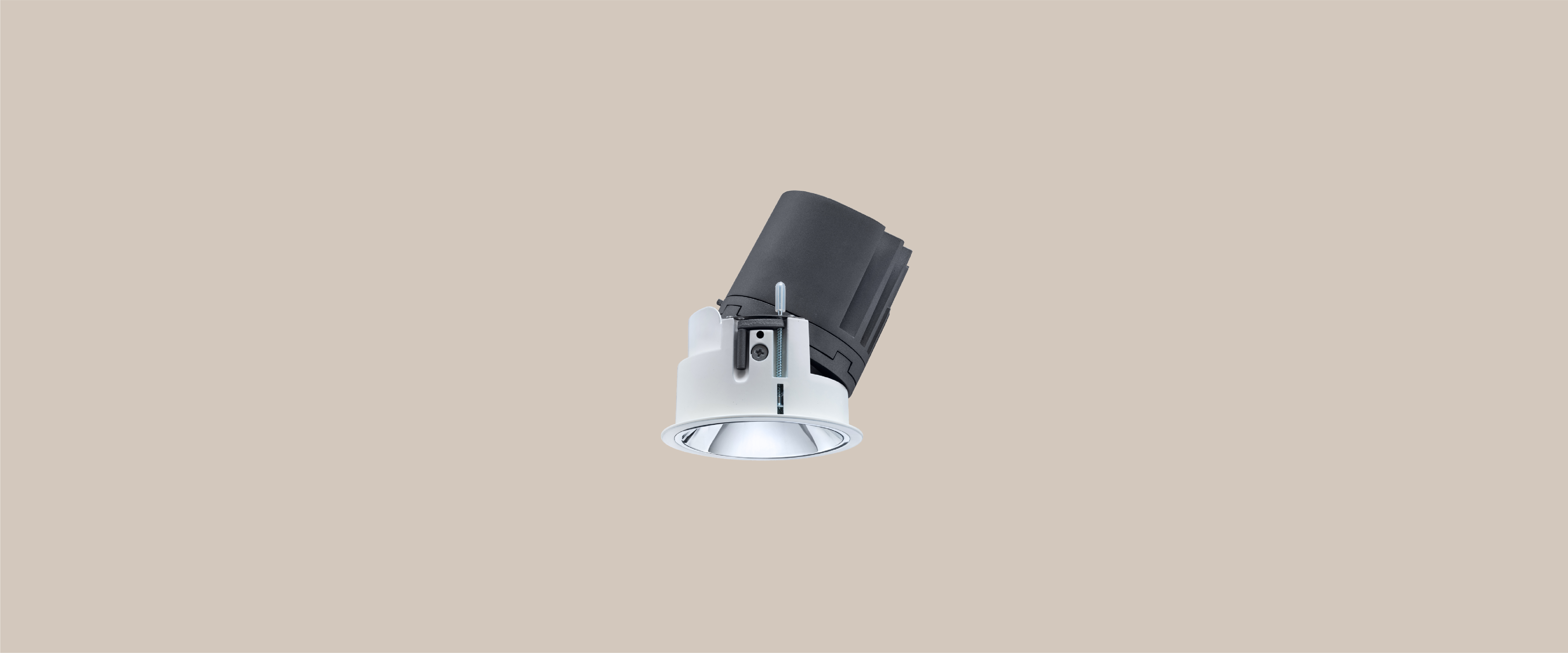

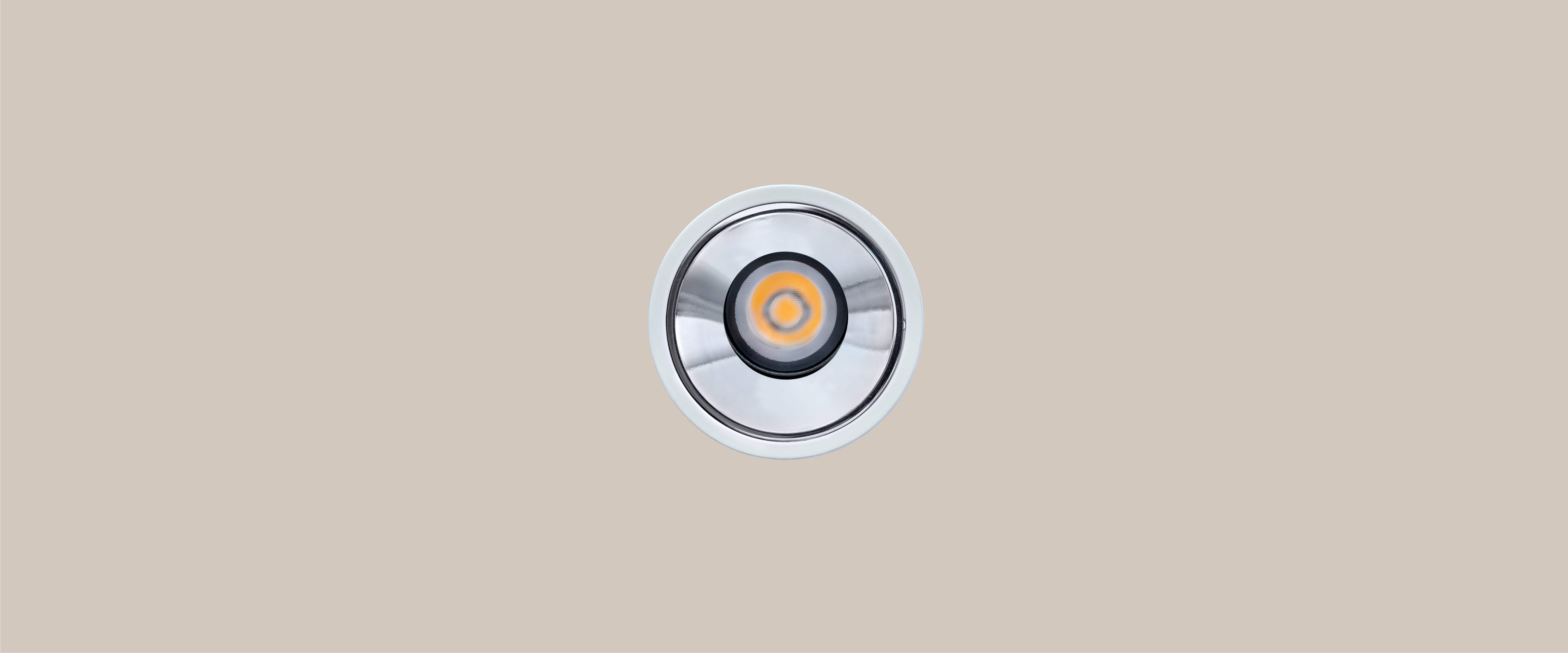

LED COB Round Adjustable Recessed Downlight

MAGIC 120

MAGIC 120

Lighting Effects

Products Specification:: Type:Recessed Downlight; Cutout:120mm; Power:20W 28W 32W 42W; CCT:2700K 3000K 4000K; Beam Angle:15D 28D 37D; Weight:1.25kg; Heat-Sink:Die-Cast Aluminum; Surface-Treatment:Powder Spraying

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
20W
28W
32W

Beam Angle

Beam Angle
15°
28°
37°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
2-Phase dimming
3-0-10V dimming
4-DALI dimming

Finish

Finish
White

Reflector

Reflector
White
Black
Mirror
Black chromium plating

IP Rating

IP Rating
44-IP44

Accessory

Accessory
Honeycomb louver

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: DR00104-20159027; DR00104-20289027; DR00104-20379027; DR00104-20159030; DR00104-20289030; DR00104-20379030; DR00104-20159040; DR00104-20289040; DR00104-20379040; DR00104-28159027; DR00104-28289027; DR00104-28379027; DR00104-28159030; DR00104-28289030; DR00104-28379030; DR00104-28159040; DR00104-28289040; DR00104-28379040; DR00104-32159027; DR00104-32289027; DR00104-32379027; DR00104-32159030; DR00104-32289030; DR00104-32379030; DR00104-32159040; DR00104-32289040; DR00104-32379040

Luminous Flux (LM): 1539LM; 1599LM; 1623LM; 1620LM; 1683LM; 1709LM; 1657LM; 1799LM; 1881LM; 2042LM; 2156LM; 2254LM; 2150LM; 2270LM; 2373LM; 2190LM; 2474LM; 2555LM; 2284LM; 2423LM; 2518LM; 2405LM; 2550LM; 2650LM; 2415LM; 2741LM; 2912LM

Power (W): 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 28W; 28W; 28W; 28W; 28W; 28W; 28W; 28W; 28W; 32W; 32W; 32W; 32W; 32W; 32W; 32W; 32W; 32W

Beam Angle: 15°; 28°; 37°; 15°; 28°; 37°; 15°; 28°; 37°; 15°; 28°; 37°; 15°; 28°; 37°; 15°; 28°; 37°; 15°; 28°; 37°; 15°; 28°; 37°; 15°; 28°; 37°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 2700K; 2700K; 3000K; 3000K; 3000K; 4000K; 4000K; 4000K; 2700K; 2700K; 2700K; 3000K; 3000K; 3000K; 4000K; 4000K; 4000K; 2700K; 2700K; 2700K; 3000K; 3000K; 3000K; 4000K; 4000K; 4000K

Specification

IES

DWG

manual

Favorite
