MAGIC 120

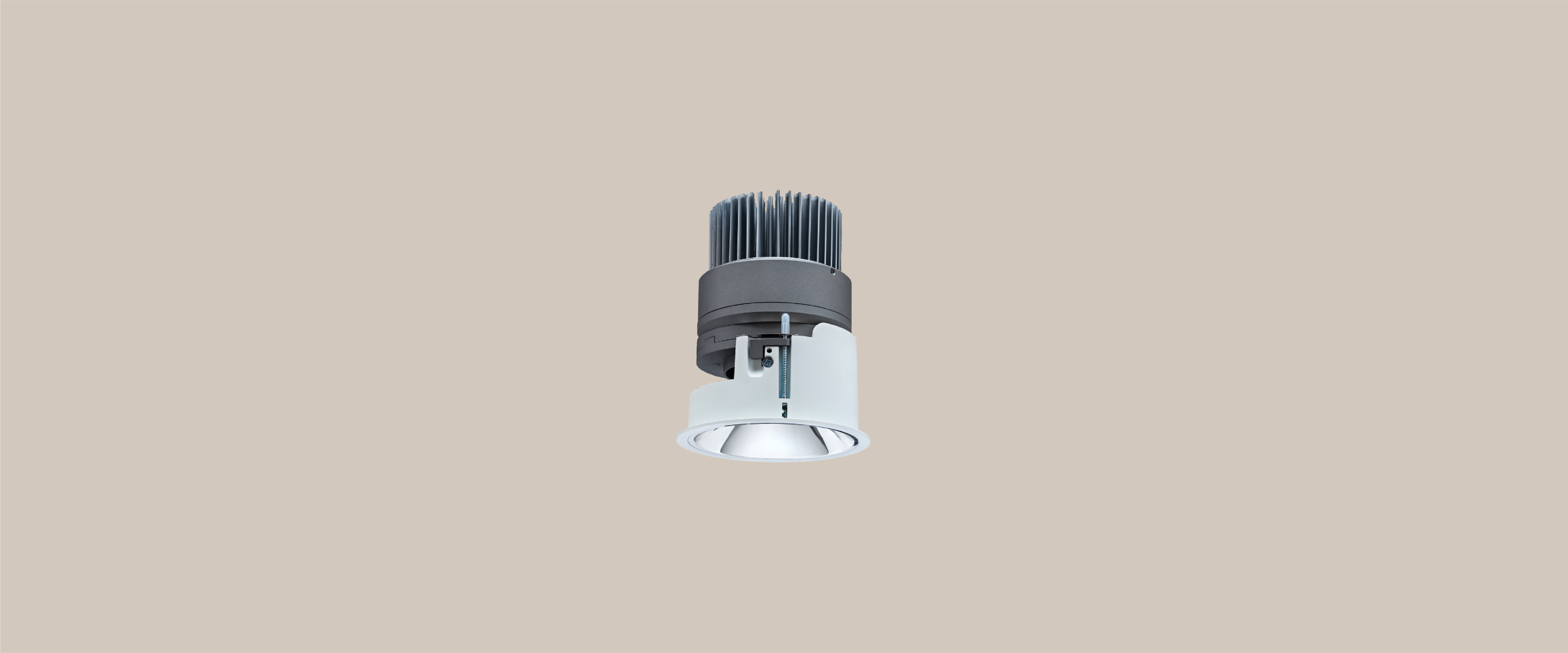

42W LED COB Round Fixed Recessed Downlight

MAGIC 120

MAGIC 120

Lighting Effects

Products Specification:
Type:Recessed Downlight
Cutout:120mm
Power:20W 28W 32W 42W
CCT:2700K 3000K 4000K
Beam Angle:15D 28D 37D
Weight:1.25kg
Heat-Sink:Die-Cast Aluminum
Surface-Treatment:Powder Spraying

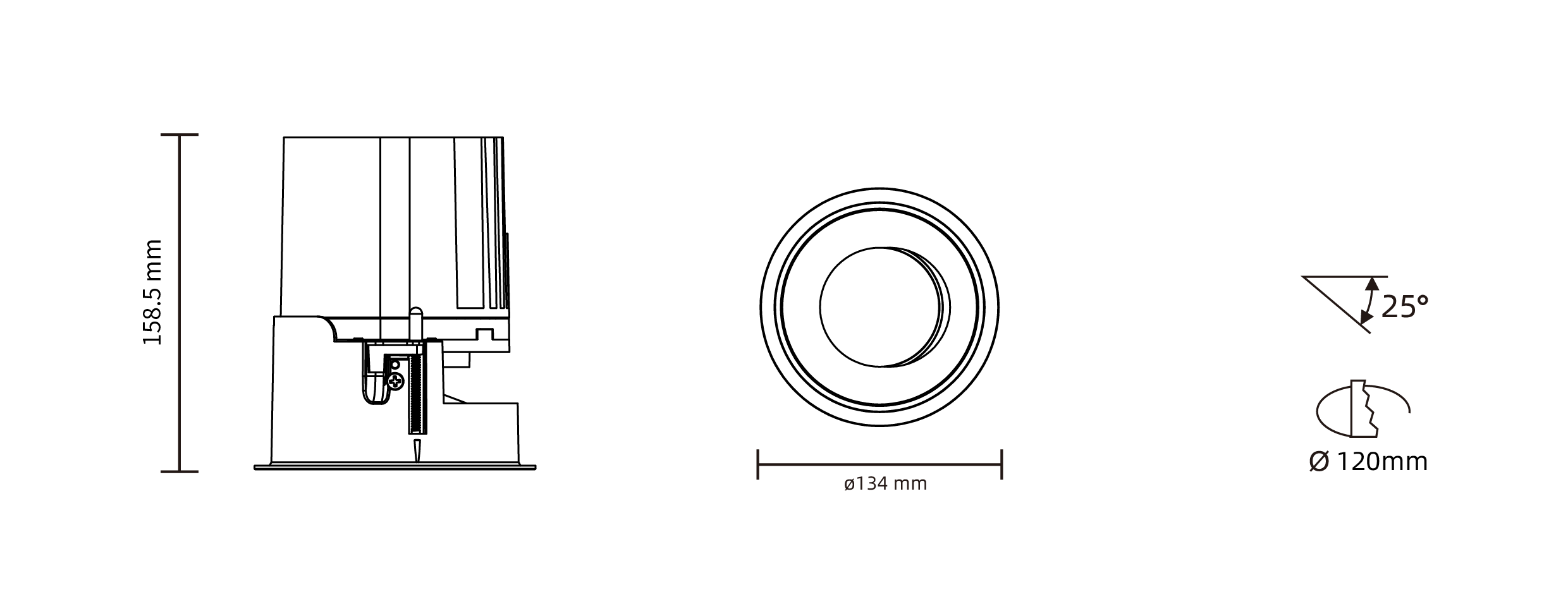

Line Drawing:
General Features:


Accessories :
Reflector Color:

Frame Color:

Select your Model No:

*Please log in before selecting your Model No

Power(W)
  • Power(W)
  • 42W
Beam Angle
  • Beam Angle
  • 15°
  • 28°
  • 37°
CRI
  • CRI
  • Ra>90
Color
  • Color
  • 2700K
  • 3000K
  • 4000K
Dimming type
  • Dimming type
  • 1-Non Dim
  • 2-Phase dimming
  • 3-0-10V dimming
  • 4-DALI dimming
Finish
  • Finish
  • White
Reflector
  • Reflector
  • White
  • Black
  • Mirror
  • Black chromium plating
IP Rating
  • IP Rating
  • 44-IP44
Accessory
  • Accessory
  • Honeycomb louver
  • Model No

  • Luminaire lumen(LM)

  • Power (W)

  • Beam Angle

  • CRI

  • Color

  • Specification

  • IES

  • DWG

  • manual

  • Favorite

Model No

DR00103-42159027

DR00103-42289027

DR00103-42379027

DR00103-42159030

DR00103-42289030

DR00103-42379030

DR00103-42159040

DR00103-42289040

DR00103-42379040

Luminous Flux (LM)

2560LM

3057LM

3220LM

2695LM

3218LM

3389LM

2804LM

3227LM

3380LM

Power (W)

42W

42W

42W

42W

42W

42W

42W

42W

42W

Beam Angle

15°

28°

37°

15°

28°

37°

15°

28°

37°

CRI

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Color

2700K

2700K

2700K

3000K

3000K

3000K

4000K

4000K

4000K

Specification
IES
DWG
manual
Favorite
