Home Products Indoor LUSTER 75 - Round Adjustable Trimless Recessed Full Spectrum Downlight

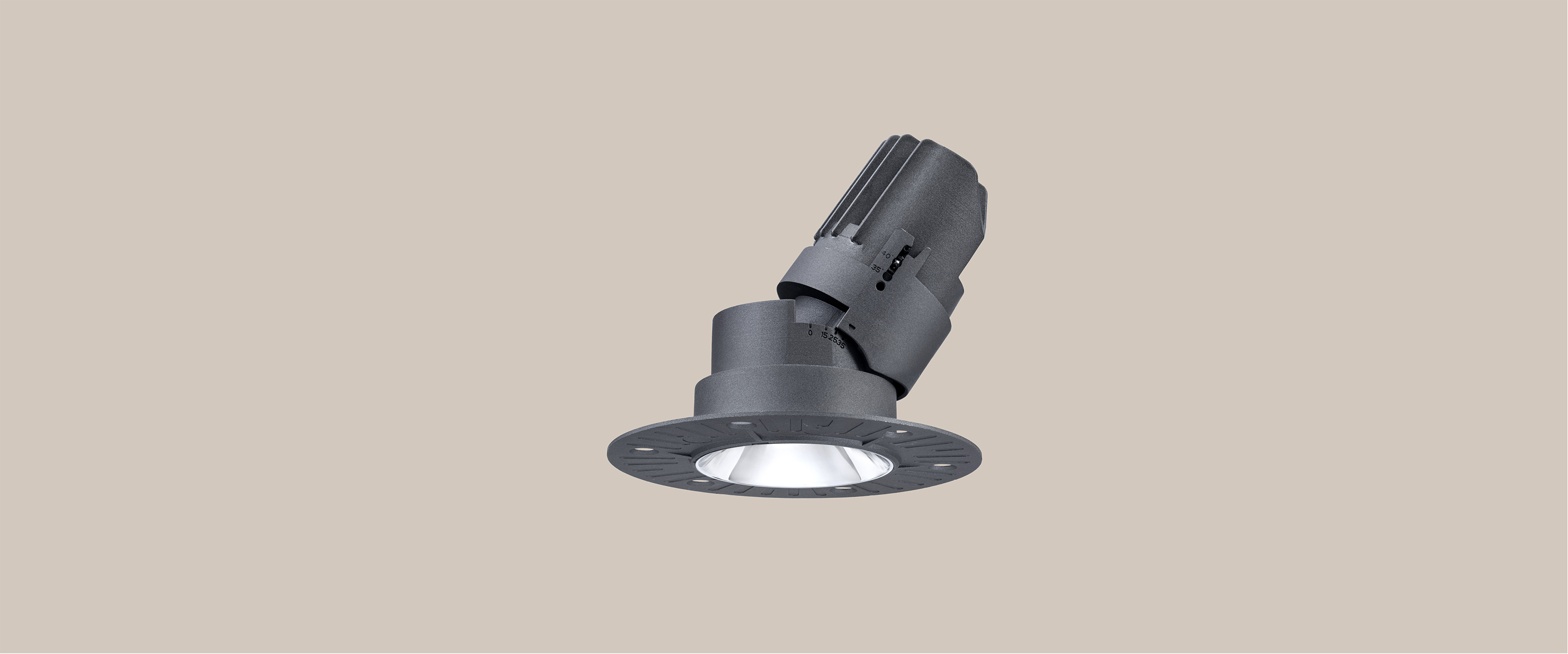

LUSTER 75

Round Adjustable Trimless Recessed Full Spectrum Downlight

LUSTER 75

Luster Series is equipped with lightproof shading. Under the action of gravity,the side of

the lamp always maintains the shading effect to minimize light pollutionkeep improving,

and ensure the quality of light.Outstanding mechanical adjustment performan,35D large swing angle adjustment design ,unique variable shading angle design（can be freely

switched between the range of 35D and 40D, rebalance light shading performance and light efficiency according to the onsite environment）,giving the designers the maximum design freedom without affecting the overall performance of the lamp.

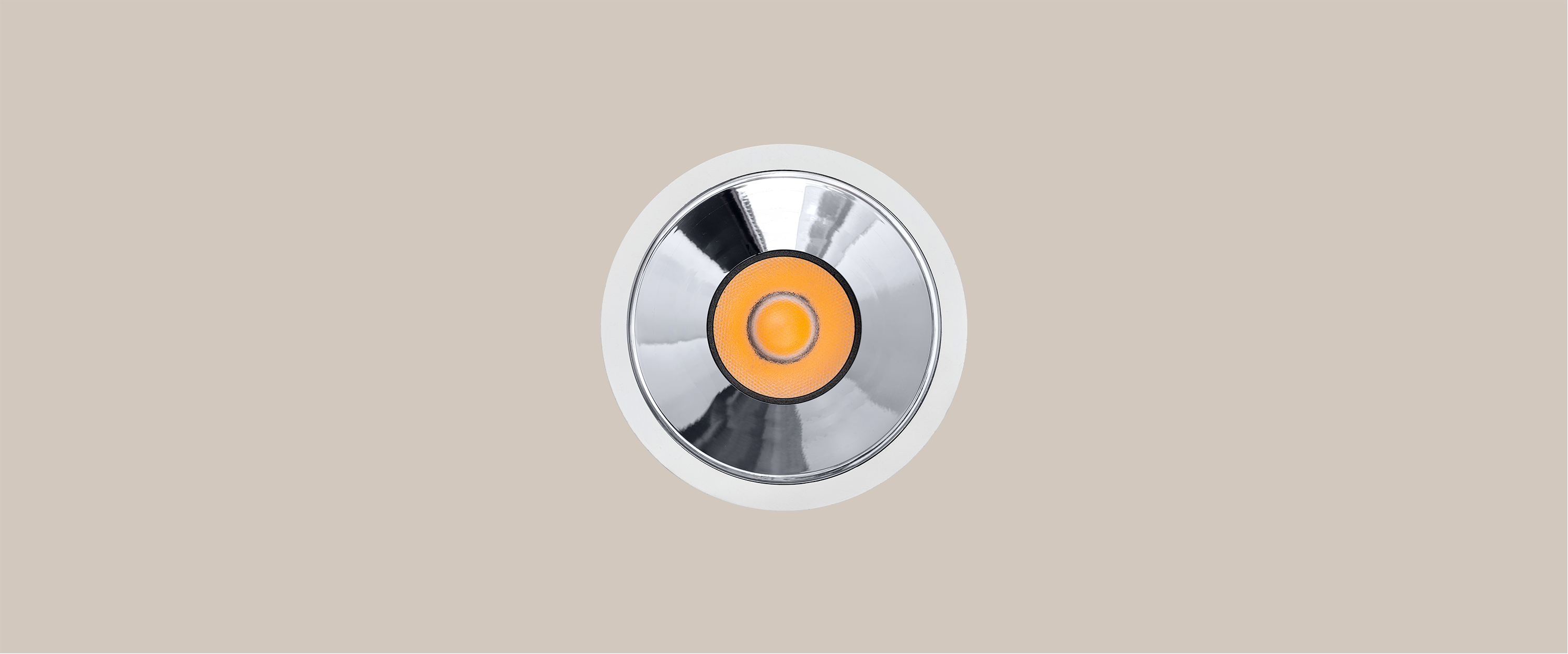

Lighting Effects

Products Specification:: Type:Round Adjustable Trimless Recessed Full Spectrum Downlight; Cut-Out:ø 75 mm; Power:12W 15W 20W; Beam Angle:15D 24D 36D 45D; CCT:2700K 3000K 4000K; Weight:0.3kg; Heat-Sink:Aluminum; Surface-Treatment:Painting+Plating

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
12W
15W
20W

Beam Angle

Beam Angle
15°
24°
36°
45°

CRI

CRI
Ra≥97

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
2-Phase dimming
3-0-10V dimming
4-DALI dimming

Finish

Finish
N/A

Reflector

Reflector
Mirror
Black
White
Black chromium plating

IP Rating

IP Rating
54-IP54

Accessory

Accessory
Honeycomb louver
Soft lens
Linear lens

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: DR01208-12159027; DR01208-12159030; DR01208-12159040; DR01208-12249027; DR01208-12249030; DR01208-12249040; DR01208-12369027; DR01208-12369030; DR01208-12369040; DR01208-12459027; DR01208-12459030; DR01208-12459040; DR01208-15159027; DR01208-15159030; DR01208-15159040; DR01208-15249027; DR01208-15249030; DR01208-15249040; DR01208-15369027; DR01208-15369030; DR01208-15369040; DR01208-15459027; DR01208-15459030; DR01208-15459040; DR01208-20249027; DR01208-20249030; DR01208-20249040; DR01208-20369027; DR01208-20369030; DR01208-20369040; DR01208-20459027; DR01208-20459030; DR01208-20459040

Luminous Flux (LM): 606LM; 638LM; 711LM; 700LM; 737LM; 822LM; 780LM; 821LM; 875LM; 668LM; 703LM; 746LM; 685LM; 721LM; 817LM; 816LM; 859LM; 979LM; 917LM; 965LM; 1043LM; 774LM; 815LM; 895LM; 1121LM; 1180LM; 1305LM; 1252LM; 1318LM; 1399LM; 1055LM; 1111LM; 1188LM

Power (W): 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W

Beam Angle: 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 45°; 45°; 45°; 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 45°; 45°; 45°; 24°; 24°; 24°; 36°; 36°; 36°; 45°; 45°; 45°

CRI: Ra≥97; Ra≥97; Ra≥97; Ra≥97; Ra≥97; Ra≥97; Ra≥97; Ra≥97; Ra≥97; Ra≥97; Ra≥97; Ra≥97; Ra≥97; Ra≥97; Ra≥97; Ra≥97; Ra≥97; Ra≥97; Ra≥97; Ra≥97; Ra≥97; Ra≥97; Ra≥97; Ra≥97; Ra≥97; Ra≥97; Ra≥97; Ra≥97; Ra≥97; Ra≥97; Ra≥97; Ra≥97; Ra≥97

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K
