Home Products Indoor LINNOU 60 - Adjustable Recessed Round Tunable White Downlight

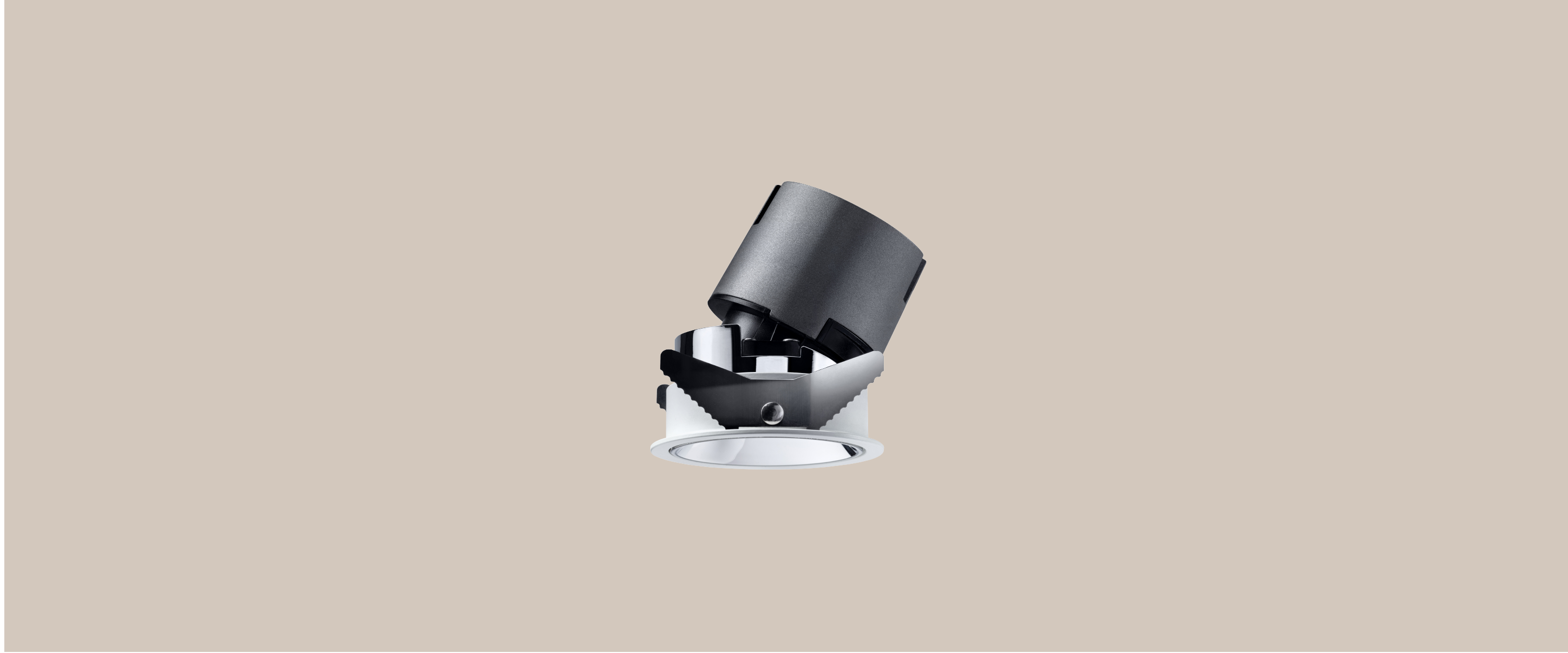

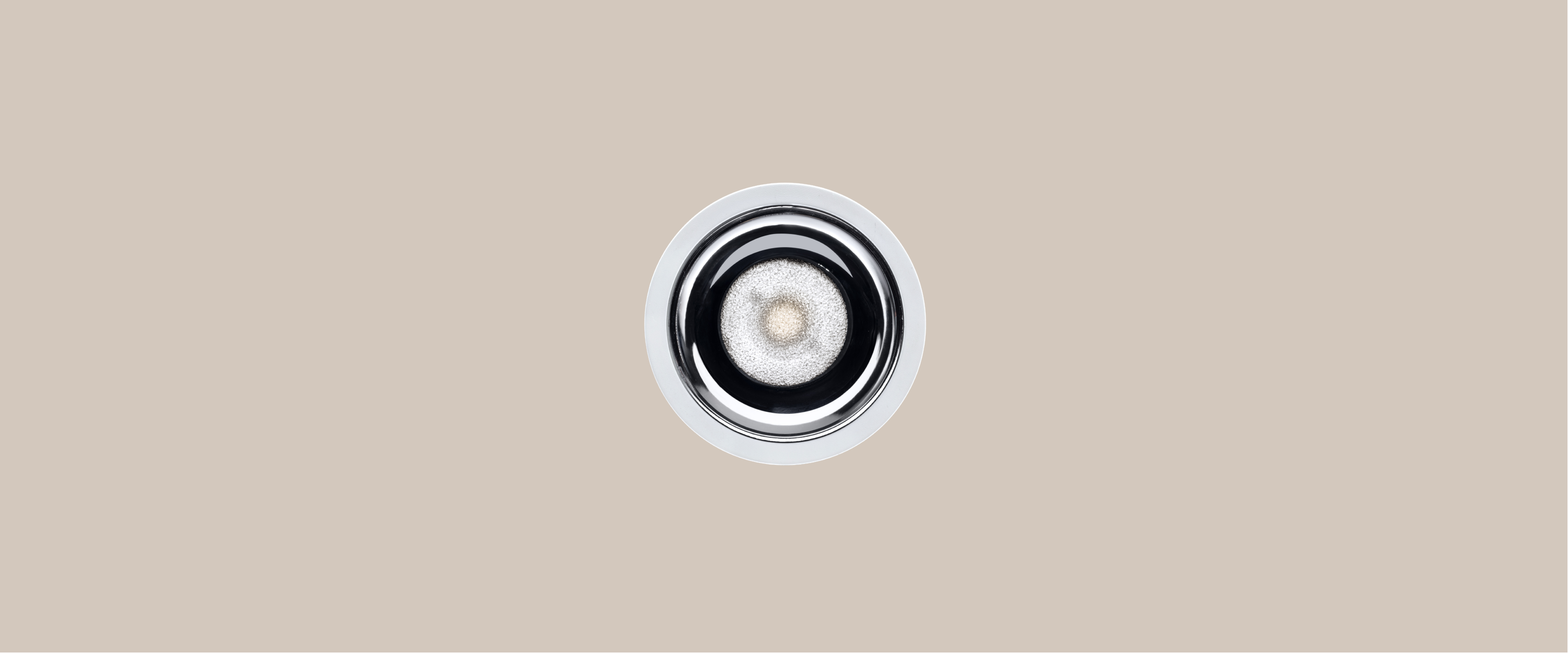

LINNOU 60

Adjustable Recessed Round Tunable White Downlight

LINNOU 60

Small & delicate great practicality

LINNOU 60

Small & delicate great practicality

Creative design with small, thin and deep style. LINNOU lamp's overall minimum size is only Ø 60 * H72mm. LINNOU is named for its compact shape, which saves the hole opening size when installing, effectively solves the problem that the big hole opening on the ceiling may destroy skyline integrity of the space. In addition, the delicate lamps can be lively coordinated with the reflector which has a variety of color. Designers can choose different reflector according to the comprehensive color of ceiling and space, to present both practicability and beauty.

Through the clever and ultra-thin design of adjustable lamps, and the minimum height of lamps is controlled in the range of 75 mm. In satisfying the inside height 80 mm under ceiling, it maximally saves the indoor space. And in view of the small size light's new spring design, under the condition of meet the polarization of 30 degrees, it can effectively solve the problem of installation requirements on thickness 8 ~ 20 mm of ceiling. Design innovation and practicality is presented incisively and vividly in the research and development and application of the LINNOU series downlight.

Lighting Effects

Products Specification:: Type:Adjustable Recessed Round Tunable White Downlight; Mechanial performance:Fixed / Adjustable; Cut-Out:ø 60 mm; Beam Angle:20D 26D 30D 36D 40D 54D; Power:5W 7W 10W; CCT:1800K-4000K 2700K-6000K; Weight:0.22kg; Heat-Sink:Aluminum; Surface-Treatment:painting+plating

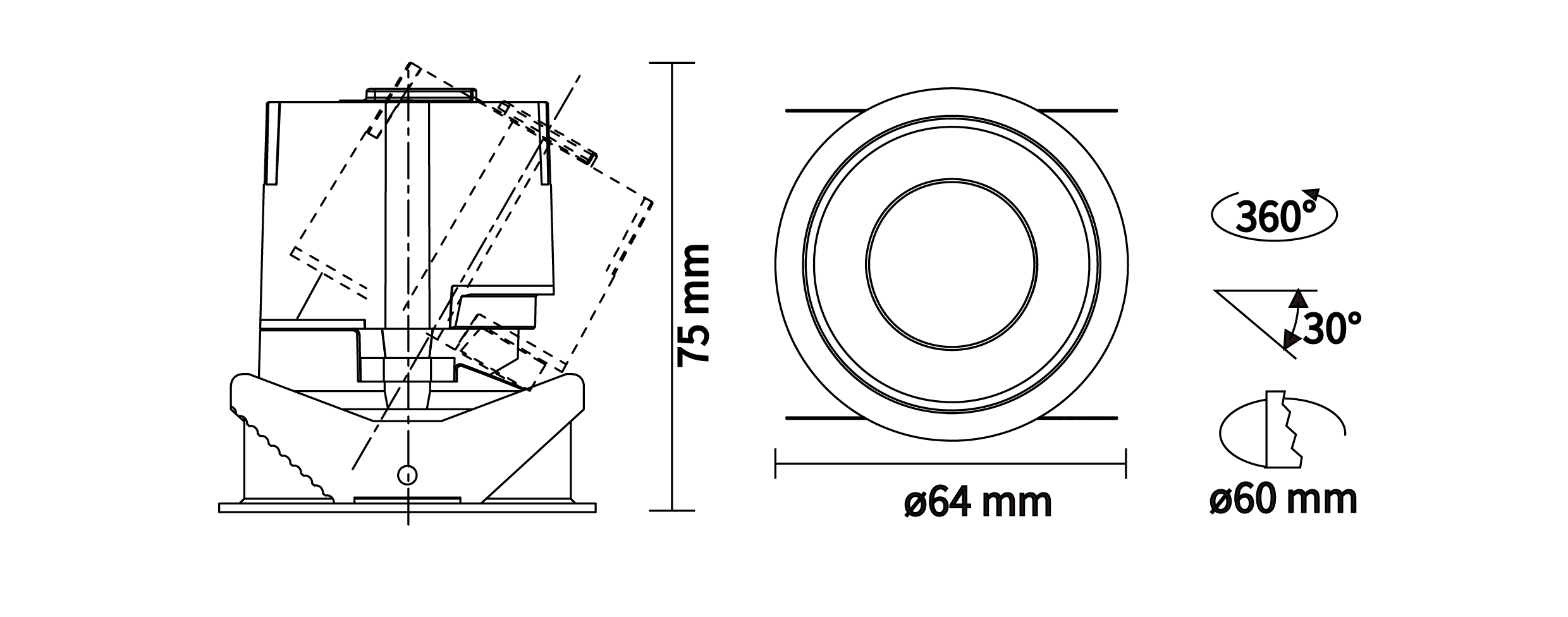

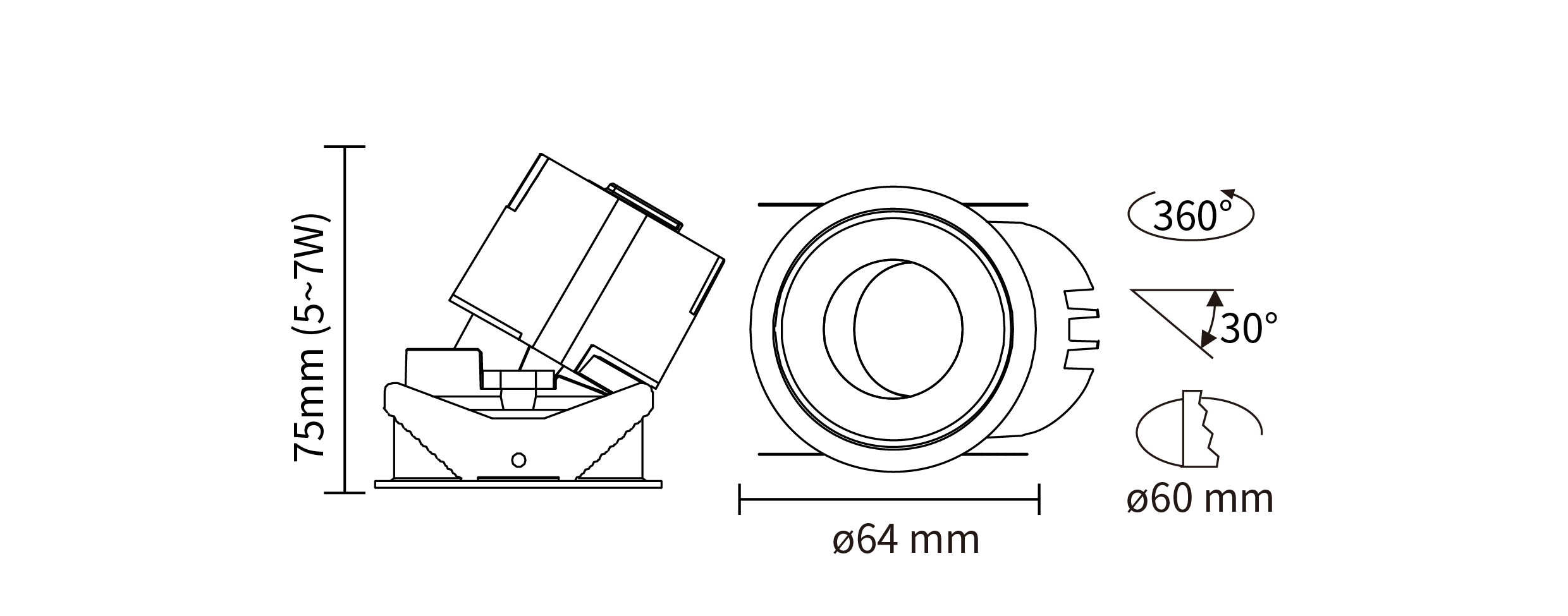

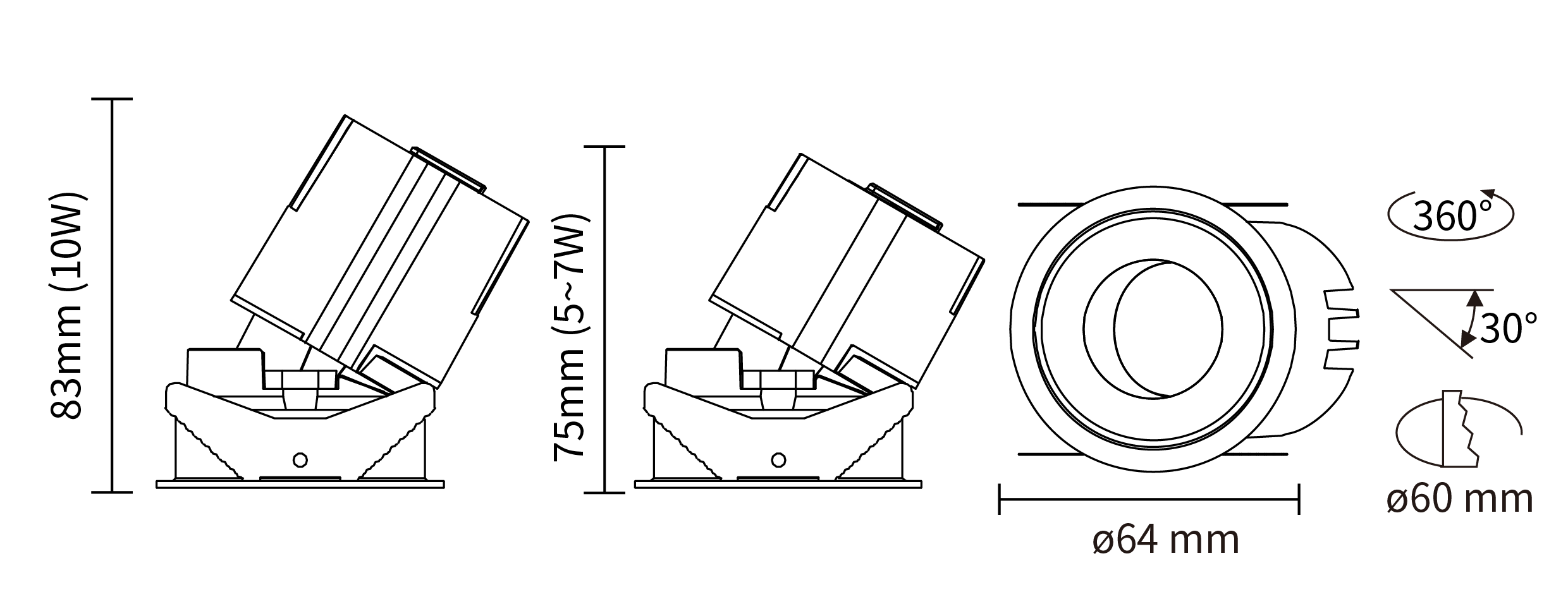

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
5W
7W

Beam Angle

Beam Angle
22°
26°
30°
36°
40°
54°

CRI

CRI
Ra>90

Color

Color
1800K-4000K（e.g.4000K)
1800K-4000K（e.g.1800K)
2700K-6000K（e.g.2700K)
2700K-6000K（e.g.6000K)

Dimming type

Dimming type
3-0-10V dimming
4-DALI dimming

Finish

Finish
Black
White
Mirror

Reflector

Reflector
Mirror
White
Black

IP Rating

IP Rating
20-IP20
44-IP44

Accessory

Accessory
Linear lens
Soft lens

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: DR00727-052690X0; DR00727-052690X1; DR00727-053690X0; DR00727-053690X1; DR00727-055490X0; DR00727-055490X1; DR00727-072690X0; DR00727-072690X1; DR00727-073690X0; DR00727-073690X1; DR00727-075490X0; DR00727-075490X1; DR00727-052290X0; DR00727-052290X1; DR00727-053090X0; DR00727-053090X1; DR00727-054090X0; DR00727-054090X1; DR00727-072290X0; DR00727-072290X1; DR00727-073090X0; DR00727-073090X1; DR00727-074090X0; DR00727-074090X1

Luminous Flux (LM): 121LM; 212LM; 167LM; 287LM; 199LM; 253LM; 139LM; 242LM; 190LM; 331LM; 287LM; 362LM; 163LM; 191LM; 128LM; 163LM; 216LM; 273LM; 228LM; 273LM; 183LM; 234LM; 312LM; 393LM

Power (W): 5W; 5W; 5W; 5W; 5W; 5W; 7W; 7W; 7W; 7W; 7W; 7W; 5W; 5W; 5W; 5W; 5W; 5W; 7W; 7W; 7W; 7W; 7W; 7W

Beam Angle: 26°; 26°; 36°; 36°; 54°; 54°; 26°; 26°; 36°; 36°; 54°; 54°; 22°; 22°; 30°; 30°; 40°; 40°; 22°; 22°; 30°; 30°; 40°; 40°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 1800K-4000K（e.g.1800K); 1800K-4000K（e.g.4000K); 1800K-4000K（e.g.1800K); 1800K-4000K（e.g.4000K); 2700K-6000K（e.g.2700K); 2700K-6000K（e.g.6000K); 1800K-4000K（e.g.1800K); 1800K-4000K（e.g.4000K); 1800K-4000K（e.g.1800K); 1800K-4000K（e.g.4000K); 2700K-6000K（e.g.2700K); 2700K-6000K（e.g.6000K); 2700K-6000K（e.g.2700K); 2700K-6000K（e.g.6000K); 2700K-6000K（e.g.2700K); 2700K-6000K（e.g.6000K); 2700K-6000K（e.g.2700K); 2700K-6000K（e.g.6000K); 2700K-6000K（e.g.2700K); 2700K-6000K（e.g.6000K); 2700K-6000K（e.g.2700K); 2700K-6000K（e.g.6000K); 2700K-6000K（e.g.2700K); 2700K-6000K（e.g.6000K)
