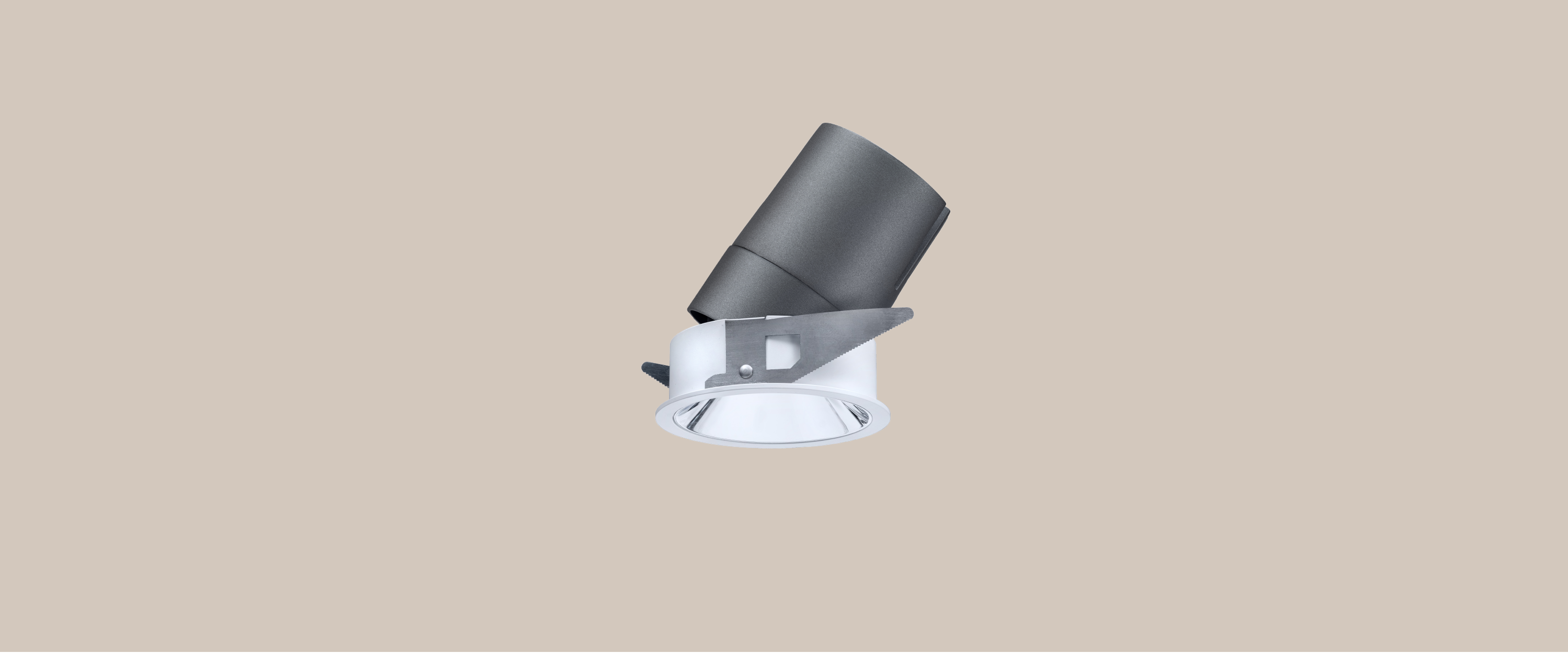

VIRTUE 65
Recessed Adjustable Downlight
VIRTUE 65
Lighting Effects
- Products Specification:
- Type:Recessed Adjustable Downlight
- Cut-Out:ø 65 mm
- Beam Angle:10° 15° 24° 35° 50°
- Power:5W 8W 10W 12W
- CCT:2700K 3000K 4000K
- Weight:0.196KG
- Heat-Sink:Aluminum
- Surface-Treatment:painting

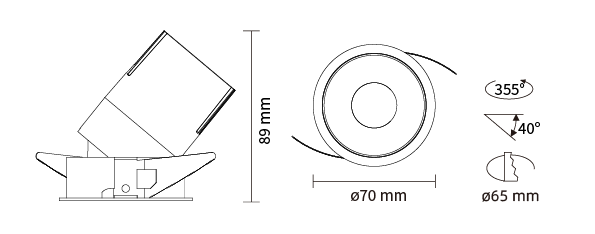

- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
- Power(W)
- 5W
- 8W
- 10W
- 12W
- Beam Angle
- 10°
- 10D
- 15°
- 24°
- 35°
- 50°
- CRI
- Ra>90
- Color
- 2700K
- 3000K
- 4000K
- Dimming type
- 1-Non Dim
- 2-Phase dimming
- 3-0-10V dimming
- 4-DALI dimming
- Finish
- White
- Black
- Reflector
- Mirror
- White
- Black
- Dark gold
- IP Rating
- 20-IP20
- Accessory
- Linear lens
- Honeycomb louver
- Soft lens
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
DR01802-05109027
DR01802-05109030
DR01802-05109040
DR01802-05159027
DR01802-05159030
DR01802-05159040
DR01802-05249027
DR01802-05249030
DR01802-05249040
DR01802-05359027
DR01802-05359030
DR01802-05359040
DR01802-05509027
DR01802-05509030
DR01802-05509040
DR01802-08109027
DR01802-08109030
DR01802-08109040
DR01802-08159027
DR01802-08159030
DR01802-08159040
DR01802-08249027
DR01802-08249030
DR01802-08249040
DR01802-08359027
DR01802-08359030
DR01802-08359040
DR01802-08509027
DR01802-08509030
DR01802-08509040
DR01802-10109027
DR01802-10109030
DR01802-10109040
DR01802-10159027
DR01802-10159030
DR01802-10159040
DR01802-10249027
DR01802-10249030
DR01802-10249040
DR01802-10359027
DR01802-10359030
DR01802-10359040
DR01802-10509027
DR01802-10509030
DR01802-10509040
DR01802-12109027
DR01802-12109030
DR01802-12109040
DR01802-12159027
DR01802-12159030
DR01802-12159040
DR01802-12249027
DR01802-12249030
DR01802-12249040
DR01802-12359027
DR01802-12359030
DR01802-12359040
DR01802-12509027
DR01802-12509030
DR01802-12509040
- Luminous Flux (LM)
105LM
111LM
116LM
270LM
284LM
298LM
276LM
291LM
306LM
284LM
299LM
314LM
284LM
299LM
314LM
158LM
166LM
175LM
403LM
424LM
445LM
467LM
492LM
516LM
434LM
456LM
479LM
439LM
462LM
486LM
195LM
205LM
215LM
500LM
527LM
553LM
585LM
616LM
646LM
557LM
586LM
615LM
561LM
590LM
620LM
225LM
237LM
249LM
557LM
586LM
615LM
661LM
696LM
731LM
635LM
669LM
702LM
639LM
673LM
707LM
- Power (W)
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
10W
10W
10W
10W
10W
10W
10W
10W
10W
10W
10W
10W
10W
10W
10W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
- Beam Angle
10°
10°
10°
15°
15°
15°
24°
24°
24°
35°
35°
35°
50°
50°
50°
10D
10°
10°
15°
15°
15°
24°
24°
24°
35°
35°
35°
50°
50°
50°
10D
10°
10°
15°
15°
15°
24°
24°
24°
35°
35°
35°
50°
50°
50°
10D
10°
10°
15°
15°
15°
24°
24°
24°
35°
35°
35°
50°
50°
50°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
