LINNOU 70
Round Fixed Recessed Vanity Downlight
LINNOU 70
Small & delicate great practicality

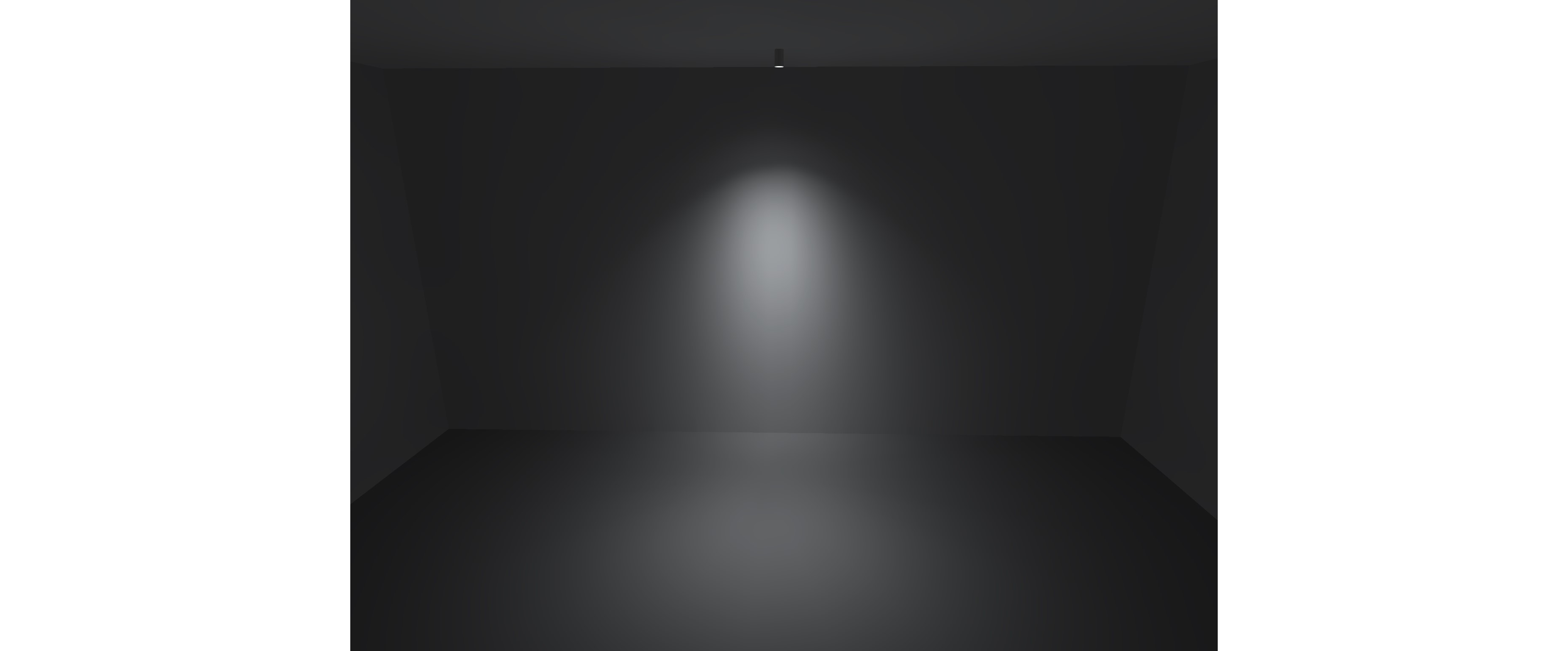

Lighting Effects
- Products Specification:
- Type:Round Fixed Recessed Vanity Downlight
- Cut-Out:ø 70 mm
- Power:5W 7W 10W
- Beam Angle:Asymmetric Distribution
- CCT:2700K 3000K 4000K
- Weight:0.27kg
- Heat-Sink:Aluminum
- Surface-Treatment:painting+plating
- Remarks:accessories not available for 10D models

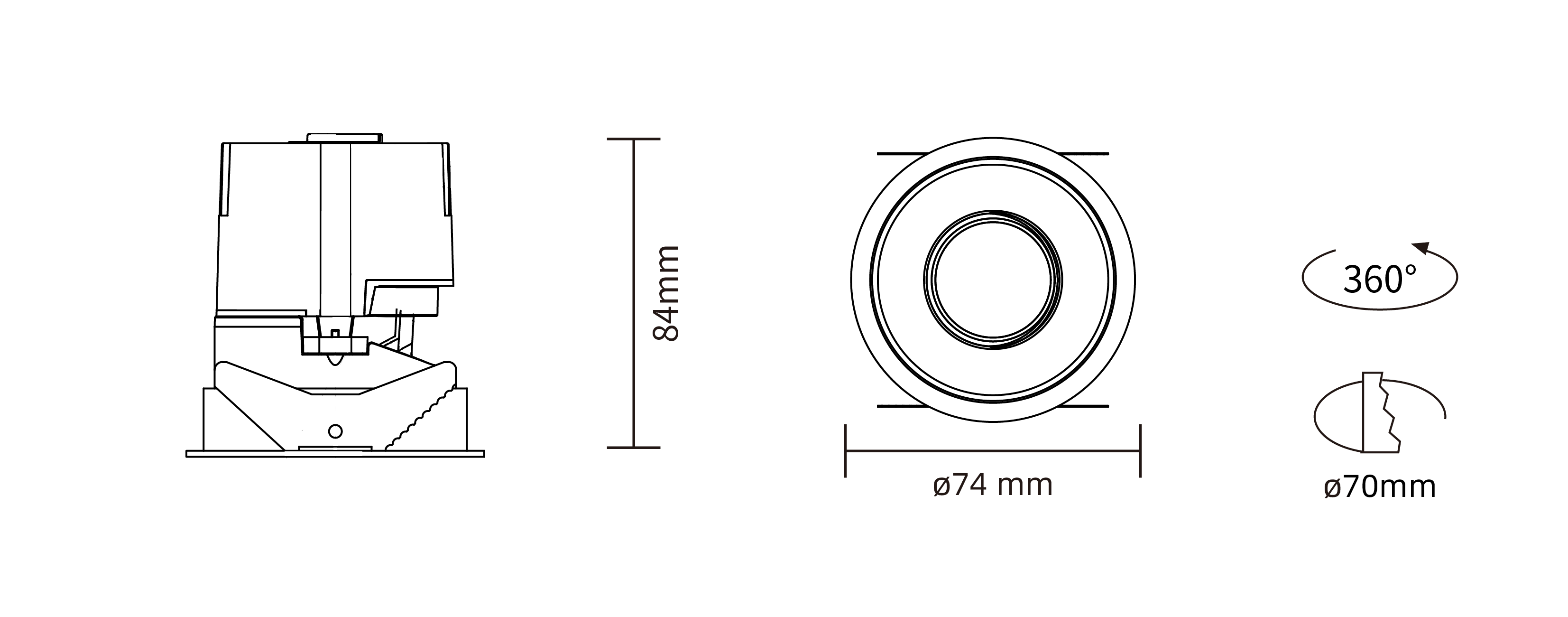

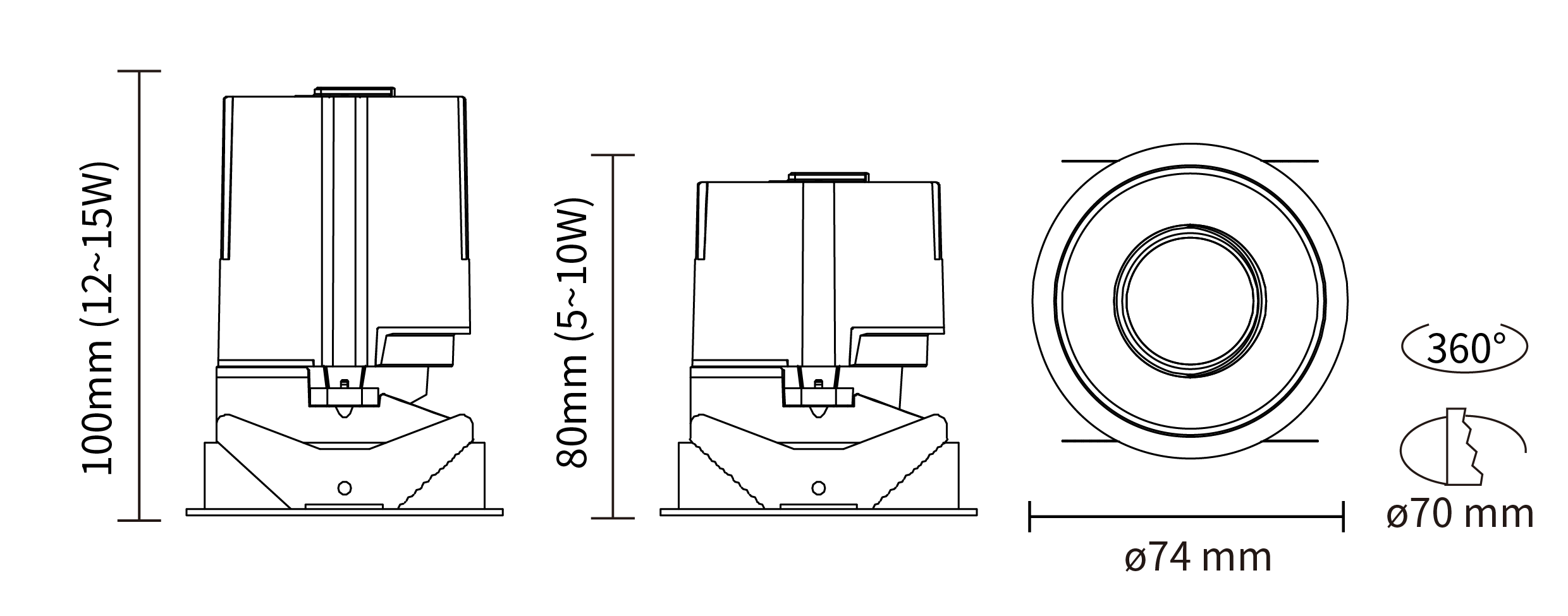

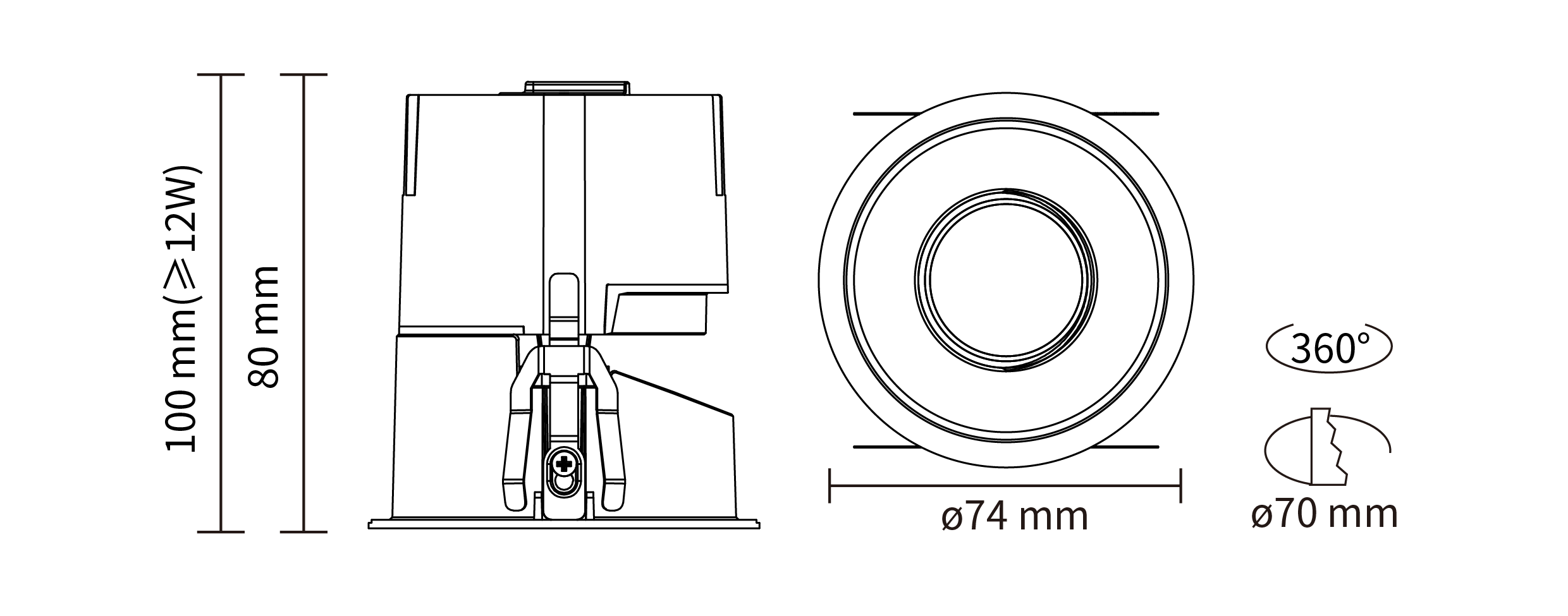

- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
- Power(W)
- 5W
- 7W
- 10W
- 12W
- 15W
- Beam Angle
- Asymmetric distribution
- CRI
- Ra>90
- Color
- 2700K
- 3000K
- 4000K
- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- Finish
- White
- Black
- Reflector
- White
- Black
- Mirror
- IP Rating
- 20-IP20
- 44-IP44
- Accessory
- N/A
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
DR00738-05X19027
DR00738-05X19030
DR00738-05X19040
DR00738-07X19027
DR00738-07X19030
DR00738-07X19040
DR00738-10X19027
DR00738-10X19030
DR00738-10X19040
DR00738-12X19027
DR00738-12X19030
DR00738-12X19040
DR00738-15X19027
DR00738-15X19030
DR00738-15X19040
- Luminous Flux (LM)
223LM
235LM
262LM
273LM
287LM
321LM
436LM
459LM
517LM
509LM
536LM
595LM
556LM
585LM
675LM
- Power (W)
5W
5W
5W
7W
7W
7W
10W
10W
10W
12W
12W
12W
15W
15W
15W
- Beam Angle
Asymmetric distribution
Asymmetric distribution
Asymmetric distribution
Asymmetric distribution
Asymmetric distribution
Asymmetric distribution
Asymmetric distribution
Asymmetric distribution
Asymmetric distribution
Asymmetric distribution
Asymmetric distribution
Asymmetric distribution
Asymmetric distribution
Asymmetric distribution
Asymmetric distribution
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
