Home Products Indoor BLANC 90 - High Efficiency Recessed Downlight

BLANC 90

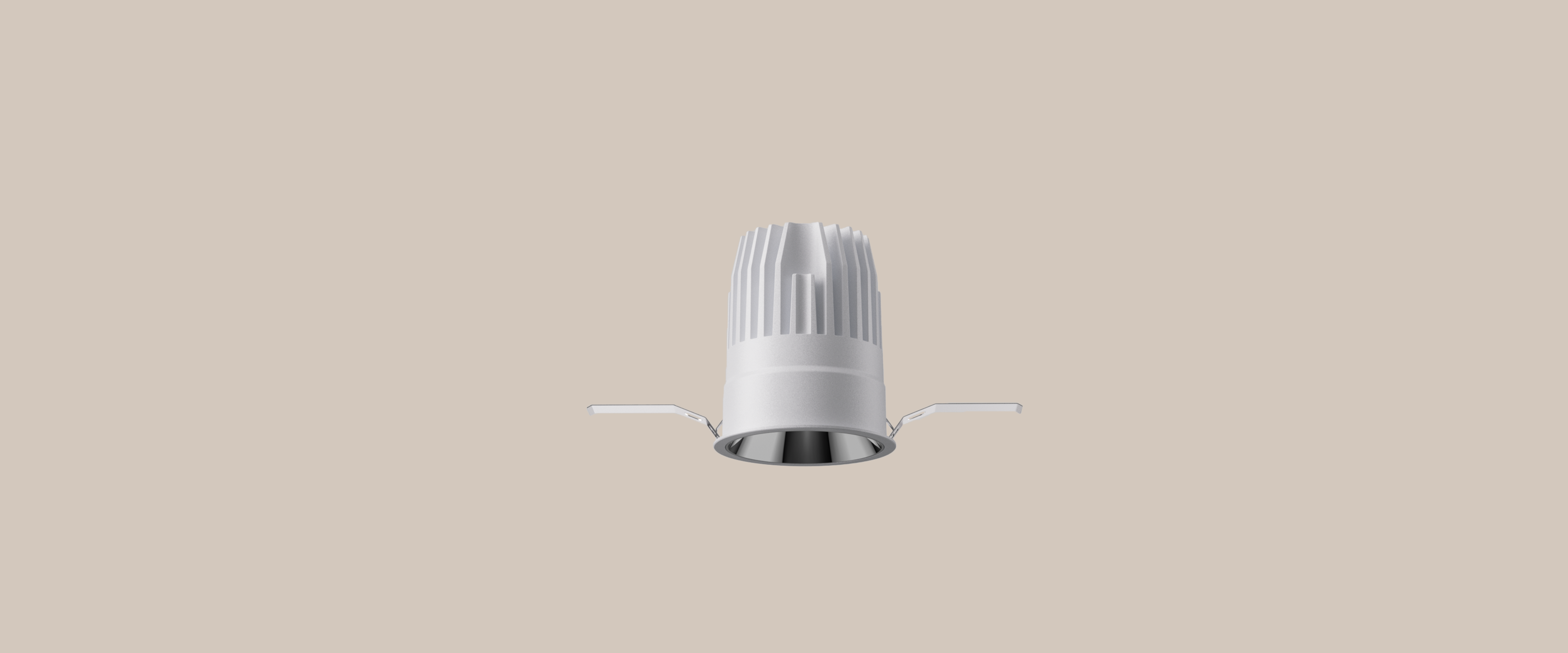

High Efficiency Recessed Downlight

BLANC 90

Lighting Effects

Products Specification:: Type:Recessed Downlight; Cut-Out:ø 90 mm; Beam Angle:12D 18D 27D 34D 55D; Power:12W 15W 20W 25W 30W 35W; CCT:2700K 3000K 4000K; Weight:0.49KG; Heat-Sink:Aluminum; Surface-Treatment:Powder coating

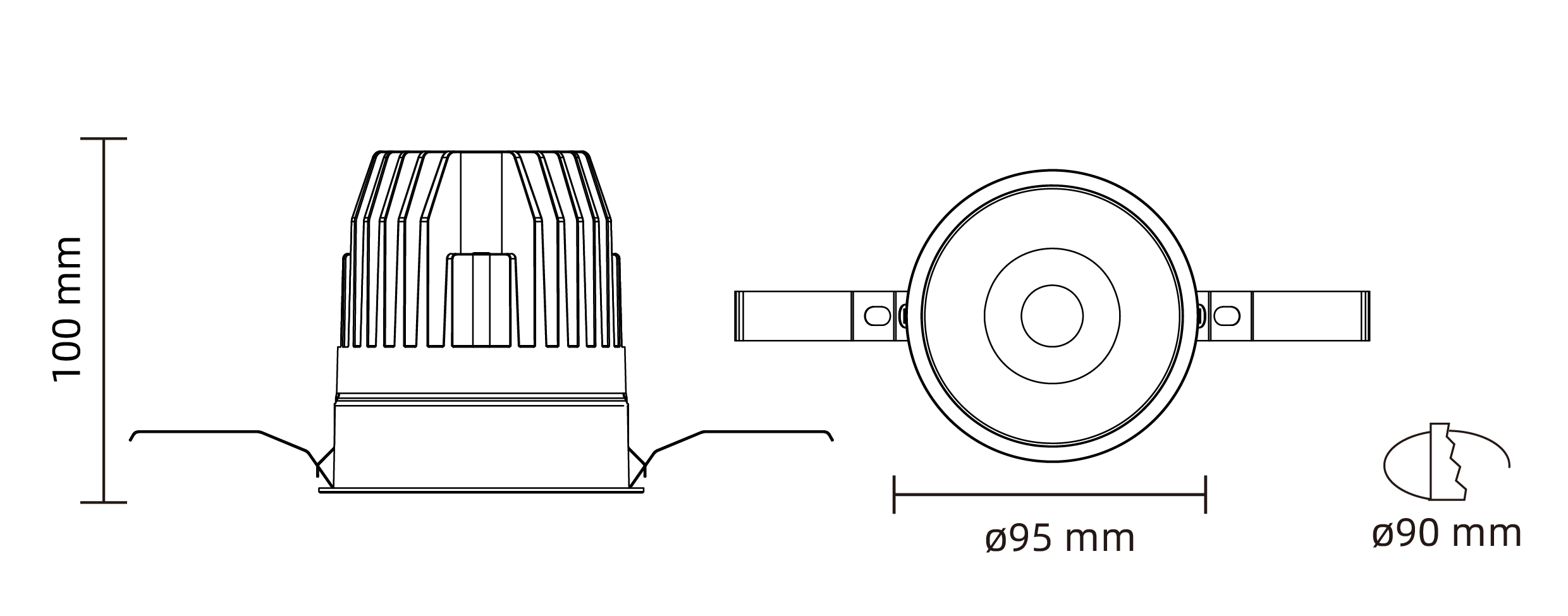

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
12W
15W
20W
25W
30W
35W

Beam Angle

Beam Angle
12°
18°
27°
34°
55°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
2-Phase dimming
3-0-10V dimming
4-DALI dimming

Finish

Finish
White
Black

Reflector

Reflector
Mirror
Black chromium plating
Black
White

IP Rating

IP Rating
20-IP20
65-IP65

Accessory

Accessory
Honeycomb louver
Linear lens
Soft lens

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: DR03003-12129027-HE; DR03003-12129030-HE; DR03003-12129040-HE; DR03003-12189027-HE; DR03003-12189030-HE; DR03003-12189040-HE; DR03003-12279027-HE; DR03003-12279030-HE; DR03003-12279040-HE; DR03003-12349027-HE; DR03003-12349030-HE; DR03003-12349040-HE; DR03003-12559027-HE; DR03003-12559030-HE; DR03003-12559040-HE; DR03003-15129027-HE; DR03003-15129030-HE; DR03003-15129040-HE; DR03003-15189027-HE; DR03003-15189030-HE; DR03003-15189040-HE; DR03003-15279027-HE; DR03003-15279030-HE; DR03003-15279040-HE; DR03003-15349027-HE; DR03003-15349030-HE; DR03003-15349040-HE; DR03003-15559027-HE; DR03003-15559030-HE; DR03003-15559040-HE; DR03003-20129027-HE; DR03003-20129030-HE; DR03003-20129040-HE; DR03003-20189027-HE; DR03003-20189030-HE; DR03003-20189040-HE; DR03003-20279027-HE; DR03003-20279030-HE; DR03003-20279040-HE; DR03003-20349027-HE; DR03003-20349030-HE; DR03003-20349040-HE; DR03003-20559027-HE; DR03003-20559030-HE; DR03003-20559040-HE; DR03003-25189027-HE; DR03003-25189030-HE; DR03003-25189040-HE; DR03003-25279027-HE; DR03003-25279030-HE; DR03003-25279040-HE; DR03003-25349027-HE; DR03003-25349030-HE; DR03003-25349040-HE; DR03003-25559027-HE; DR03003-25559030-HE; DR03003-25559040-HE; DR03003-30189027-HE; DR03003-30189030-HE; DR03003-30189040-HE; DR03003-30279027-HE; DR03003-30279030-HE; DR03003-30279040-HE; DR03003-30349027-HE; DR03003-30349030-HE; DR03003-30349040-HE; DR03003-30559027-HE; DR03003-30559030-HE; DR03003-30559040-HE; DR03003-35279027-HE; DR03003-35279030-HE; DR03003-35279040-HE; DR03003-35349027-HE; DR03003-35349030-HE; DR03003-35349040-HE; DR03003-35559027-HE; DR03003-35559030-HE; DR03003-35559040-HE

Luminous Flux (LM): 1104LM; 1163LM; 1221LM; 1297LM; 1365LM; 1434LM; 1309LM; 1378LM; 1447LM; 1511LM; 1591LM; 1671LM; 1477LM; 1554LM; 1632LM; 1281LM; 1348LM; 1416LM; 1475LM; 1553LM; 1631LM; 1500LM; 1579LM; 1658LM; 1729LM; 1821LM; 1912LM; 1693LM; 1782LM; 1871LM; 1655LM; 1742LM; 1829LM; 2061LM; 2169LM; 2278LM; 2129LM; 2241LM; 2353LM; 2462LM; 2592LM; 2722LM; 2420LM; 2548LM; 2675LM; 2306LM; 2427LM; 2548LM; 2406LM; 2532LM; 2659LM; 2945LM; 3100LM; 3255LM; 2885LM; 3037LM; 3189LM; 2611LM; 2748LM; 2886LM; 3083LM; 3245LM; 3407LM; 3688LM; 3883LM; 4077LM; 3536LM; 3723LM; 3909LM; 3519LM; 3704LM; 3890LM; 4047LM; 4260LM; 4473LM; 3940LM; 4147LM; 4355LM

Power (W): 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 35W; 35W; 35W; 35W; 35W; 35W; 35W; 35W; 35W

Beam Angle: 12°; 12°; 12°; 18°; 18°; 18°; 27°; 27°; 27°; 34°; 34°; 34°; 55°; 55°; 55°; 12°; 12°; 12°; 18°; 18°; 18°; 27°; 27°; 27°; 34°; 34°; 34°; 55°; 55°; 55°; 12°; 12°; 12°; 18°; 18°; 18°; 27°; 27°; 27°; 34°; 34°; 34°; 55°; 55°; 55°; 18°; 18°; 18°; 27°; 27°; 27°; 34°; 34°; 34°; 55°; 55°; 55°; 18°; 18°; 18°; 27°; 27°; 27°; 34°; 34°; 34°; 55°; 55°; 55°; 27°; 27°; 27°; 34°; 34°; 34°; 55°; 55°; 55°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K
