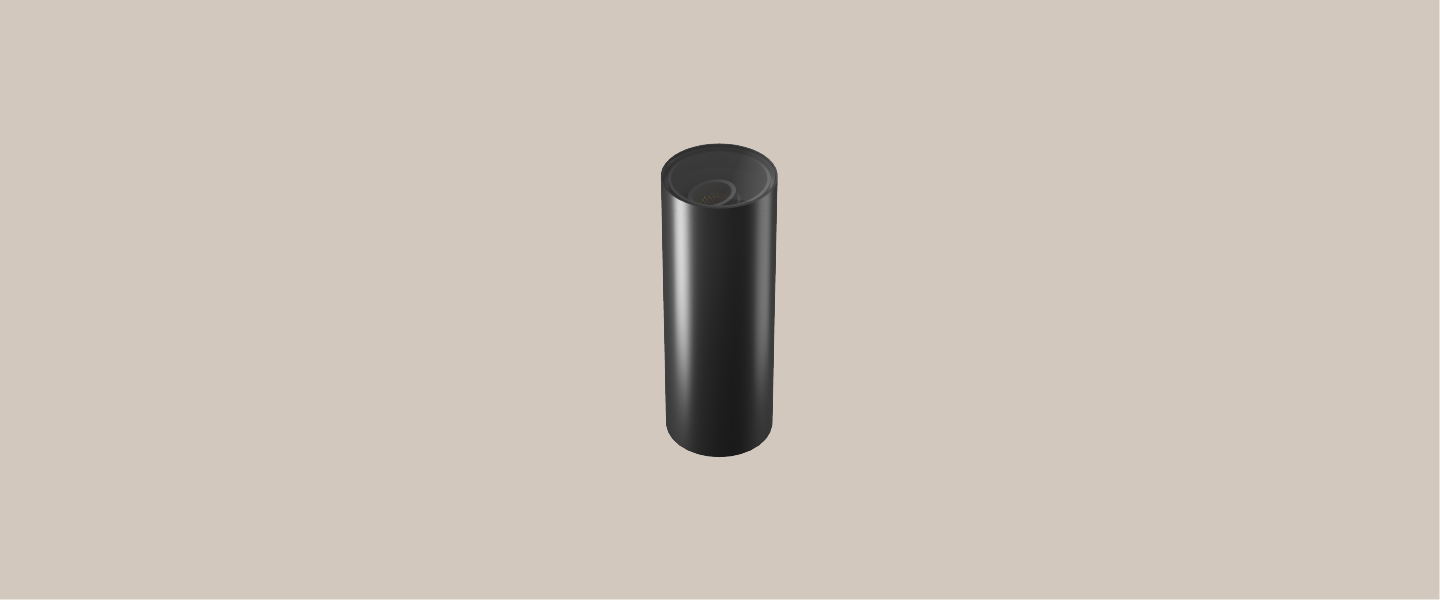

NICOLE

Upper

NICOLE

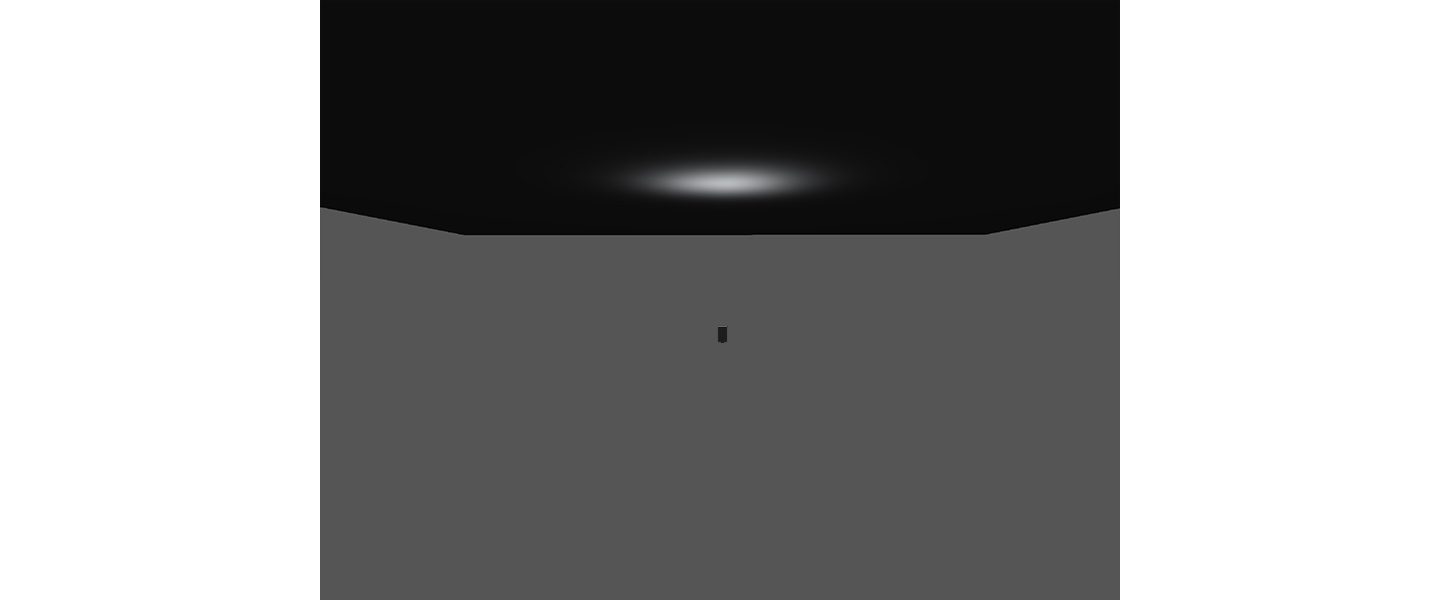

Lighting Effects

Products Specification:: Type:Upper; Power:5W 8W; Beam Angle:15D 24D 36D 50D; CCT:2400K 2700K 3000K 4000K; Weight:250mm/0.9kg 500mm/1.6kg 750mm/2.3kg; Heat-Sink:Aluminum; Surface-Treatment:powder coating

Line Drawing:

General Features:

Accessories:

Reflector Color:

Frame Color:

Select your Model No:

Power(W)

Power(W)
5W
8W

Beam Angle

Beam Angle
15°
24°
36°
50°

CRI

CRI
Ra>80

Color

Color
2400K
2700K
3000K
4000K

Control

Control

Dimming type

Dimming type
1-Non Dim

Finish

Finish
93-Outdoor black

Reflector

Reflector
N/A

IP Rating

IP Rating
65-IP65

Accessory

Accessory

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite

Model No: BL00403-05158024; BL00403-05158027; BL00403-05158030; BL00403-05158040; BL00403-05248024; BL00403-05248027; BL00403-05248030; BL00403-05248040; BL00403-05368024; BL00403-05368027; BL00403-05368030; BL00403-05368040; BL00403-05508024; BL00403-05508027; BL00403-05508030; BL00403-05508040; BL00403-08158024; BL00403-08158027; BL00403-08158030; BL00403-08158040; BL00403-08248024; BL00403-08248027; BL00403-08248030; BL00403-08248040; BL00403-08368024; BL00403-08368027; BL00403-08368030; BL00403-08368040; BL00403-08508024; BL00403-08508027; BL00403-08508030; BL00403-08508040

Luminous Flux (LM): 319LM; 356LM; 375LM; 402LM; 235LM; 263LM; 277LM; 298LM; 304LM; 340LM; 358LM; 396LM; 296LM; 331LM; 348LM; 384LM; 510LM; 570LM; 601LM; 644LM; 377LM; 421LM; 443LM; 477LM; 487LM; 544LM; 573LM; 633LM; 474LM; 529LM; 557LM; 615LM

Power (W): 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W

Beam Angle: 15°; 15°; 15°; 15°; 24°; 24°; 24°; 24°; 36°; 36°; 36°; 36°; 50°; 50°; 50°; 50°; 15°; 15°; 15°; 15°; 24°; 24°; 24°; 24°; 36°; 36°; 36°; 36°; 50°; 50°; 50°; 50°

CRI: Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80

Color: 2400K; 2700K; 3000K; 4000K; 2400K; 2700K; 3000K; 4000K; 2400K; 2700K; 3000K; 4000K; 2400K; 2700K; 3000K; 4000K; 2400K; 2700K; 3000K; 4000K; 2400K; 2700K; 3000K; 4000K; 2400K; 2700K; 3000K; 4000K; 2400K; 2700K; 3000K; 4000K

Control

Specification

IES

DWG

manual

Favorite

Application

Related Products

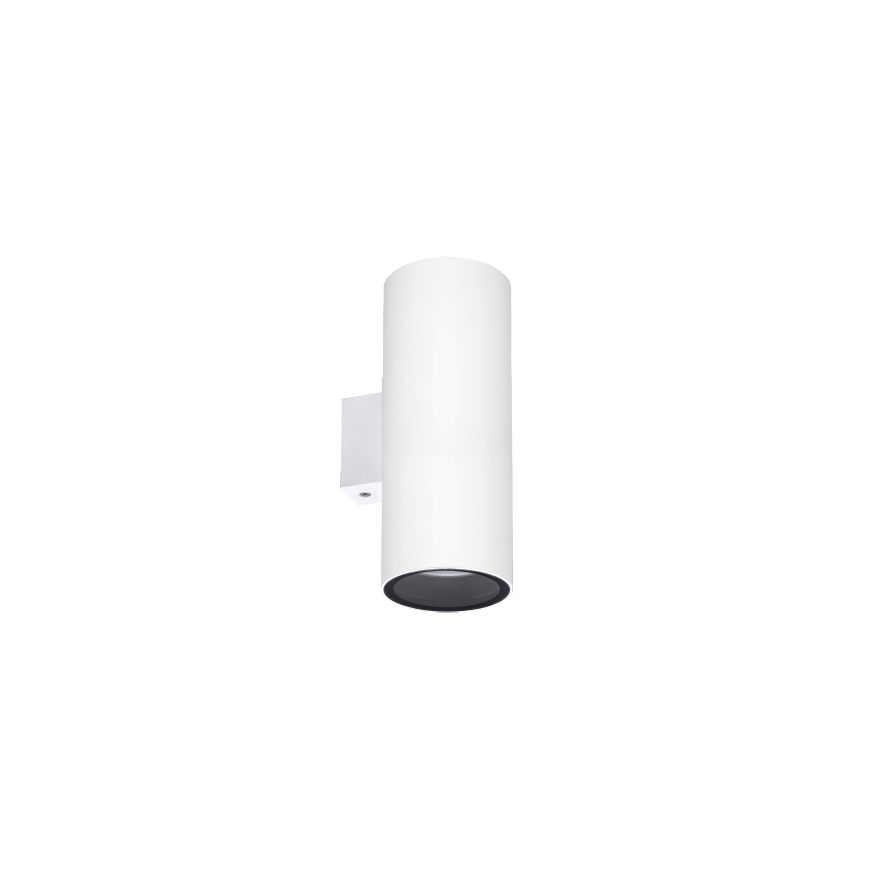

Wall mounted up and down downlight
