MIZAR 19
Linear Light
MIZAR 19
MIZAR 19
Lighting Effects
- Products Specification:
- Type:Linear Light
- Beam Angle:120D
- Power:12W 15W 20W
- CCT:2700K 3000K 4000K
- Weight:0.6kg
- Heat-Sink:Aluminum
- Surface-Treatment:powder coating

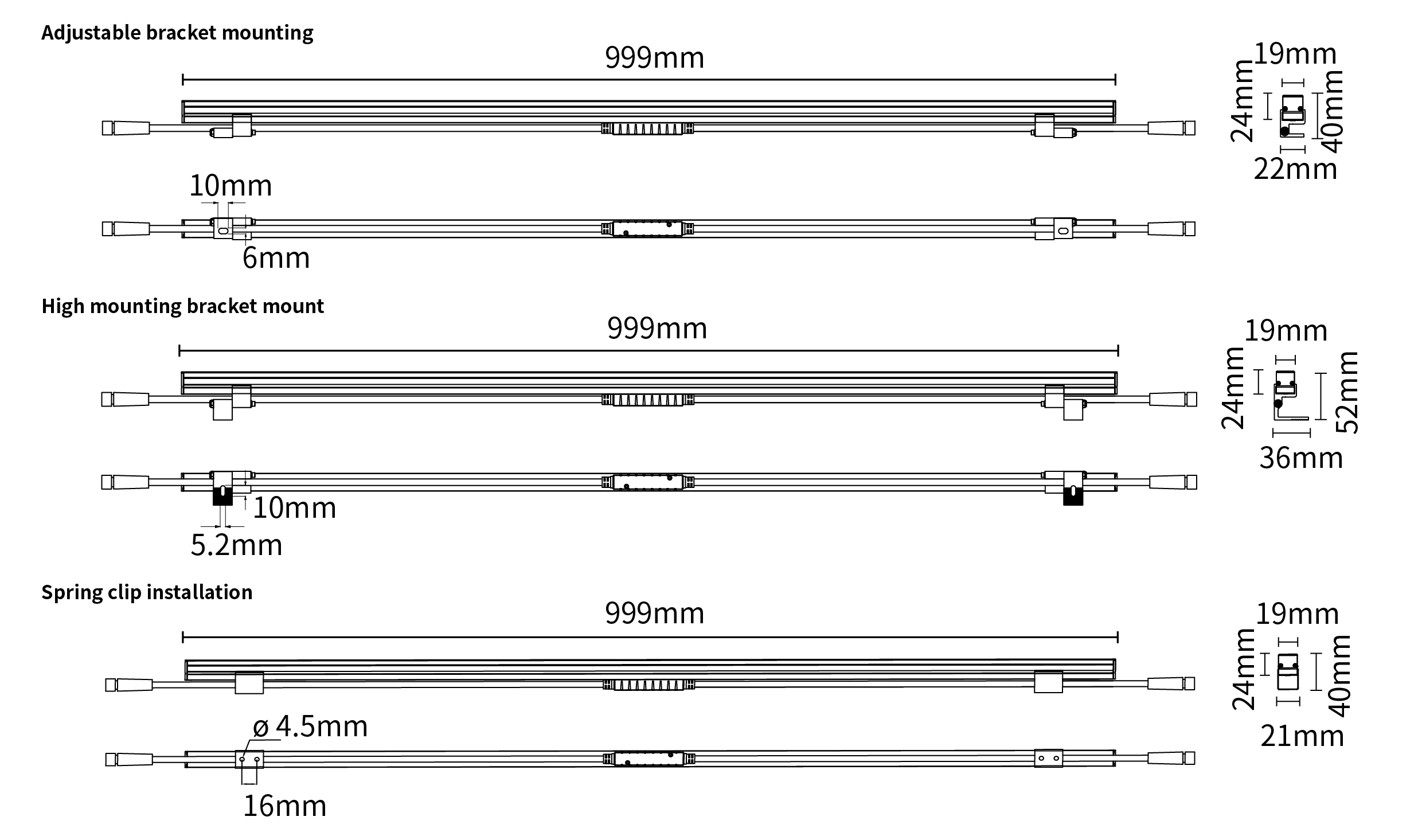

- Line Drawing:
- General Features:
- Accessories:
- Reflector Color:
- Frame Color:
Select your Model No:Power(W)- Power(W)
- 12W
- 15W
- 20W
Beam Angle- Beam Angle
- 120°
CRI- CRI
- Ra>90
Color- Color
- 2700K
- 3000K
- 4000K
Control- Control
Dimming type- Dimming type
- 1-Non Dim
- 2-Phase dimming
- 3-0-10V dimming
- 4-DALI dimming
- 5-DMX512
Finish- Finish
- Outdoor white
Reflector- Reflector
- /
IP Rating- IP Rating
- 65-IP65
Accessory- Accessory
- /
Power(W)
- Power(W)
- 12W
- 15W
- 20W
Beam Angle
- Beam Angle
- 120°
CRI
- CRI
- Ra>90
Color
- Color
- 2700K
- 3000K
- 4000K
Control
- Control
Dimming type
- Dimming type
- 1-Non Dim
- 2-Phase dimming
- 3-0-10V dimming
- 4-DALI dimming
- 5-DMX512
Finish
- Finish
- Outdoor white
Reflector
- Reflector
- /
IP Rating
- IP Rating
- 65-IP65
Accessory
- Accessory
- /
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite
- Model No
BL00702-12A19027
BL00702-12A19030
BL00702-12A19040
BL00702-15A19027
BL00702-15A19030
BL00702-15A19040
BL00702-20A19027
BL00702-20A19030
BL00702-20A19040
- Luminous Flux (LM)
440LM
463LM
486LM
543LM
573LM
603LM
724LM
764LM
804LM
- Power (W)
12W
12W
12W
15W
15W
15W
20W
20W
20W
- Beam Angle
120°
120°
120°
120°
120°
120°
120°
120°
120°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
- Control
- Specification
- IES
- DWG
- manual
- Favorite
