ARKE
LED 10X10 Strip Light 140 LEDs/M
ARKE
Lighting Effects
- Products Specification:
- Type:LED 10X10 Strip Light 140 LEDs/M
- Beam Angle:120D
- Power:6W/m 10W/m 14.4W/m
- CCT:2700K 3000K 3500K 4000K
- Weight:0.5kg
- Heat-Sink:silica gel

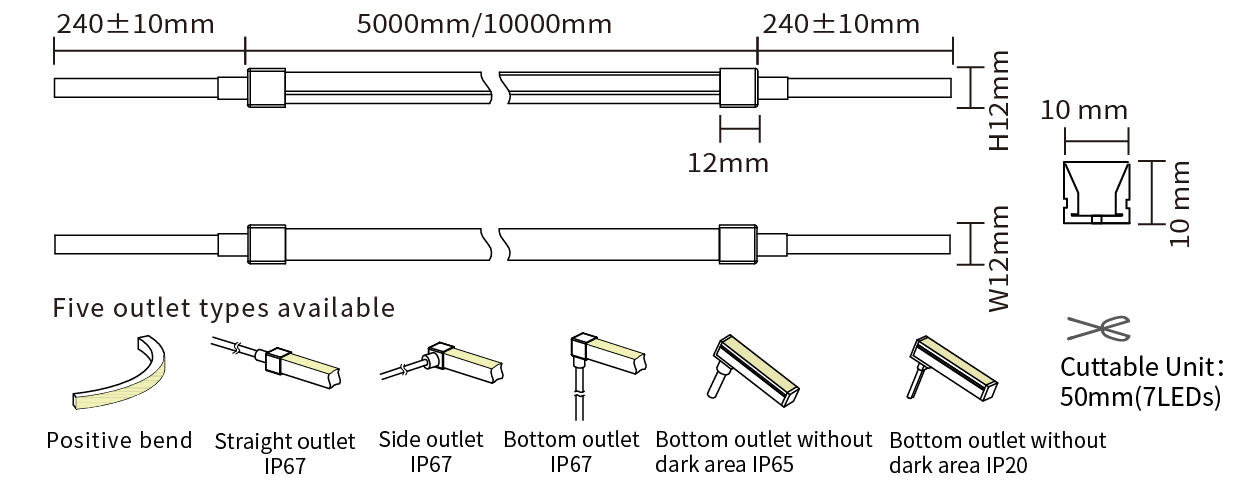

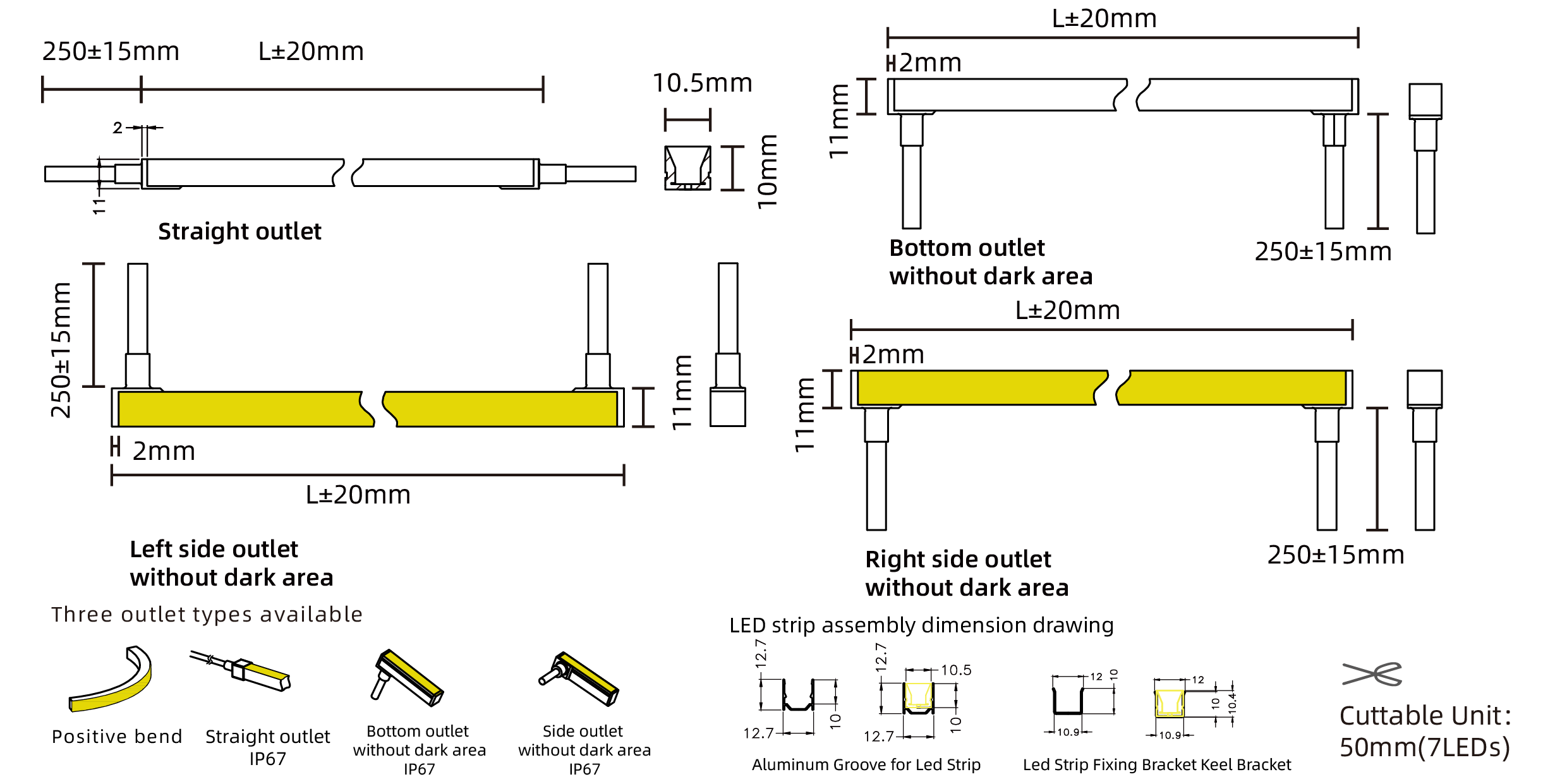

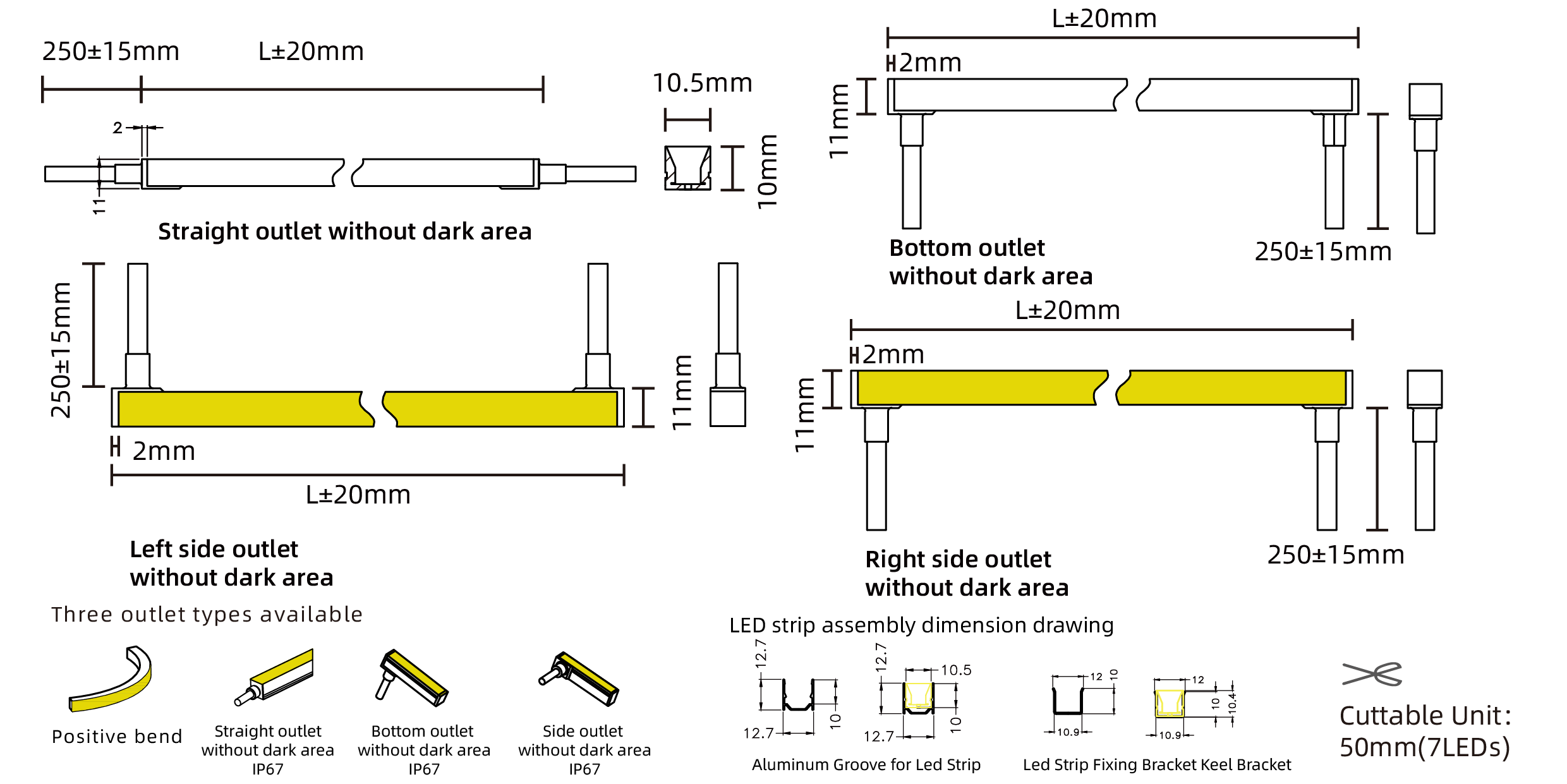

- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
Power(W)
- Power(W)
- 6W/m
- 10W/m
- 14.4W/m
Beam Angle
- Beam Angle
- 120°
CRI
- CRI
- Ra>90
Color
- Color
- 2700K
- 3000K
- 3500K
- 4000K
Dimming type
- Dimming type
- 1-Non Dim
- 2-Phase dimming
- 3-0-10V dimming
- 4-DALI dimming
- 5-DMX512
- 6-Bluetooth
Finish
- Finish
- N/A
Reflector
- Reflector
- N/A
IP Rating
- IP Rating
- 67-IP67
Accessory
- Accessory
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
- SS00501-06A19027
- SS00501-06A19030
- SS00501-06A19035
- SS00501-06A19040
- SS00501-10A19027
- SS00501-10A19030
- SS00501-10A19035
- SS00501-10A19040
- SS00501-14A19027
- SS00501-14A19030
- SS00501-14A19035
- SS00501-14A19040
- Luminous Flux (LM)
458LM
482LM
525LM
517LM
750LM
790LM
863LM
860LM
1079LM
1125LM
1178LM
1146LM
- Power (W)
6W/m
6W/m
6W/m
6W/m
10W/m
10W/m
10W/m
10W/m
14.4W/m
14.4W/m
14.4W/m
14.4W/m
- Beam Angle
120°
120°
120°
120°
120°
120°
120°
120°
120°
120°
120°
120°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
3500K
4000K
2700K
3000K
3500K
4000K
2700K
3000K
3500K
4000K
- Specification
- IES
- DWG
- manual
- Favorite
