Home Products LED Strip LINA-S - LED RGBW Strip Light

LINA-S

LED RGBW Strip Light

LINA-S

LINA-S

LINA-S

LINA-S

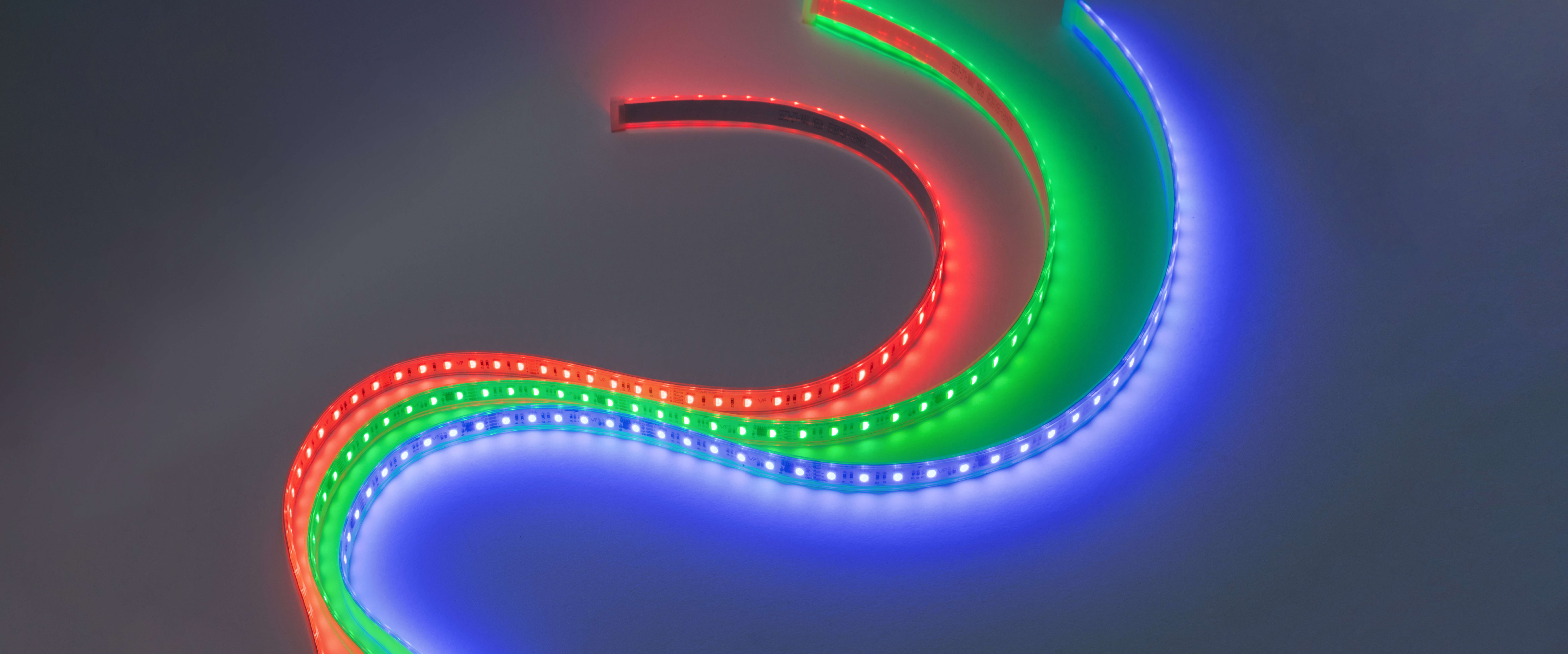

Lighting Effects

Products Specification:: Type:LED RGBW Strip Light; Beam Angle:110D; Power:11W 12W 14W 15W 16W; Weight:0.3kg/roll; CCT:RGB; Surface-Treatment:Silica Gel

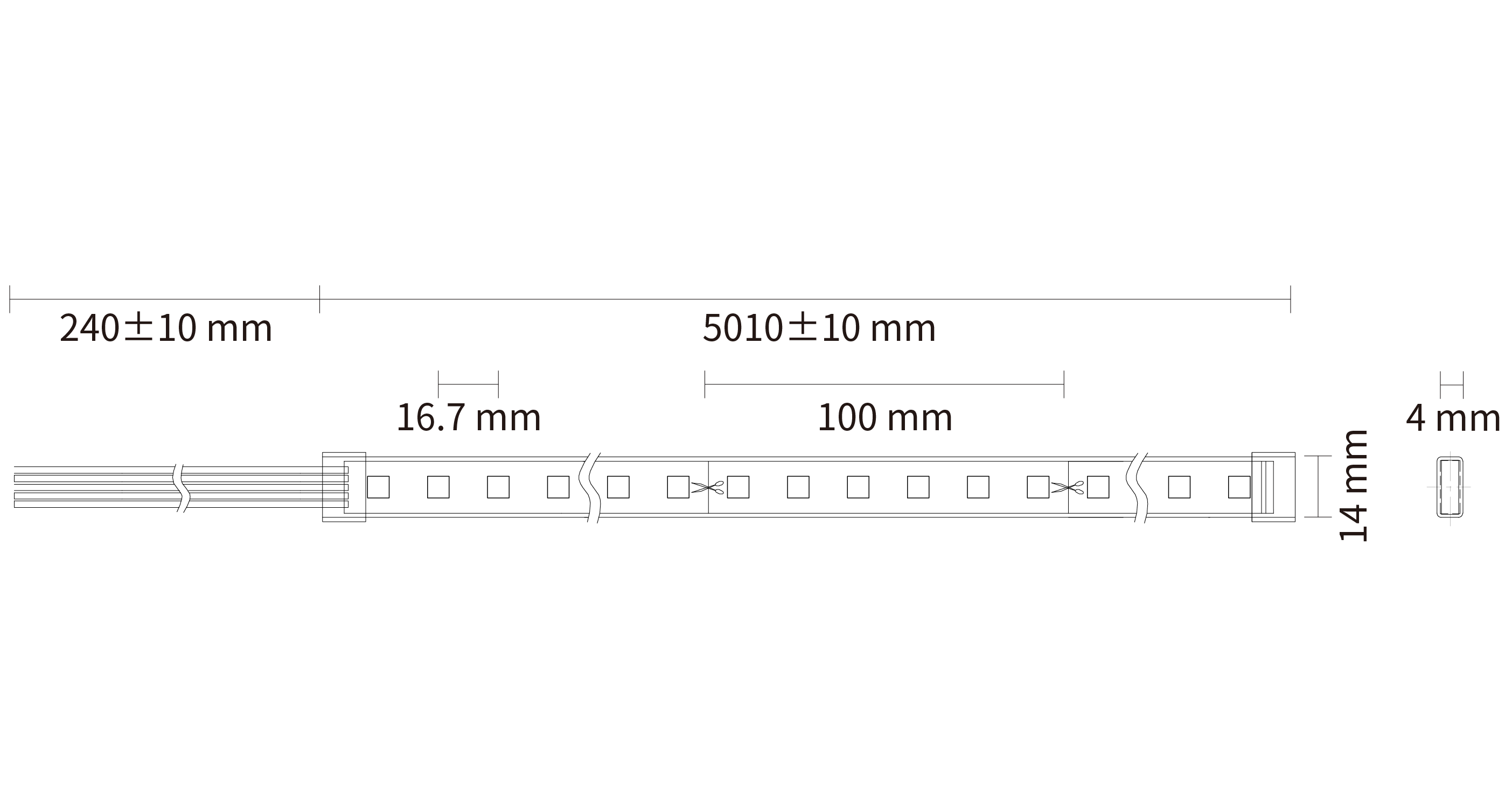

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
11W/M
12W/M
14W/M
15W/M
16W/M

Beam Angle

Beam Angle
110°

CRI

CRI
/

Color

Color
Green
Blue
RGB
Red
RGBW（e.g.RGB)
3000K

Dimming type

Dimming type
5-DMX512

Finish

Finish
N/A

Reflector

Reflector
N/A

IP Rating

IP Rating
44-IP44
67-IP67

Accessory

Accessory
N/A

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: SS00111-11A1XXC3-RGB; SS00111-11A1XXC3-Red; SS00111-11A1XXC3-Green; SS00111-11A1XXC3-Blue; SS00114-14A1XXC3-RGB; SS00114-14A1XXC3-Red; SS00114-14A1XXC3-Green; SS00114-14A1XXC3-Blue; SS00109-12A18030; SS00109-12A18030-Blue; SS00109-12A18030-Green; SS00109-12A18030-Red; SS00109-12A18030-RGB; SS00109-12A18030-RGBW; SS00112-14A18030; SS00112-14A18030-Blue; SS00112-14A18030-Green; SS00112-14A18030-Red; SS00112-14A18030-RGB; SS00112-14A18030-RGBW; SS00119-15A18030; SS00119-15A18030-Blue; SS00119-15A18030-Green; SS00119-15A18030-Red; SS00119-15A18030-RGB; SS00119-15A18030-RGBW; SS00115-16A18030; SS00115-16A18030-Blue; SS00115-16A18030-Green; SS00115-16A18030-Red; SS00115-16A18030-RGB; SS00115-16A18030-RGBW

Luminous Flux (LM): 389LM; 87LM; 259LM; 59LM; 486LM; 100LM; 323LM; 75LM; 316LM; 58LM; 260LM; 81LM; 388LM; 625LM; 284LM; 54LM; 242LM; 83LM; 364LM; 772LM; 392LM; 73LM; 323LM; 100LM; 475LM; 738LM; 359LM; 69LM; 302LM; 104LM; 450LM; 903LM

Power (W): 11W/M; 11W/M; 11W/M; 11W/M; 14W/M; 14W/M; 14W/M; 14W/M; 12W/M; 12W/M; 12W/M; 12W/M; 12W/M; 12W/M; 14W/M; 14W/M; 14W/M; 14W/M; 14W/M; 14W/M; 15W/M; 15W/M; 15W/M; 15W/M; 15W/M; 15W/M; 16W/M; 16W/M; 16W/M; 16W/M; 16W/M; 16W/M

Beam Angle: 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°

CRI: /; /; /; /; /; /; /; /; /; /; /; /; /; /; /; /; /; /; /; /; /; /; /; /; /; /; /; /; /; /; /; /

Color: RGB; Red; Green; Blue; RGB; Red; Green; Blue; 3000K; Blue; Green; Red; RGB; RGBW（e.g.RGB); 3000K; Blue; Green; Red; RGB; RGBW（e.g.RGB); 3000K; Blue; Green; Red; RGB; RGBW（e.g.RGB); 3000K; Blue; Green; Red; RGB; RGBW（e.g.RGB)

Specification

IES

DWG

manual

Favorite

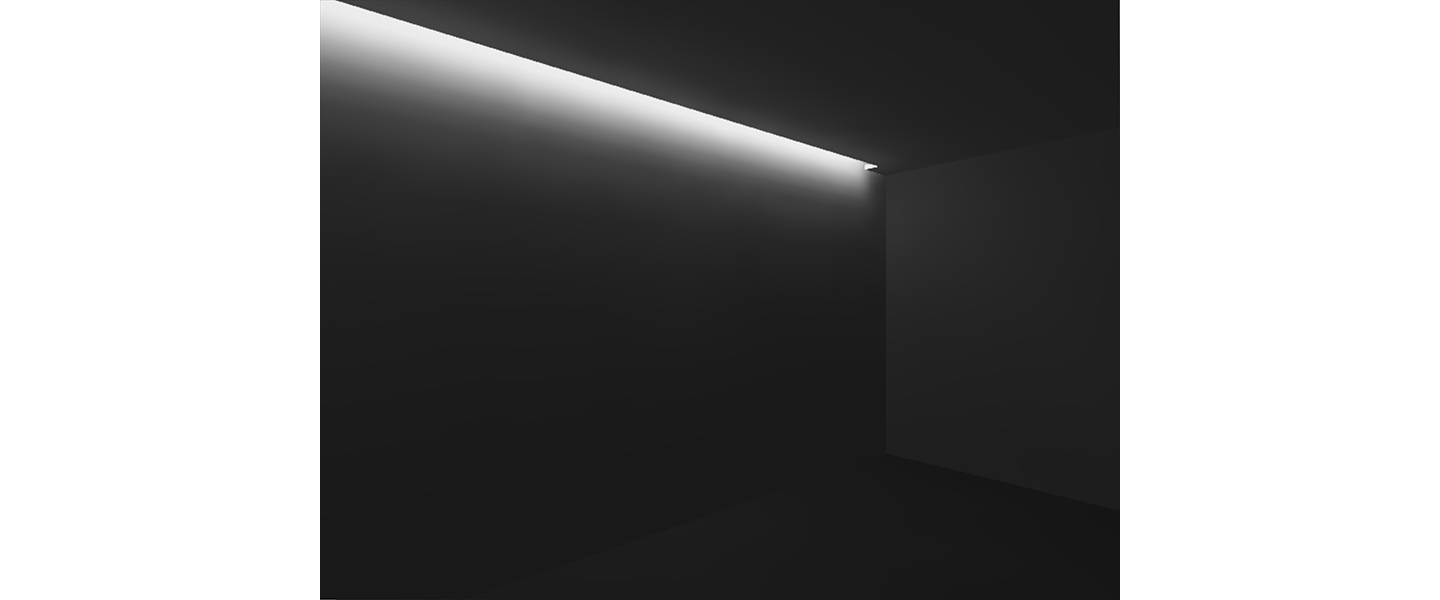

Application
