LINA-S

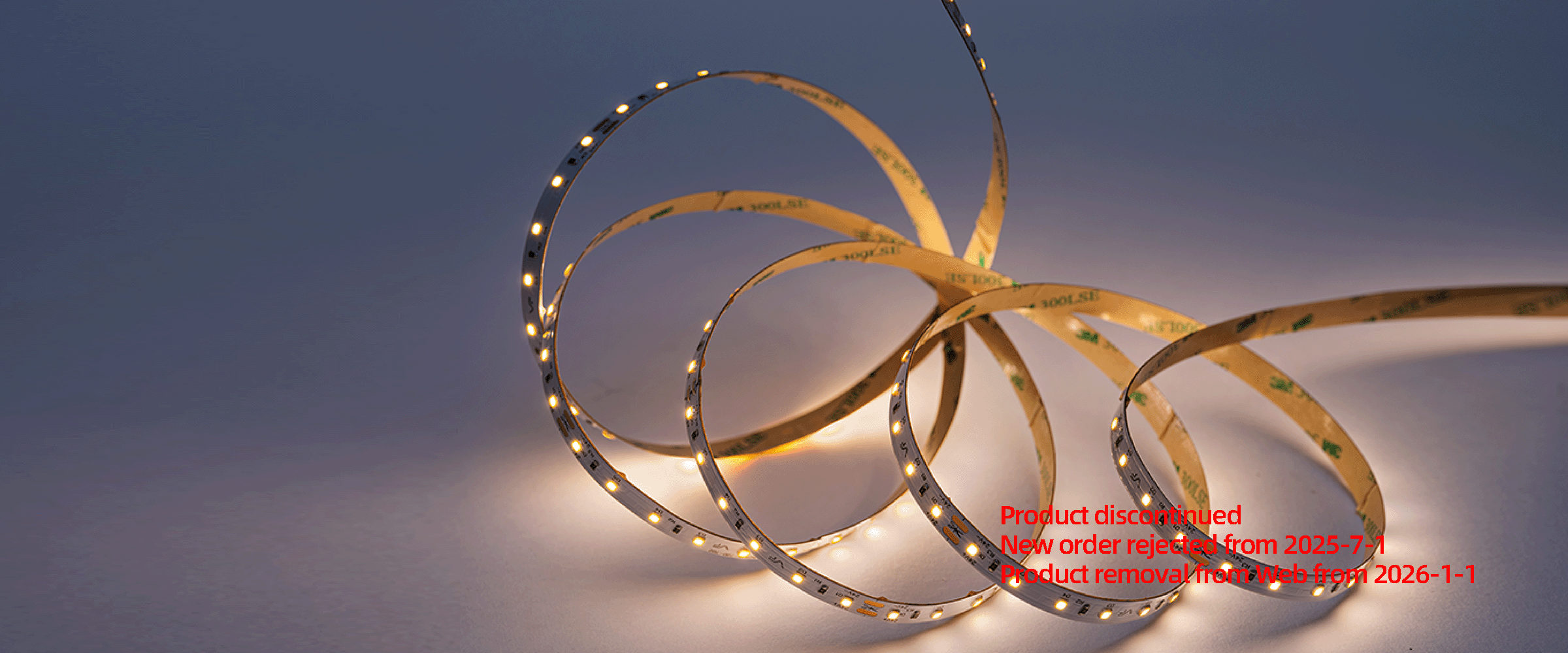

10mm naked LED Strip 72LEDs/M

LINA-S

Lighting Effects

Products Specification:
Type:10mm naked LED Strip 72LEDs/M
Beam Angle:110D
Power:14.4W/m
CCT:2700K 3000K 4000K
Weight:0.012 kg /roll
PCB Width:10mm

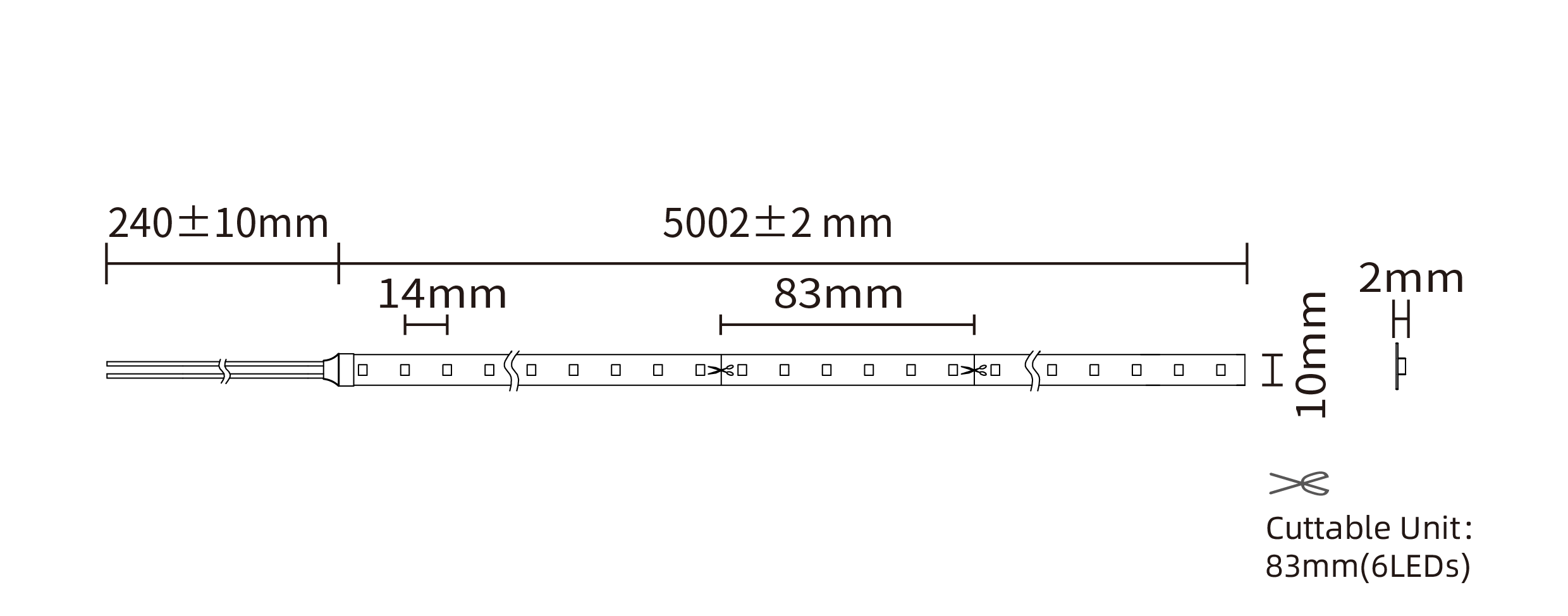

Line Drawing:
General Features:

Accessories :
Reflector Color:
Frame Color:

Select your Model No:

*Please log in before selecting your Model No

Power(W)
  • Power(W)
  • 14.4W/m
Beam Angle
  • Beam Angle
  • 110°
CRI
  • CRI
  • Ra≥90 R9≥50
Color
  • Color
  • 2700K
  • 3000K
  • 4000K
Dimming type
  • Dimming type
  • 1-Non Dim
  • 2-Phase dimming
  • 3-0-10V dimming
  • 4-DALI dimming
  • 5-DMX512
  • 6-Bluetooth
Finish
  • Finish
Reflector
  • Reflector
IP Rating
  • IP Rating
  • 20-IP20
Accessory
  • Accessory
  • Model No

  • Luminaire lumen(LM)

  • Power (W)

  • Beam Angle

  • CRI

  • Color

  • Specification

  • IES

  • DWG

  • manual

  • Favorite

Model No
SS00204-14A19027
SS00204-14A19030
SS00204-14A19040
Luminous Flux (LM)

1191LM

1254LM

1317LM

Power (W)

14.4W/m

14.4W/m

14.4W/m

Beam Angle

110°

110°

110°

CRI

Ra≥90 R9≥50

Ra≥90 R9≥50

Ra≥90 R9≥50

Color

2700K

3000K

4000K

Specification
IES
DWG
manual
Favorite
