LINA-S

10mm naked dimmable LED Strip 96LEDs/M

LINA-S

Lighting Effects

Products Specification:
Type:10mm naked dimmable LED Strip 96LEDs/M
Beam Angle:110D
Power:4.8W(constant power)
CCT:2400K 6500K
Weight:0.012 kg /roll
PCB Width:10mm

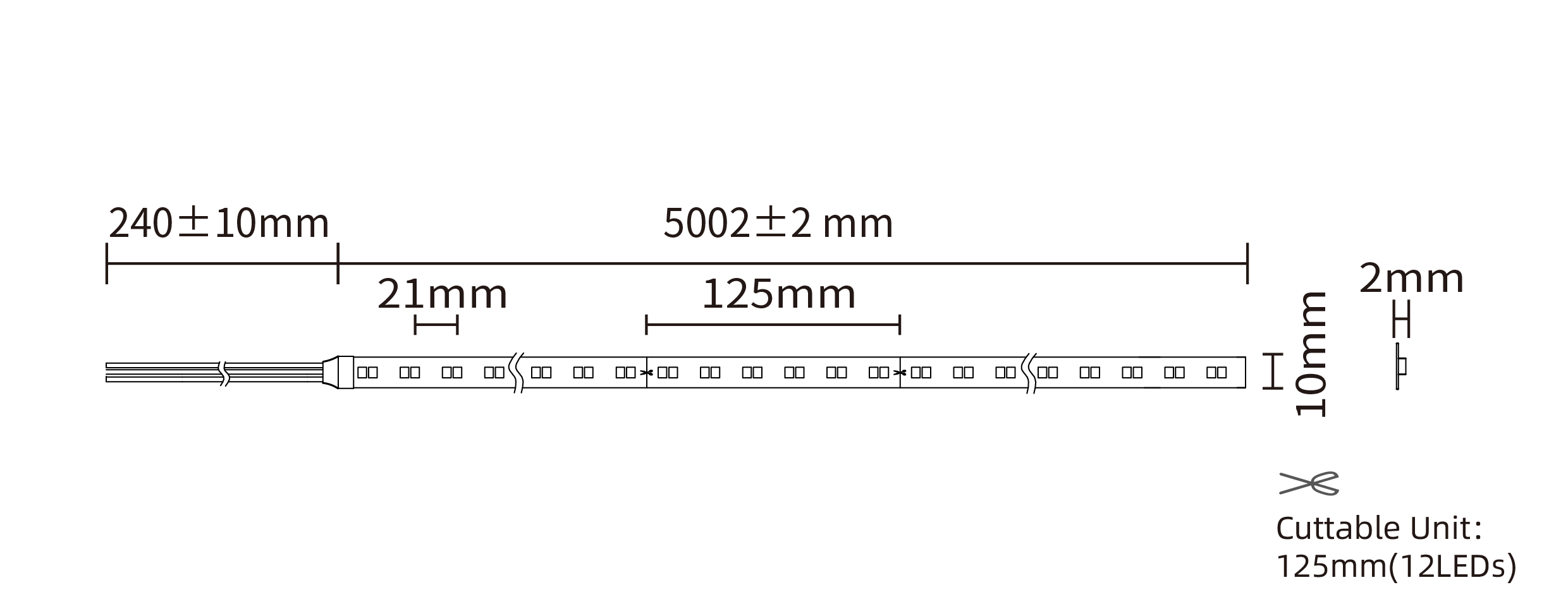

Line Drawing:
General Features:

Accessories :
Reflector Color:
Frame Color:

Select your Model No:

*Please log in before selecting your Model No

Power(W)
  • Power(W)
  • 4.8W(constant power)
Beam Angle
  • Beam Angle
  • 110°
CRI
  • CRI
  • Ra≥90 R9≥50
Color
  • Color
  • 2400K
  • 6500K
Dimming type
  • Dimming type
  • 3-0-10V dimming
  • 4-DALI dimming
  • 5-DMX512
Finish
  • Finish
Reflector
  • Reflector
IP Rating
  • IP Rating
  • 20-IP20
Accessory
  • Accessory
  • Model No

  • Luminaire lumen(LM)

  • Power (W)

  • Beam Angle

  • CRI

  • Color

  • Specification

  • IES

  • DWG

  • manual

  • Favorite

Model No
SS00206-05A19024
SS00206-05A19065
Luminous Flux (LM)

382LM

480LM

Power (W)

4.8W(constant power)

4.8W(constant power)

Beam Angle

110°

110°

CRI

Ra≥90 R9≥50

Ra≥90 R9≥50

Color

2400K

6500K

Specification
IES
DWG
manual
Favorite

Application
