ARKE

LED 10X20 side bend RGBW neon strip light (8 segment per meter)

ARKE

Lighting Effects

Products Specification:: Type:LED 10X20 side bend RGBW neon strip light (8 segment per meter); Cutout:/; Power:14.4W/m 18W/m; CCT:RGBW; Beam Angle:120D; Weight:0.6kg; Surface-Treatment:Silica

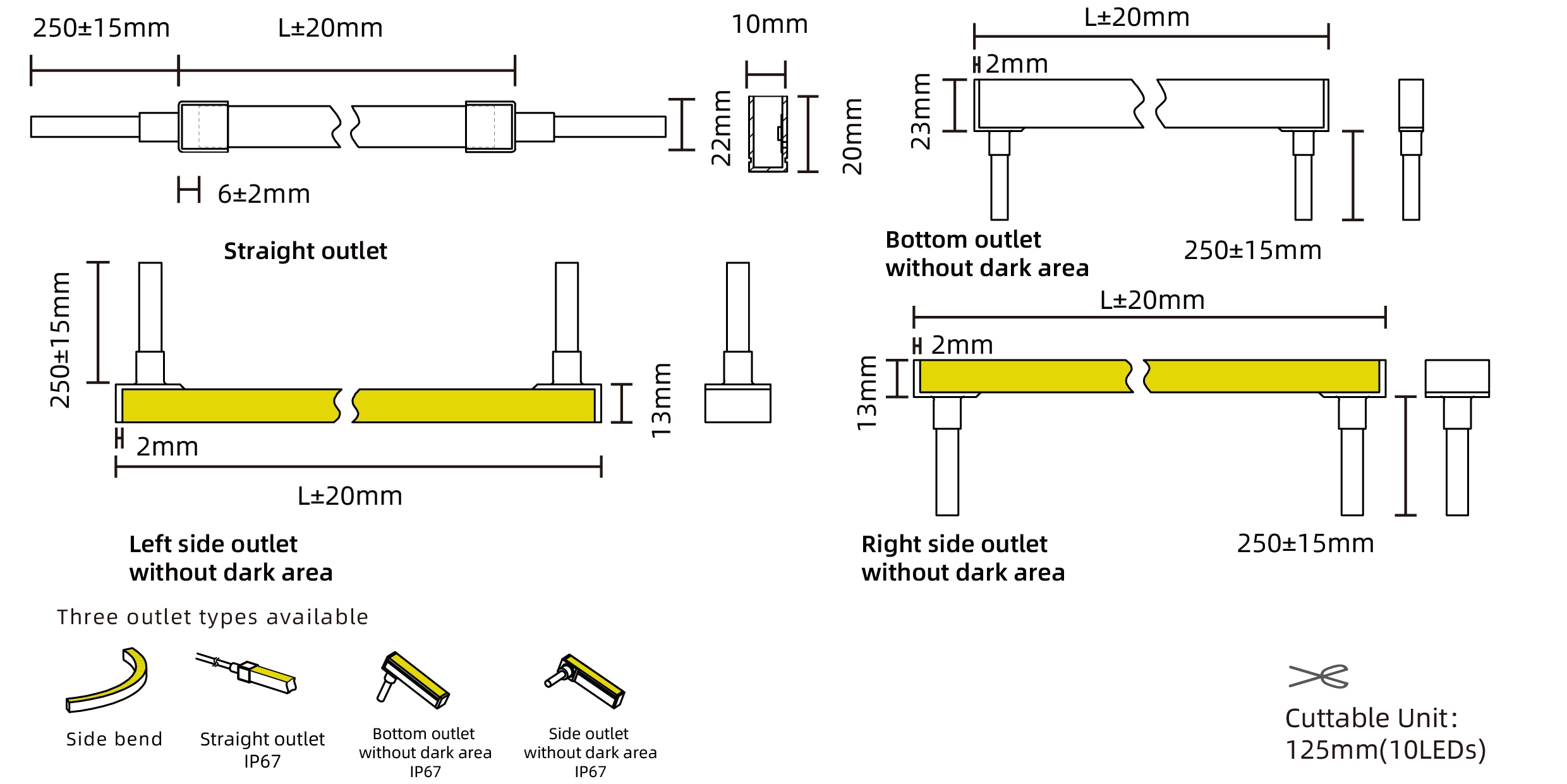

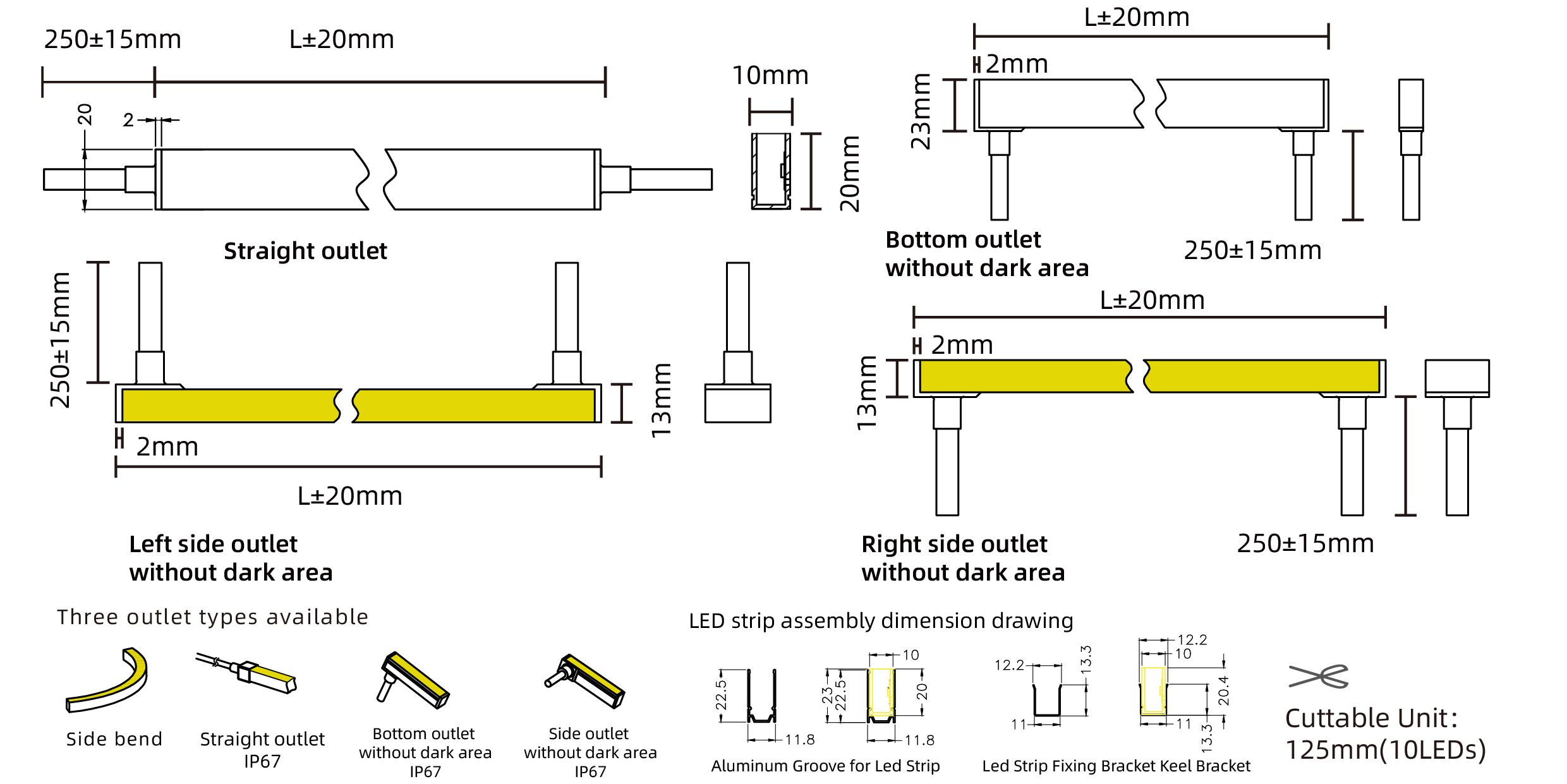

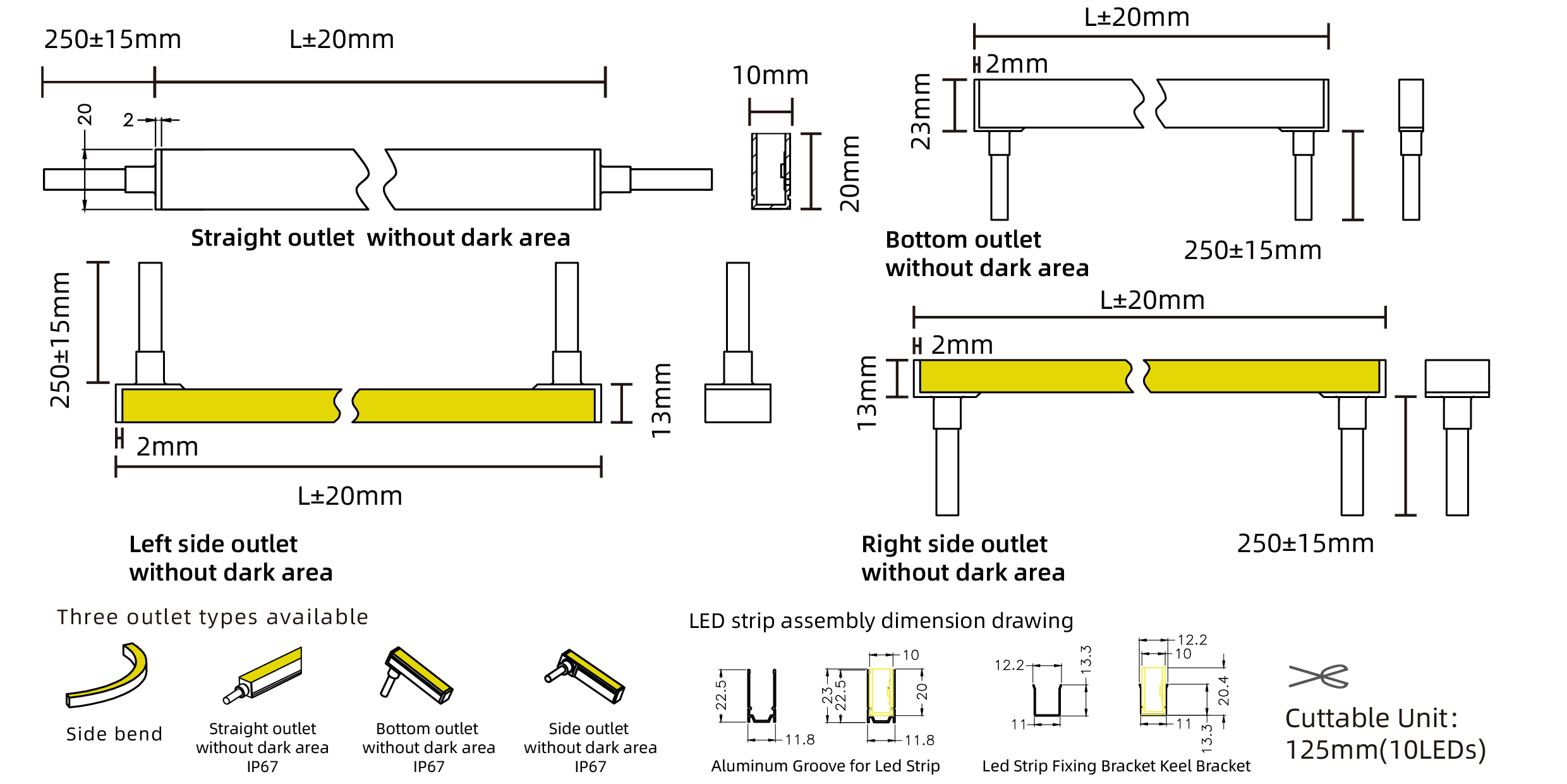

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
14.4W/m
18W/m

Beam Angle

Beam Angle
120°

CRI

CRI
Ra>80
465-470nm
525-530nm
620-630nm

Color

Color
RGBW-W3000K RA80
RGBW-W4000K RA80
RGBW-W2700K RA80
RGBW-R
RGBW-G
RGBW-B
RGBW3000K-全亮
RGBW-RGB
RGBW2700K-全亮
RGBW4000K-全亮

Dimming type

Dimming type
5-DMX512

Finish

Finish

Reflector

Reflector

IP Rating

IP Rating
67-IP67

Accessory

Accessory

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: SS01004-1412080-Red; SS01004-1412080-Green; SS01004-1412080-Blue; SS01004-141208027; SS01004-141208030; SS01004-141208040; SS01004-1412080-RGB; SS01004-141208027-RGBW; SS01004-141208030-RGBW; SS01004-141208040-RGBW; SS01004-1812080-Red; SS01004-1812080-Green; SS01004-1812080-Blue; SS01004-181208027; SS01004-181208030; SS01004-181208040; SS01004-1812080-RGB; SS01004-181208027-RGBW; SS01004-181208030-RGBW; SS01004-181208040-RGBW

Luminous Flux (LM): 17LM; 48LM; 12LM; 73LM; 72LM; 76LM; 76LM; 149LM; 145LM; 150LM; 16LM; 60LM; 13LM; 67LM; 71LM; 74LM; 86LM; 147LM; 155LM; 163LM

Power (W): 14.4W/m; 14.4W/m; 14.4W/m; 14.4W/m; 14.4W/m; 14.4W/m; 14.4W/m; 14.4W/m; 14.4W/m; 14.4W/m; 18W/m; 18W/m; 18W/m; 18W/m; 18W/m; 18W/m; 18W/m; 18W/m; 18W/m; 18W/m

Beam Angle: 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°

CRI: 620-630nm; 525-530nm; 465-470nm; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; 620-630nm; 525-530nm; 465-470nm; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80

Color: RGBW-R; RGBW-G; RGBW-B; RGBW-W2700K RA80; RGBW-W3000K RA80; RGBW-W4000K RA80; RGBW-RGB; RGBW2700K-全亮; RGBW3000K-全亮; RGBW4000K-全亮; RGBW-R; RGBW-G; RGBW-B; RGBW-W2700K RA80; RGBW-W3000K RA80; RGBW-W4000K RA80; RGBW-RGB; RGBW2700K-全亮; RGBW3000K-全亮; RGBW4000K-全亮

Specification

IES

DWG

manual

Favorite

Application
