ARKE
LED 20X20 single color positive bend neon strip(8 segment per meter)
ARKE
Lighting Effects
- Products Specification:
- Type:LED 20X20 single color positive bend neon strip(8 segment per meter)
- Cutout:/
- Power:14.4W/m 18W/m
- CCT:2700K 3000K 4000K
- Beam Angle:110D
- Weight:0.6kg
- Surface-Treatment:Silica

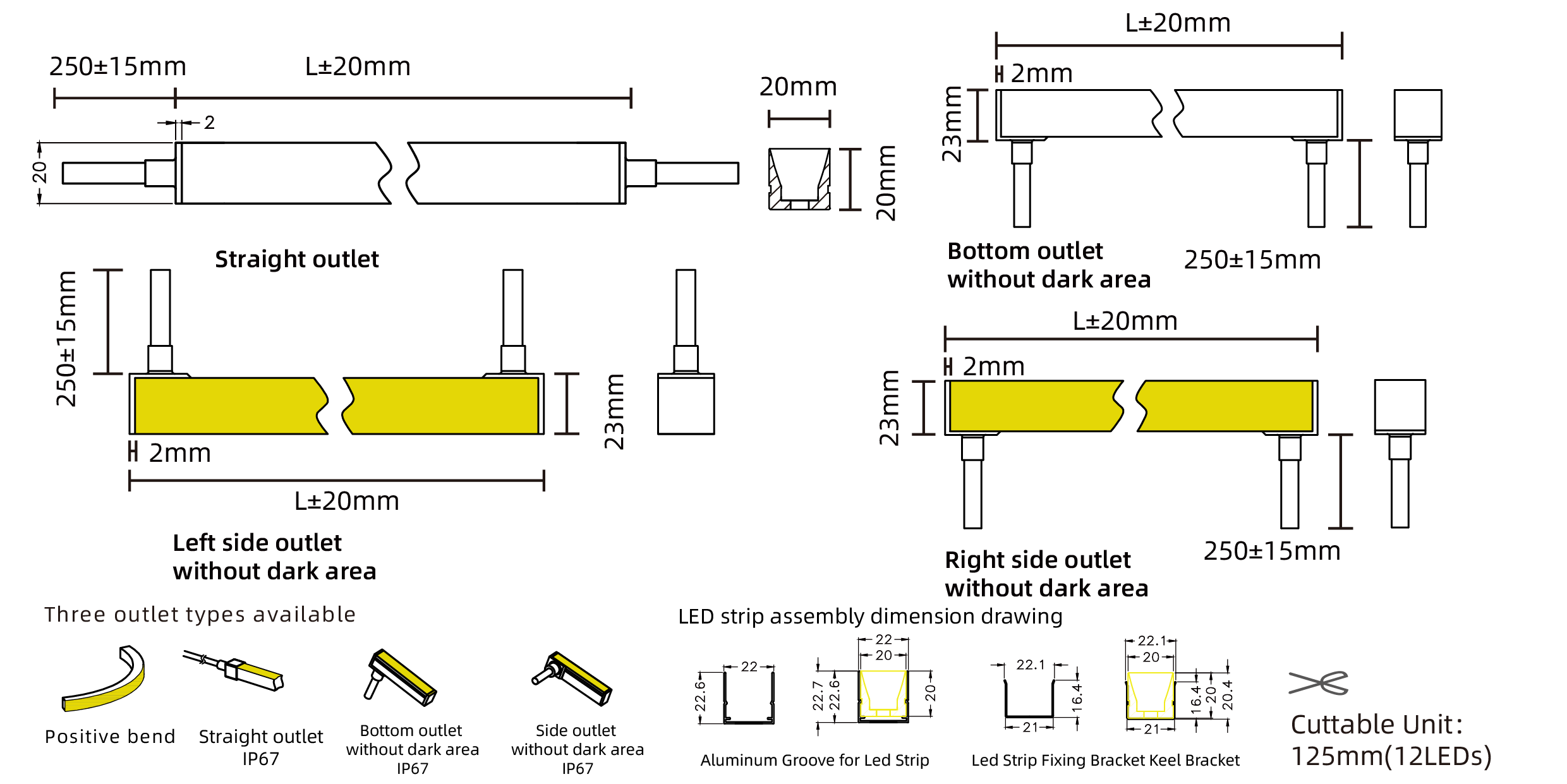

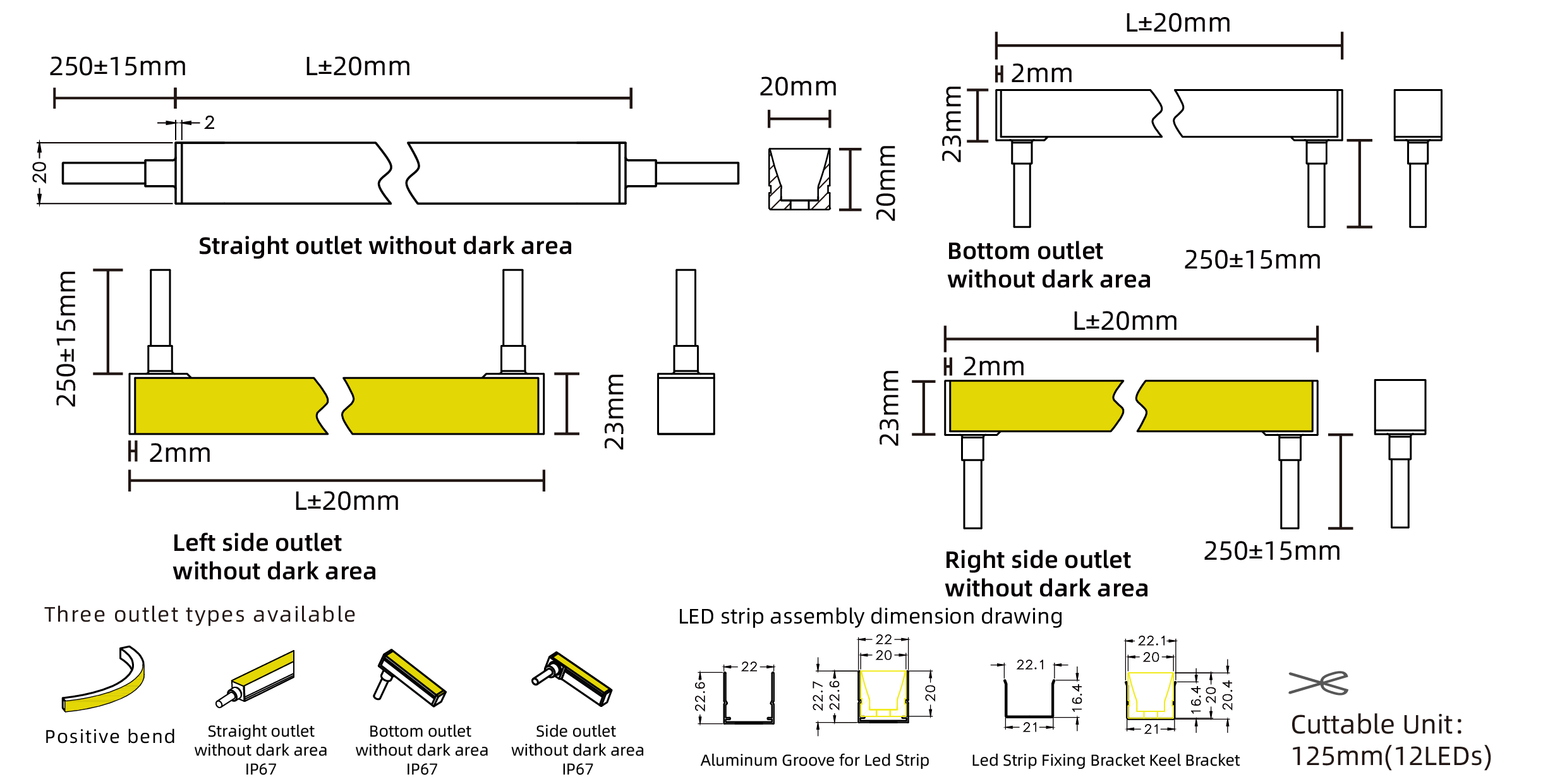

- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
Power(W)
- Power(W)
- 14.4W/m
- 18W/m
Beam Angle
- Beam Angle
- 120°
CRI
- CRI
- Ra>90
Color
- Color
- 2700K
- 3000K
- 4000K
Dimming type
- Dimming type
- 5-DMX512
Finish
- Finish
Reflector
- Reflector
IP Rating
- IP Rating
- 67-IP67
Accessory
- Accessory
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
- SS01302-14.4A19027
- SS01302-14.4A19030
- SS01302-14.4A19040
- SS01302-18A19027
- SS01302-18A19030
- SS01302-18A19040
- Luminous Flux (LM)
531LM
559LM
612LM
771LM
811LM
852LM
- Power (W)
14.4W/m
14.4W/m
14.4W/m
18W/m
18W/m
18W/m
- Beam Angle
120°
120°
120°
120°
120°
120°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
- Specification
- IES
- DWG
- manual
- Favorite
