ARKE

LED 20X20 positive bend RGBW neon strip light (8 segment per meter)

ARKE

Lighting Effects

Products Specification:: Type:LED 20X20 positive bend RGBW neon strip light (8 segment per meter); Cutout:/; Power:14.4W/m 18W/m; CCT:RGBW; Beam Angle:110D; Weight:0.6kg; Surface-Treatment:Silica

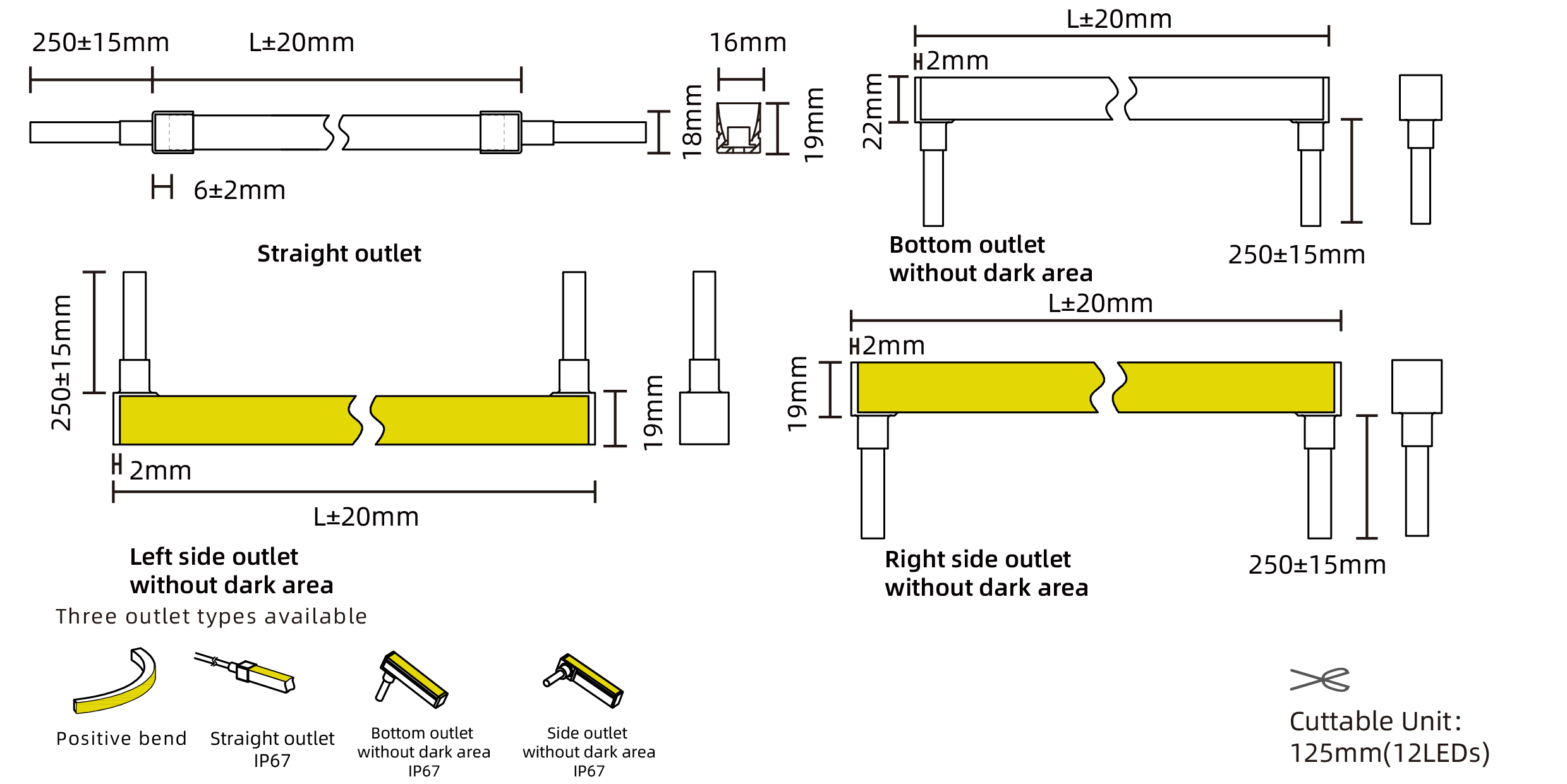

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
14.4W/m
18W/m

Beam Angle

Beam Angle
120°

CRI

CRI
Ra>80
465-470nm
525-530nm
620-630nm

Color

Color
RGBW-R
RGBW-G
RGBW-B
RGBW-W2700K RA80
RGBW-W3000K RA80
RGBW-W4000K RA80
RGBW-RGB
RGBW2700K-全亮
RGBW3000K-全亮
RGBW4000K-全亮

Dimming type

Dimming type
5-DMX512

Finish

Finish

Reflector

Reflector

IP Rating

IP Rating
67-IP67

Accessory

Accessory

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: SS01303-1412090-Red; SS01303-1412090-Green; SS01303-1412090-Blue; SS01303-141209027; SS01303-141209030; SS01303-141209040; SS01303-1412090-RGB; SS01303-141209027-RGBW; SS01303-141209030-RGBW; SS01303-141209040-RGBW; SS01303-1812090-Red; SS01303-1812090-Green; SS01303-1812090-Blue; SS01303-181209027; SS01303-181209030; SS01303-181209040; SS01303-1812090-RGB; SS01303-181209027-RGBW; SS01303-181209030-RGBW; SS01303-181209040-RGBW

Luminous Flux (LM): 26LM; 96LM; 22LM; 125LM; 127LM; 127LM; 144LM; 278LM; 283LM; 269LM; 33LM; 124LM; 27LM; 137LM; 144LM; 152LM; 179LM; 306LM; 322LM; 338LM

Power (W): 14.4W/m; 14.4W/m; 14.4W/m; 14.4W/m; 14.4W/m; 14.4W/m; 14.4W/m; 14.4W/m; 14.4W/m; 14.4W/m; 18W/m; 18W/m; 18W/m; 18W/m; 18W/m; 18W/m; 18W/m; 18W/m; 18W/m; 18W/m

Beam Angle: 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°

CRI: 620-630nm; 525-530nm; 465-470nm; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; 620-630nm; 525-530nm; 465-470nm; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80

Color: RGBW-R; RGBW-G; RGBW-B; RGBW-W2700K RA80; RGBW-W3000K RA80; RGBW-W4000K RA80; RGBW-RGB; RGBW2700K-全亮; RGBW3000K-全亮; RGBW4000K-全亮; RGBW-R; RGBW-G; RGBW-B; RGBW-W2700K RA80; RGBW-W3000K RA80; RGBW-W4000K RA80; RGBW-RGB; RGBW2700K-全亮; RGBW3000K-全亮; RGBW4000K-全亮

Specification

IES

DWG

manual

Favorite

Application
