LED 16X19 Positive Bend Single Color Neon Strip
ARKE
Lighting Effects
- Products Specification:
- Type:LED 16X19 Positive Bend Single Color Neon Strip
- Power:6W/m 10W/m 14.4W/m 18W/m
- CCT:2700K 3000K 4000K
- Beam Angle:120D
- Weight:1.6kg
- Surface-Treatment:Silica

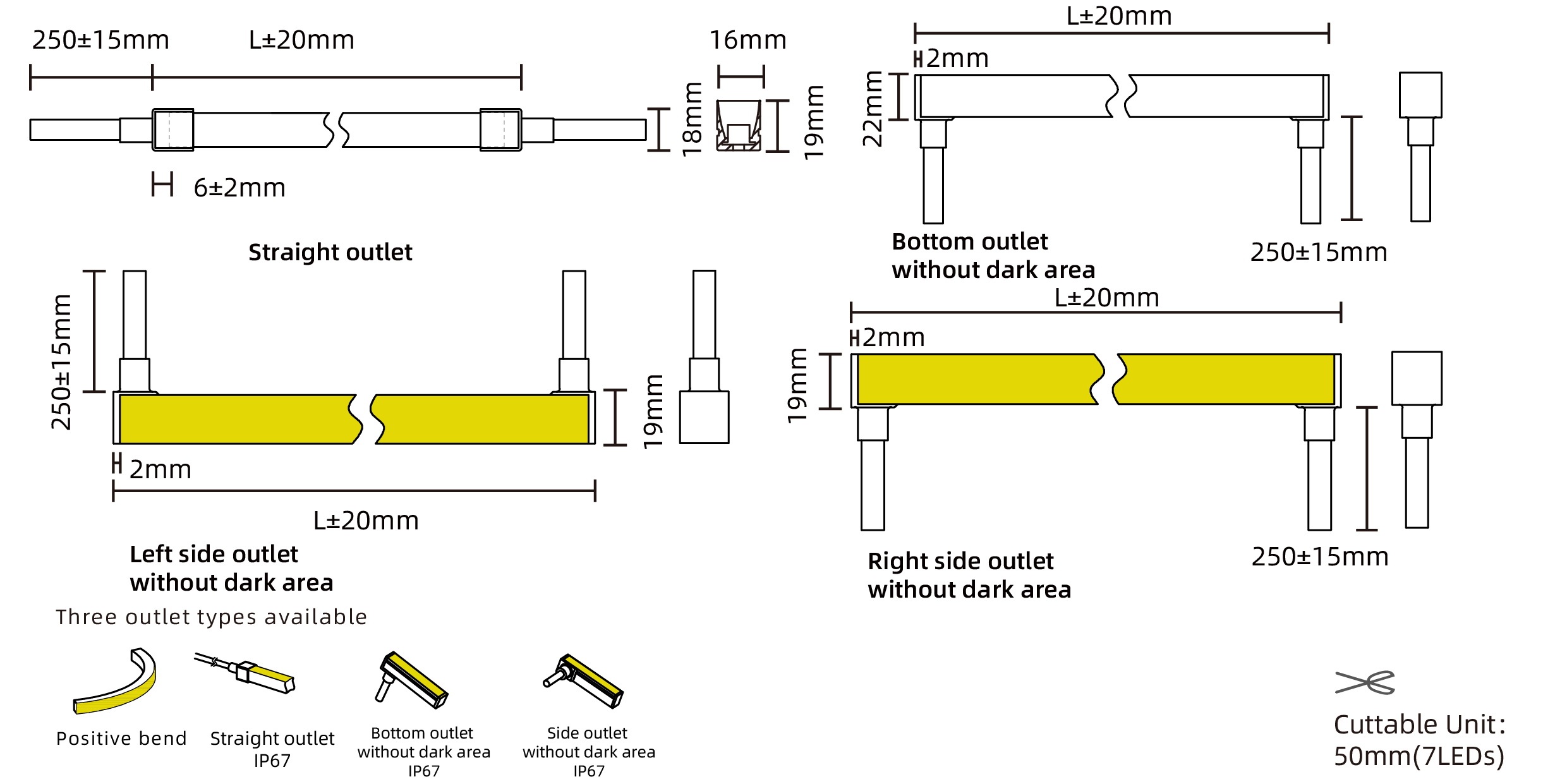

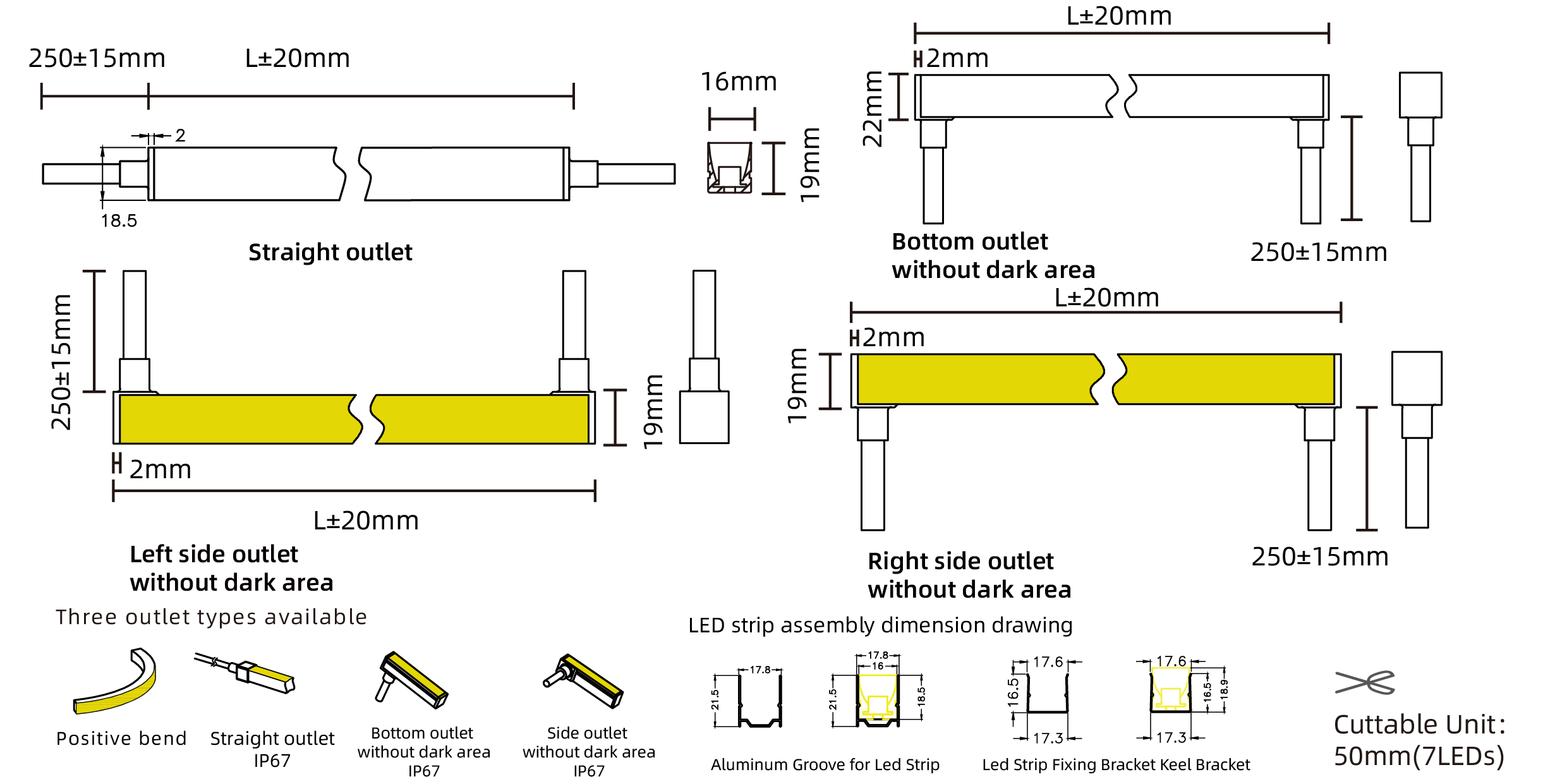

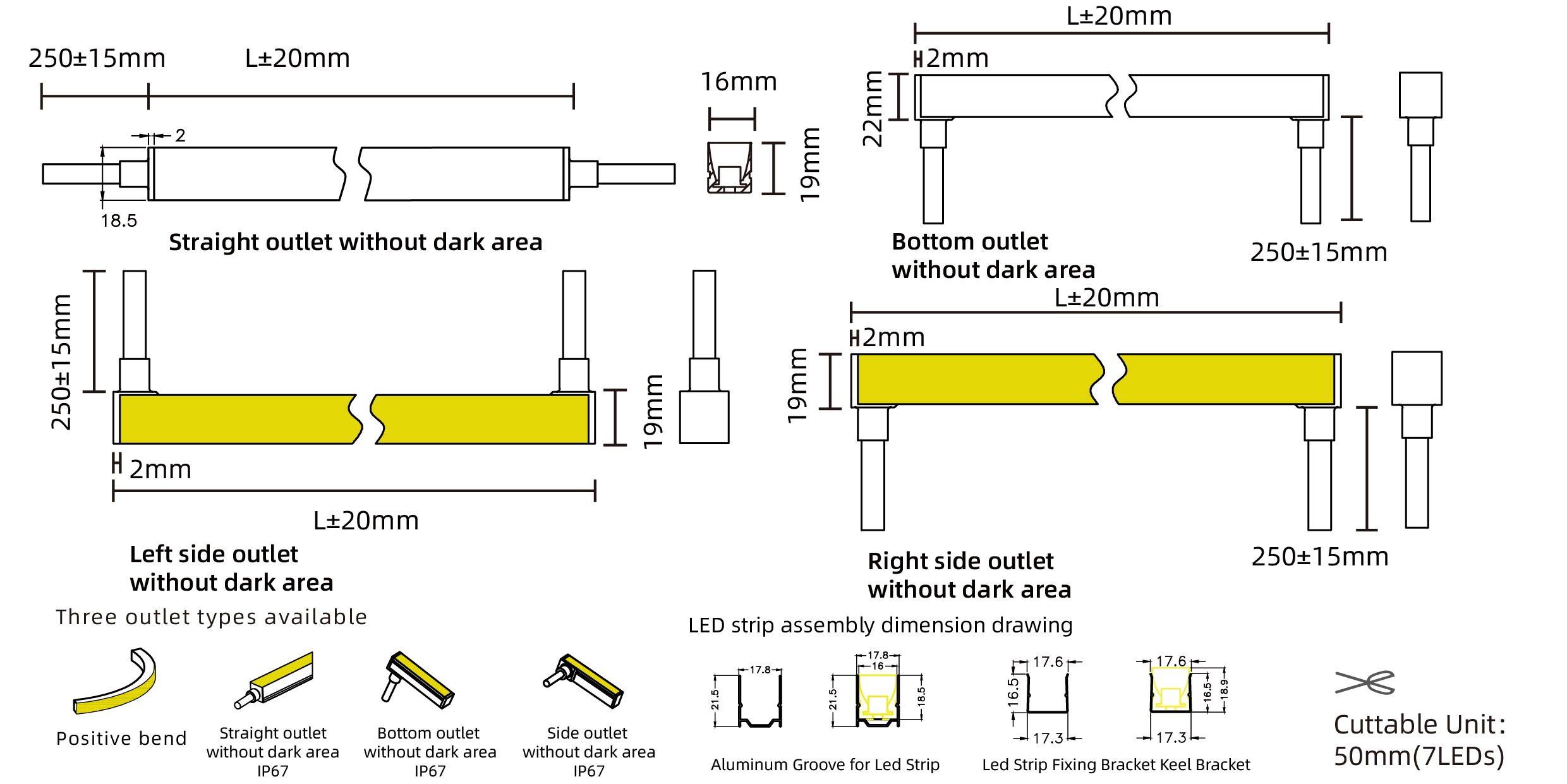

- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
Power(W)
- Power(W)
- 6W/m
- 10W/m
- 14.4W/m
- 18W/m
Beam Angle
- Beam Angle
- 120°
CRI
- CRI
- Ra>90
Color
- Color
- 2700K
- 3000K
- 4000K
Dimming type
- Dimming type
- 1-Non Dim
- 2-Phase dimming
- 3-0-10V dimming
- 4-DALI dimming
- 5-DMX512
- 6-Bluetooth
Finish
- Finish
Reflector
- Reflector
IP Rating
- IP Rating
- 67-IP67
Accessory
- Accessory
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
- SS02101-06A19027
- SS02101-06A19030
- SS02101-06A19040
- SS02101-10A19027
- SS02101-10A19030
- SS02101-10A19040
- SS02101-15A19027
- SS02101-15A19030
- SS02101-15A19040
- SS02101-18A19027
- SS02101-18A19030
- SS02101-18A19040
- Luminous Flux (LM)
267LM
307LM
325LM
460LM
468LM
528LM
653LM
726LM
786LM
782LM
823LM
865LM
- Power (W)
6W/m
6W/m
6W/m
10W/m
10W/m
10W/m
14.4W/m
14.4W/m
14.4W/m
18W/m
18W/m
18W/m
- Beam Angle
120°
120°
120°
120°
120°
120°
120°
120°
120°
120°
120°
120°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
