Home Products LED Strip ARKE - LED 16X19 Positive Bend RGBW Neon Strip (8 segment per meter

ARKE

LED 16X19 Positive Bend RGBW Neon Strip (8 segment per meter

ARKE

Lighting Effects

Products Specification:: Type:LED 16X19 Positive Bend RGBW Neon Strip (8 segment per meter; Power:14.4W/m 18W/m; CCT:RGBW; Beam Angle:120D; Weight:1.6kg; Surface-Treatment:Silica

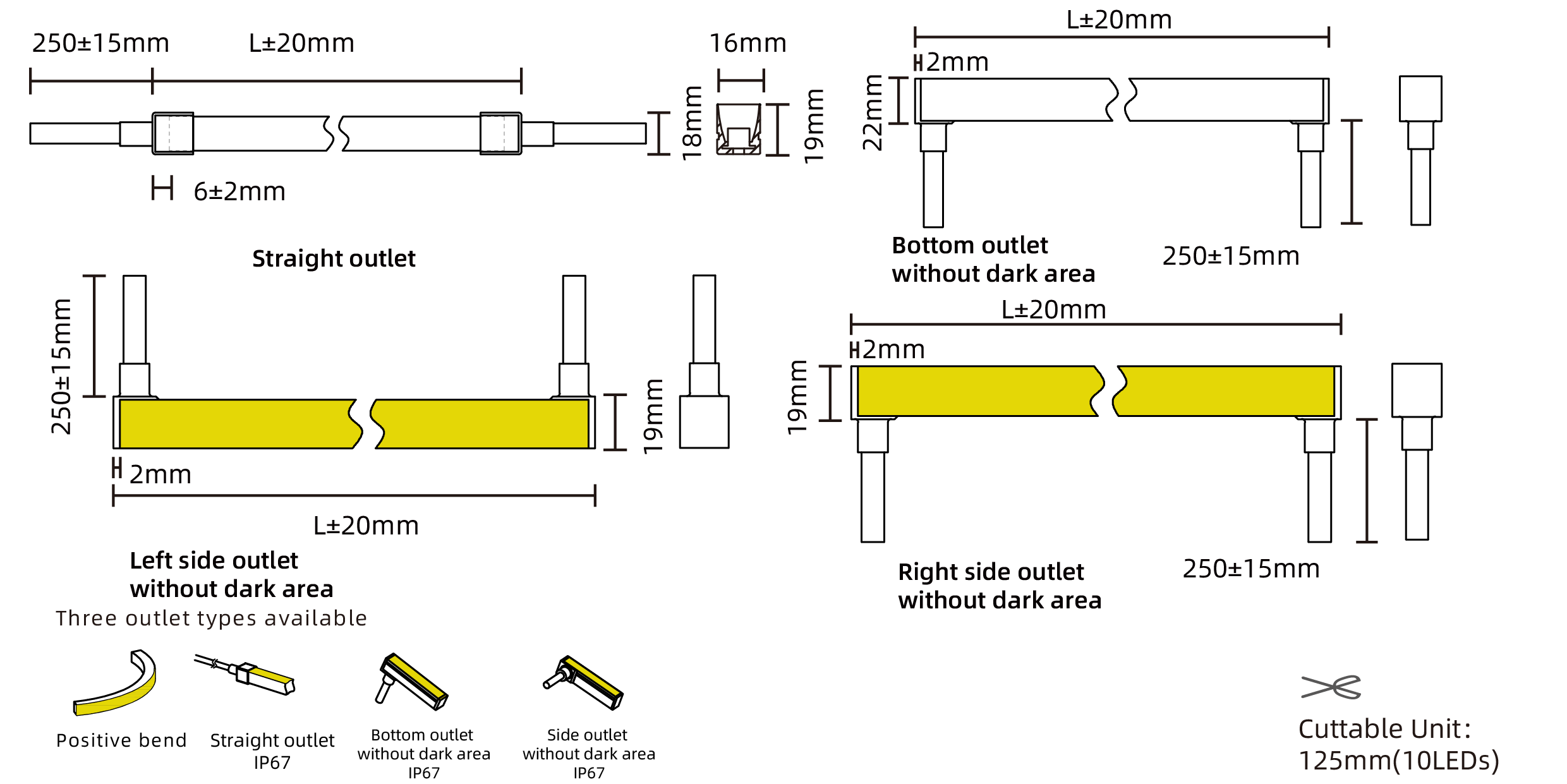

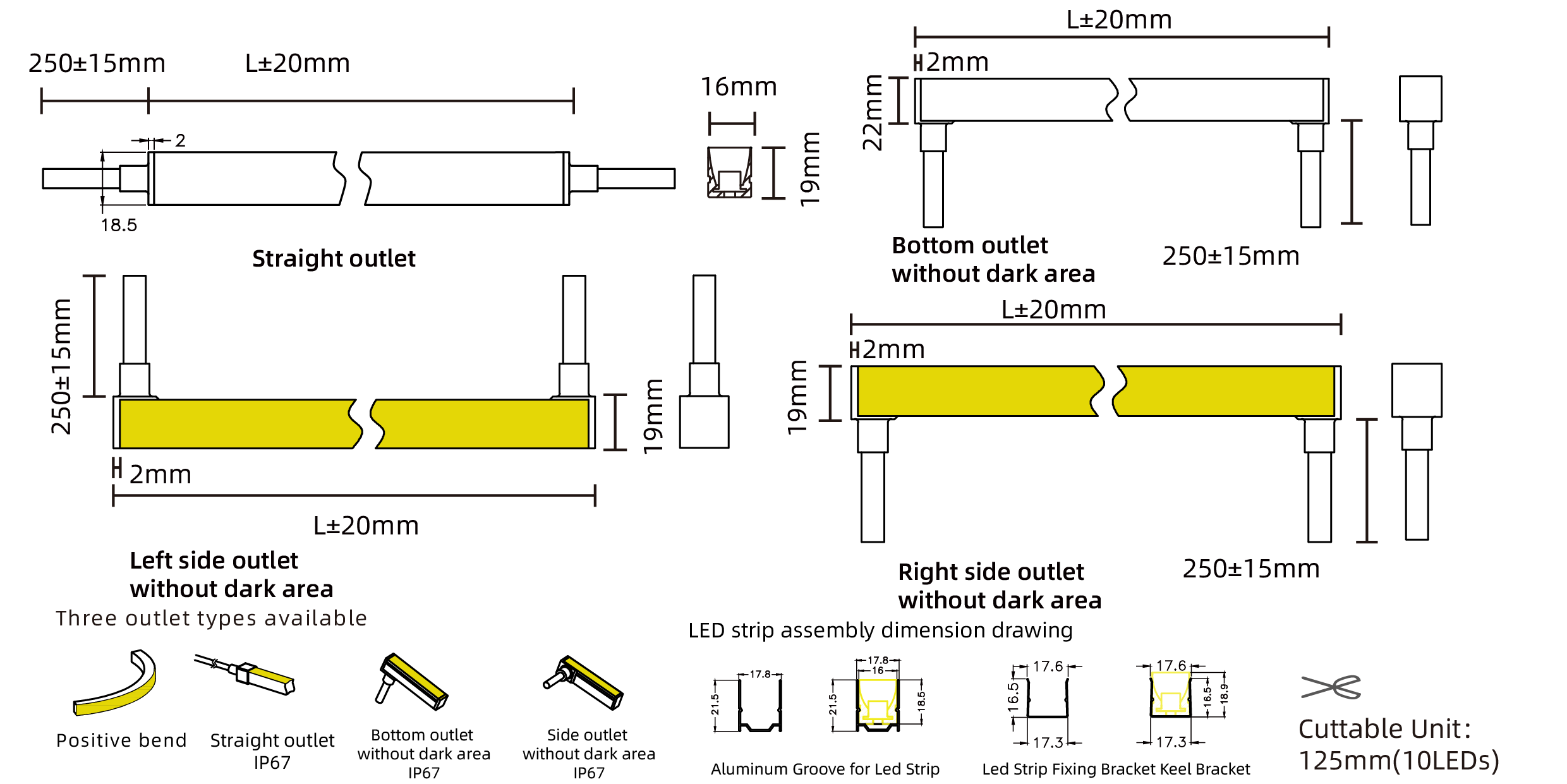

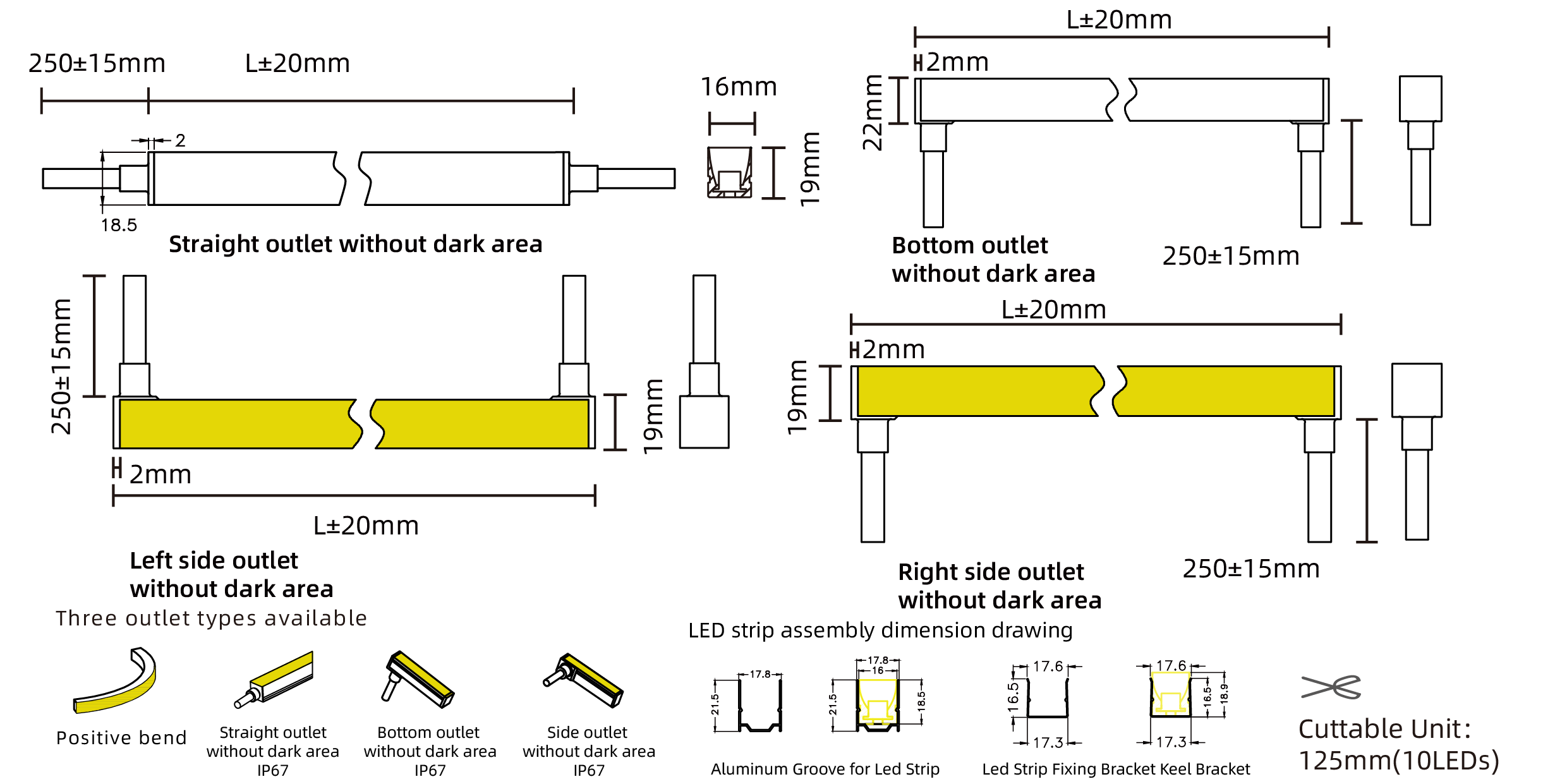

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
14.4W/m
18W/m

Beam Angle

Beam Angle
120°

CRI

CRI
Ra>80
465-470nm
525-530nm
620-630nm

Color

Color
RGBW-B
RGBW-W4000K
RGBW-RGB
RGBW2700K-全亮
RGBW3000K-全亮
RGBW3500K-全亮
RGBW4000K-全亮
RGBW-R
RGBW-G
RGBW-W3500K RA80
RGBW-W3000K RA80
RGBW-W2700K RA80

Dimming type

Dimming type
5-DMX512

Finish

Finish

Reflector

Reflector

IP Rating

IP Rating
67-IP67

Accessory

Accessory

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: SS02105-14120-Red; SS02105-14120-Green; SS02105-14120-Blue; SS02105-141208027; SS02105-141208030; SS02105-141208035; SS02105-141208040; SS02105-14120-RGB; SS02105-141208027-RGBW; SS02105-141208030-RGBW; SS02105-141208035-RGBW; SS02105-141208040-RGBW; SS02105-18120-Red; SS02105-18120-Green; SS02105-18120-Blue; SS02105-181208027; SS02105-181208030; SS02105-181208035; SS02105-181208040; SS02105-18120-RGB; SS02105-181208027-RGBW; SS02105-181208030-RGBW; SS02105-181208035-RGBW; SS02105-181208040-RGBW

Luminous Flux (LM): 26LM; 91LM; 18LM; 101LM; 110LM; 117LM; 114LM; 133LM; 230LM; 244LM; 255LM; 240LM; 32LM; 117LM; 25LM; 134LM; 141LM; 145LM; 148LM; 169LM; 292LM; 308LM; 317LM; 323LM

Power (W): 14.4W/m; 14.4W/m; 14.4W/m; 14.4W/m; 14.4W/m; 14.4W/m; 14.4W/m; 14.4W/m; 14.4W/m; 14.4W/m; 14.4W/m; 14.4W/m; 18W/m; 18W/m; 18W/m; 18W/m; 18W/m; 18W/m; 18W/m; 18W/m; 18W/m; 18W/m; 18W/m; 18W/m

Beam Angle: 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°

CRI: 620-630nm; 525-530nm; 465-470nm; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; 620-630nm; 525-530nm; 465-470nm; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80

Color: RGBW-R; RGBW-G; RGBW-B; RGBW-W2700K RA80; RGBW-W3000K RA80; RGBW-W3500K RA80; RGBW-W4000K; RGBW-RGB; RGBW2700K-全亮; RGBW3000K-全亮; RGBW3500K-全亮; RGBW4000K-全亮; RGBW-R; RGBW-G; RGBW-B; RGBW-W2700K RA80; RGBW-W3000K RA80; RGBW-W3500K RA80; RGBW-W4000K; RGBW-RGB; RGBW2700K-全亮; RGBW3000K-全亮; RGBW3500K-全亮; RGBW4000K-全亮

Specification

IES

DWG

manual

Favorite

Application
