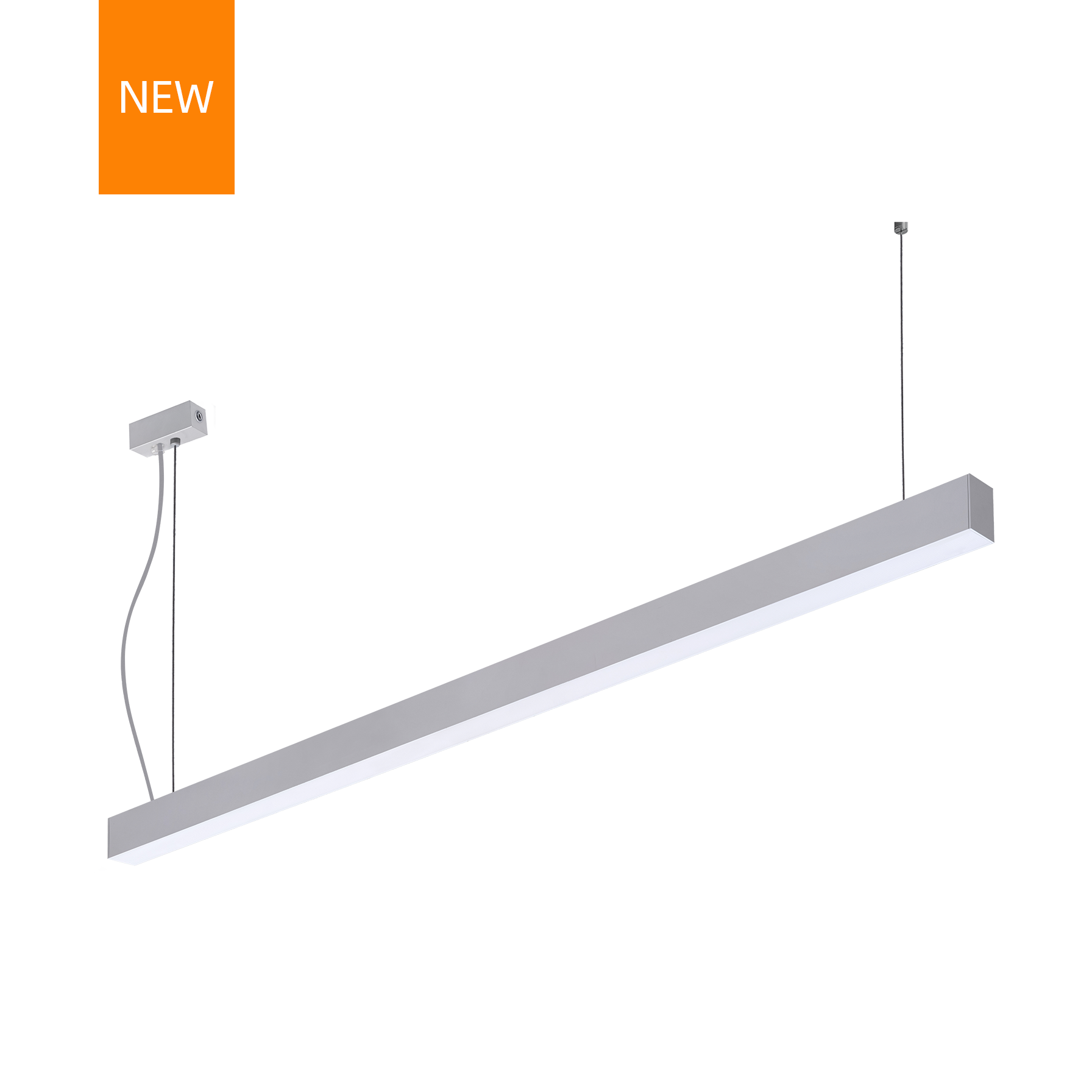

KLEE
VISUAL FEAST relies on in-depth research and strict screening of thermal/heat-dissipating materials and uses the industry's authoritative thermal management program to effectively and visually control the heat dissipation capability of the luminaire when designing luminaires. Thus, enabling the temperature of TC points for small and medium power lamps is always lower than 85 °C, and the high-power (over 40W) is always below 75 °C.
The above method can ensure the longer lamp life (50000hrs) and stability of color temperature and color tolerance of the lamp. For special projects, with the introduction of heat pipe technology, VF has the ability to develop and produce ultra-high-power lamps.
Product
- Beam Angle:110° / 110°
- CCT:3500 K
- IP Rating:IP 20
- Dimming Type:Phase , 0-10V , DALI
10 W / 20 W / M UP / DOWN 1522 LM / 2771 LM~30 W / 15 W / M UP / DOWN 3895 LM / 1937 LMKLEE 43Comfort | Suspended Up & Down- Beam Angle:110°
- CCT:3500 K
- IP Rating:IP 20
- Dimming Type:Non , 0-10V , DALI
20 W / M 2771 LM~30 W / M 3736 LMKLEE 43Comfort | Suspended Down- Beam Angle:110° / 60x75°
- CCT:3500 K
- IP Rating:IP 20
- Dimming Type:Non , 0-10V , DALI
10 W / 20 W / M UP / DOWN 1522 LM / 2771 LM~30 W / 15 W / M UP / DOWN 3895 LM / 1937 LMKLEE 43Ultra Comfort | Suspended Up & Down- Beam Angle:60x75°
- CCT:3500 K
- IP Rating:IP 20
- Dimming Type:Phase , 0-10V , DALI
20W / M 2771 LM~30W / M 3736 LMKLEE 43Ultra comfort | Suspended Down- Beam Angle:110°
- CCT:3500 K
- IP Rating:IP 20
- Dimming Type:Non , 0-10V , DALI
20 W / M 2785 LM~30 W / M 3755 LMKLEE 43Surface-mounted- Beam Angle:110°
- CCT:3500 K
- IP Rating:IP 20
- Dimming Type:Non , 0-10V , DALI
20 W / M 2819 LM~30 W / M 3655 LMKLEE 43Slim Trim Recessed- Beam Angle:110°
- CCT:3500 K
- IP Rating:IP 20
- Dimming Type:Non , 0-10V , DALI
20 W / M 2785 LM~30 W / M 3755 LMKLEE 43Trimless Recessed- Beam Angle:175° / 55°
- CCT:3500 K
- IP Rating:IP 20
- Dimming Type:Non , 0-10V , DALI
15 W / 30 W / M UP / DOWN 2280 LM / 3325 LM~30 W / 15 W / M UP / DOWN 3856 LM / 1606 LMKLEE 36Optical Units | Suspended Up & Down- Beam Angle:55°
- CCT:3500 K
- IP Rating:IP 20
- Dimming Type:Non , 0-10V , DALI
27 W / M 3325 LM~27 W / M 3325 LMKLEE 36Optical | Units Suspended Down- Beam Angle:175° / 60x75°
- CCT:3500 K
- IP Rating:IP 20
- Dimming Type:Non , 0-10V , DALI
15 W / 30 W / M UP / DOWN 2280 LM / 3985 LM~30 W / 15 W / M UP / DOWN 3856 LM / 2110 LMKLEE 36Ultra comfort | Suspended Up & down- Beam Angle:60x75°
- CCT:3500 K
- IP Rating:
- Dimming Type:Non , 0-10V , DALI
30W / M 3985 LM~30W / M 3985 LMKLEE 36Ultra comfort | Suspended Down- Beam Angle:175° / 90x115°
- CCT:3500 K
- IP Rating:IP 20
- Dimming Type:Non , 0-10V , DALI
15 W / 30 W / M UP / DOWN 2280 LM / 3985 LM~30 W / 15 W / M UP / DOWN 3856 LM / 2110 LMKLEE 36Comfort | Suspended Up & Down- Beam Angle:90x115°
- CCT:3500 K
- IP Rating:IP 20
- Dimming Type:Non , 0-10V , DALI
30 W / M 3985 LM~30 W / M 3985 LMKLEE 36Comfort | Suspended Down- Beam Angle:120°
- CCT:3000K , 4000K
- IP Rating:IP 20
- Dimming Type:Non
48W 3779LM~48W 3978LMKLEE IIHexagonal Chandelier- Beam Angle:160°/80x90°
- CCT:3000K , 4000K
- IP Rating:IP 20
- Dimming Type:Non , 0-10V , DALI
20 W / 10 W / M UP / DOWN 2900LM/1450LM~30 W / 15 W / M UP / DOWN 4350LM/2175LMKLEE II 43Comfort | Suspended Up & Down (White)- Beam Angle:160°/80x90°
- CCT:3000K , 4000K
- IP Rating:IP 20
- Dimming Type:Non , 0-10V , DALI
20 W / 10 W / M UP / DOWN 2900LM/1450LM~30 W / 15 W / M UP / DOWN 4350LM/2175LMKLEE II 43Comfort | Suspended Up & Down (Black)- Beam Angle:160°/80x90°
- CCT:3000K , 4000K
- IP Rating:IP 20
- Dimming Type:Non , 0-10V , DALI
20 W / 10 W / M UP / DOWN 2900LM/1450LM~30 W / 15 W / M UP / DOWN 4350LM/2175LMKLEE II 43Comfort | Suspended Up & Down (Silver Grey)- Beam Angle:160°/80x90°
- CCT:3000K , 4000K
- IP Rating:IP 20
- Dimming Type:Non , 0-10V , DALI
20 W / 10 W / M UP / DOWN 2900LM/1450LM~30 W / 15 W / M UP / DOWN 4350LM/2175LMKLEE II 56Comfort | Suspended Up & Down (White)- Beam Angle:160°/80x90°
- CCT:3000K , 4000K
- IP Rating:IP 20
- Dimming Type:Non , 0-10V , DALI
20 W / 10 W / M UP / DOWN 2900LM/1450LM~30 W / 15 W / M UP / DOWN 4350LM/2175LMKLEE II 56Comfort | Suspended Up & Down (Black)- Beam Angle:160°/80x90°
- CCT:3000K , 4000K
- IP Rating:IP 20
- Dimming Type:Non , 0-10V , DALI
20 W / 10 W / M UP / DOWN 2900LM/1450LM~30 W / 15 W / M UP / DOWN 4350LM/2175LMKLEE II 56Comfort | Suspended Up & Down (Silver Grey)- Beam Angle:160°/80x90°
- CCT:3000K , 4000K
- IP Rating:IP 20
- Dimming Type:Non , 0-10V , DALI
20 W / 10 W / M UP / DOWN 2900LM/1450LM~30 W / 15 W / M UP / DOWN 4350LM/2175LMKLEE III 68Comfort | Suspended Up & Down (White)- Beam Angle:160°/80x90°
- CCT:3000K , 4000K
- IP Rating:IP 20
- Dimming Type:Non , 0-10V , DALI
20 W / 10 W / M UP / DOWN 2900LM/1450LM~30 W / 15 W / M UP / DOWN 4350LM/2175LMKLEE III 68Comfort | Suspended Up & Down (Black)- Beam Angle:160°/80x90°
- CCT:3000K , 4000K
- IP Rating:IP 20
- Dimming Type:Non , 0-10V , DALI
20 W / 10 W / M UP / DOWN 2900LM/1450LM~30 W / 15 W / M UP / DOWN 4350LM/2175LMKLEE III 68Comfort | Suspended Up & Down (Silver Grey)- Beam Angle:160°/80x90°
- CCT:3000K , 4000K
- IP Rating:IP 20
- Dimming Type:Non , 0-10V , DALI
20 W / 10 W / M UP / DOWN 2900LM/1450LM~30 W / 15 W / M UP / DOWN 4350LM/2175LMKLEE III 80Comfort | Suspended Up & Down (White)- Beam Angle:160°/80x90°
- CCT:3000K , 4000K
- IP Rating:IP 20
- Dimming Type:Non , 0-10V , DALI
20 W / 10 W / M UP / DOWN 2900LM/1450LM~30 W / 15 W / M UP / DOWN 4350LM/2175LMKLEE III 80Comfort | Suspended Up & Down (Black)- Beam Angle:160°/80x90°
- CCT:3000K , 4000K
- IP Rating:IP 20
- Dimming Type:Non , 0-10V , DALI
20 W / 10 W / M UP / DOWN 2900LM/1450LM~30 W / 15 W / M UP / DOWN 4350LM/2175LMKLEE III 80Comfort | Suspended Up & Down (Silver Grey)
