KLEE 43

Slim Trim Recessed

KLEE 43

Slim Trim Recessed

KLEE43 is a masterpiece from Visual Feast designed for office lighting. Simple style, no dark area, uniform light distribution. Two types of Light Emitting surfaces named comfort and ultra comfort version provide users’ different applications.

Integrated separate controlling function, the up&down suspended versions provide users multiple lighting scenes easily for creating optimal office lighting environment.

Lighting Effects

Products Specification:: Type:Slim Trim Recessed; Cut-Out:1007X35 1507X35 2007x35; Beam Angle:110D; Power:20W 25W 30W 37.5W 40W 45W 50W 60W; CCT:3000K 3500K 4000K; Weight:1.06kg 1.59kg 2.12kg; Heat-Sink:Aluminum; Surface-Treatment:Plating

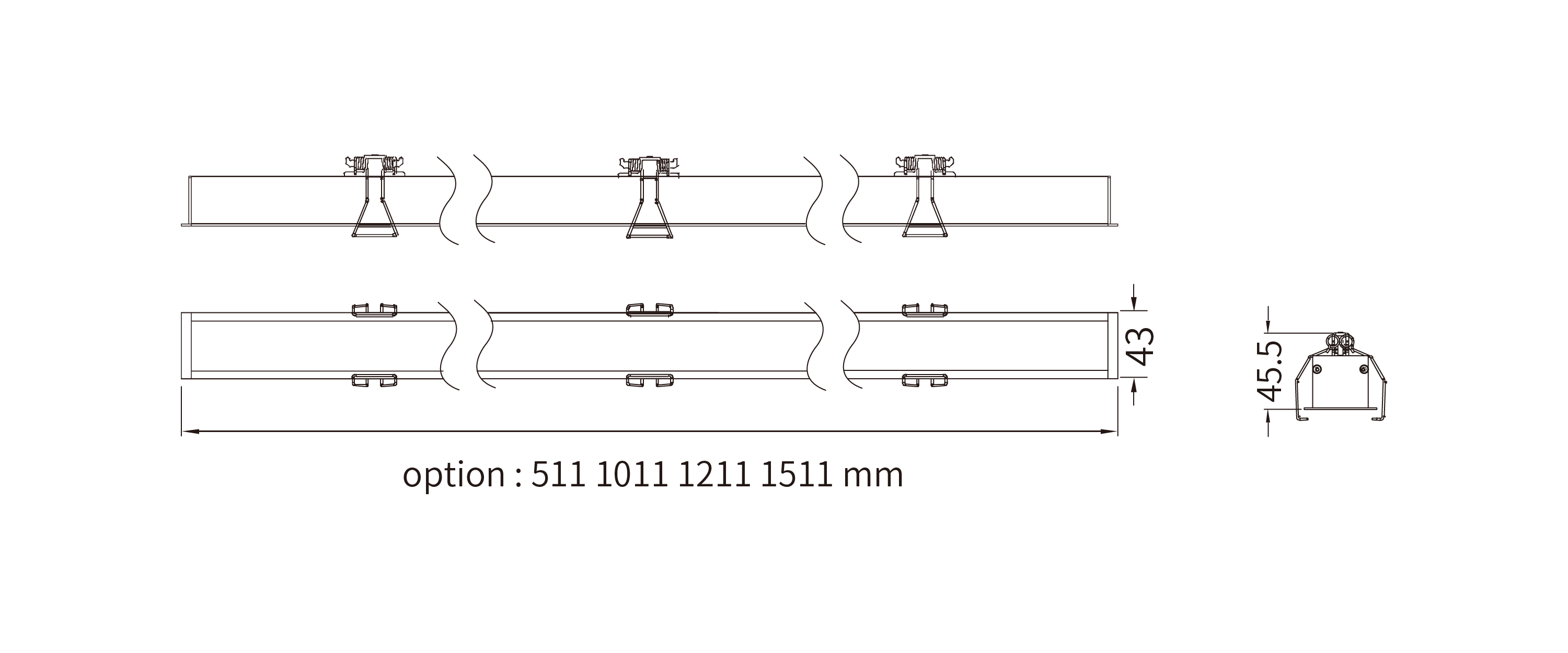

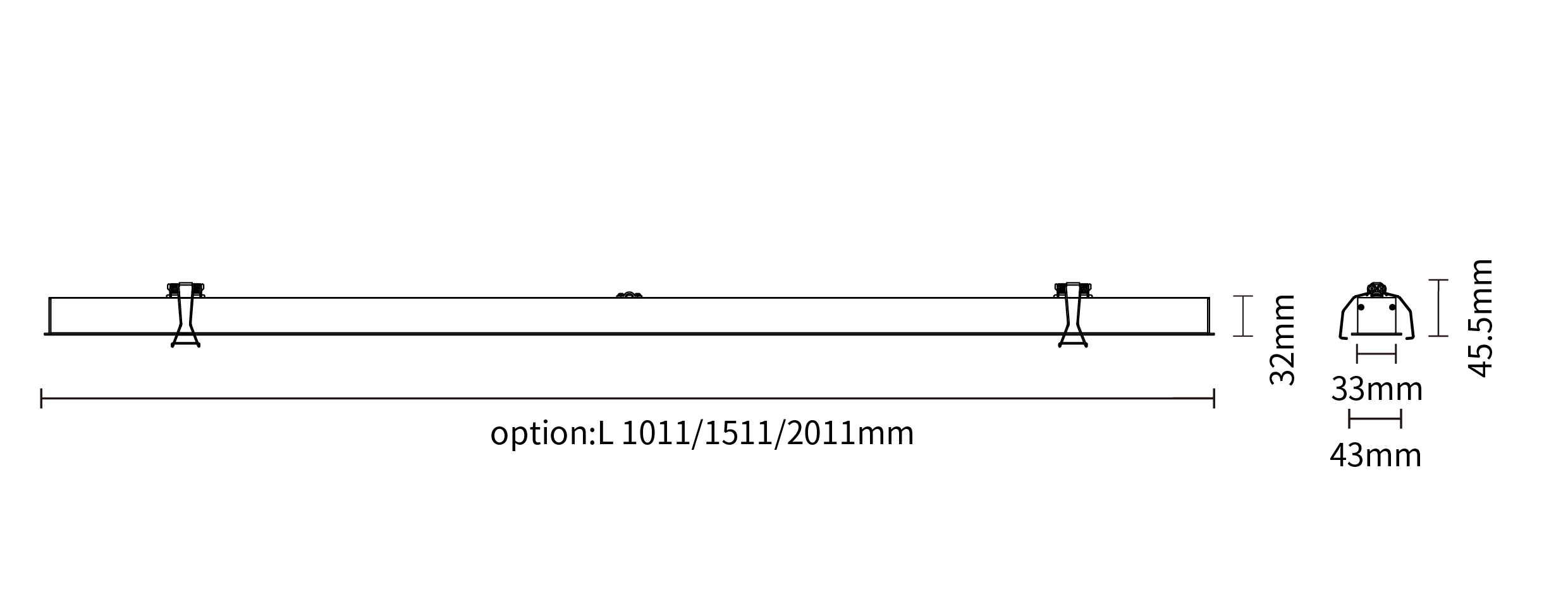

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
20W
25W
30W
37.5W
40W
45W
50W
60W

Beam Angle

Beam Angle
110°

CRI

CRI
Ra>90

Color

Color
3000K
3500K
4000K

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming

Finish

Finish
01-White
02-Black
03-Grey

Reflector

Reflector
N/A

IP Rating

IP Rating
20-IP20

Accessory

Accessory
N/A

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: LR00102-20A19030-1M; LR00102-20A19035-1M; LR00102-20A19040-1M; LR00102-25A19030-1M; LR00102-25A19035-1M; LR00102-25A19040-1M; LR00102-30A19030-1M; LR00102-30A19035-1M; LR00102-30A19040-1M; LR00102-30A19030-1.5M; LR00102-30A19035-1.5M; LR00102-30A19040-1.5M; LR00102-37.5A19030-1.5M; LR00102-37.5A19035-1.5M; LR00102-37.5A19040-1.5M; LR00102-45A19030-1.5M; LR00102-45A19035-1.5M; LR00102-45A19040-1.5M; LR00102-40A19030-2M; LR00102-40A19035-2M; LR00102-40A19040-2M; LR00102-50A19030-2M; LR00102-50A19035-2M; LR00102-50A19040-2M; LR00102-60A19030-2M; LR00102-60A19035-2M; LR00102-60A19040-2M

Luminous Flux (LM): 1656LM; 1748LM; 1841LM; 2083LM; 2198LM; 2314LM; 2358LM; 2489LM; 2620LM; 2485LM; 2623LM; 2761LM; 3123LM; 3297LM; 3471LM; 3537LM; 3733LM; 3930LM; 3313LM; 3497LM; 3682LM; 4165LM; 4396LM; 4628LM; 4716LM; 4978LM; 5240LM

Power (W): 20W; 20W; 20W; 25W; 25W; 25W; 30W; 30W; 30W; 30W; 30W; 30W; 37.5W; 37.5W; 37.5W; 45W; 45W; 45W; 40W; 40W; 40W; 50W; 50W; 50W; 60W; 60W; 60W

Beam Angle: 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 3000K; 3500K; 4000K; 3000K; 3500K; 4000K; 3000K; 3500K; 4000K; 3000K; 3500K; 4000K; 3000K; 3500K; 4000K; 3000K; 3500K; 4000K; 3000K; 3500K; 4000K; 3000K; 3500K; 4000K; 3000K; 3500K; 4000K
