Home Products Indoor POYO 80 - Pendant Downlight

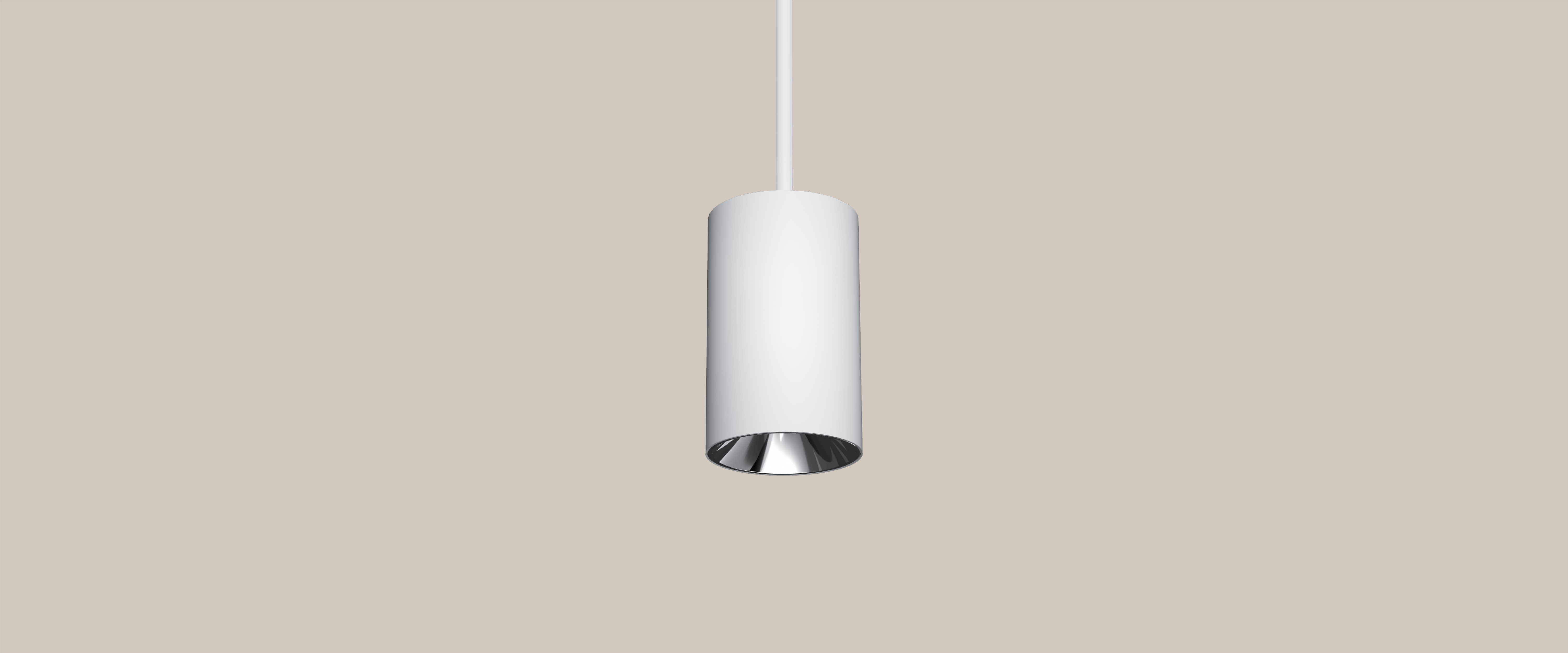

POYO 80

Pendant Downlight

POYO 80

Looking forward to being shining like the jade is waiting for carving

POYO is surface-mounted light on the ceiling or wall, the internal driving design hid the driver perfectly. A wide optional range of appearance, the whole series is included small, medium and large sizes. The adjustable structure has a horizontal rotation of 350 degrees

and a vertical angle of 30 degrees to achievethe precise adjustment of the illuminated object. From 5W to 80W, a complete range of beam angle supports the application from small space to high space

Lighting Effects

Products Specification:: Type:Pendant Downlight; Beam Angle:15D 24D 36D 45D 60D; Power:5W 8W 10W 15W; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:painting+plating; Weight:1.1kg

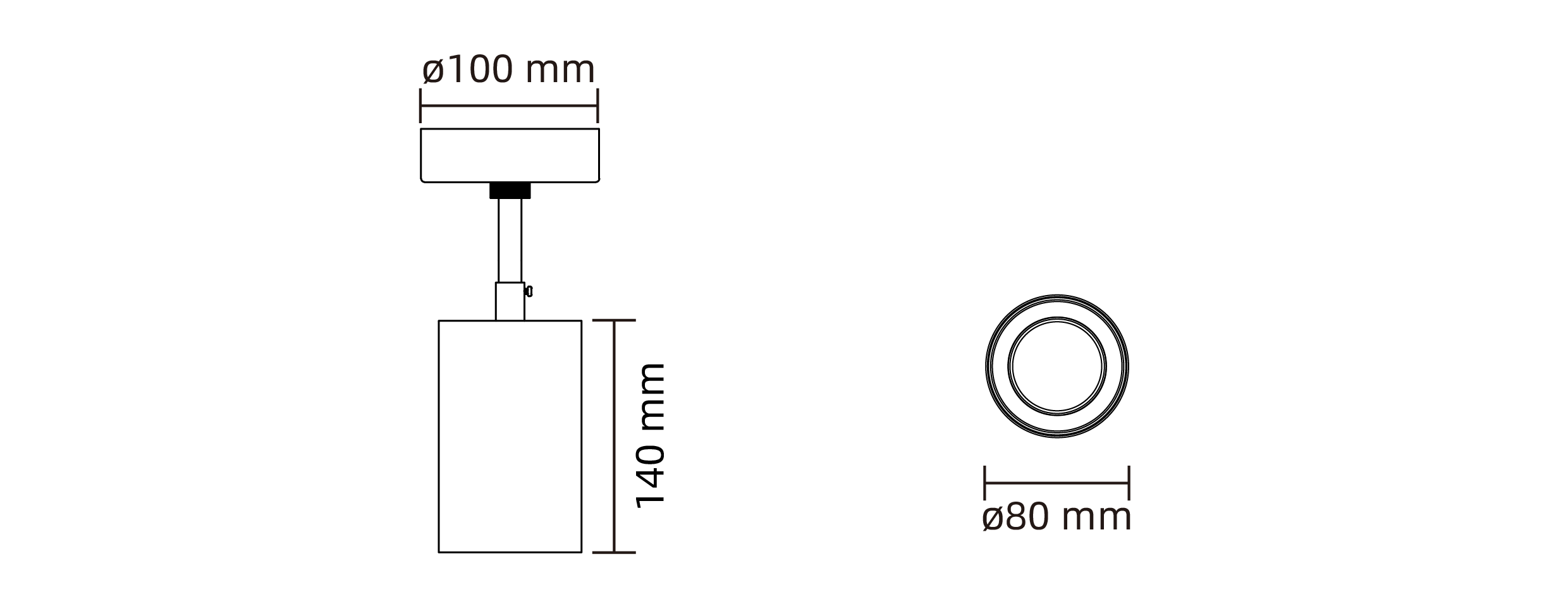

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
5W
8W
10W
15W

Beam Angle

Beam Angle
15°
24°
36°
45°
60°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming

Finish

Finish
Grey
White
Black

Reflector

Reflector
Mirror

IP Rating

IP Rating
20-IP20
65-IP65

Accessory

Accessory
Honeycomb louver

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: DP00801-05159027; DP00801-05159030; DP00801-05159040; DP00801-05249027; DP00801-05249030; DP00801-05249040; DP00801-05369027; DP00801-05369030; DP00801-05369040; DP00801-05459027; DP00801-05459030; DP00801-05459040; DP00801-05609027; DP00801-05609030; DP00801-05609040; DP00801-08159027; DP00801-08159030; DP00801-08159040; DP00801-08249027; DP00801-08249030; DP00801-08249040; DP00801-08369027; DP00801-08369030; DP00801-08369040; DP00801-08459027; DP00801-08459030; DP00801-08459040; DP00801-08609027; DP00801-08609030; DP00801-08609040; DP00801-10159027; DP00801-10159030; DP00801-10159040; DP00801-10249027; DP00801-10249030; DP00801-10249040; DP00801-10369027; DP00801-10369030; DP00801-10369040; DP00801-10459027; DP00801-10459030; DP00801-10459040; DP00801-10609027; DP00801-10609030; DP00801-10609040; DP00801-15159027; DP00801-15159030; DP00801-15159040; DP00801-15249027; DP00801-15249030; DP00801-15249040; DP00801-15369027; DP00801-15369030; DP00801-15369040; DP00801-15459027; DP00801-15459030; DP00801-15459040; DP00801-15609027; DP00801-15609030; DP00801-15609040

Luminous Flux (LM): 359LM; 378LM; 417LM; 454LM; 478LM; 516LM; 472LM; 497LM; 530LM; 461LM; 486LM; 495LM; 405LM; 426LM; 448LM; 645LM; 679LM; 690LM; 743LM; 782LM; 839LM; 774LM; 815LM; 869LM; 755LM; 795LM; 811LM; 662LM; 697LM; 730LM; 697LM; 734LM; 833LM; 951LM; 1001LM; 1069LM; 991LM; 1043LM; 1107LM; 960LM; 1011LM; 982LM; 846LM; 890LM; 931LM; 896LM; 944LM; 1053LM; 1288LM; 1356LM; 1447LM; 1295LM; 1363LM; 1457LM; 1310LM; 1379LM; 1471LM; 1114LM; 1173LM; 1219LM

Power (W): 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W

Beam Angle: 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 45°; 45°; 45°; 60°; 60°; 60°; 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 45°; 45°; 45°; 60°; 60°; 60°; 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 45°; 45°; 45°; 60°; 60°; 60°; 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 45°; 45°; 45°; 60°; 60°; 60°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K
