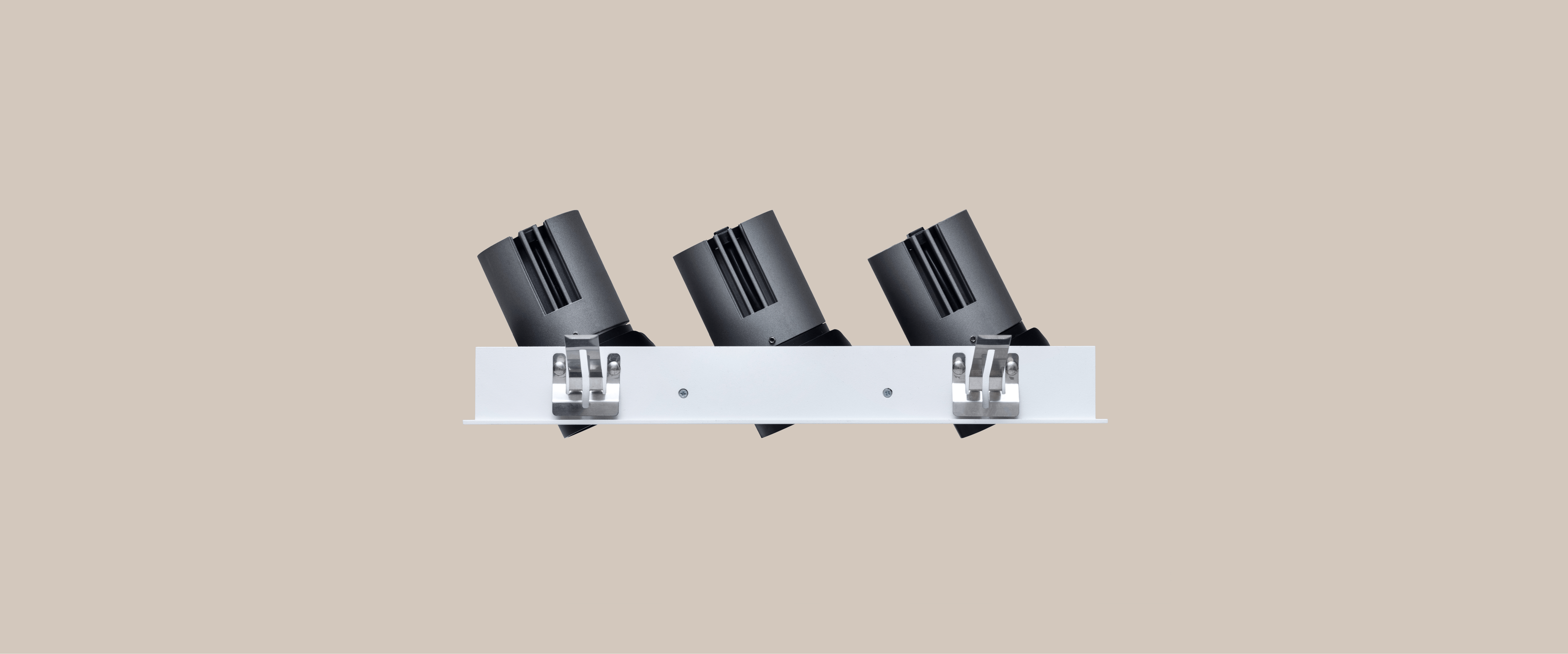

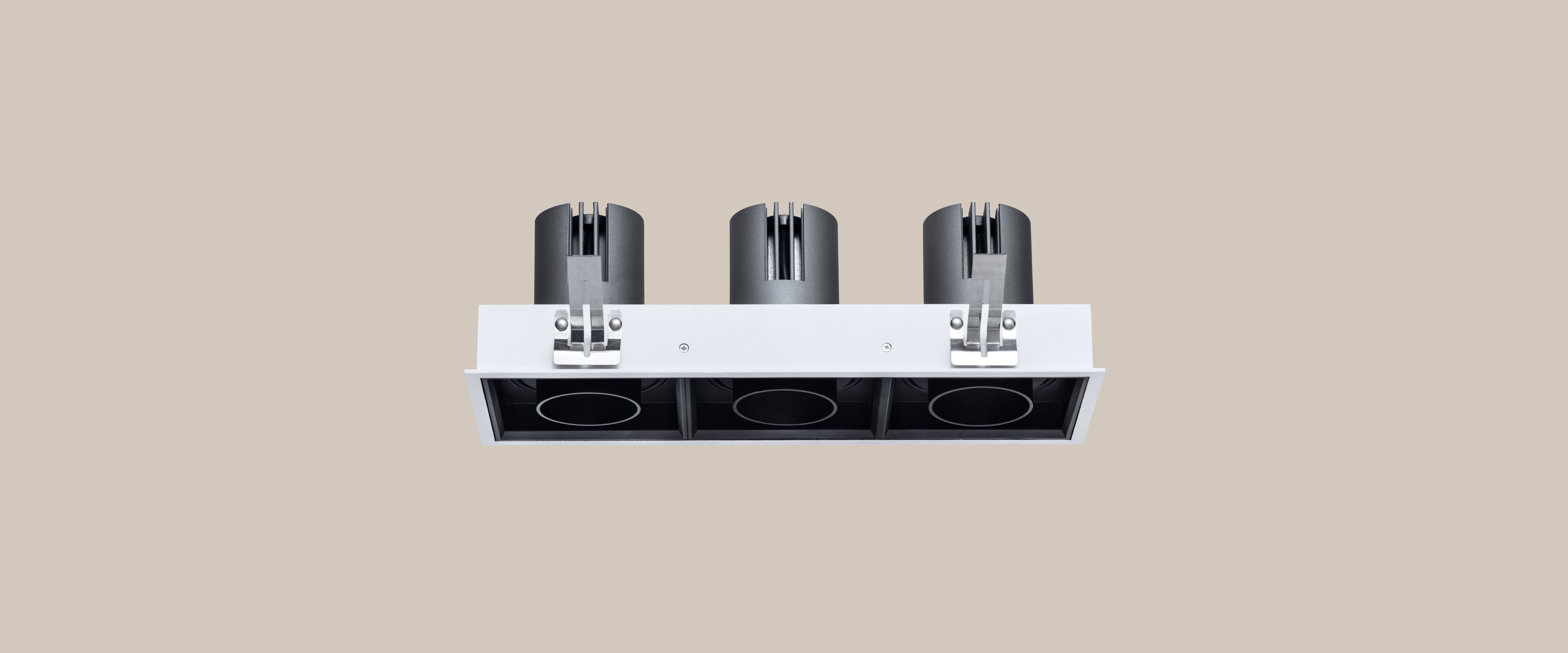

Home Products Indoor GRACE 285 - Triple Heads Adjustable Recessed Downlight

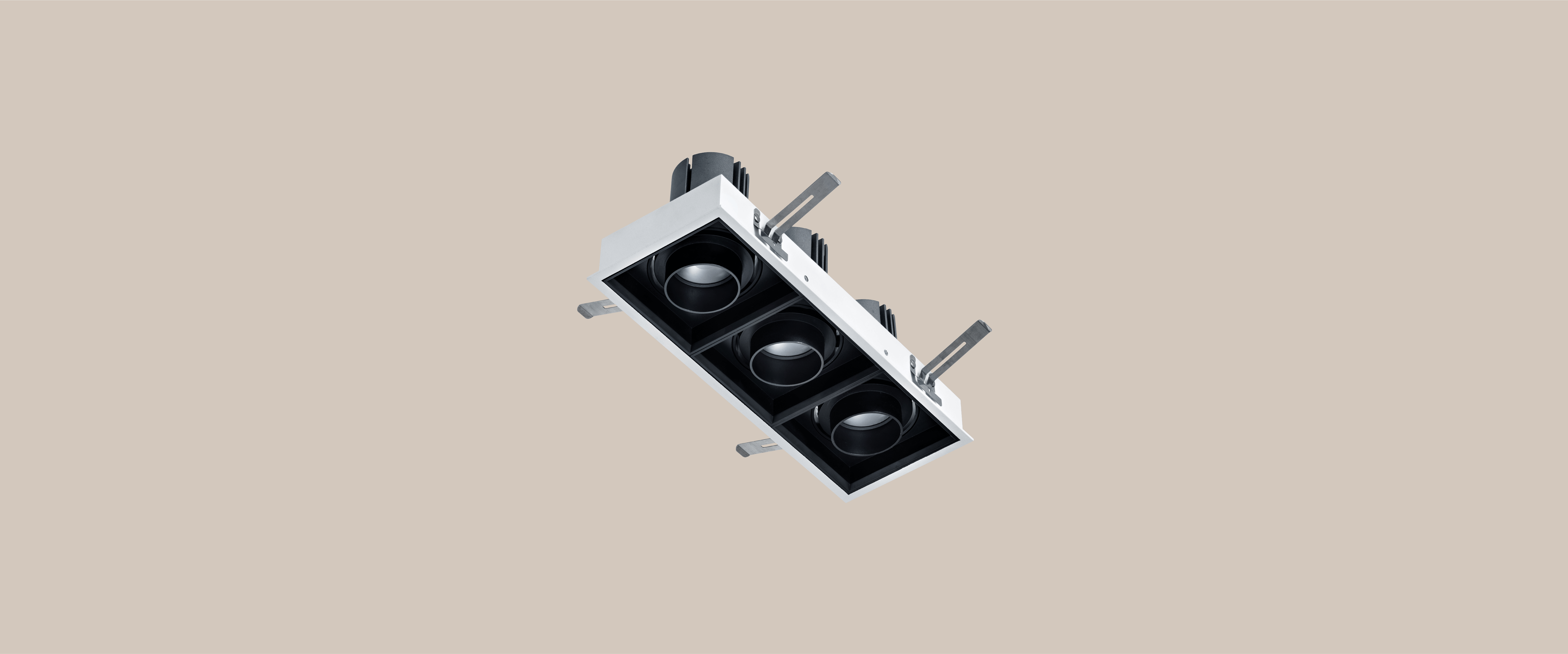

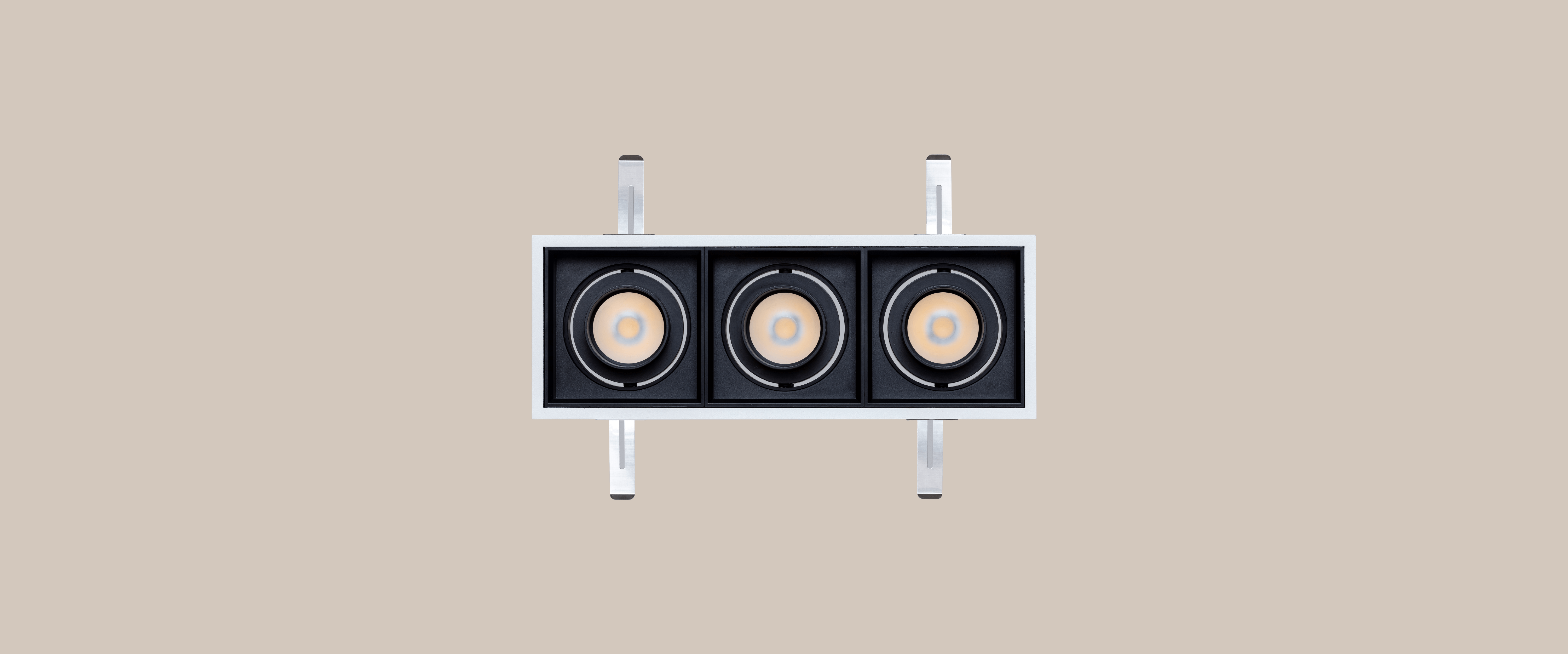

GRACE 285

Triple Heads Adjustable Recessed Downlight

GRACE 285

Triple Heads Adjustable Recessed Downlight

GRACE 285

Triple Heads Adjustable Recessed Downlight

GRACE 285

Triple Heads Adjustable Recessed Downlight

GRACE 285

Triple Heads Adjustable Recessed Downlight

GRACE 285

Triple Heads Adjustable Recessed Downlight

As an accent lighting product, GRACE is the first choice for designers as an accent lighting product with its carefully designed size and accurate optics. With small cutout size, the whole lamp installation does not destroy the overall beauty of the ceiling. The large shielding angle (31D), and black anti-glare ring make the whole lamp only see light
without seeing lamps after installation. The whole series has single head, double head and three head style, each style provides 5 kinds of angles, each angle's light spot is even,

do not have stray light, which gives designer a variety of choices for different application place. Downlight structure is equipped with 350 rotation, 30 vertically polarized light, and also with a very narrow beam angle (8D and 15D), which can put light from different angles to the object. In addition, the rigorous design makes this lamp's light source module replaceable, the user can easily replace them without any tools.

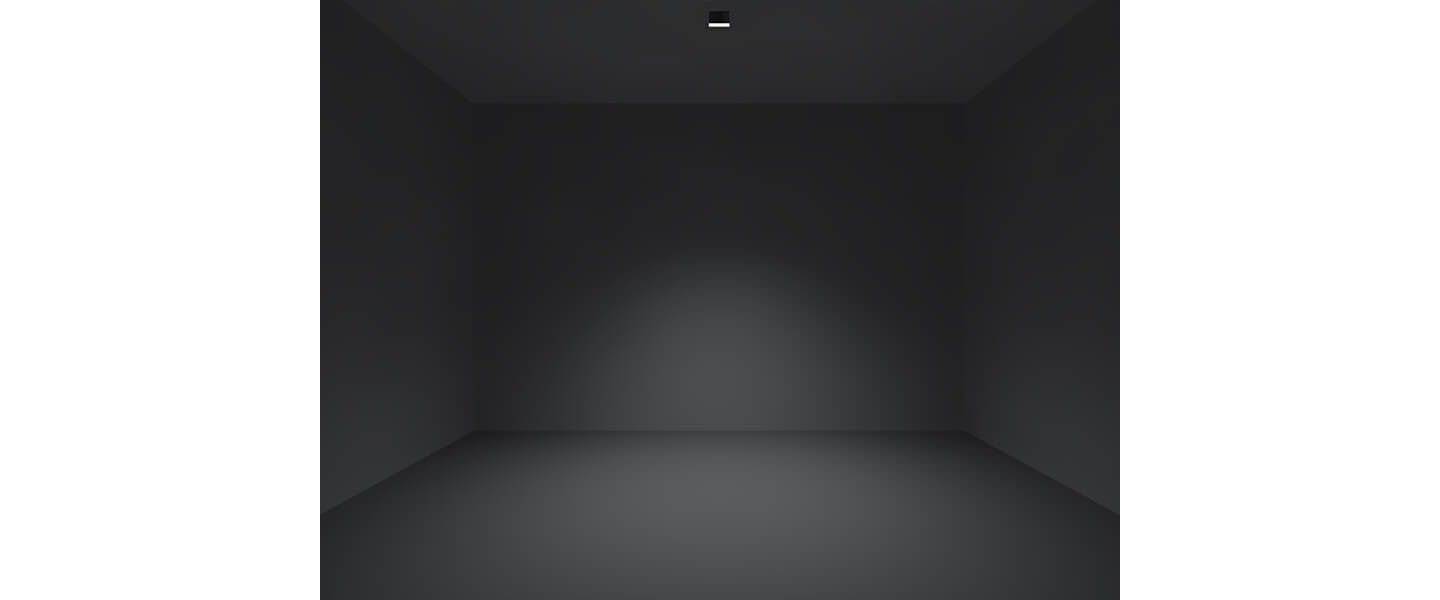

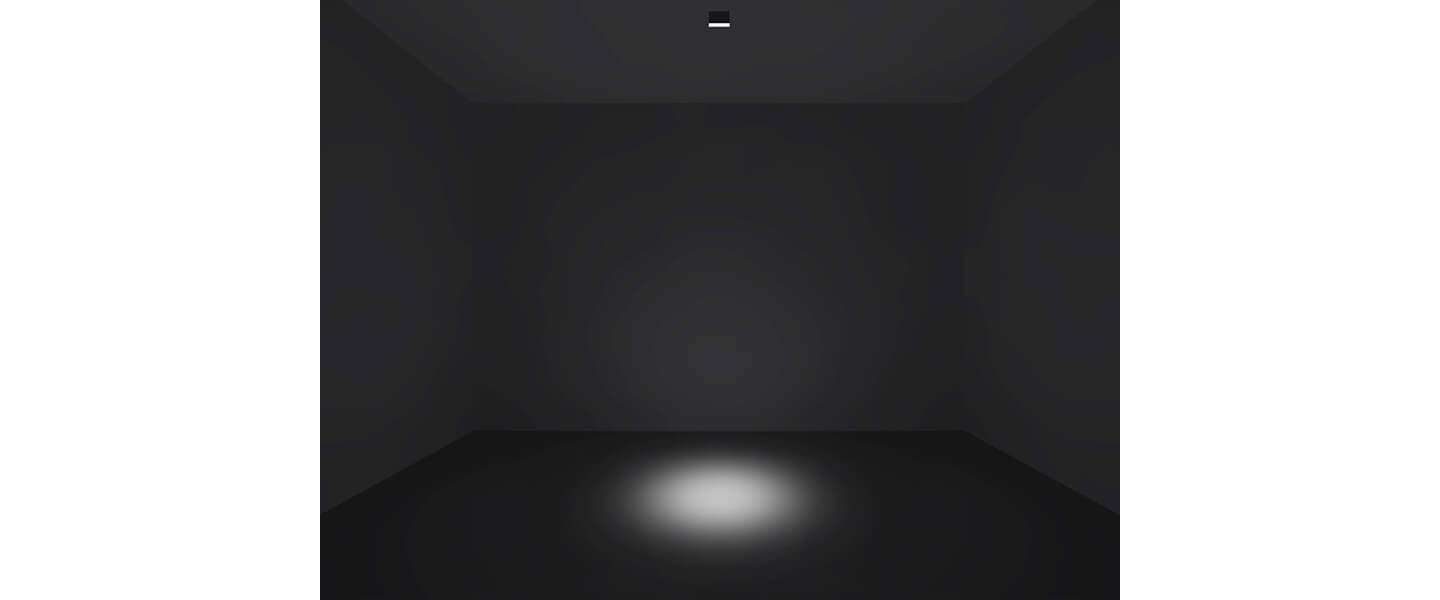

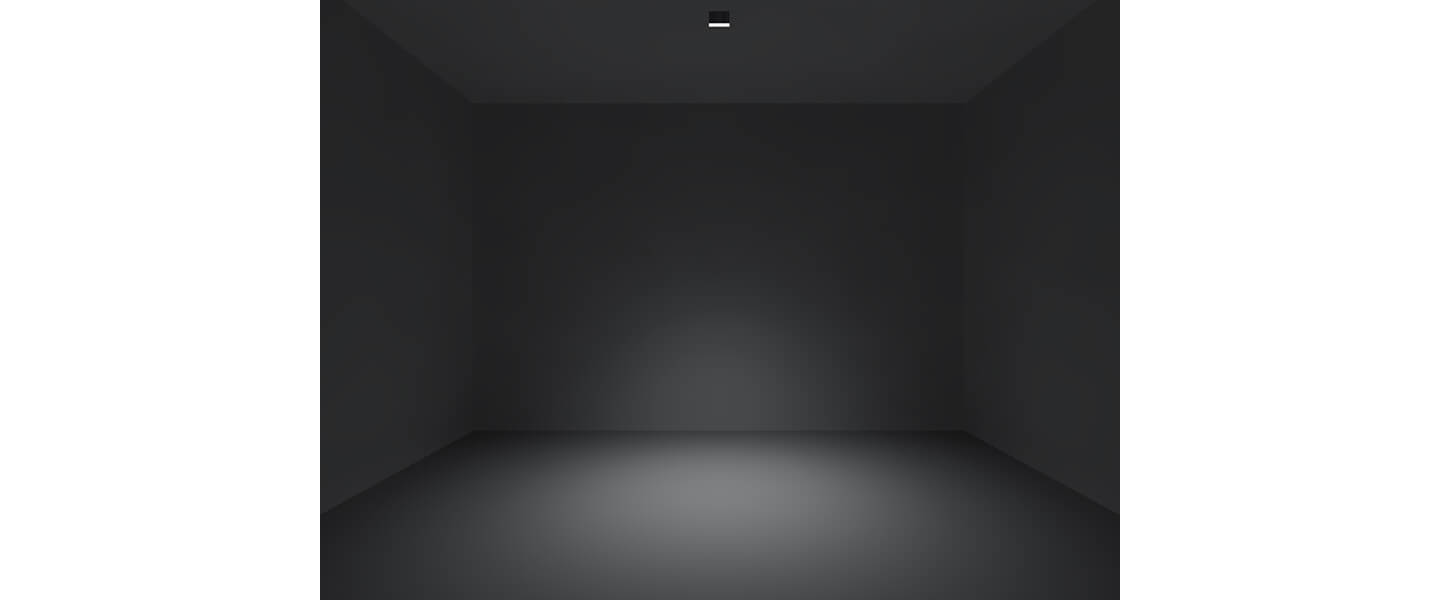

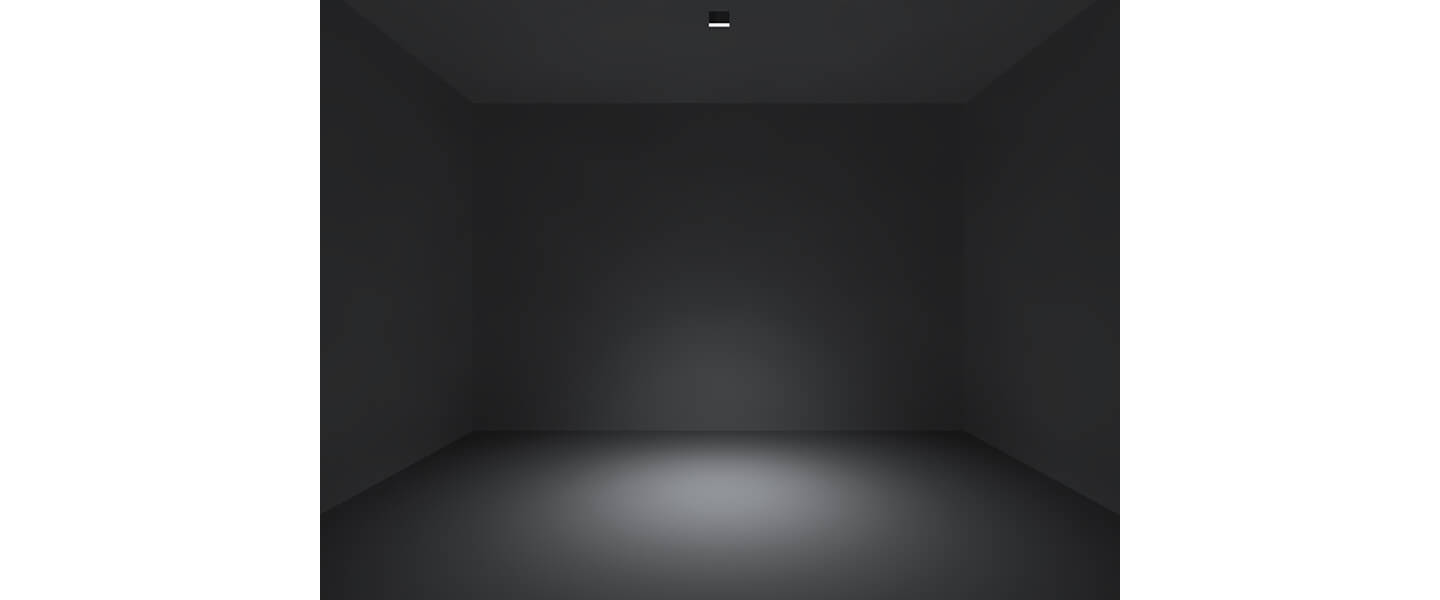

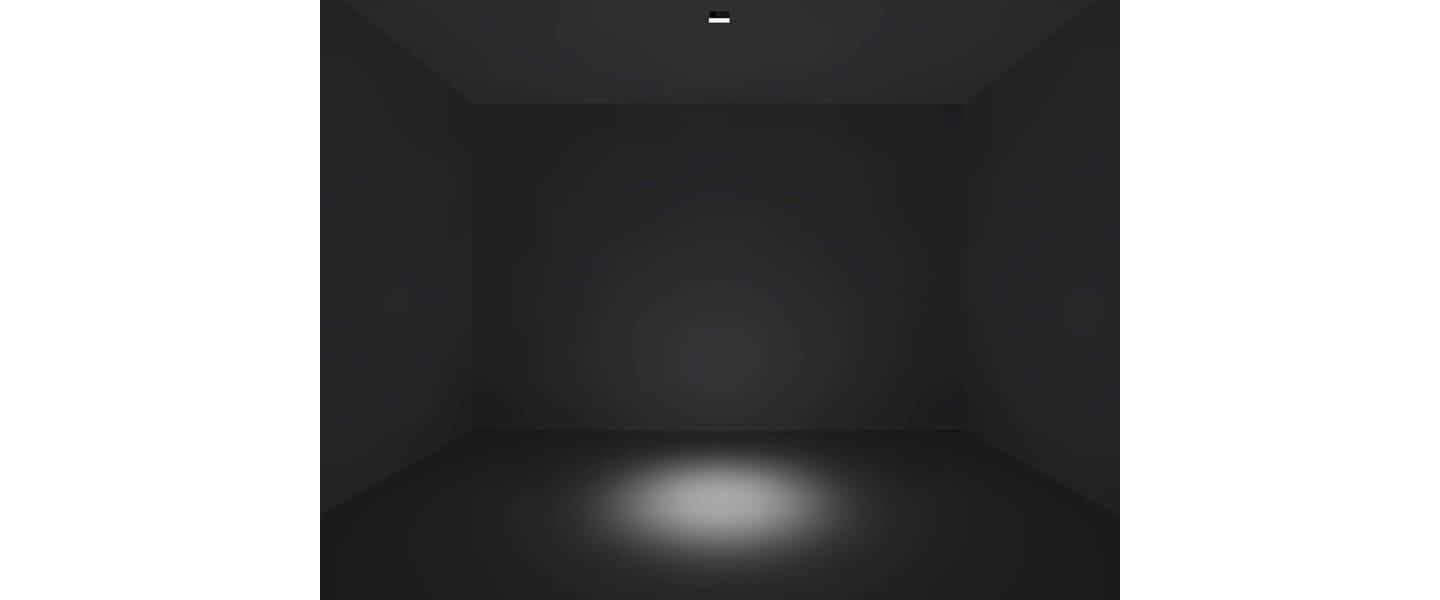

Lighting Effects

Products Specification:: Type:Triple Heads Adjustable Recessed Downlight; Cut-Out:100 mm*285 mm; Beam Angle:8D 15D 24D 36D 50D; Power:7W 8W 10W 12W 15W; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:painting+plating; Weight:1.1kg

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
3X12W
3X15W
3X8W

Beam Angle

Beam Angle
15°
24°
36°
50°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
2-Phase dimming
3-0-10V dimming
4-DALI dimming

Finish

Finish
02-Black
01-White

Reflector

Reflector
N/A

IP Rating

IP Rating
20-IP20

Accessory

Accessory
1-Honeycomb louver
4-Linear lens

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: DR00909-08159027; DR00909-08159030; DR00909-08159040; DR00909-08249027; DR00909-08249030; DR00909-08249040; DR00909-08369027; DR00909-08369030; DR00909-08369040; DR00909-08509027; DR00909-08509030; DR00909-08509040; DR00909-12159027; DR00909-12159030; DR00909-12159040; DR00909-12249027; DR00909-12249030; DR00909-12249040; DR00909-12369027; DR00909-12369030; DR00909-12369040; DR00909-12509027; DR00909-12509030; DR00909-12509040; DR00909-15159027; DR00909-15159030; DR00909-15159040; DR00909-15249027; DR00909-15249030; DR00909-15249040; DR00909-15369027; DR00909-15369030; DR00909-15369040; DR00909-15509027; DR00909-15509030; DR00909-15509040

Luminous Flux (LM): 1487LM; 1566LM; 1644LM; 1554LM; 1636LM; 1718LM; 1724LM; 1815LM; 1906LM; 1545LM; 1627LM; 1708LM; 2146LM; 2259LM; 2371LM; 2203LM; 2319LM; 2435LM; 2422LM; 2550LM; 2677LM; 2316LM; 2438LM; 2560LM; 2374LM; 2499LM; 2623LM; 2733LM; 2877LM; 3020LM; 3123LM; 3287LM; 3451LM; 2824LM; 2973LM; 3122LM

Power (W): 3X8W; 3X8W; 3X8W; 3X8W; 3X8W; 3X8W; 3X8W; 3X8W; 3X8W; 3X8W; 3X8W; 3X8W; 3X12W; 3X12W; 3X12W; 3X12W; 3X12W; 3X12W; 3X12W; 3X12W; 3X12W; 3X12W; 3X12W; 3X12W; 3X15W; 3X15W; 3X15W; 3X15W; 3X15W; 3X15W; 3X15W; 3X15W; 3X15W; 3X15W; 3X15W; 3X15W

Beam Angle: 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 50°; 50°; 50°; 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 50°; 50°; 50°; 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 50°; 50°; 50°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K
