LINA-H 12

Rigid Linear Light

LINA-H 12

Rigid Linear Light

LINA12 is one of linear lights especially designed for narrow space，Multiple power, length and CCT options, integrated magnets and various mounting brackets enable it fit different kinds of materials, like iron, wood, marble or glass etc, to realize different architectural lighting needs in spaces. Uniform light beam with spot free effect, continuous linear connection without dark area, LINA12 use the exquisite light to sculpt space.

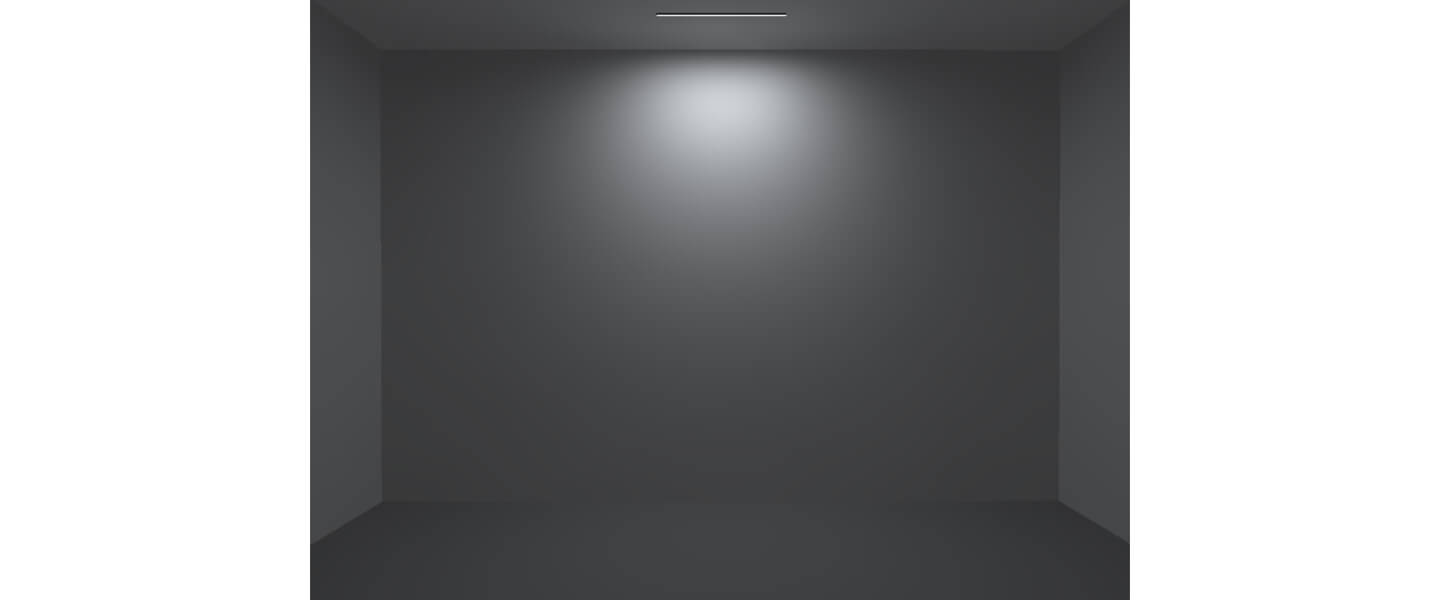

Lighting Effects

Products Specification:: Type:Rigid Linear Light; Beam Angle:110D; Power:5W/M 10W/M 15W/M 25W/M; Weight:0.18KG/M; CCT:2700K 3000K 3500K 4000K; Surface-Treatment:Matt silver; Heat sink material:Extruded aluminum

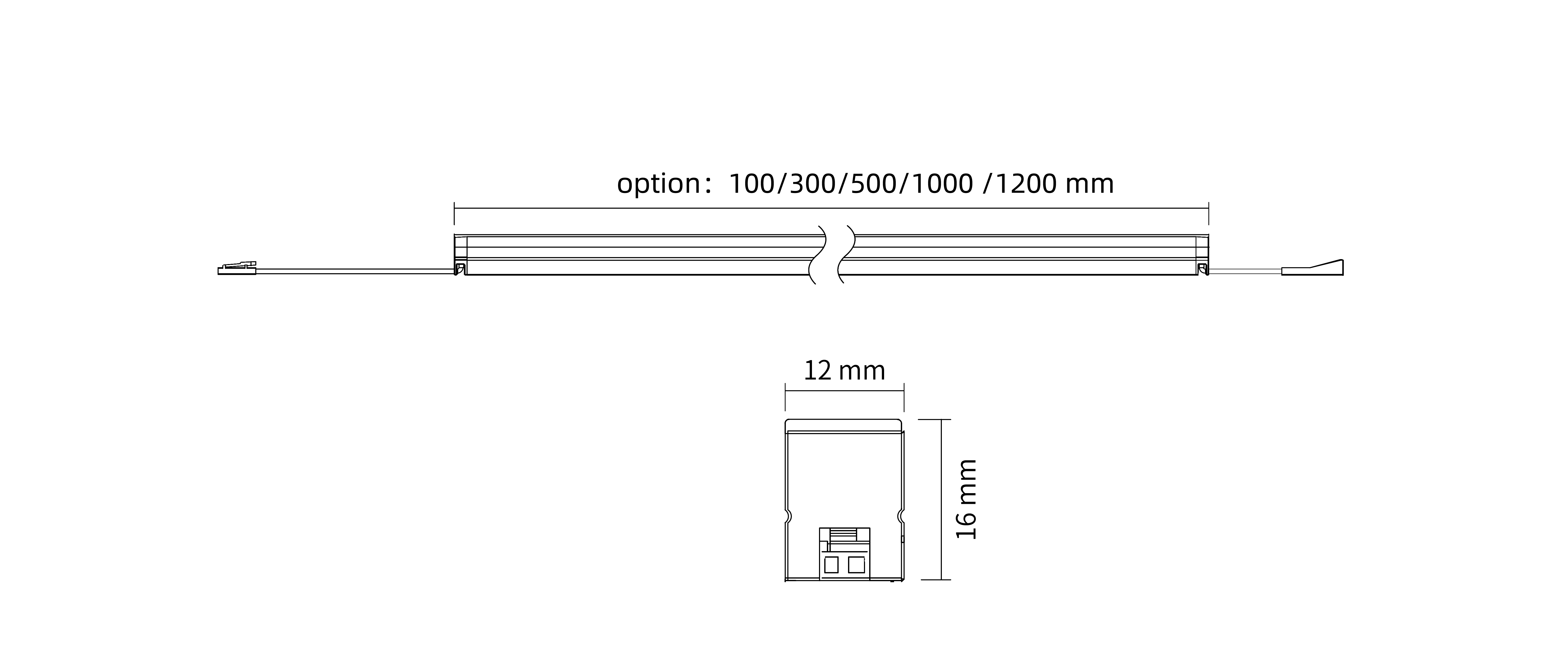

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
100mm/1W
100mm/1.5W
100mm/2W
300mm/6W
300mm/3W
300mm/4.5W
500mm/5W
500mm/7.5W
500mm/10W
1000mm/20W
1000mm/10W
1000mm/15W
1200mm/24W
1200mm/12W
1200mm/18W

Beam Angle

Beam Angle
110°

CRI

CRI
Ra≥90

Color

Color
2700K
3000K
3500K
4000K

Dimming type

Dimming type
1-Non Dim

Finish

Finish
01-White

Reflector

Reflector
N/A

IP Rating

IP Rating
20-IP20

Accessory

Accessory
N/A

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: LS00401-10A19027-100; LS00401-10A19030-100; LS00401-10A19035-100; LS00401-10A19040-100; LS00401-10A19027-300; LS00401-10A19030-300; LS00401-10A19035-300; LS00401-10A19040-300; LS00401-10A19027-500; LS00401-10A19030-500; LS00401-10A19035-500; LS00401-10A19040-500; LS00401-10A19027-1000; LS00401-10A19030-1000; LS00401-10A19035-1000; LS00401-10A19040-1000; LS00401-10A19027-1200; LS00401-10A19030-1200; LS00401-10A19035-1200; LS00401-10A19040-1200; LS00401-15A19027-100; LS00401-15A19030-100; LS00401-15A19035-100; LS00401-15A19040-100; LS00401-15A19027-300; LS00401-15A19030-300; LS00401-15A19035-300; LS00401-15A19040-300; LS00401-15A19027-500; LS00401-15A19030-500; LS00401-15A19035-500; LS00401-15A19040-500; LS00401-15A19027-1000; LS00401-15A19030-1000; LS00401-15A19035-1000; LS00401-15A19040-1000; LS00401-15A19027-1200; LS00401-15A19030-1200; LS00401-15A19035-1200; LS00401-15A19040-1200; LS00401-20A19027-100; LS00401-20A19030-100; LS00401-20A19035-100; LS00401-20A19040-100; LS00401-20A19027-300; LS00401-20A19030-300; LS00401-20A19035-300; LS00401-20A19040-300; LS00401-20A19027-500; LS00401-20A19030-500; LS00401-20A19035-500; LS00401-20A19040-500; LS00401-20A19027-1000; LS00401-20A19030-1000; LS00401-20A19035-1000; LS00401-20A19040-1000; LS00401-20A19027-1200; LS00401-20A19030-1200; LS00401-20A19035-1200; LS00401-20A19040-1200

Luminous Flux (LM): 44LM; 47LM; 51LM; 48LM; 133LM; 143LM; 153LM; 145LM; 222LM; 239LM; 255LM; 242LM; 445LM; 478LM; 510LM; 485LM; 534LM; 574LM; 613LM; 583LM; 64LM; 69LM; 73LM; 70LM; 194LM; 208LM; 222LM; 211LM; 323LM; 347LM; 369LM; 352LM; 647LM; 694LM; 739LM; 704LM; 777LM; 833LM; 887LM; 845LM; 86LM; 89LM; 95LM; 90LM; 261LM; 268LM; 285LM; 273LM; 434LM; 447LM; 475LM; 454LM; 869LM; 895LM; 950LM; 909LM; 1043LM; 1074LM; 1140LM; 1090LM

Power (W): 100mm/1W; 100mm/1W; 100mm/1W; 100mm/1W; 300mm/3W; 300mm/3W; 300mm/3W; 300mm/3W; 500mm/5W; 500mm/5W; 500mm/5W; 500mm/5W; 1000mm/10W; 1000mm/10W; 1000mm/10W; 1000mm/10W; 1200mm/12W; 1200mm/12W; 1200mm/12W; 1200mm/12W; 100mm/1.5W; 100mm/1.5W; 100mm/1.5W; 100mm/1.5W; 300mm/4.5W; 300mm/4.5W; 300mm/4.5W; 300mm/4.5W; 500mm/7.5W; 500mm/7.5W; 500mm/7.5W; 500mm/7.5W; 1000mm/15W; 1000mm/15W; 1000mm/15W; 1000mm/15W; 1200mm/18W; 1200mm/18W; 1200mm/18W; 1200mm/18W; 100mm/2W; 100mm/2W; 100mm/2W; 100mm/2W; 300mm/6W; 300mm/6W; 300mm/6W; 300mm/6W; 500mm/10W; 500mm/10W; 500mm/10W; 500mm/10W; 1000mm/20W; 1000mm/20W; 1000mm/20W; 1000mm/20W; 1200mm/24W; 1200mm/24W; 1200mm/24W; 1200mm/24W

Beam Angle: 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°; 110°

CRI: Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90; Ra≥90

Color: 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K
