LINNOU 65

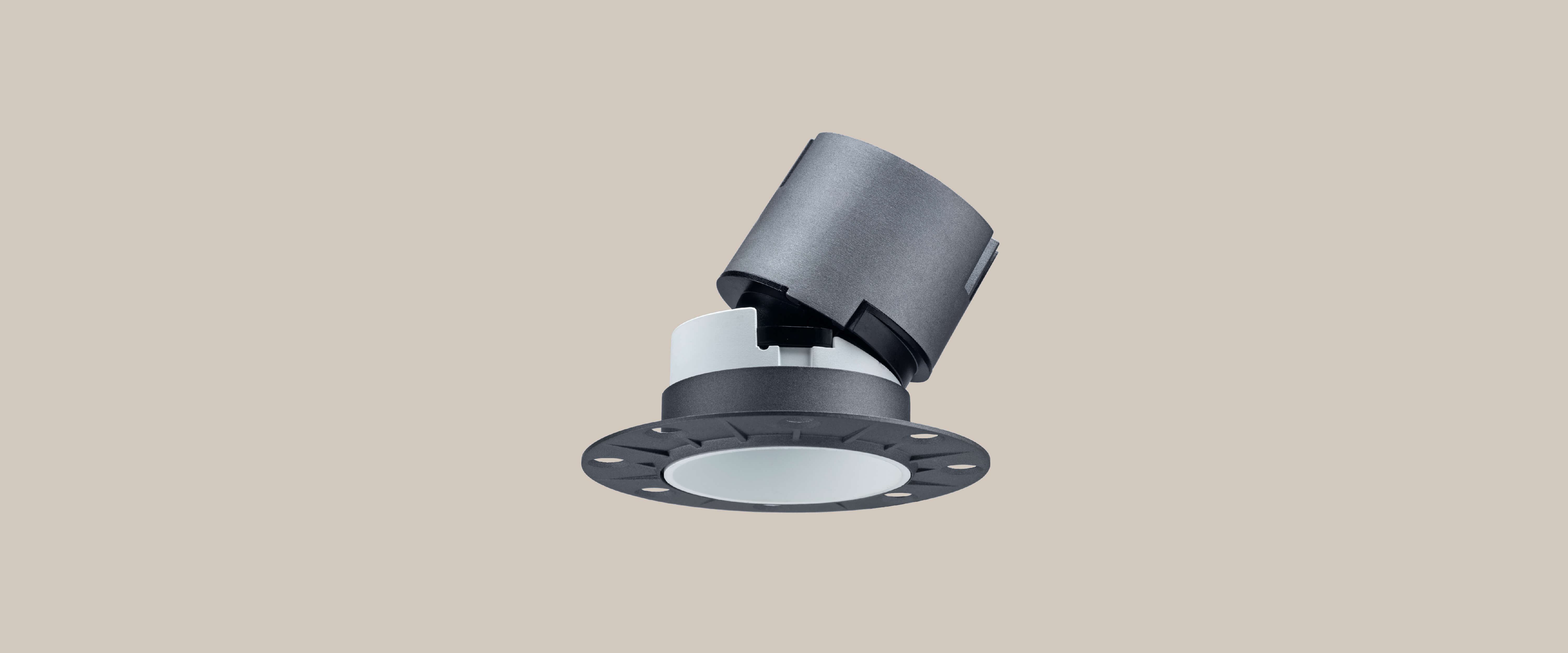

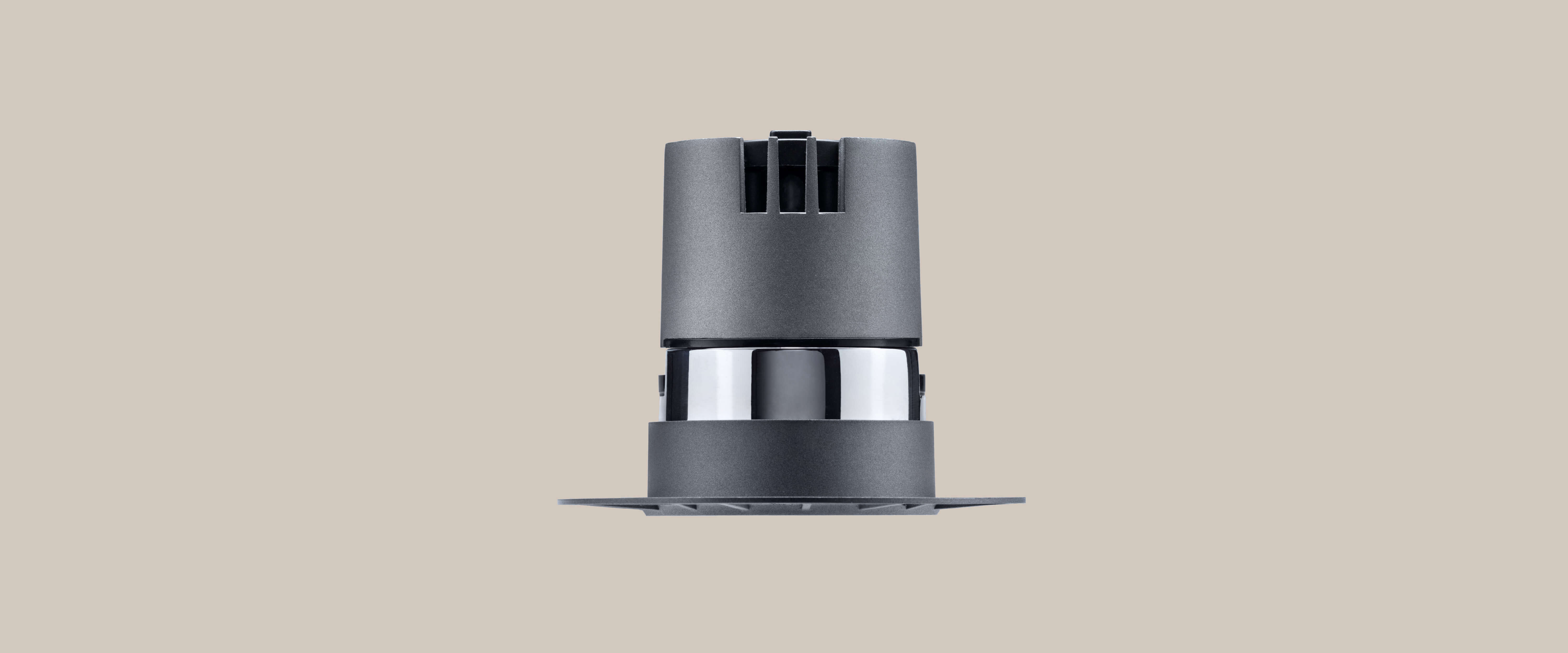

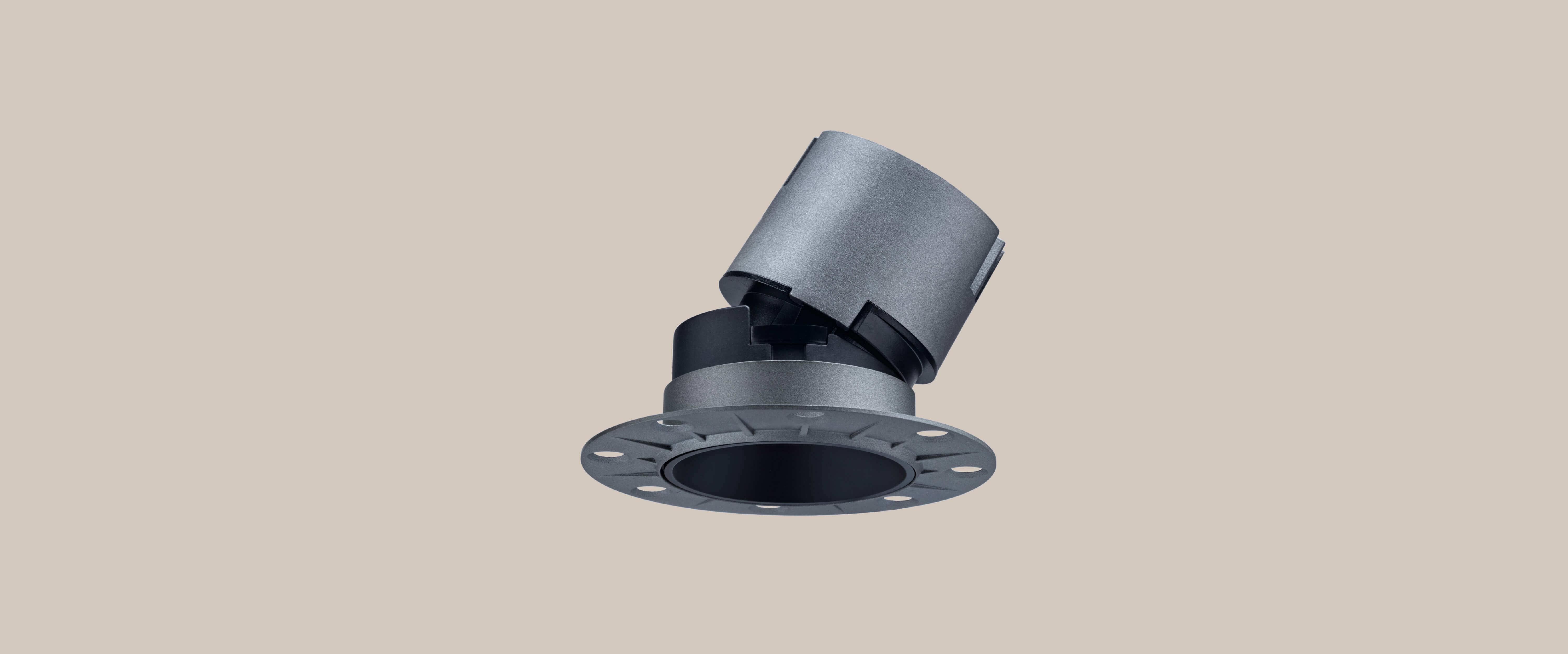

Round Adjustable Trimless Recessed Downlight

LINNOU 65

Small & delicate great practicality

LINNOU 65

Small & delicate great practicality

LINNOU 65

Small & delicate great practicality

LINNOU 65

Small & delicate great practicality

LINNOU 65

Small & delicate great practicality

Creative design with small, thin and deep style. LINNOU lamp's overall minimum size is only Ø 60 * H72mm. LINNOU is named for its compact shape, which saves the hole opening size when installing, effectively solves the problem that the big hole opening on the ceiling may destroy skyline integrity of the space. In addition, the delicate lamps can be lively coordinated with the reflector which has a variety of color. Designers can choose different reflector according to the comprehensive color of ceiling and space, to present both practicability and beauty.
Through the clever and ultra-thin design of adjustable lamps, and the minimum height of lamps is controlled in the range of 75 mm. In satisfying the inside height 80 mm under ceiling, it maximally saves the indoor space. And in view of the small size light's new spring design, under the condition of meet the polarization of 30 degrees, it can effectively solve the problem of installation requirements on thickness 8 ~ 20 mm of ceiling. Design innovation and practicality is presented incisively and vividly in the research and development and application of the LINNOU series downlight.

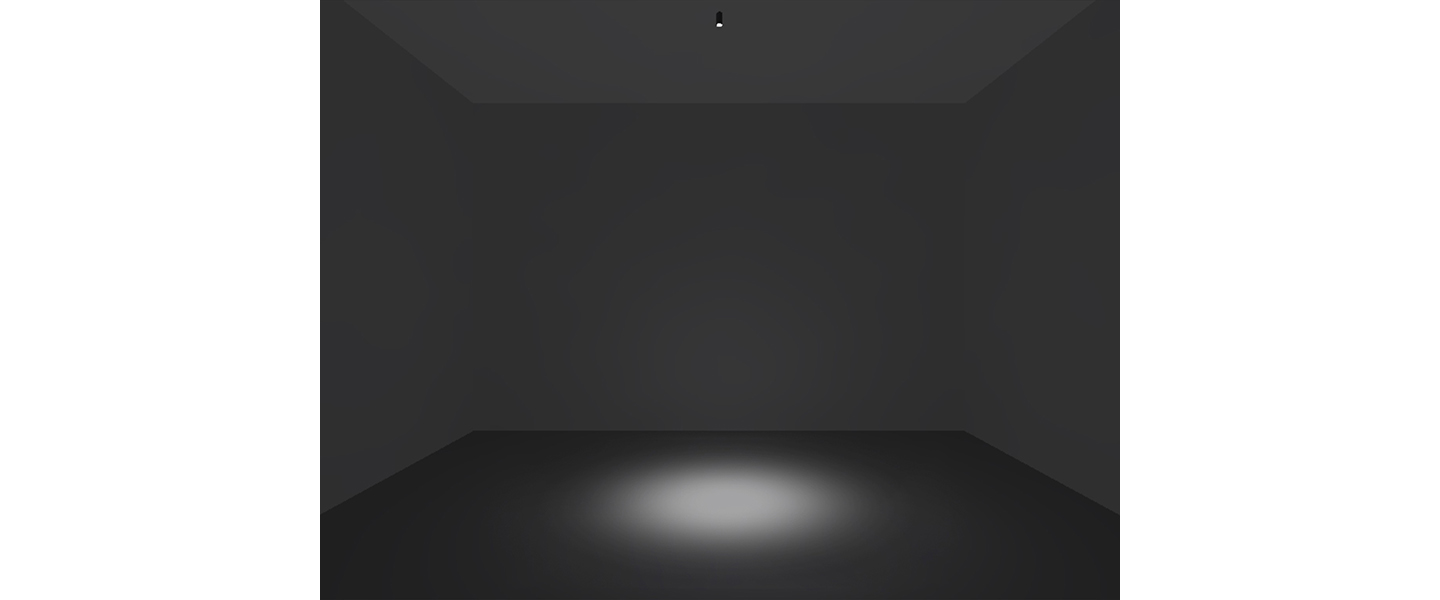

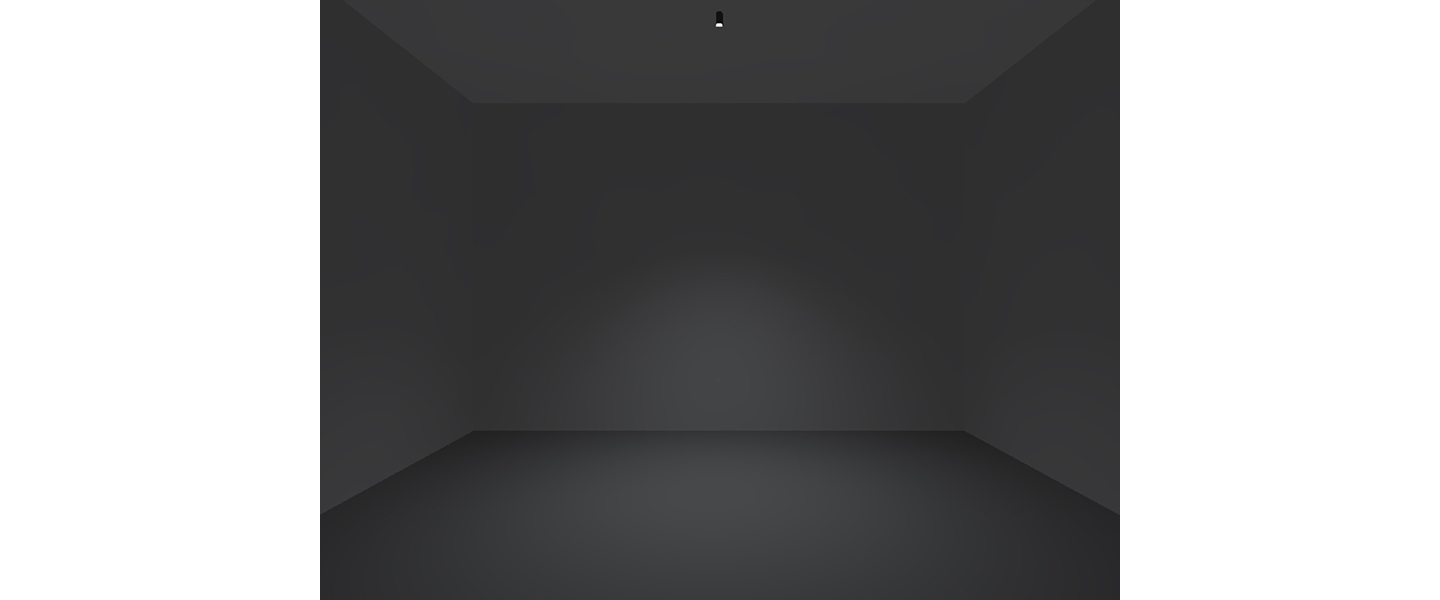

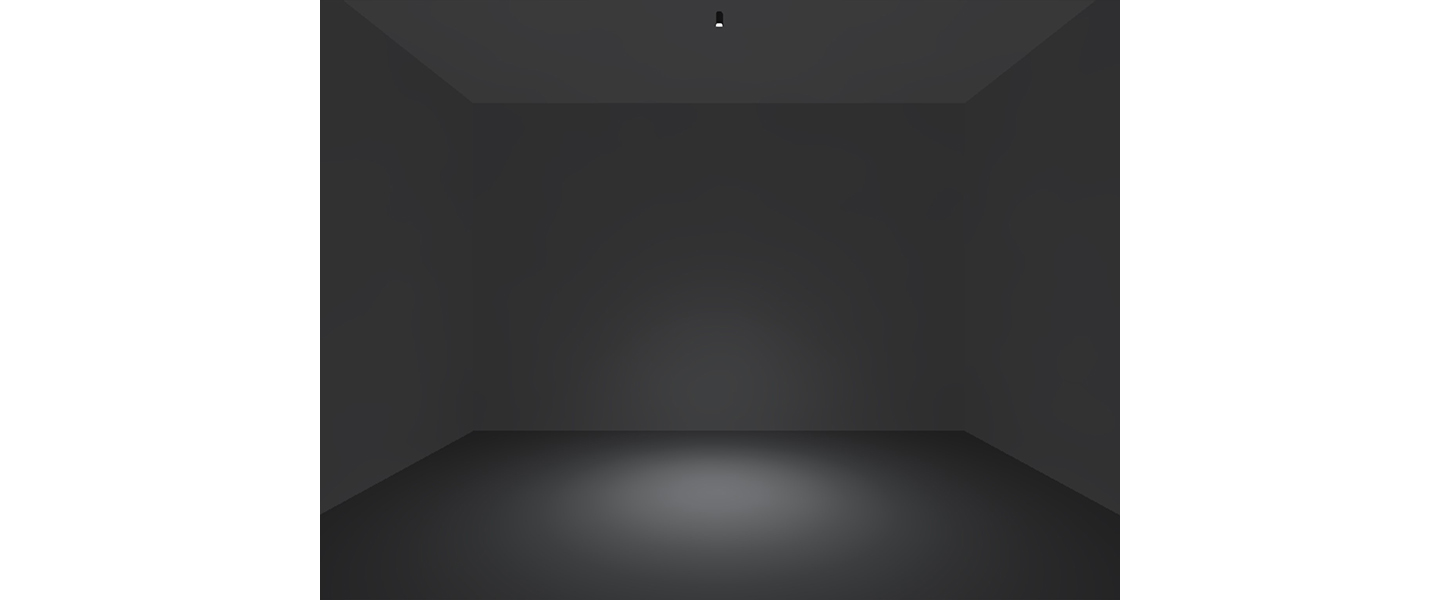

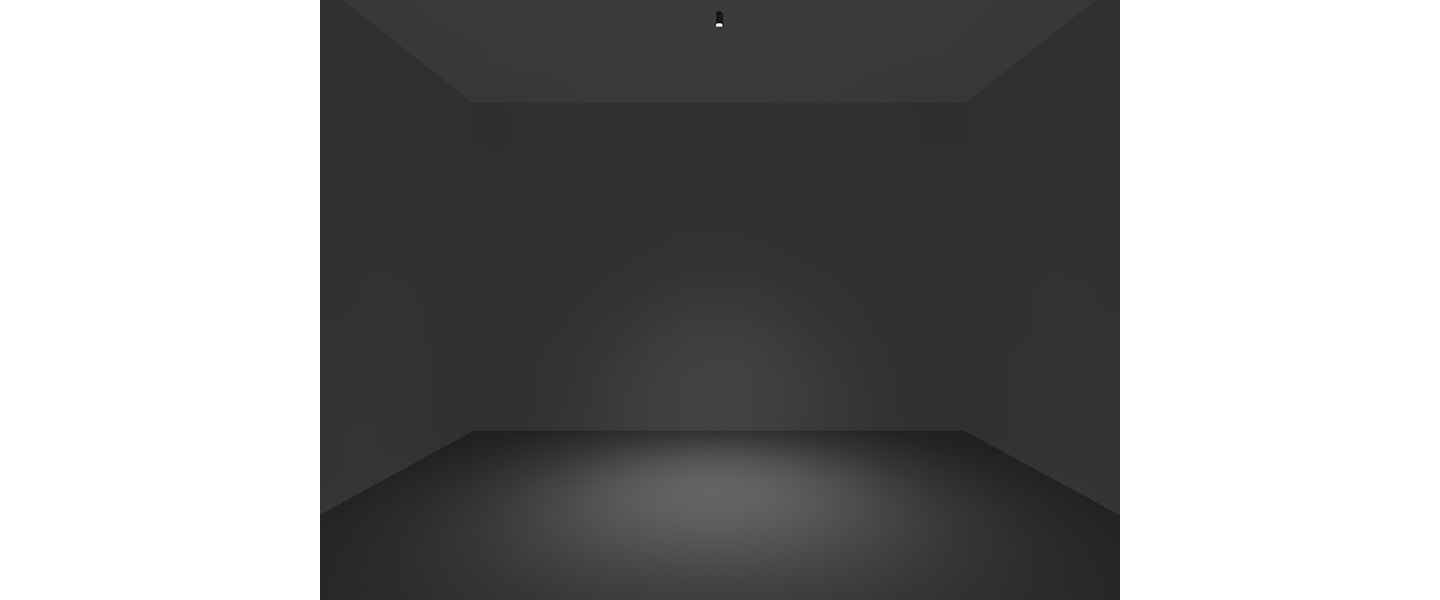

Lighting Effects

Products Specification:
Type:Round Adjustable Trimless Recessed Downlight
Cut-Out:ø 65mm
Beam Angle:10D 15D 26D 36D 54D
Power:5W 7W 10W 12W 15W
CCT:2700K 3000K 3500K 4000K
Weight:0.27kg
Heat-Sink:Aluminum
Surface-Treatment:painting+plating
Remarks:accessories not available for 10D models

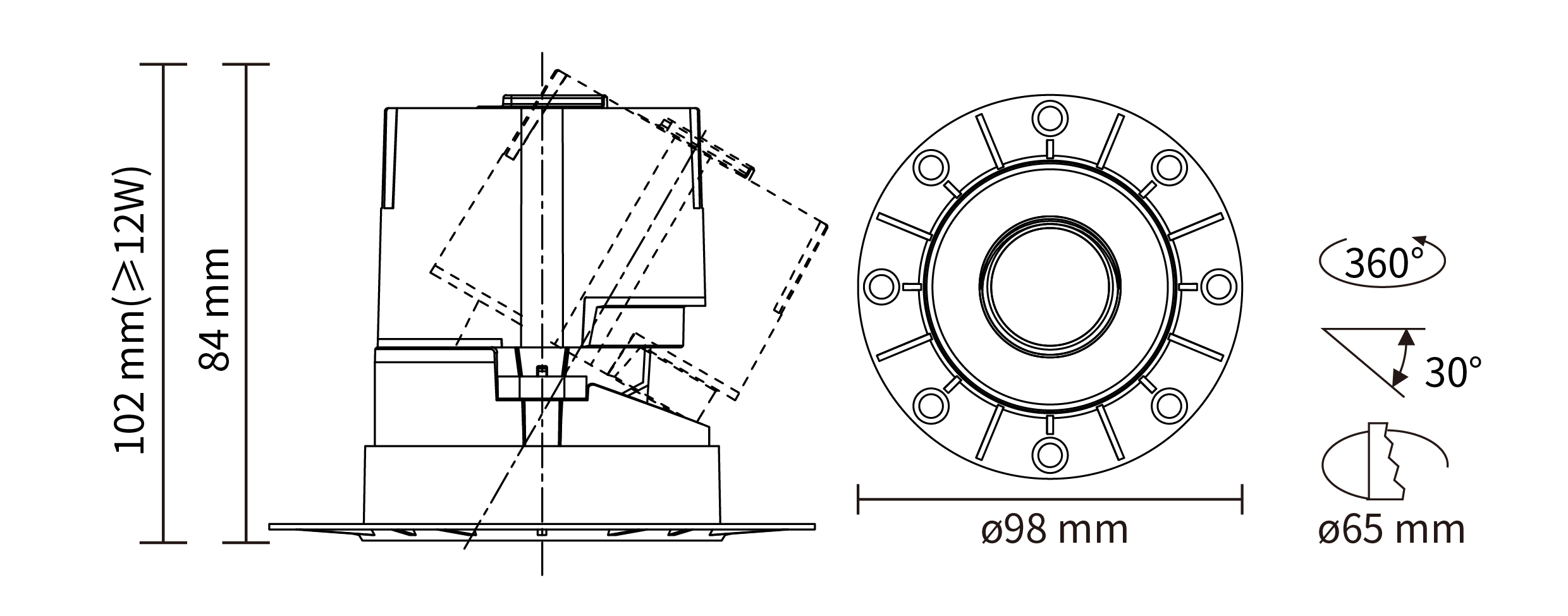

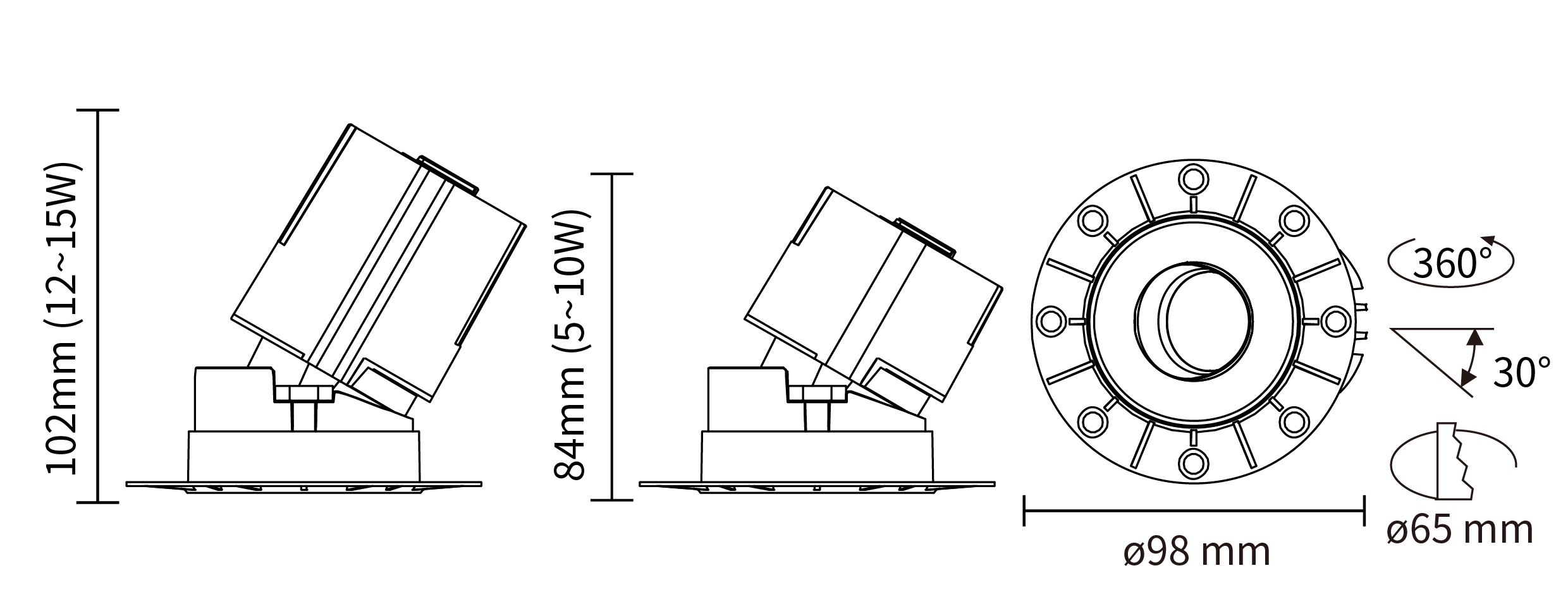

Line Drawing:
General Features:


Accessories :
Reflector Color:
Frame Color:

Select your Model No:

*Please log in before selecting your Model No

Power(W)
  • Power(W)
  • 5W
  • 7W
  • 10W
  • 12W
  • 15W
Beam Angle
  • Beam Angle
  • 10°
  • 15°
  • 26°
  • 36°
  • 54°
CRI
  • CRI
  • Ra>90
Color
  • Color
  • 2700K
  • 3000K
  • 3500K
  • 4000K
Dimming type
  • Dimming type
  • 3-0-10V dimming
  • 4-DALI dimming
  • 5-DMX512
Finish
  • Finish
  • White
  • Black
  • Mirror
Reflector
  • Reflector
  • White
  • Black
  • Mirror
IP Rating
  • IP Rating
  • 20-IP20
  • 44-IP44
Accessory
  • Accessory
  • Honeycomb louver
  • Linear lens
  • Soft lens
  • Model No

  • Luminaire lumen(LM)

  • Power (W)

  • Beam Angle

  • CRI

  • Color

  • Specification

  • IES

  • DWG

  • manual

  • Favorite

Model No

DR00710-05102790

DR00710-05103090

DR00710-05103590

DR00710-05104090

DR00710-07102790

DR00710-07103090

DR00710-07103590

DR00710-07104090

DR00710-10102790

DR00710-10103090

DR00710-10103590

DR00710-10104090

DR00710-12102790

DR00710-12103090

DR00710-12103590

DR00710-12104090

DR00710-05152790

DR00710-05153090

DR00710-05153590

DR00710-05154090

DR00710-07152790

DR00710-07153090

DR00710-07153590

DR00710-07154090

DR00710-10152790

DR00710-10153090

DR00710-10153590

DR00710-10154090

DR00710-12152790

DR00710-12153090

DR00710-12153590

DR00710-12154090

DR00710-05262790

DR00710-05263090

DR00710-05263590

DR00710-05264090

DR00710-07262790

DR00710-07263090

DR00710-07263590

DR00710-07264090

DR00710-10262790

DR00710-10263090

DR00710-10263590

DR00710-10264090

DR00710-12262790

DR00710-12263090

DR00710-12263590

DR00710-12264090

DR00710-15262790

DR00710-15263090

DR00710-15263590

DR00710-15264090

DR00710-05362790

DR00710-05363090

DR00710-05363590

DR00710-05364090

DR00710-07362790

DR00710-07363090

DR00710-07363590

DR00710-07364090

DR00710-10362790

DR00710-10363090

DR00710-10363590

DR00710-10364090

DR00710-12362790

DR00710-12363090

DR00710-12363590

DR00710-12364090

DR00710-15362790

DR00710-15363090

DR00710-15363590

DR00710-15364090

DR00710-05542790

DR00710-05543090

DR00710-05543590

DR00710-05544090

DR00710-07542790

DR00710-07543090

DR00710-07543590

DR00710-07544090

DR00710-10542790

DR00710-10543090

DR00710-10543590

DR00710-10544090

DR00710-12542790

DR00710-12543090

DR00710-12543590

DR00710-12544090

DR00710-15542790

DR00710-15543090

DR00710-15543590

DR00710-15544090

Luminous Flux (LM)

161LM

170LM

175LM

171LM

197LM

207LM

214LM

212LM

288LM

303LM

312LM

308LM

335LM

353LM

364LM

371LM

365LM

385LM

396LM

441LM

457LM

482LM

496LM

504LM

694LM

731LM

752LM

741LM

783LM

824LM

849LM

855LM

334LM

352LM

362LM

440LM

422LM

445LM

458LM

510LM

658LM

693LM

713LM

807LM

797LM

839LM

865LM

898LM

919LM

967LM

996LM

1035LM

393LM

414LM

426LM

442LM

460LM

485LM

499LM

513LM

736LM

775LM

798LM

808LM

864LM

909LM

936LM

984LM

1025LM

1079LM

1111LM

1136LM

377LM

397LM

408LM

405LM

438LM

462LM

475LM

471LM

698LM

735LM

757LM

756LM

809LM

851LM

877LM

889LM

927LM

976LM

1005LM

1055LM

Power (W)

5W

5W

5W

5W

7W

7W

7W

7W

10W

10W

10W

10W

12W

12W

12W

12W

5W

5W

5W

5W

7W

7W

7W

7W

10W

10W

10W

10W

12W

12W

12W

12W

5W

5W

5W

5W

7W

7W

7W

7W

10W

10W

10W

10W

12W

12W

12W

12W

15W

15W

15W

15W

5W

5W

5W

5W

7W

7W

7W

7W

10W

10W

10W

10W

12W

12W

12W

12W

15W

15W

15W

15W

5W

5W

5W

5W

7W

7W

7W

7W

10W

10W

10W

10W

12W

12W

12W

12W

15W

15W

15W

15W

Beam Angle

10°

10°

10°

10°

10°

10°

10°

10°

10°

10°

10°

10°

10°

10°

10°

10°

15°

15°

15°

15°

15°

15°

15°

15°

15°

15°

15°

15°

15°

15°

15°

15°

26°

26°

26°

26°

26°

26°

26°

26°

26°

26°

26°

26°

26°

26°

26°

26°

26°

26°

26°

26°

36°

36°

36°

36°

36°

36°

36°

36°

36°

36°

36°

36°

36°

36°

36°

36°

36°

36°

36°

36°

54°

54°

54°

54°

54°

54°

54°

54°

54°

54°

54°

54°

54°

54°

54°

54°

54°

54°

54°

54°

CRI

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Color

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

Specification
IES
DWG
manual
Favorite

Application
