POYO 115

Pendant Downlight

POYO 115

Looking forward to being shining like the jade is waiting for carving

POYO is surface-mounted light on the ceiling or wall, the internal driving design hid the driver perfectly. A wide optional range of appearance, the whole series is included small, medium and large sizes. The adjustable structure has a horizontal rotation of 350 degrees

and a vertical angle of 30 degrees to achievethe precise adjustment of the illuminated object. From 5W to 80W, a complete range of beam angle supports the application from small space to high space

Lighting Effects

Products Specification:: Type:Pendant Downlight; Beam Angle:15D 24D 36D 48D 65D; Power:15W 20W 25W; CCT:2700K 3000K 4000K; Weight:1.45kg; Heat-Sink:Aluminum; Surface-Treatment:painting+plating

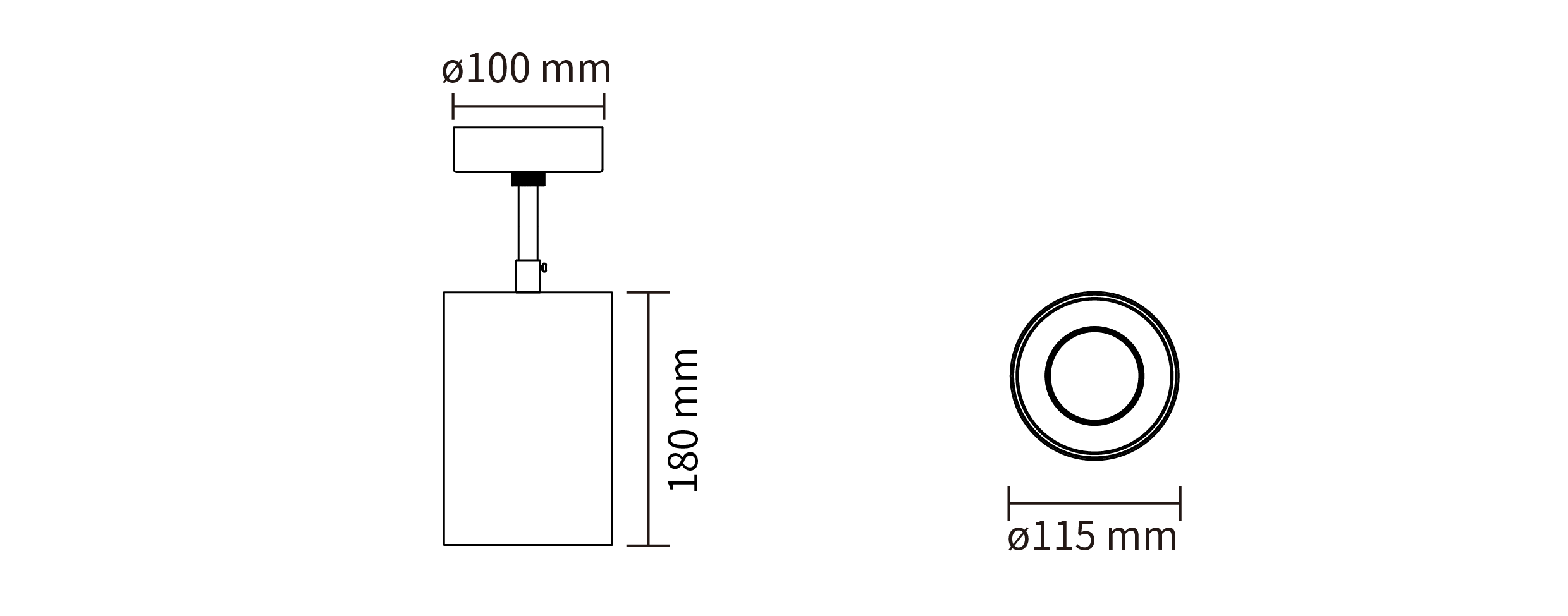

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
15W
20W
25W

Beam Angle

Beam Angle
15°
24°
36°
48°
65°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming

Finish

Finish
White
Black
Grey

Reflector

Reflector
Mirror

IP Rating

IP Rating
20-IP20
65-IP65

Accessory

Accessory
Honeycomb louver

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: DP00803-15159027; DP00803-15159030; DP00803-15159040; DP00803-15249027; DP00803-15249030; DP00803-15249040; DP00803-15369027; DP00803-15369030; DP00803-15369040; DP00803-15489027; DP00803-15489030; DP00803-15489040; DP00803-15659027; DP00803-15659030; DP00803-15659040; DP00803-20159027; DP00803-20159030; DP00803-20159040; DP00803-20249027; DP00803-20249030; DP00803-20249040; DP00803-20369027; DP00803-20369030; DP00803-20369040; DP00803-20489027; DP00803-20489030; DP00803-20489040; DP00803-20659027; DP00803-20659030; DP00803-20659040; DP00803-25249027; DP00803-25249030; DP00803-25249040; DP00803-25369027; DP00803-25369030; DP00803-25369040; DP00803-25489027; DP00803-25489030; DP00803-25489040; DP00803-25659027; DP00803-25659030; DP00803-25659040

Luminous Flux (LM): 923LM; 971LM; 1024LM; 1243LM; 1309LM; 1371LM; 1243LM; 1308LM; 1418LM; 1279LM; 1346LM; 1424LM; 1157LM; 1217LM; 1290LM; 1178LM; 1240LM; 1340LM; 1701LM; 1790LM; 1899LM; 1713LM; 1803LM; 1951LM; 1748LM; 1840LM; 1973LM; 1585LM; 1668LM; 1811LM; 2007LM; 2113LM; 2255LM; 1994LM; 2099LM; 2279LM; 2063LM; 2172LM; 2346LM; 1845LM; 1942LM; 2097LM

Power (W): 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W

Beam Angle: 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 48°; 48°; 48°; 65°; 65°; 65°; 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 48°; 48°; 48°; 65°; 65°; 65°; 24°; 24°; 24°; 36°; 36°; 36°; 48°; 48°; 48°; 65°; 65°; 65°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K
