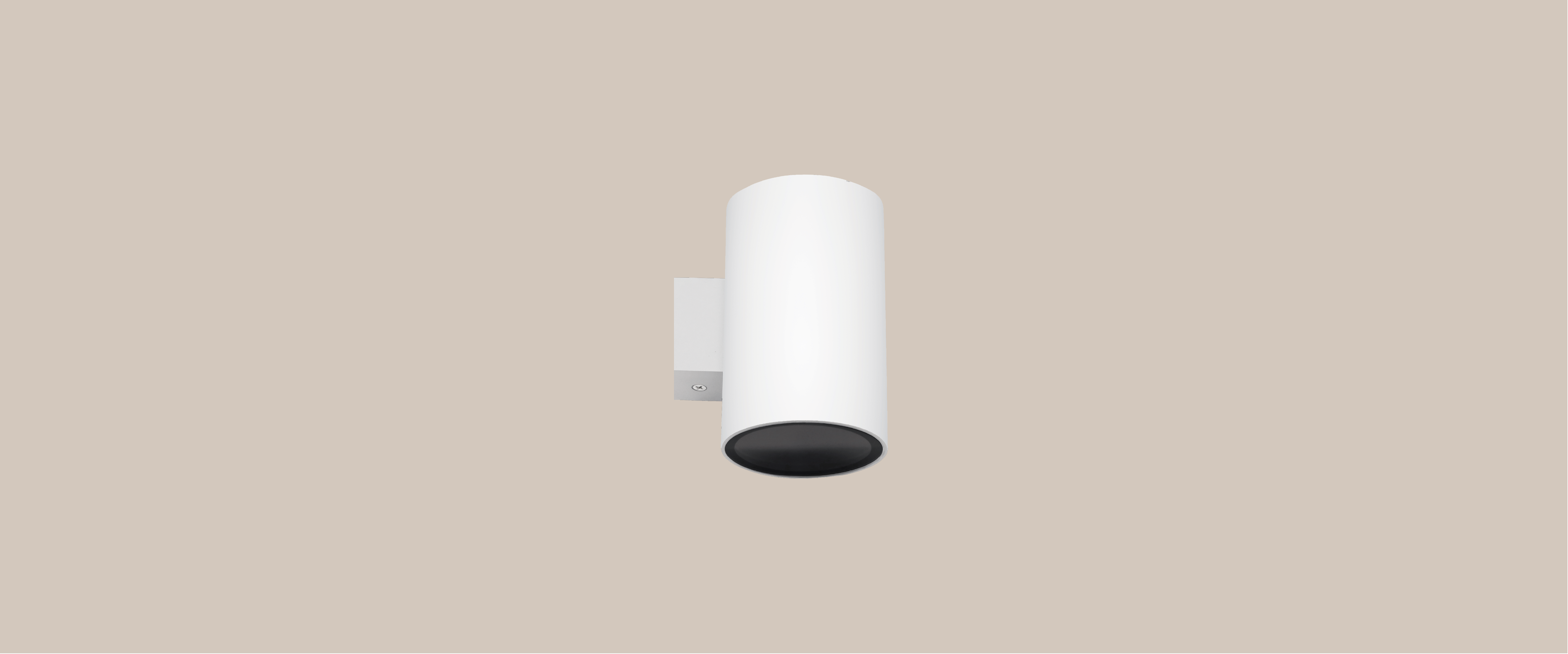

POYO 115

Wall Mounted

POYO 115

Looking forward to being shining like the jade is waiting for carving

POYO is surface-mounted light on the ceiling or wall, the internal driving design hid the driver perfectly. A wide optional range of appearance, the whole series is included small, medium and large sizes. The adjustable structure has a horizontal rotation of 350 degrees

and a vertical angle of 30 degrees to achievethe precise adjustment of the illuminated object. From 5W to 80W, a complete range of beam angle supports the application from small space to high space

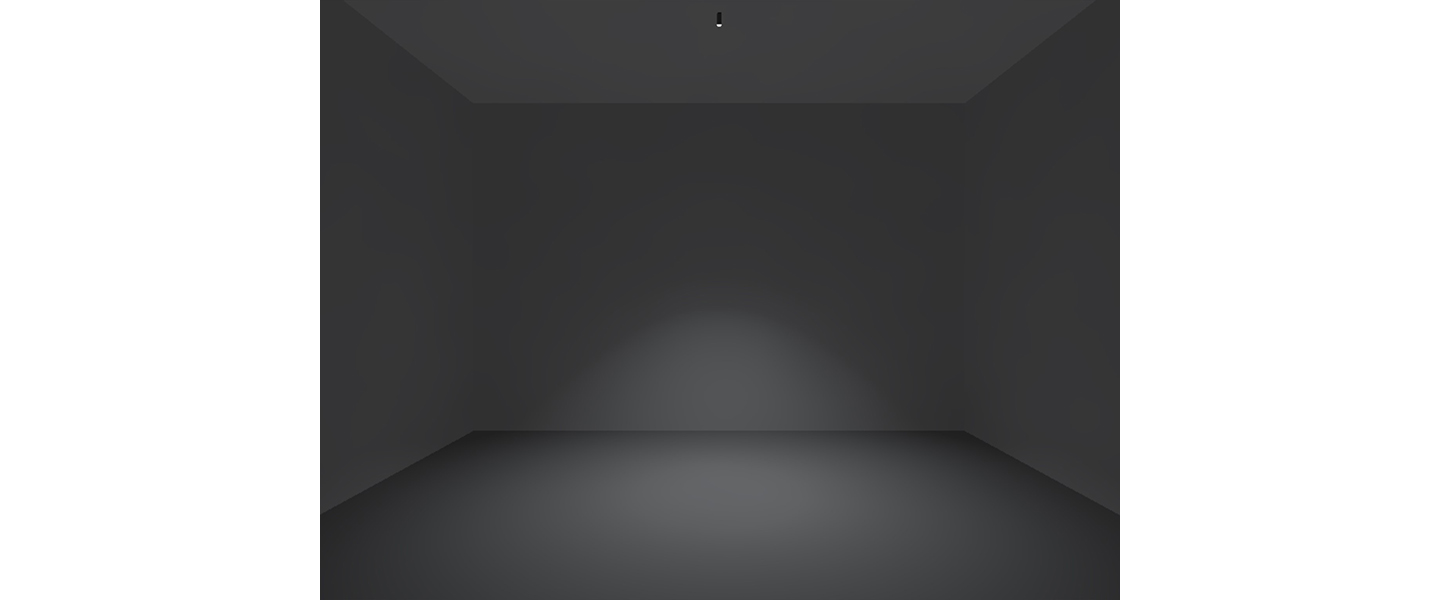

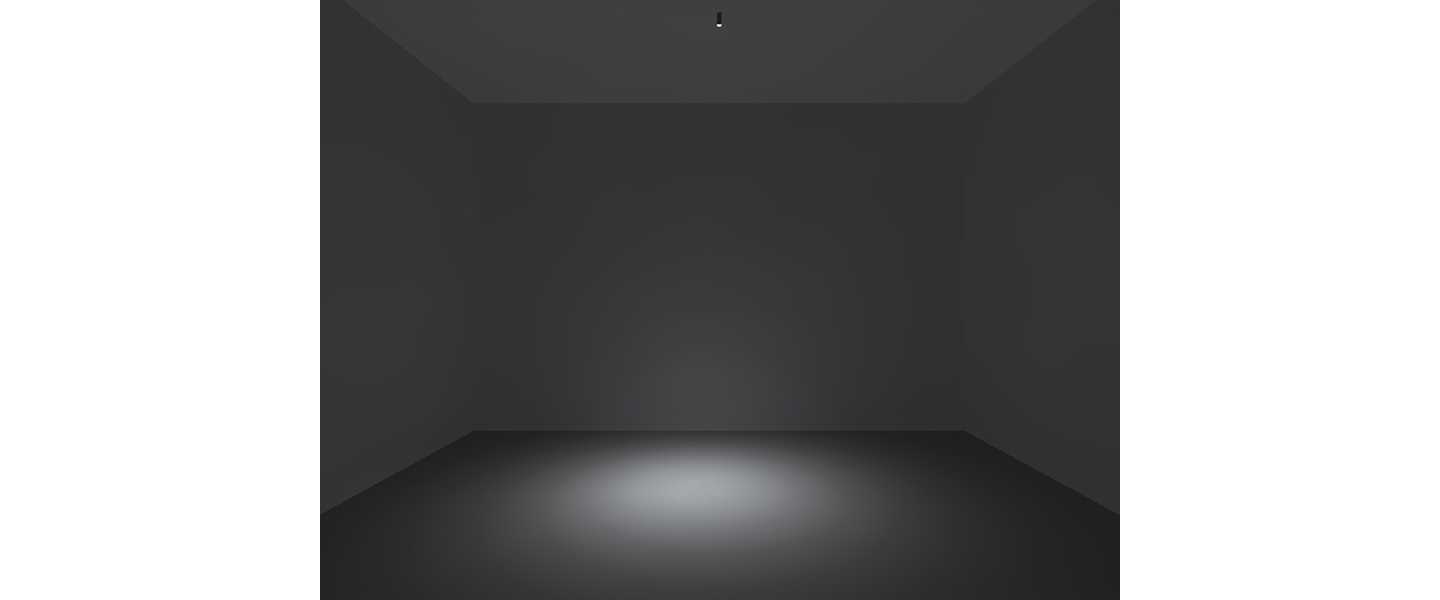

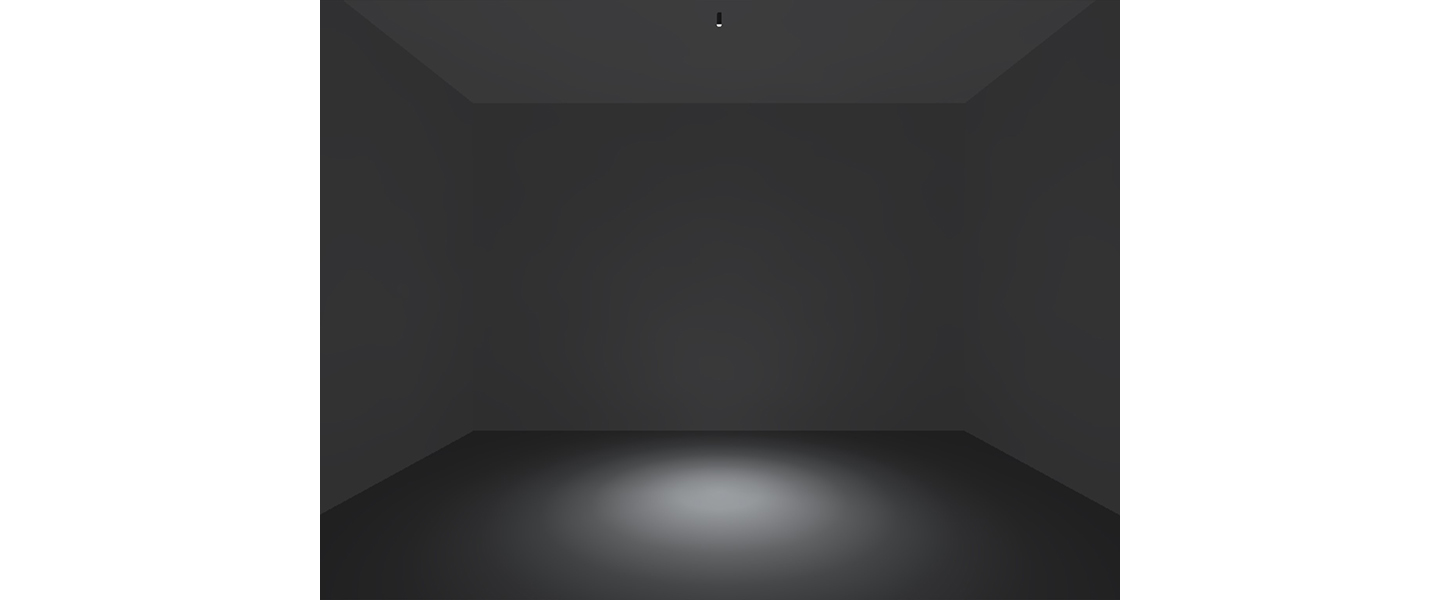

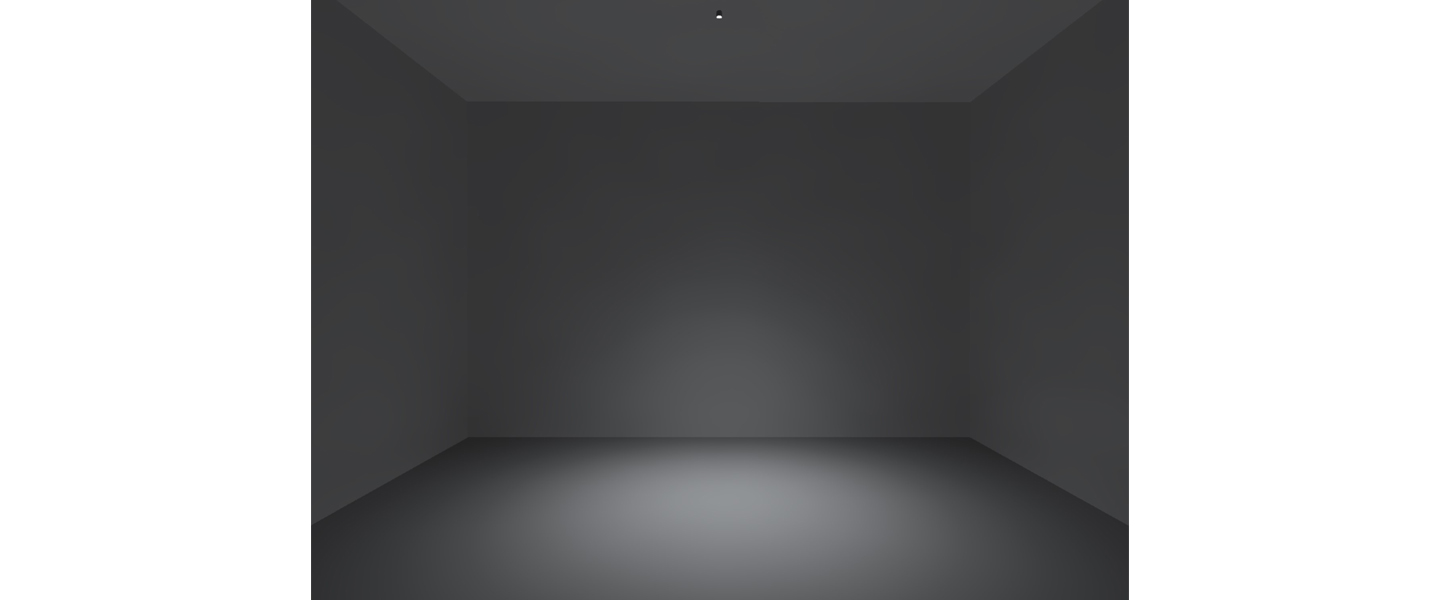

Lighting Effects

Products Specification:: Type:wall Mounted; Beam Angle:18D 23D 35D 50D; Power:15W 20W 25W; Weight:1.6 kg; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:painting+plating; Remark:Available for Up lighting

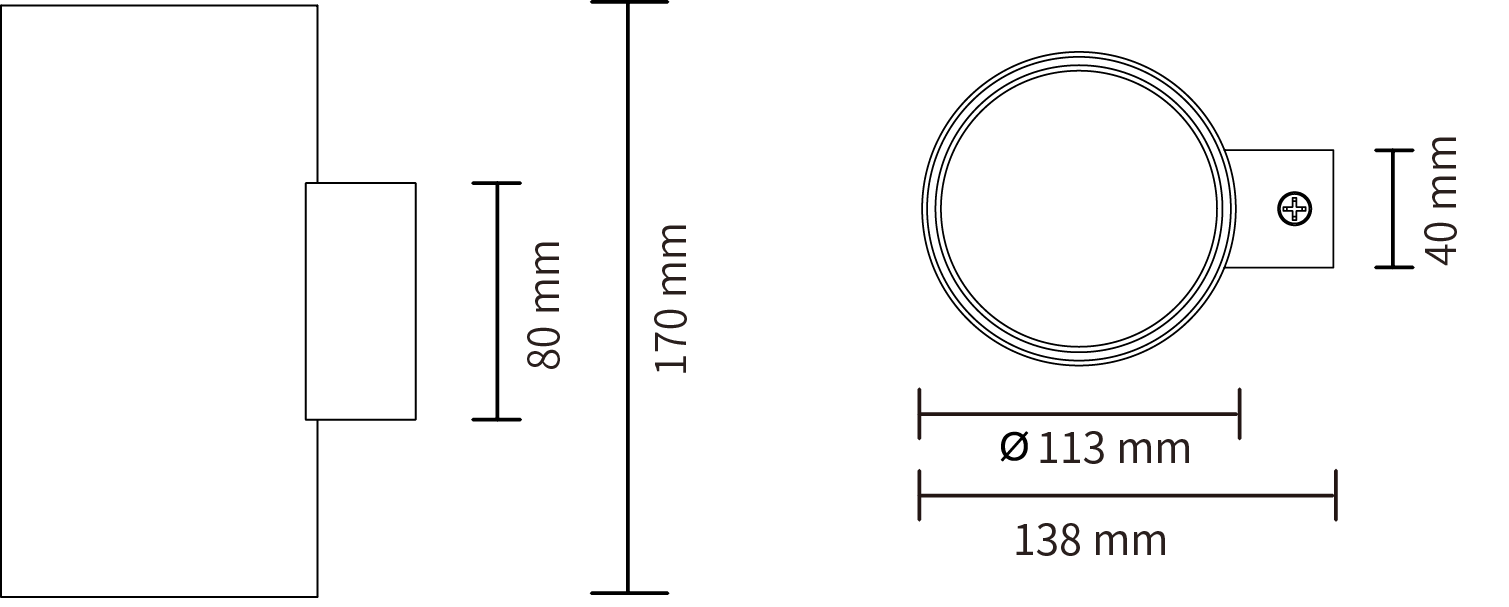

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
15W
20W
25W

Beam Angle

Beam Angle
23°
36°
50°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming

Finish

Finish
White
Grey
Black

Reflector

Reflector
Black

IP Rating

IP Rating
20-IP20

Accessory

Accessory
N/A

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: DW00802-15239027; DW00802-15239030; DW00802-15239040; DW00802-15369027; DW00802-15369030; DW00802-15369040; DW00802-15509027; DW00802-15509030; DW00802-15509040; DW00802-20239027; DW00802-20239030; DW00802-20239040; DW00802-20369027; DW00802-20369030; DW00802-20369040; DW00802-20509027; DW00802-20509030; DW00802-20509040; DW00802-25239027; DW00802-25239030; DW00802-25239040; DW00802-25369027; DW00802-25369030; DW00802-25369040; DW00802-25509027; DW00802-25509030; DW00802-25509040

Luminous Flux (LM): 1319LM; 1388LM; 1555LM; 1326LM; 1396LM; 1560LM; 1283LM; 1351LM; 1503LM; 1799LM; 1894LM; 2126LM; 1841LM; 1937LM; 2171LM; 1766LM; 1859LM; 2087LM; 2100LM; 2211LM; 2514LM; 2177LM; 2291LM; 2526LM; 2088LM; 2198LM; 2431LM

Power (W): 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W

Beam Angle: 23°; 23°; 23°; 36°; 36°; 36°; 50°; 50°; 50°; 23°; 23°; 23°; 36°; 36°; 36°; 50°; 50°; 50°; 23°; 23°; 23°; 36°; 36°; 36°; 50°; 50°; 50°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K
