POYO 120

Adjustable Recessed Downlight

POYO 120

Looking forward to being shining like the jade is waiting for carving

POYO 120

Looking forward to being shining like the jade is waiting for carving

POYO is surface-mounted light on the ceiling or wall, the internal driving design hid the driver perfectly. A wide optional range of appearance, the whole series is included small, medium and large sizes. The adjustable structure has a horizontal rotation of 350 degrees

and a vertical angle of 30 degrees to achievethe precise adjustment of the illuminated object. From 5W to 80W, a complete range of beam angle supports the application from small space to high space

Lighting Effects

Products Specification:: Type:Recessed Adjustable Downlight; Cut-Out:ø 120 mm; Power:15W 20W 25W 28W; Beam Angle :18D 25D 35D 50D; Weight:1.05kg; CCT:2700K 3000K 4000K; Heat-Sink:Forging Aluminum; Surface-Treatment:powder coating

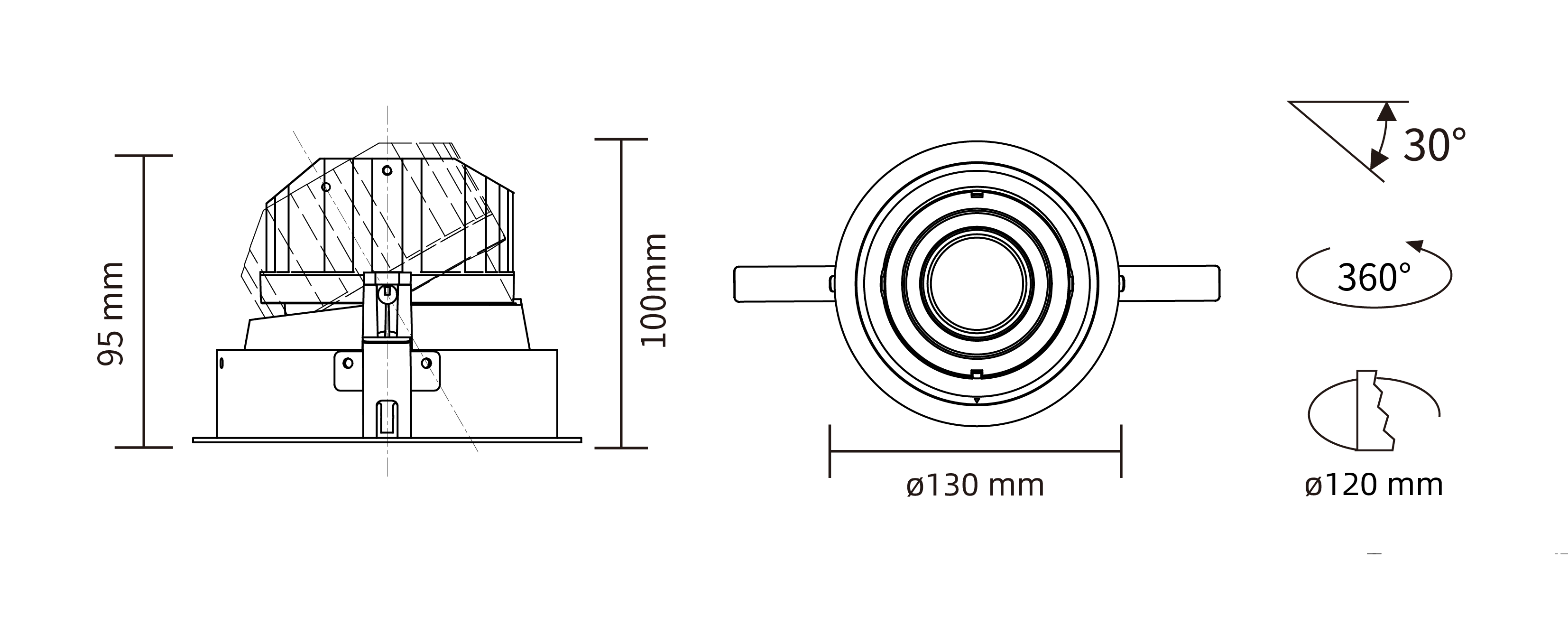

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
15W
20W
25W
28W

Beam Angle

Beam Angle
18°
25°
35°
50°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming

Finish

Finish
White
Black
Grey

Reflector

Reflector
Black

IP Rating

IP Rating
20-IP20
65-IP65

Accessory

Accessory
Honeycomb louver

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: DR00804-15189027; DR00804-15189030; DR00804-15189040; DR00804-15259027; DR00804-15259030; DR00804-15259040; DR00804-15359027; DR00804-15359030; DR00804-15359040; DR00804-15509027; DR00804-15509030; DR00804-15509040; DR00804-20189027; DR00804-20189030; DR00804-20189040; DR00804-20259027; DR00804-20259030; DR00804-20259040; DR00804-20359027; DR00804-20359030; DR00804-20359040; DR00804-20509027; DR00804-20509030; DR00804-20509040; DR00804-25189027; DR00804-25189030; DR00804-25189040; DR00804-25259027; DR00804-25259030; DR00804-25259040; DR00804-25359027; DR00804-25359030; DR00804-25359040; DR00804-25509027; DR00804-25509030; DR00804-25509040; DR00804-28189027; DR00804-28189030; DR00804-28189040; DR00804-28259027; DR00804-28259030; DR00804-28259040; DR00804-28359027; DR00804-28359030; DR00804-28359040; DR00804-28509027; DR00804-28509030; DR00804-28509040

Luminous Flux (LM): 852LM; 897LM; 975LM; 1153LM; 1214LM; 1306LM; 1153LM; 1214LM; 1320LM; 901LM; 948LM; 1035LM; 1179LM; 1241LM; 1334LM; 1599LM; 1684LM; 1816LM; 1607LM; 1692LM; 1805LM; 1254LM; 1320LM; 1422LM; 1365LM; 1437LM; 1567LM; 1800LM; 1895LM; 2115LM; 1840LM; 1937LM; 2117LM; 1455LM; 1531LM; 1655LM; 1585LM; 1668LM; 1789LM; 2137LM; 2250LM; 2440LM; 2132LM; 2245LM; 2468LM; 1674LM; 1762LM; 1926LM

Power (W): 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 28W; 28W; 28W; 28W; 28W; 28W; 28W; 28W; 28W; 28W; 28W; 28W

Beam Angle: 18°; 18°; 18°; 25°; 25°; 25°; 35°; 35°; 35°; 50°; 50°; 50°; 18°; 18°; 18°; 25°; 25°; 25°; 35°; 35°; 35°; 50°; 50°; 50°; 18°; 18°; 18°; 25°; 25°; 25°; 35°; 35°; 35°; 50°; 50°; 50°; 18°; 18°; 18°; 25°; 25°; 25°; 35°; 35°; 35°; 50°; 50°; 50°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K
