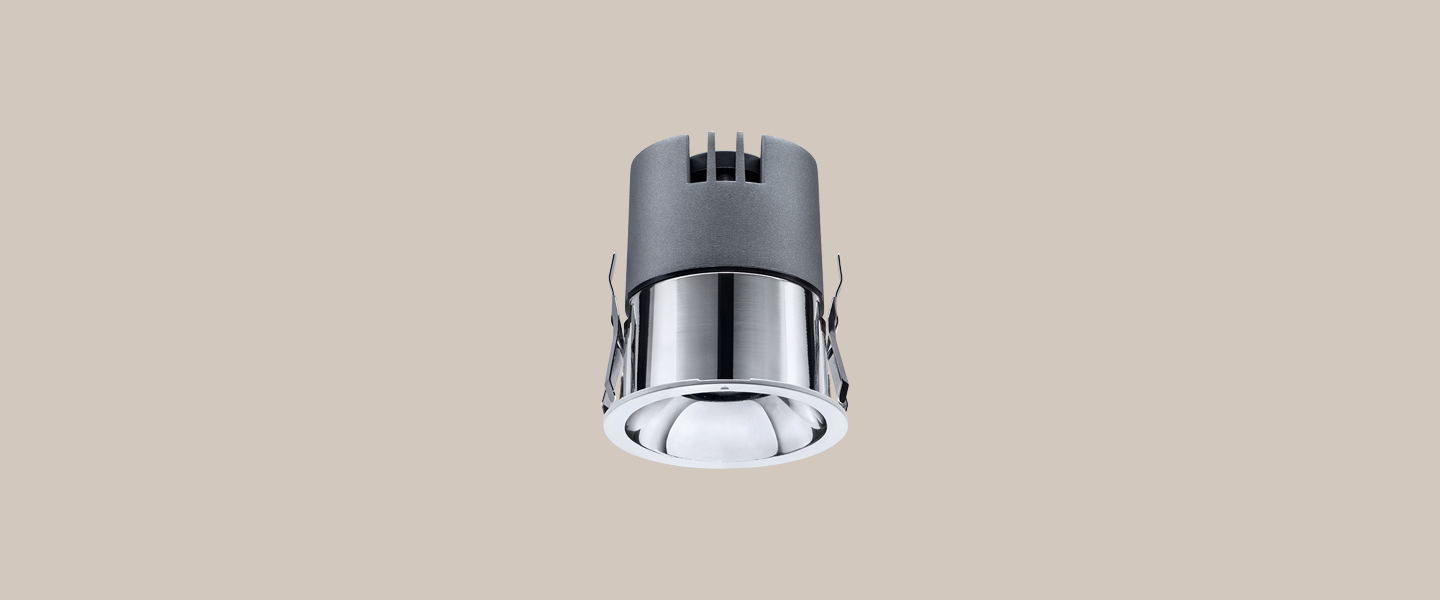

LINNOU 55
Round Fixed Recessed Downlight
LINNOU 55
Small & delicate great practicality
LINNOU 55
Small & delicate great practicality
Creative design with small, thin and deep style. LINNOU lamp's overall minimum size is only Ø 60 * H72mm. LINNOU is named for its compact shape, which saves the hole opening size when installing, effectively solves the problem that the big hole opening on the ceiling may destroy skyline integrity of the space. In addition, the delicate lamps can be lively coordinated with the reflector which has a variety of color. Designers can choose different reflector according to the comprehensive color of ceiling and space, to present both practicability and beauty.
Through the clever and ultra-thin design of adjustable lamps, and the minimum height of lamps is controlled in the range of 75 mm. In satisfying the inside height 80 mm under ceiling, it maximally saves the indoor space. And in view of the small size light's new spring design, under the condition of meet the polarization of 30 degrees, it can effectively solve the problem of installation requirements on thickness 8 ~ 20 mm of ceiling. Design innovation and practicality is presented incisively and vividly in the research and development and application of the LINNOU series downlight.
Lighting Effects
- Products Specification:
- Type:Recessed Round Fixed Downlight
- Cut-Out:ø 55 mm
- Beam Angle:10D 15D 26D 36D 54D
- Power:5W 7W 10W
- CCT:2700K 3000K 3500K 4000K
- Weight:0.22kg
- Heat-Sink:Aluminum
- Surface-Treatment:painting+plating
- Remarks:accessories not available for 10D models

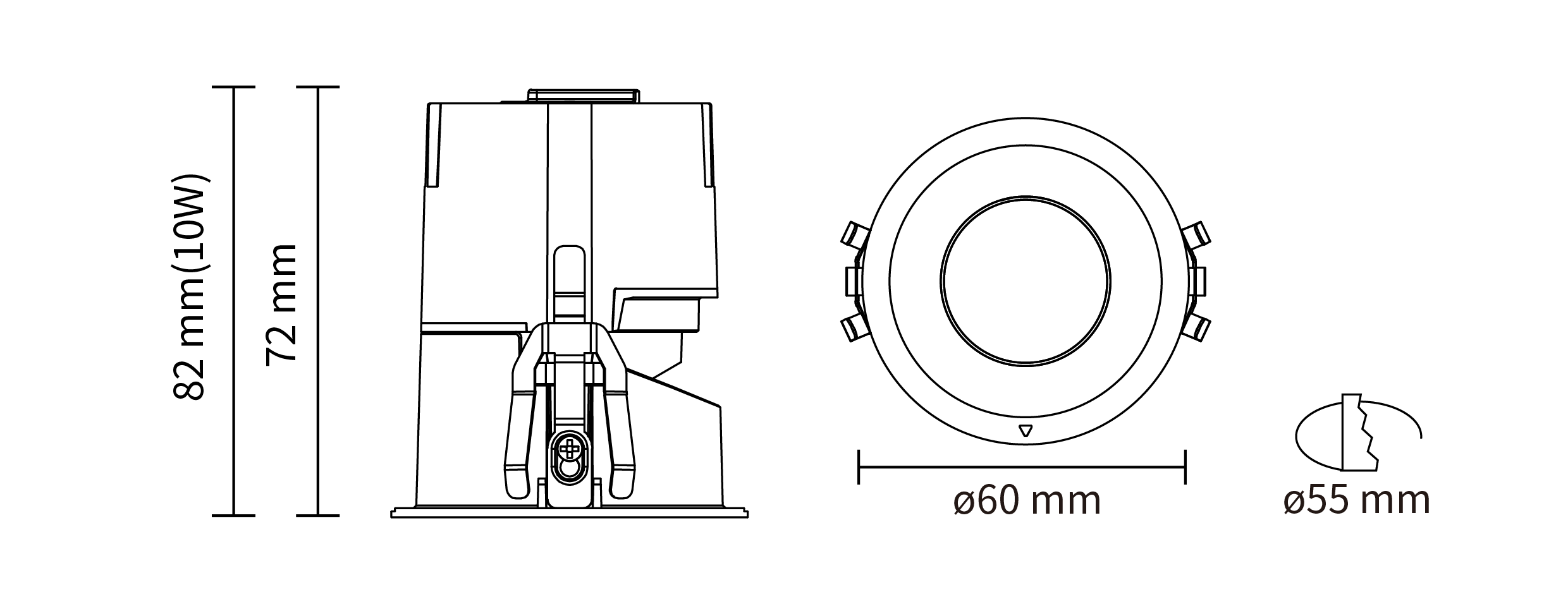

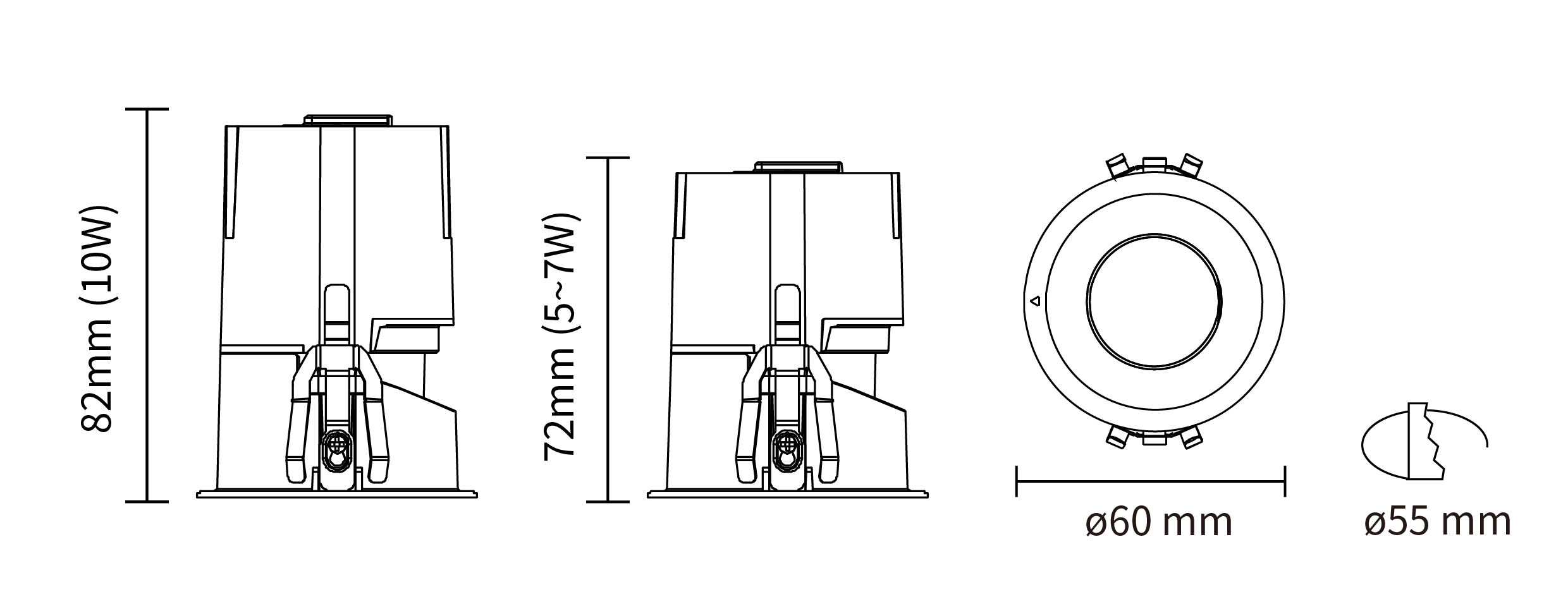

- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
- Power(W)
- 5W
- 7W
- 10W
- Beam Angle
- 10°
- 15°
- 26°
- 36°
- 54°
- CRI
- Ra>90
- Color
- 2700K
- 3000K
- 3500K
- 4000K
- Dimming type
- 1-Non Dim
- 2-Phase dimming
- 3-0-10V dimming
- 4-DALI dimming
- Finish
- White
- Black
- Mirror
- Reflector
- White
- Black
- Mirror
- IP Rating
- 20-IP20
- 44-IP44
- Accessory
- Honeycomb louver
- Linear lens
- Soft lens
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
DR00701-05102790
DR00701-05103090
DR00701-05103590
DR00701-05104090
DR00701-07102790
DR00701-07103090
DR00701-07103590
DR00701-07104090
DR00701-10102790
DR00701-10103090
DR00701-10103590
DR00701-10104090
DR00701-05152790
DR00701-05153090
DR00701-05153590
DR00701-05154090
DR00701-07152790
DR00701-07153090
DR00701-07153590
DR00701-07154090
DR00701-10152790
DR00701-10153090
DR00701-10153590
DR00701-10154090
DR00701-05262790
DR00701-05263090
DR00701-05263590
DR00701-05264090
DR00701-07262790
DR00701-07263090
DR00701-07263590
DR00701-07264090
DR00701-10262790
DR00701-10263090
DR00701-10263590
DR00701-10264090
DR00701-05362790
DR00701-05363090
DR00701-05363590
DR00701-05364090
DR00701-07362790
DR00701-07363090
DR00701-07363590
DR00701-07364090
DR00701-10362790
DR00701-10363090
DR00701-10363590
DR00701-10364090
DR00701-05542790
DR00701-05543090
DR00701-05543590
DR00701-05544090
DR00701-07542790
DR00701-07543090
DR00701-07543590
DR00701-07544090
DR00701-10542790
DR00701-10543090
DR00701-10543590
DR00701-10544090
- Luminous Flux (LM)
154LM
162LM
167LM
174LM
189LM
199LM
205LM
208LM
274LM
288LM
297LM
303LM
364LM
384LM
395LM
408LM
458LM
483LM
497LM
500LM
656LM
691LM
712LM
712LM
334LM
352LM
362LM
424LM
418LM
440LM
453LM
489LM
638LM
672LM
692LM
701LM
375LM
395LM
406LM
409LM
434LM
457LM
470LM
484LM
680LM
716LM
738LM
754LM
352LM
371LM
382LM
378LM
412LM
434LM
447LM
438LM
623LM
655LM
675LM
703LM
- Power (W)
5W
5W
5W
5W
7W
7W
7W
7W
10W
10W
10W
10W
5W
5W
5W
5W
7W
7W
7W
7W
10W
10W
10W
10W
5W
5W
5W
5W
7W
7W
7W
7W
10W
10W
10W
10W
5W
5W
5W
5W
7W
7W
7W
7W
10W
10W
10W
10W
5W
5W
5W
5W
7W
7W
7W
7W
10W
10W
10W
10W
- Beam Angle
10°
10°
10°
10°
10°
10°
10°
10°
10°
10°
10°
10°
15°
15°
15°
15°
15°
15°
15°
15°
15°
15°
15°
15°
26°
26°
26°
26°
26°
26°
26°
26°
26°
26°
26°
26°
36°
36°
36°
36°
36°
36°
36°
36°
36°
36°
36°
36°
54°
54°
54°
54°
54°
54°
54°
54°
54°
54°
54°
54°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
3500K
4000K
2700K
3000K
3500K
4000K
2700K
3000K
3500K
4000K
2700K
3000K
3500K
4000K
2700K
3000K
3500K
4000K
2700K
3000K
3500K
4000K
2700K
3000K
3500K
4000K
2700K
3000K
3500K
4000K
2700K
3000K
3500K
4000K
2700K
3000K
3500K
4000K
2700K
3000K
3500K
4000K
2700K
3000K
3500K
4000K
2700K
3000K
3500K
4000K
2700K
3000K
3500K
4000K
2700K
3000K
3500K
4000K
- Specification
- IES
- DWG
- manual
- Favorite
