LINNOU 65

Round Adjustable Recessed Tunable White Downlight

LINNOU 65

Small & delicate great practicality

LINNOU 65

Small & delicate great practicality

LINNOU 65

Small & delicate great practicality

Creative design with small, thin and deep style. LINNOU lamp's overall minimum size is only Ø 60 * H72mm. LINNOU is named for its compact shape, which saves the hole opening size when installing, effectively solves the problem that the big hole opening on the ceiling may destroy skyline integrity of the space. In addition, the delicate lamps can be lively coordinated with the reflector which has a variety of color. Designers can choose different reflector according to the comprehensive color of ceiling and space, to present both practicability and beauty.




Through the clever and ultra-thin design of adjustable lamps, and the minimum height of lamps is controlled in the range of 75 mm. In satisfying the inside height 80 mm under ceiling, it maximally saves the indoor space. And in view of the small size light's new spring design, under the condition of meet the polarization of 30 degrees, it can effectively solve the problem of installation requirements on thickness 8 ~ 20 mm of ceiling. Design innovation and practicality is presented incisively and vividly in the research and development and application of the LINNOU series downlight.

Lighting Effects

Products Specification:
Type:Round Adjustable Recessed Tunable White Downlight
Mechanical Performance:Fixed / Adjustable
Cut-Out:ø 65 mm
Beam Angle:20D 26D 30D 36D 40D 54D
Power:5W 7W 10W
Weight:0.27kg
CCT:1800K-4000K 2700K-6000K
Heat-Sink:Aluminum
Surface-Treatment:painting+plating

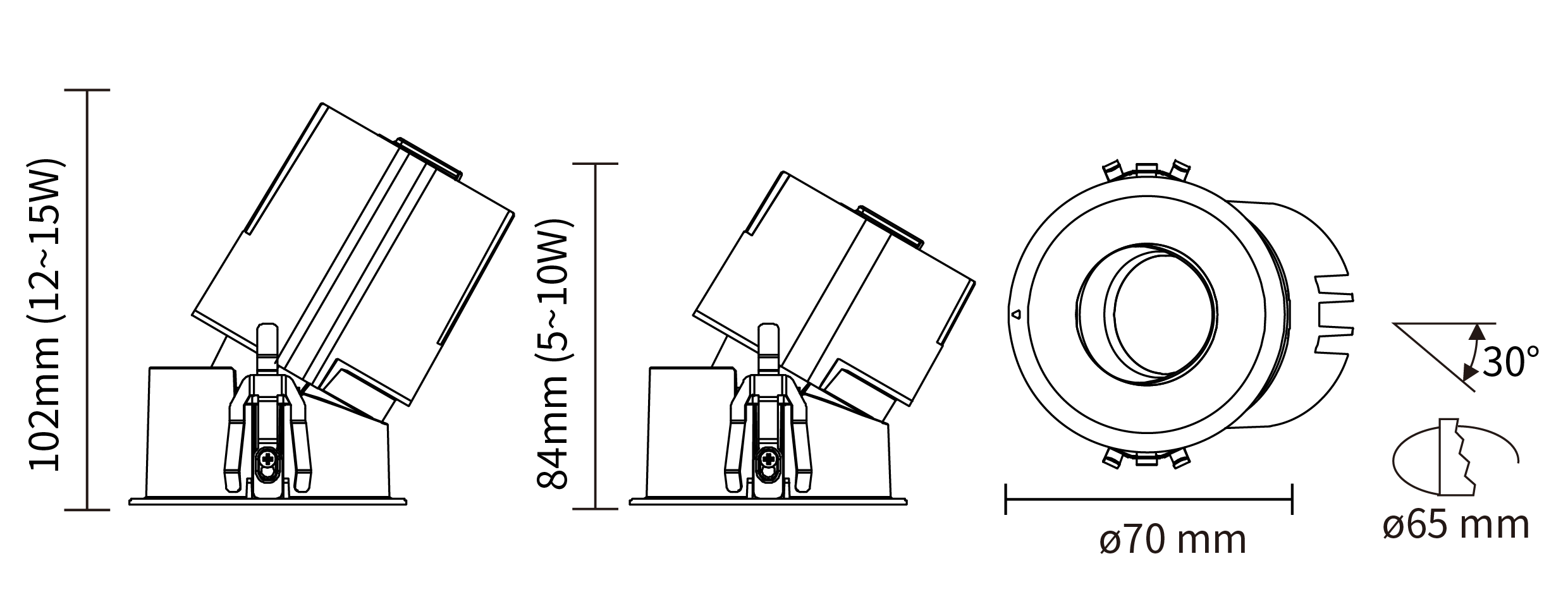

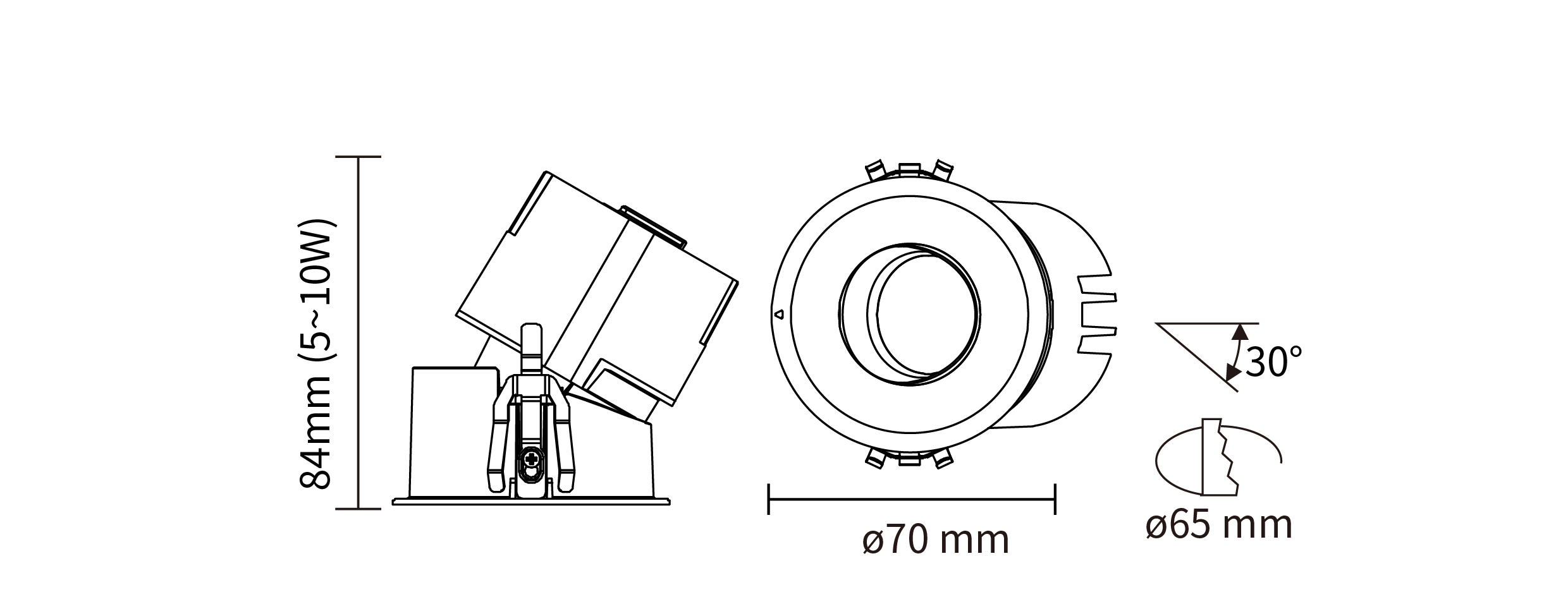

Line Drawing:
General Features:

Accessories :
Reflector Color:
Frame Color:

Select your Model No:

*Please log in before selecting your Model No

Power(W)
  • Power(W)
  • 5W
  • 7W
  • 10W
Beam Angle
  • Beam Angle
  • 22°
  • 26°
  • 30°
  • 36°
  • 40°
  • 54°
CRI
  • CRI
  • Ra>90
Color
  • Color
  • 1800K-4000K(e.g.1800K)
  • 1800K-4000K(e.g.4000K)
  • 2700K-6000K(e.g.2700K)
  • 2700K-6000K(e.g.6000K)
Dimming type
  • Dimming type
  • 3-0-10V dimming
  • 4-DALI dimming
Finish
  • Finish
  • Black
  • White
  • Mirror
Reflector
  • Reflector
  • Mirror
  • White
  • Black
IP Rating
  • IP Rating
  • 20-IP20
  • 44-IP44
Accessory
  • Accessory
  • Linear lens
  • Soft lens
  • Model No

  • Luminaire lumen(LM)

  • Power (W)

  • Beam Angle

  • CRI

  • Color

  • Specification

  • IES

  • DWG

  • manual

  • Favorite

Model No

DR00731-052690X0

DR00731-052690X1

DR00731-053690X0

DR00731-053690X1

DR00731-055490X0

DR00731-055490X1

DR00731-072690X0

DR00731-072690X1

DR00731-073690X0

DR00731-073690X1

DR00731-075490X0

DR00731-075490X1

DR00731-102690X0

DR00731-102690X1

DR00731-103690X0

DR00731-103690X1

DR00731-105490X0

DR00731-105490X1

DR00731-052290X0

DR00731-052290X1

DR00731-053090X0

DR00731-053090X1

DR00731-054090X0

DR00731-054090X1

DR00731-072290X0

DR00731-072290X1

DR00731-073090X0

DR00731-073090X1

DR00731-074090X0

DR00731-074090X1

DR00731-102290X0

DR00731-102290X1

DR00731-103090X0

DR00731-103090X1

DR00731-104090X0

DR00731-104090X1

Luminous Flux (LM)

141LM

248LM

179LM

308LM

209LM

266LM

163LM

283LM

205LM

356LM

301LM

379LM

244LM

431LM

316LM

539LM

463LM

605LM

176LM

209LM

154LM

197LM

210LM

266LM

248LM

298LM

222LM

283LM

303LM

383LM

372LM

463LM

344LM

440LM

475LM

595LM

Power (W)

5W

5W

5W

5W

5W

5W

7W

7W

7W

7W

7W

7W

10W

10W

10W

10W

10W

10W

5W

5W

5W

5W

5W

5W

7W

7W

7W

7W

7W

7W

10W

10W

10W

10W

10W

10W

Beam Angle

26°

26°

36°

36°

54°

54°

26°

26°

36°

36°

54°

54°

26°

26°

36°

36°

54°

54°

22°

22°

30°

30°

40°

40°

22°

22°

30°

30°

40°

40°

22°

22°

30°

30°

40°

40°

CRI

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Color

1800K-4000K(e.g.1800K)

1800K-4000K(e.g.4000K)

1800K-4000K(e.g.1800K)

1800K-4000K(e.g.4000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

1800K-4000K(e.g.1800K)

1800K-4000K(e.g.4000K)

1800K-4000K(e.g.1800K)

1800K-4000K(e.g.4000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

1800K-4000K(e.g.1800K)

1800K-4000K(e.g.4000K)

1800K-4000K(e.g.1800K)

1800K-4000K(e.g.4000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

Specification
IES
DWG
manual
Favorite
