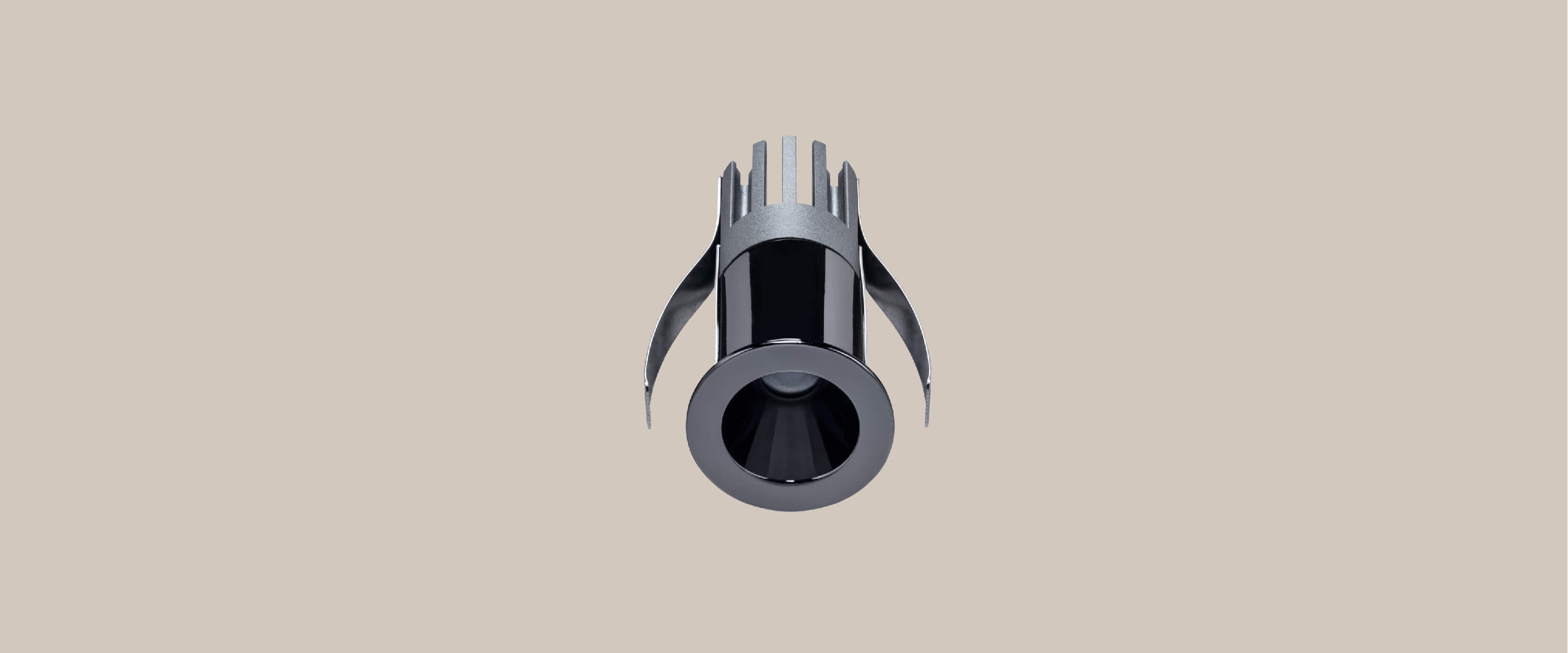

LINNOU 25

3W Fixed Direct Light

LINNOU 25

Small & Delicate Great Practicality

LINNOU 25

Small & Delicate Great Practicality

Creative design with small, thin and deep style. LINNOU lamp's overall minimum size is only Ø 60 * H72mm. LINNOU is named for its compact shape, which saves the hole opening size when installing, effectively solves the problem that the big hole opening on the ceiling may destroy skyline integrity of the space. In addition, the delicate lamps can be lively coordinated with the reflector which has a variety of color. Designers can choose different reflector according to the comprehensive color of ceiling and space, to present both practicability and beauty.
Through the clever and ultra-thin design of adjustable lamps, and the minimum height of lamps is controlled in the range of 75 mm. In satisfying the inside height 80 mm under ceiling, it maximally saves the indoor space. And in view of the small size light's new spring design, under the condition of meet the polarization of 30 degrees, it can effectively solve the problem of installation requirements on thickness 8 ~ 20 mm of ceiling. Design innovation and practicality is presented incisively and vividly in the research and development and application of the LINNOU series downlight.

Lighting Effects

Products Specification:
Type:3W Fixed Direct Light
Cut-Out:ø 25 mm
Beam Angle:21D 31D
Power:3W
CCT:2700K 3000K 4000K
Weight:0.062kg
Heat-Sink:Aluminum
Surface-Treatment:painting+plating

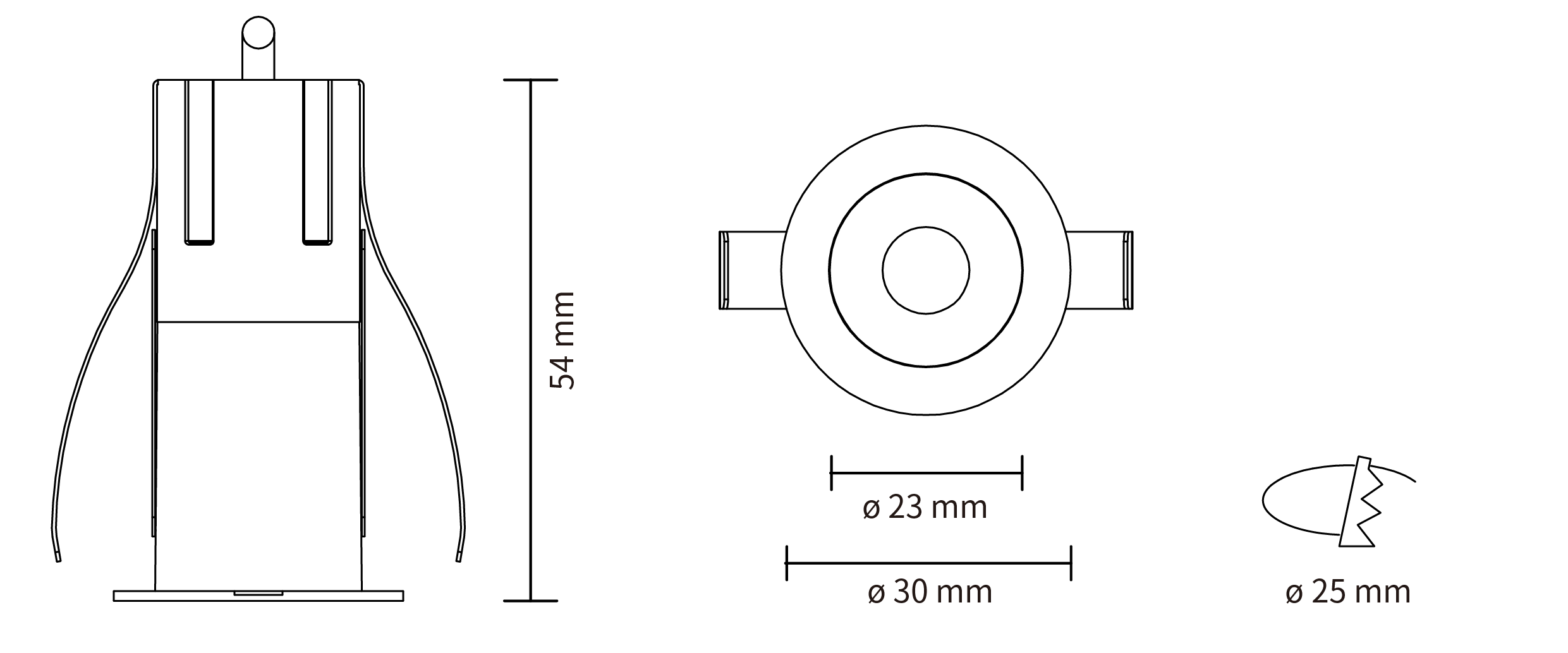

Line Drawing:
General Features:

Accessories :
Reflector Color:
Frame Color:

Select your Model No:

*Please log in before selecting your Model No

Power(W)
  • Power(W)
  • 3W
Beam Angle
  • Beam Angle
  • 21°
  • 31°
CRI
  • CRI
  • Ra>90
Color
  • Color
  • 2700K
  • 3000K
  • 4000K
Dimming type
  • Dimming type
  • 1-Non Dim
Finish
  • Finish
  • White
  • Black
  • Black chromium plating
Reflector
  • Reflector
  • White
  • Black
IP Rating
  • IP Rating
  • 44-IP44
Accessory
  • Accessory
  • N/A
  • Model No

  • Luminaire lumen(LM)

  • Power (W)

  • Beam Angle

  • CRI

  • Color

  • Specification

  • IES

  • DWG

  • manual

  • Favorite

Model No

DR00720-03219027

DR00720-03219030

DR00720-03219040

DR00720-03319027

DR00720-03319030

DR00720-03319040

Luminous Flux (LM)

104LM

108LM

121LM

156LM

157LM

163LM

Power (W)

3W

3W

3W

3W

3W

3W

Beam Angle

21°

21°

21°

31°

31°

31°

CRI

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Color

2700K

3000K

4000K

2700K

3000K

4000K

Specification
IES
DWG
manual
Favorite

Application
