IF

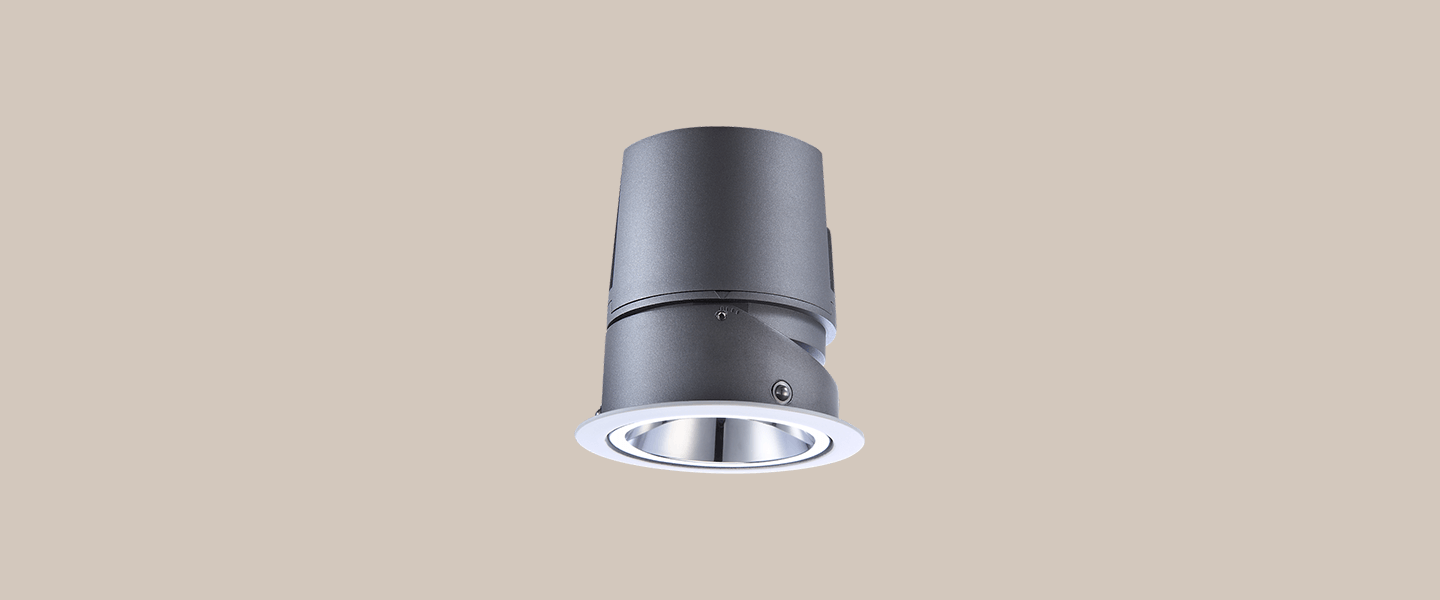

Round Fixed Recessed Downlight

LED COB Round Fixed Recessed Downlight

IF series is the classic product series of VF, the lamp is small and exquisite, the lamp height is only 90mm, and it can be widely adapted to the installation space with limited height of the lamp. Even the lamp height is only 90mm, but the Anti-glare is well controlled, 8D, 15D, 25D, 32D, 36D, 50D light distribution with excellent light quality.

Lamps style have round open type, round pin hole, round oval hole, equipped with mirror reflector or champagne gold reflector, which can achieve different interior design and lighting design styles.

The installation of embedded fixtures makes it easy to install and remove the fixtures.

Under the condition that the lamp cover is the same, by replacing different optical engines, the MR16 light source (see Models 6211201 and 6211101) and COB LED light source (see Models 08211201 and 0811101) can be matched, which can meet the various needs and considerations of the owner or designer.

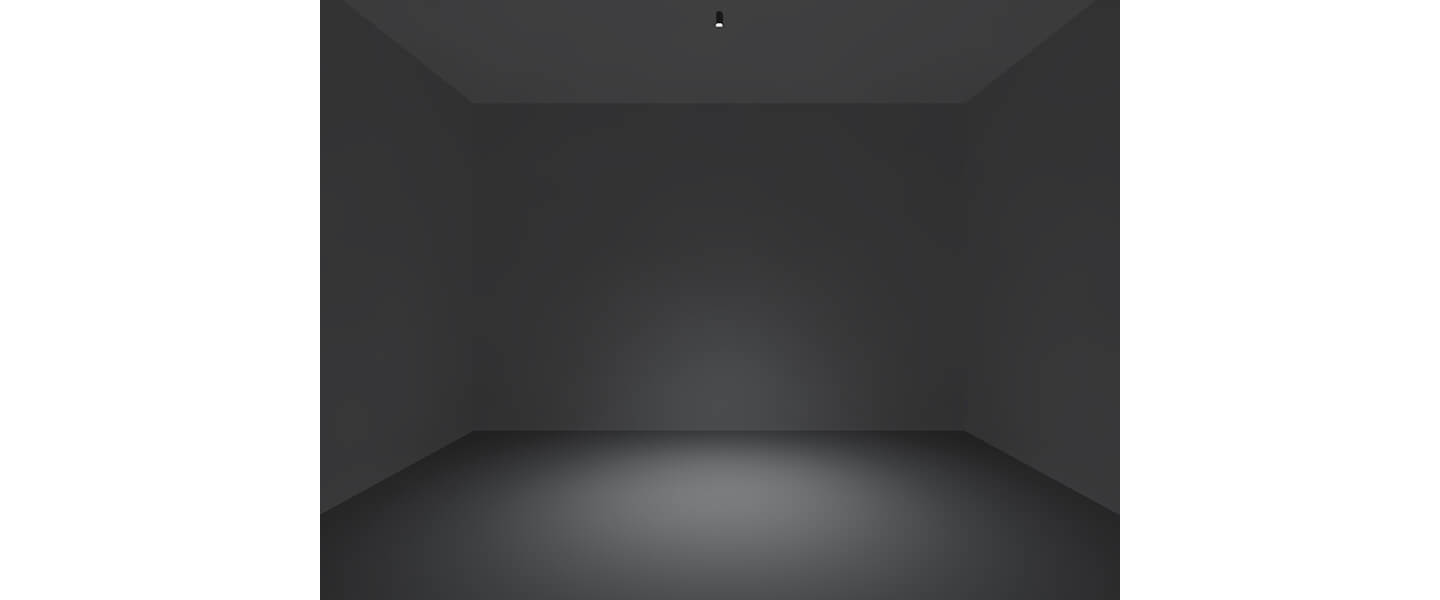

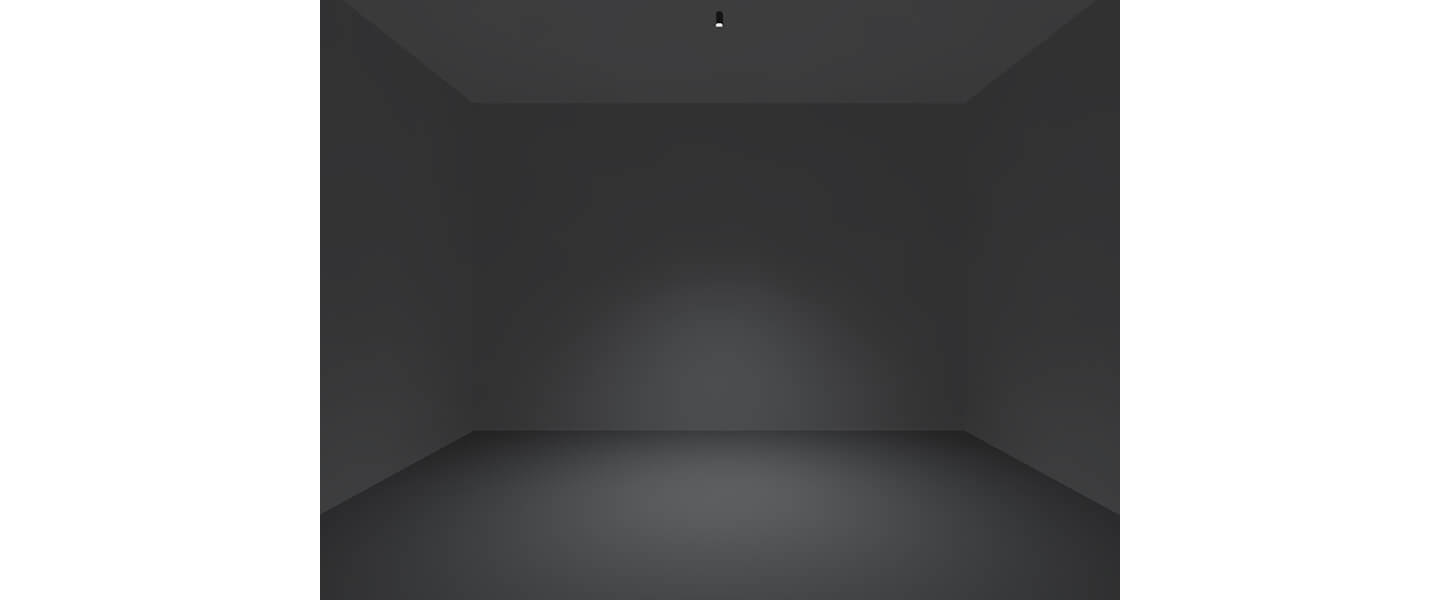

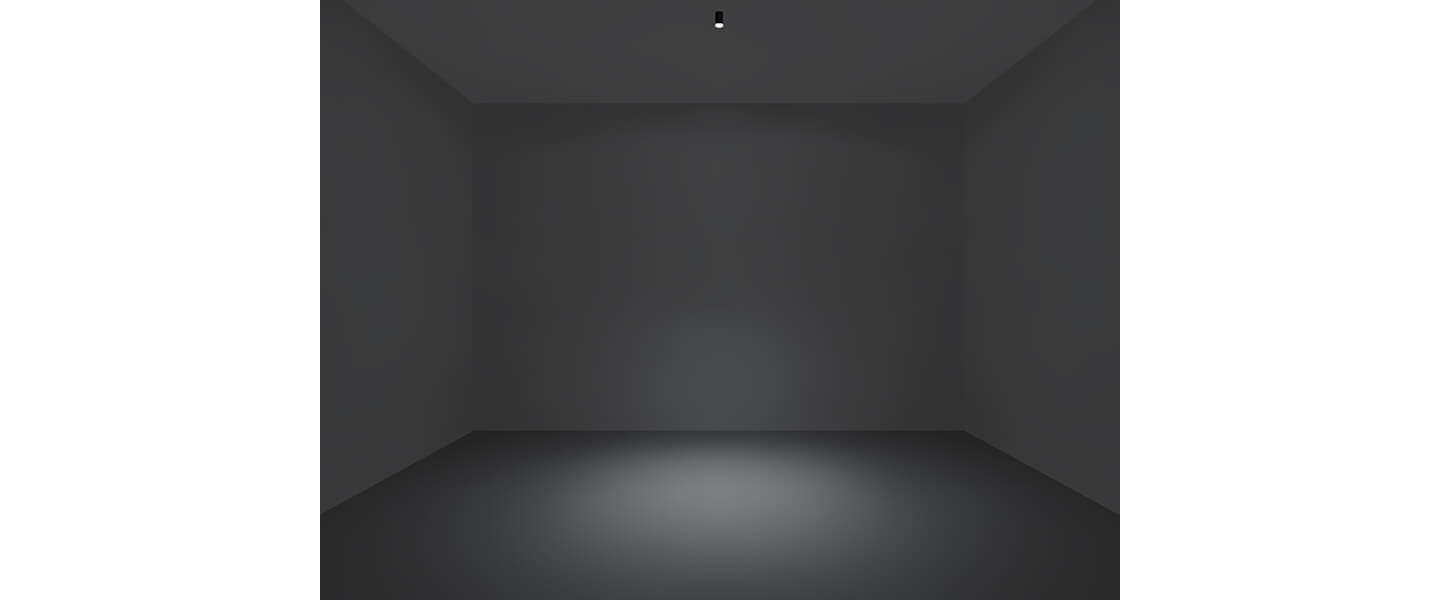

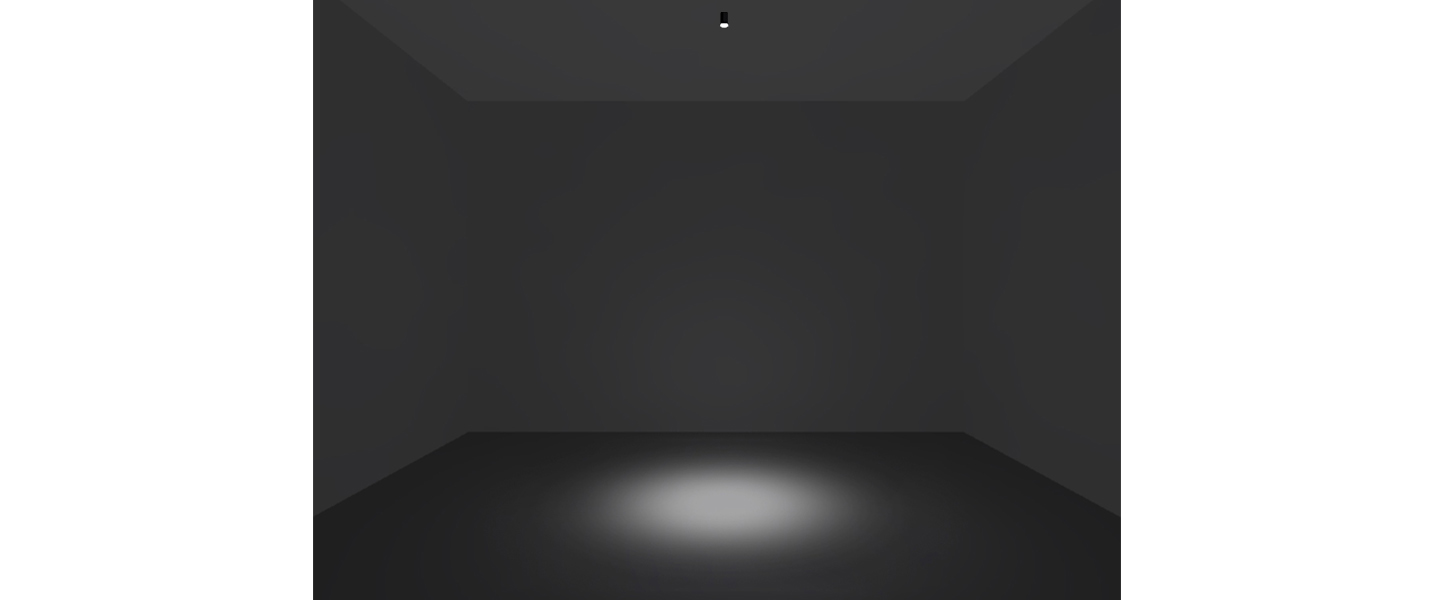

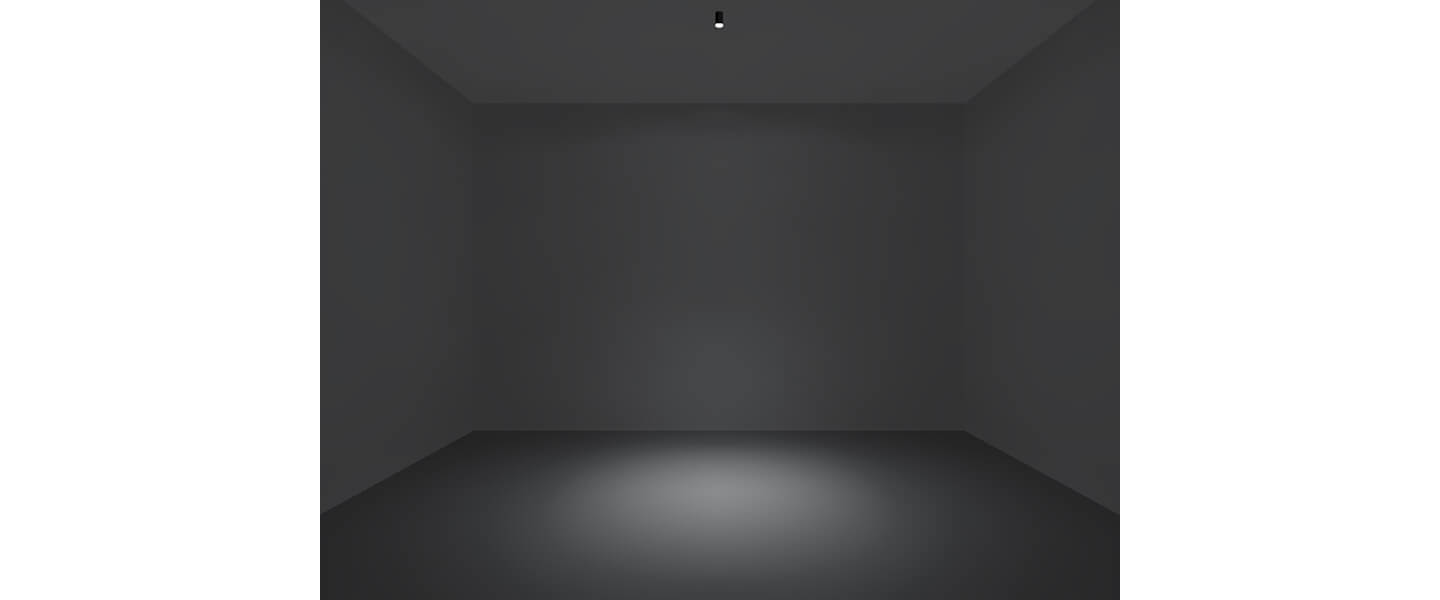

Lighting Effects

Products Specification:: Type:Round Fixed Recessed Downlight; Cut-Out:ø 80mm; Beam Angle:15D 25D 32D 36D 50D; Power:5W 8W 12W 15W; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:painting+plating; Weight:0.43kg; Remarks:IP44 for visible body of fitting after installation, not avaible for using with honeycomb louver.

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
5W
8W
12W
15W

Beam Angle

Beam Angle
15°
25°
32°
36°
50°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type

Finish

Finish
02-Black
01-White

Reflector

Reflector
3-Mirror

IP Rating

IP Rating
44-IP44

Accessory

Accessory
1-Honeycomb louver
4-Linear lens

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: DR00201-05159027; DR00201-05159030; DR00201-05159040; DR00201-05259027; DR00201-05259030; DR00201-05259040; DR00201-05329027; DR00201-05329030; DR00201-05329040; DR00201-05369027; DR00201-05369030; DR00201-05369040; DR00201-05509027; DR00201-05509030; DR00201-05509040; DR00201-08159027; DR00201-08159030; DR00201-08159040; DR00201-08259027; DR00201-08259030; DR00201-08259040; DR00201-08329027; DR00201-08329030; DR00201-08329040; DR00201-08369027; DR00201-08369030; DR00201-08369040; DR00201-08509027; DR00201-08509030; DR00201-08509040; DR00201-12159027; DR00201-12159030; DR00201-12159040; DR00201-12259027; DR00201-12259030; DR00201-12259040; DR00201-12329027; DR00201-12329030; DR00201-12329040; DR00201-12369027; DR00201-12369030; DR00201-12369040; DR00201-12509027; DR00201-12509030; DR00201-12509040; DR00201-15159027; DR00201-15159030; DR00201-15159040; DR00201-15259027; DR00201-15259030; DR00201-15259040; DR00201-15329027; DR00201-15329030; DR00201-15329040; DR00201-15369027; DR00201-15369030; DR00201-15369040; DR00201-15509027; DR00201-15509030; DR00201-15509040

Luminous Flux (LM): 301LM; 317LM; 366LM; 345LM; 363LM; 382LM; 301LM; 316LM; 336LM; 365LM; 384LM; 402LM; 322LM; 339LM; 358LM; 437LM; 460LM; 535LM; 527LM; 555LM; 581LM; 459LM; 483LM; 509LM; 553LM; 583LM; 610LM; 491LM; 517LM; 542LM; 631LM; 664LM; 704LM; 728LM; 767LM; 783LM; 636LM; 670LM; 706LM; 771LM; 812LM; 823LM; 677LM; 713LM; 742LM; 725LM; 764LM; 774LM; 880LM; 926LM; 1045LM; 785LM; 826LM; 918LM; 938LM; 988LM; 1094LM; 840LM; 884LM; 965LM

Power (W): 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W

Beam Angle: 15°; 15°; 15°; 25°; 25°; 25°; 32°; 32°; 32°; 36°; 36°; 36°; 50°; 50°; 50°; 15°; 15°; 15°; 25°; 25°; 25°; 32°; 32°; 32°; 36°; 36°; 36°; 50°; 50°; 50°; 15°; 15°; 15°; 25°; 25°; 25°; 32°; 32°; 32°; 36°; 36°; 36°; 50°; 50°; 50°; 15°; 15°; 15°; 25°; 25°; 25°; 32°; 32°; 32°; 36°; 36°; 36°; 50°; 50°; 50°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K
