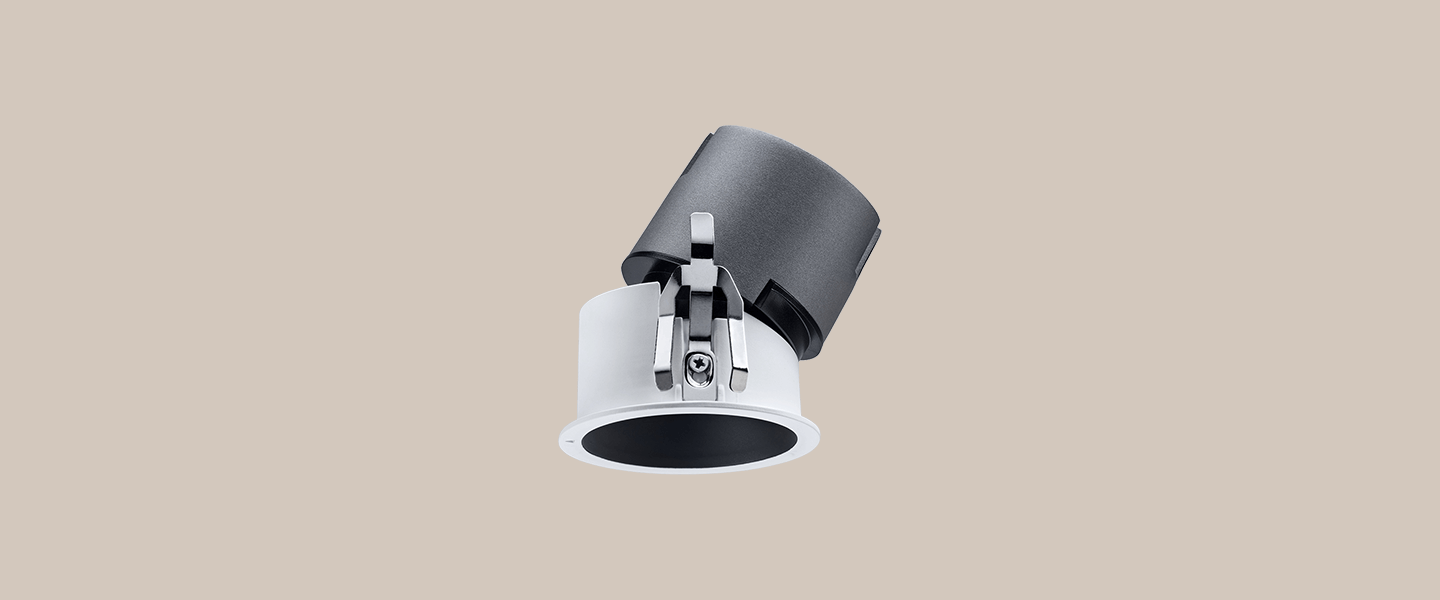

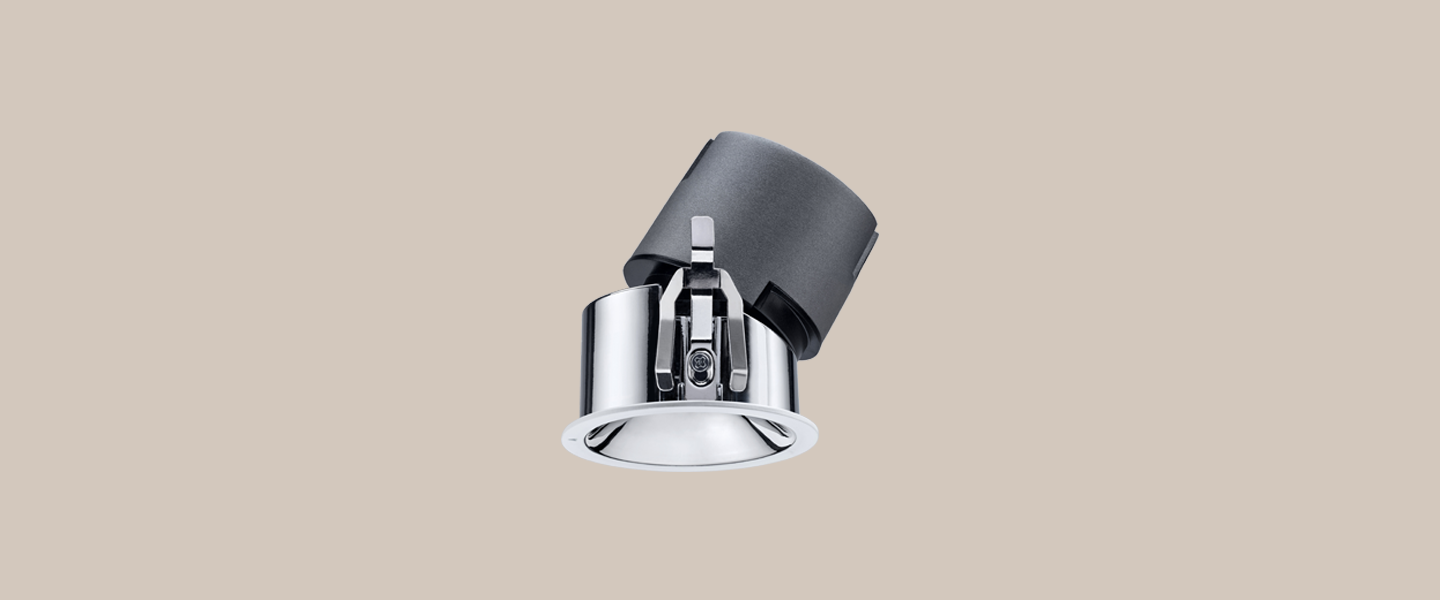

LINNOU 55

Round Adjustable Recessed Downlight

LINNOU 55

Small & delicate great practicality

LINNOU 55

Small & delicate great practicality

LINNOU 55

Small & delicate great practicality

Creative design with small, thin and deep style. LINNOU lamp's overall minimum size is only Ø 60 * H72mm. LINNOU is named for its compact shape, which saves the hole opening size when installing, effectively solves the problem that the big hole opening on the ceiling may destroy skyline integrity of the space. In addition, the delicate lamps can be lively coordinated with the reflector which has a variety of color. Designers can choose different reflector according to the comprehensive color of ceiling and space, to present both practicability and beauty.

Through the clever and ultra-thin design of adjustable lamps, and the minimum height of lamps is controlled in the range of 75 mm. In satisfying the inside height 80 mm under ceiling, it maximally saves the indoor space. And in view of the small size light's new spring design, under the condition of meet the polarization of 30 degrees, it can effectively solve the problem of installation requirements on thickness 8 ~ 20 mm of ceiling. Design innovation and practicality is presented incisively and vividly in the research and development and application of the LINNOU series downlight.

Lighting Effects

Products Specification:
Type:Round Adjustable Recessed Downlight
Cut-Out:ø 55 mm
Beam Angle:10D 15D 26D 36D 54D
Power:5W 7W 10W
CCT:2700K 3000K 3500K 4000K
Weight:0.22kg
Heat-Sink:Aluminum
Surface-Treatment:painting+plating
Remarks:accessories not available for 10D models

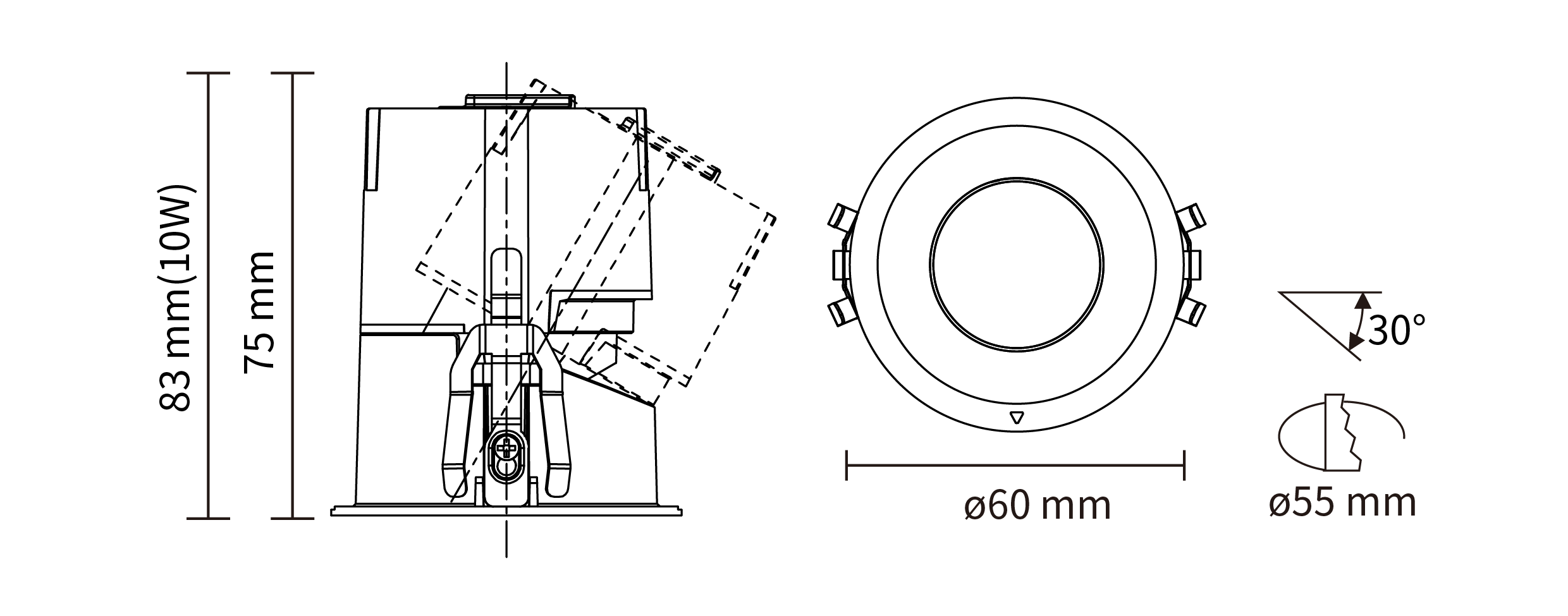

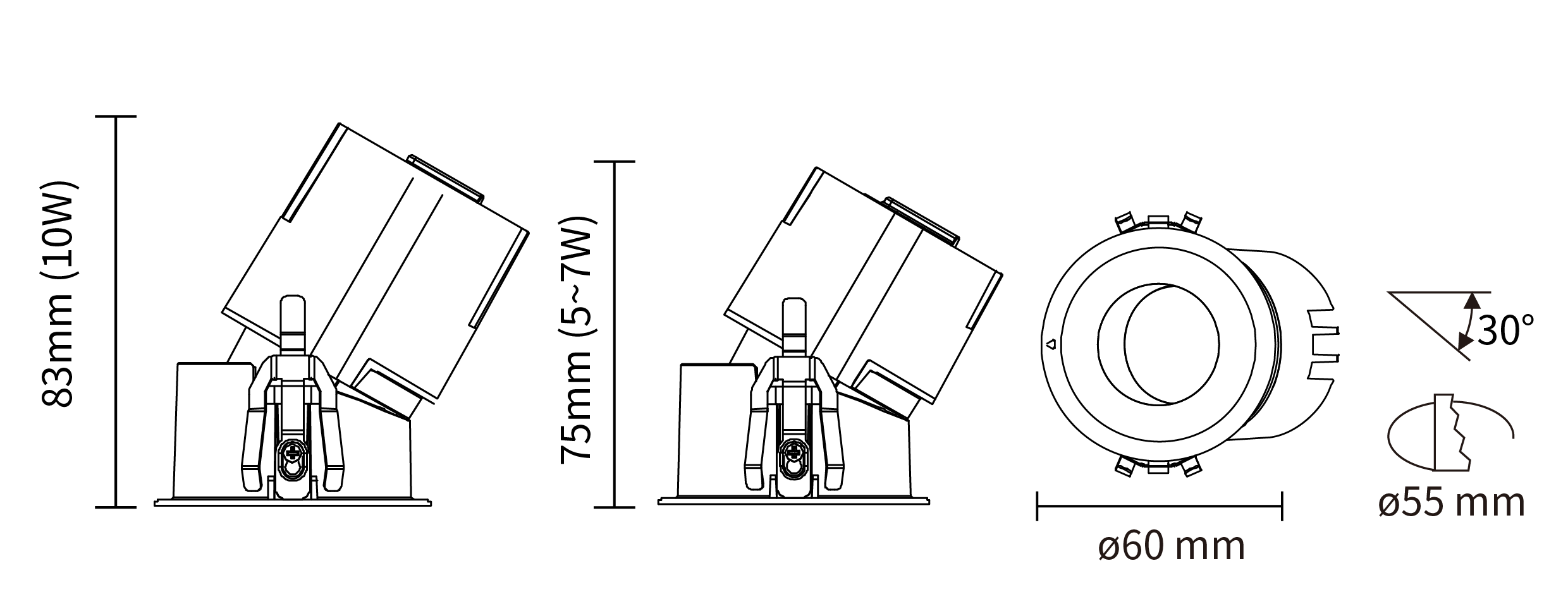

Line Drawing:
General Features:


Accessories :
Reflector Color:
Frame Color:

Select your Model No:

*Please log in before selecting your Model No

Power(W)
  • Power(W)
  • 5W
  • 7W
  • 10W
Beam Angle
  • Beam Angle
  • 10°
  • 15°
  • 26°
  • 36°
  • 54°
CRI
  • CRI
  • Ra>90
Color
  • Color
  • 2700K
  • 3000K
  • 3500K
  • 4000K
Dimming type
  • Dimming type
  • 1-Non Dim
  • 2-Phase dimming
  • 3-0-10V dimming
  • 4-DALI dimming
Finish
  • Finish
  • White
  • Black
  • Mirror
Reflector
  • Reflector
  • White
  • Black
  • Mirror
IP Rating
  • IP Rating
  • 20-IP20
  • 44-IP44
Accessory
  • Accessory
  • Honeycomb louver
  • Linear lens
  • Soft lens
  • Model No

  • Luminaire lumen(LM)

  • Power (W)

  • Beam Angle

  • CRI

  • Color

  • Specification

  • IES

  • DWG

  • manual

  • Favorite

Model No

DR00702-05102790

DR00702-05103090

DR00702-05103590

DR00702-05104090

DR00702-07102790

DR00702-07103090

DR00702-07103590

DR00702-07104090

DR00702-10102790

DR00702-10103090

DR00702-10103590

DR00702-10104090

DR00702-05152790

DR00702-05153090

DR00702-05153590

DR00702-05154090

DR00702-07152790

DR00702-07153090

DR00702-07153590

DR00702-07154090

DR00702-10152790

DR00702-10153090

DR00702-10153590

DR00702-10154090

DR00702-05262790

DR00702-05263090

DR00702-05263590

DR00702-05264090

DR00702-07262790

DR00702-07263090

DR00702-07263590

DR00702-07264090

DR00702-10262790

DR00702-10263090

DR00702-10263590

DR00702-10264090

DR00702-05362790

DR00702-05363090

DR00702-05363590

DR00702-05364090

DR00702-07362790

DR00702-07363090

DR00702-07363590

DR00702-07364090

DR00702-10362790

DR00702-10363090

DR00702-10363590

DR00702-10364090

DR00702-05542790

DR00702-05543090

DR00702-05543590

DR00702-05544090

DR00702-07542790

DR00702-07543090

DR00702-07543590

DR00702-07544090

DR00702-10542790

DR00702-10543090

DR00702-10543590

DR00702-10544090

Luminous Flux (LM)

154LM

162LM

167LM

174LM

189LM

199LM

205LM

208LM

274LM

288LM

297LM

303LM

364LM

384LM

395LM

408LM

458LM

483LM

497LM

500LM

656LM

691LM

712LM

712LM

334LM

352LM

362LM

424LM

418LM

440LM

453LM

489LM

638LM

672LM

692LM

701LM

375LM

395LM

406LM

409LM

434LM

457LM

470LM

484LM

680LM

716LM

738LM

754LM

352LM

371LM

382LM

378LM

412LM

434LM

447LM

438LM

623LM

655LM

675LM

703LM

Power (W)

5W

5W

5W

5W

7W

7W

7W

7W

10W

10W

10W

10W

5W

5W

5W

5W

7W

7W

7W

7W

10W

10W

10W

10W

5W

5W

5W

5W

7W

7W

7W

7W

10W

10W

10W

10W

5W

5W

5W

5W

7W

7W

7W

7W

10W

10W

10W

10W

5W

5W

5W

5W

7W

7W

7W

7W

10W

10W

10W

10W

Beam Angle

10°

10°

10°

10°

10°

10°

10°

10°

10°

10°

10°

10°

15°

15°

15°

15°

15°

15°

15°

15°

15°

15°

15°

15°

26°

26°

26°

26°

26°

26°

26°

26°

26°

26°

26°

26°

36°

36°

36°

36°

36°

36°

36°

36°

36°

36°

36°

36°

54°

54°

54°

54°

54°

54°

54°

54°

54°

54°

54°

54°

CRI

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Color

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

2700K

3000K

3500K

4000K

Specification
IES
DWG
manual
Favorite

Application
