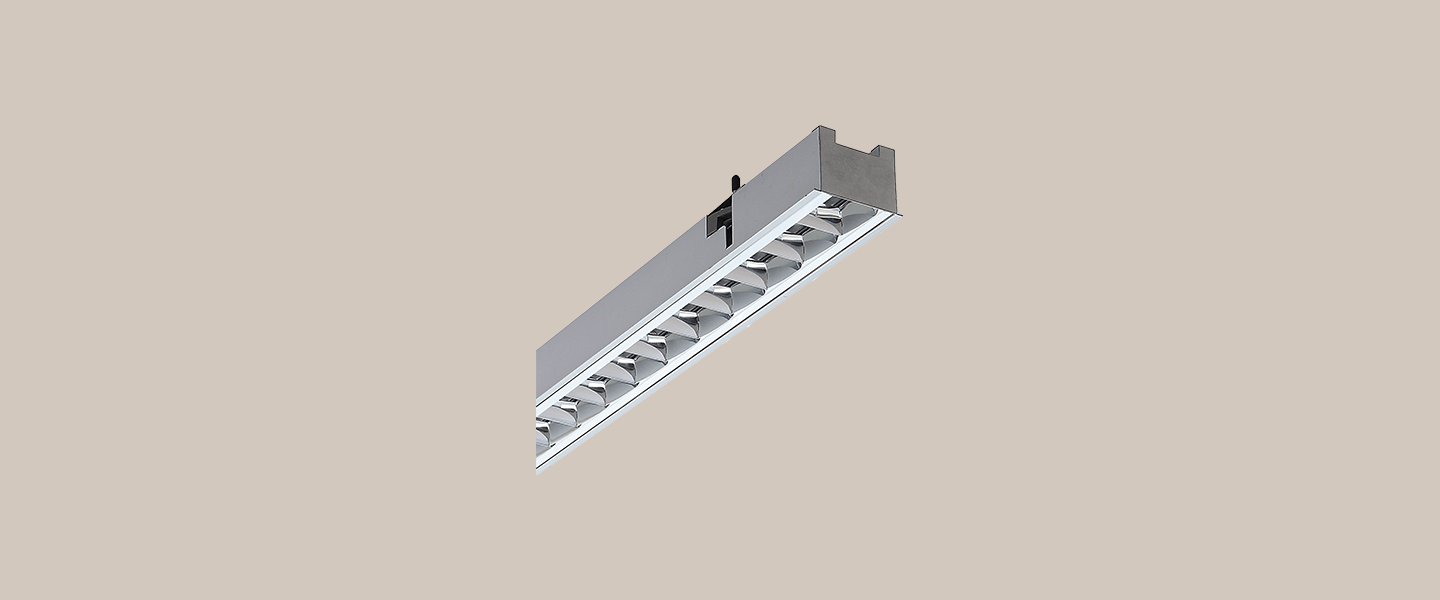

MIZAR 52

251mm High Power LED Recessed Linear Light

MIZAR 52

High Power LED Recessed Linear Light

As the first linear lighting product in the true sense, MIZAR can help designers to achieve a variety of lighting effects in a single building with a same lamp appearance, so as to ensure the overall harmony of construction and decoration, to embody their "mix" and "proper". The functional realizing is come from its rich grading angle: 23° , 33° , 37° , 43 ° , 48 ° , 24*40 ° , 27*43 ° , 15*46 ° , then to couple with the way of installing of lamps: recessed mounted, surface mounted. It ensures that this series can be used for wall reflected glare lighting, wall washer lighting, accent lighting and basic lighting in various space environments.

Upholding VISUAI FEAST lighting idea, VISUAI COMFORT is one of important part and also the most significant lighting experience brought by MIZAR series to customer. With its unique dim light reflector technology, the UGR of this series lamp can be effectively controlled within 16, and it even can bring better visual experience to customer if cooperated with LED light source of high indication (RA90).

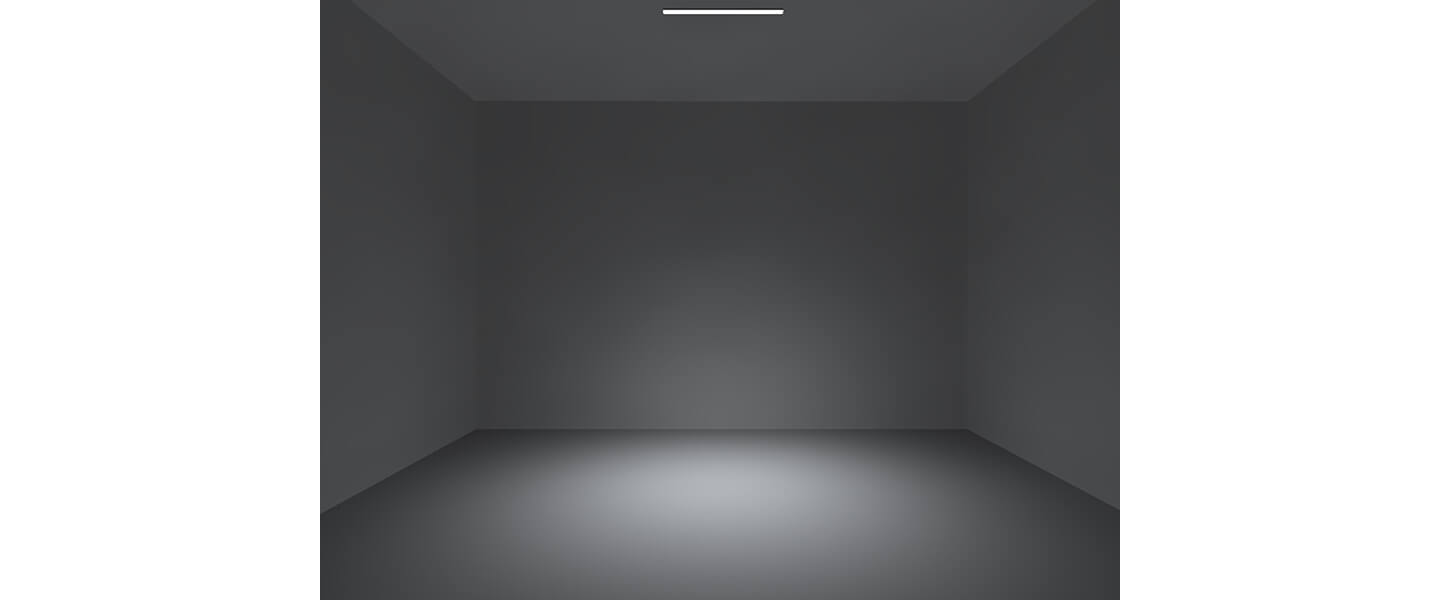

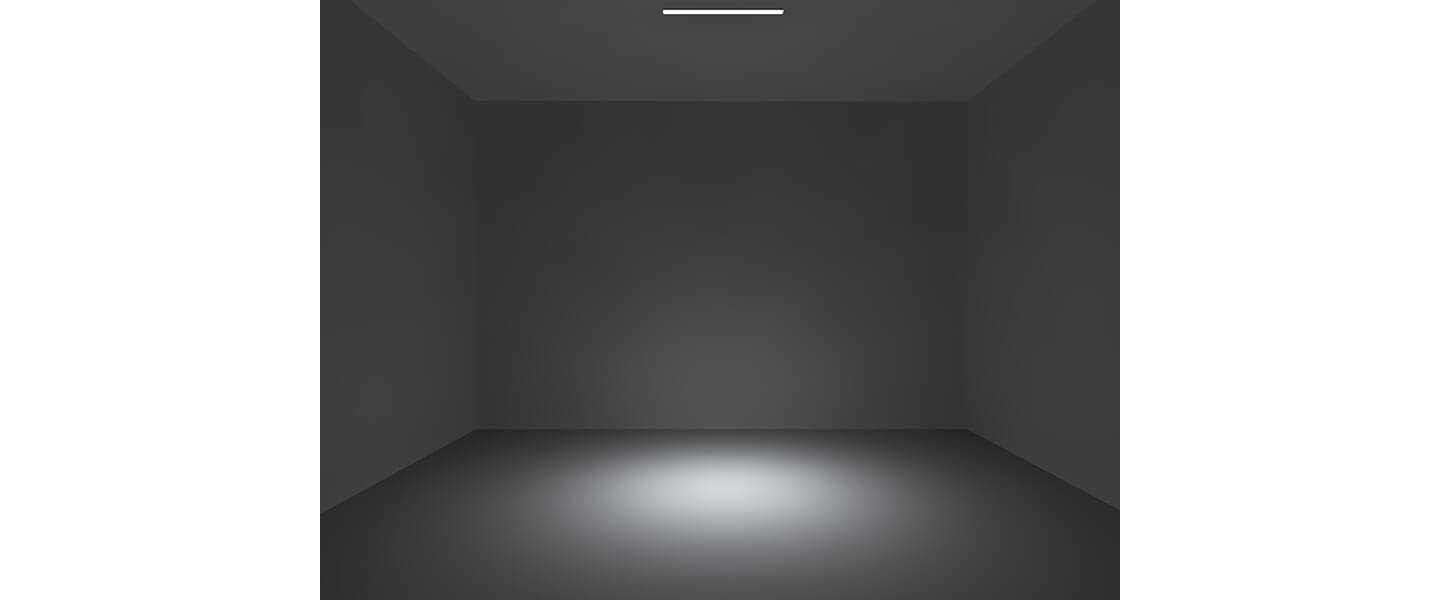

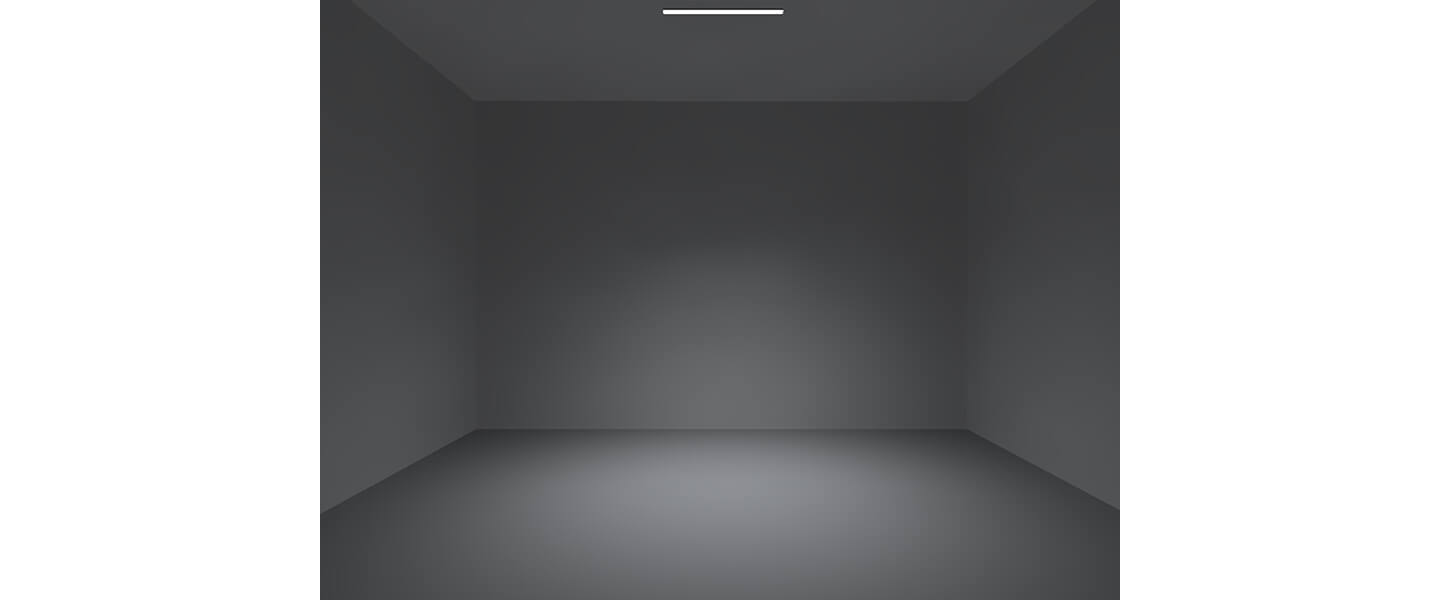

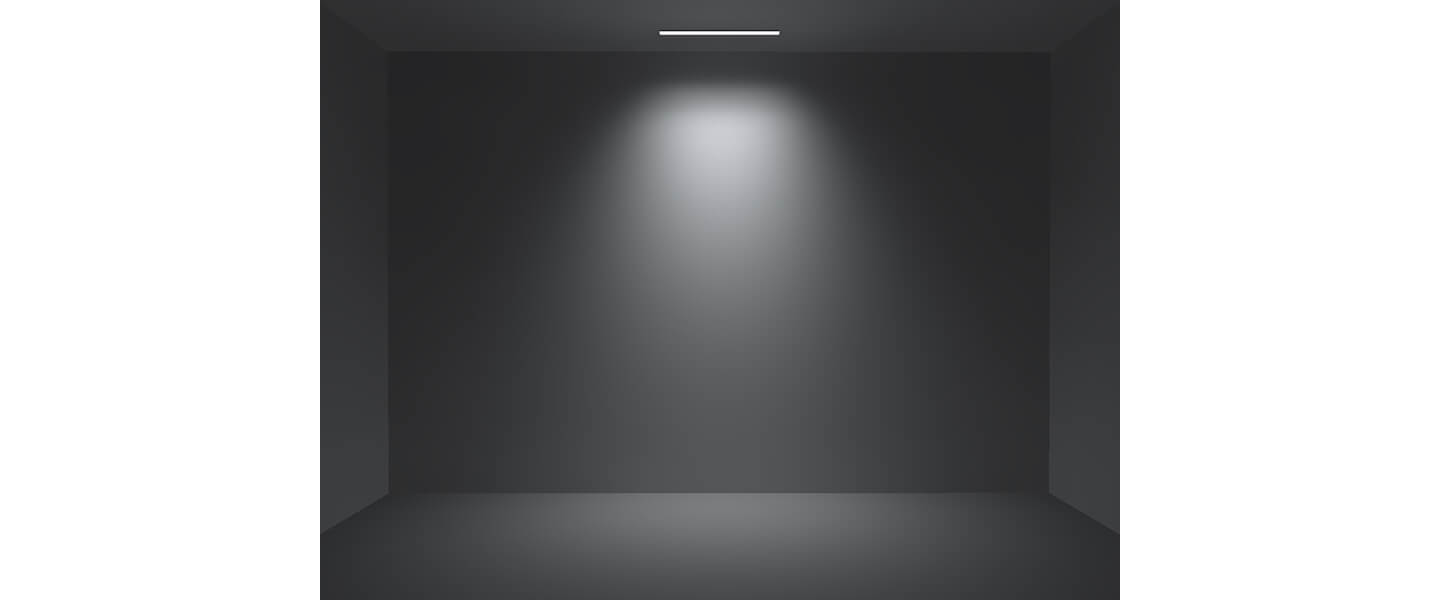

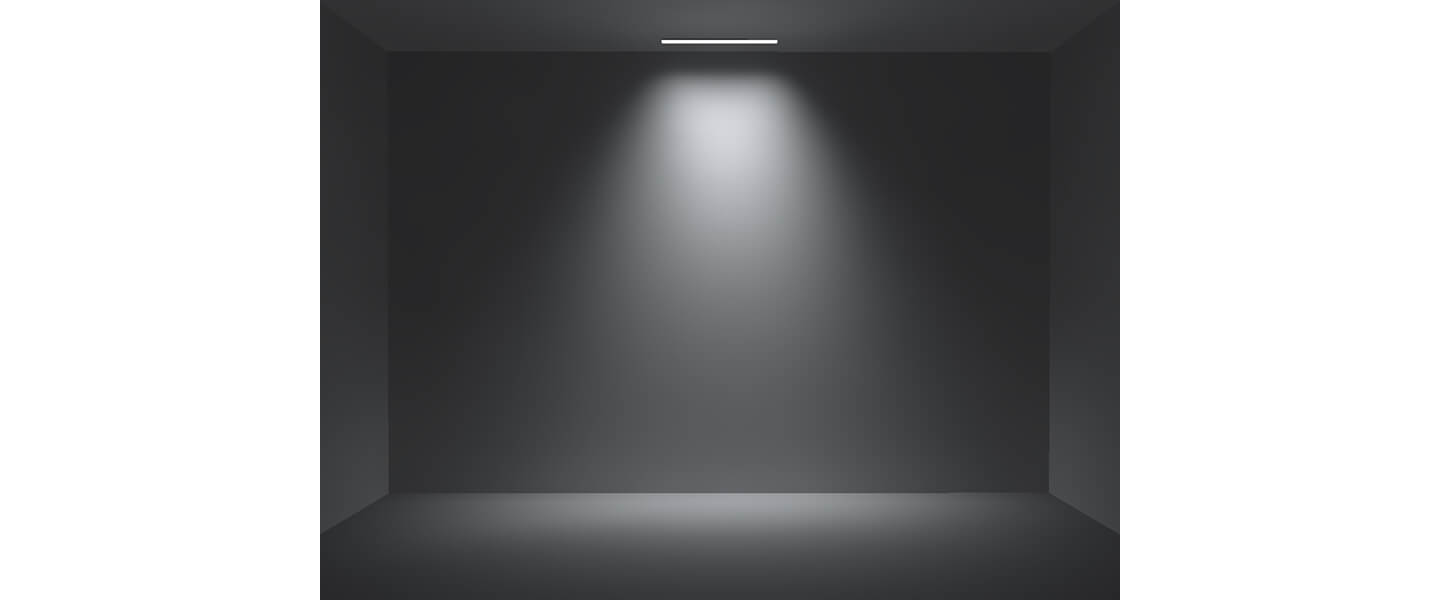

Lighting Effects

Products Specification:: Type:High Power LED Recessed Linear Light; Cut-Out:253 * 55 mm; Beam Angle:23D 37D 48D 15*46D 27*46D; Power:7W 9W 10W; CCT:2700K 3000K 4000K; Weight:0.33kg; Heat-Sink:Aluminum; Surface-Treatment:painting+plating

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
7W
9W
10W

Beam Angle

Beam Angle
15X46°
23°
27X43°
37°
48°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming

Finish

Finish
02-Black

Reflector

Reflector
3-Mirror

IP Rating

IP Rating
20-IP20

Accessory

Accessory
N/A

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: LR00202-251-07239027; LR00202-251-07239030; LR00202-251-07239040; LR00202-251-07379027; LR00202-251-07379030; LR00202-251-07379040; LR00202-251-07489027; LR00202-251-07489030; LR00202-251-07489040; LR00202-251-0715X469027; LR00202-251-0715X469030; LR00202-251-0715X469040; LR00202-251-0727X439027; LR00202-251-0727X439030; LR00202-251-0727X439040; LR00202-251-09239027; LR00202-251-09239030; LR00202-251-09239040; LR00202-251-09379027; LR00202-251-09379030; LR00202-251-09379040; LR00202-251-09489027; LR00202-251-09489030; LR00202-251-09489040; LR00202-251-0915X469027; LR00202-251-0915X469030; LR00202-251-0915X469040; LR00202-251-0927X439027; LR00202-251-0927X439030; LR00202-251-0927X439040; LR00202-251-10239027; LR00202-251-10239030; LR00202-251-10239040; LR00202-251-10379027; LR00202-251-10379030; LR00202-251-10379040; LR00202-251-10489027; LR00202-251-10489030; LR00202-251-10489040; LR00202-251-1015X469027; LR00202-251-1015X469030; LR00202-251-1015X469040; LR00202-251-1027X439027; LR00202-251-1027X439030; LR00202-251-1027X439040

Luminous Flux (LM): 382LM; 412LM; 467LM; 382LM; 424LM; 472LM; 364LM; 408LM; 450LM; 347LM; 388LM; 426LM; 330LM; 359LM; 391LM; 483LM; 532LM; 588LM; 494LM; 541LM; 603LM; 467LM; 514LM; 569LM; 453LM; 494LM; 546LM; 414LM; 449LM; 506LM; 547LM; 617LM; 662LM; 561LM; 628LM; 688LM; 523LM; 583LM; 635LM; 518LM; 570LM; 607LM; 469LM; 522LM; 564LM

Power (W): 7W; 7W; 7W; 7W; 7W; 7W; 7W; 7W; 7W; 7W; 7W; 7W; 7W; 7W; 7W; 9W; 9W; 9W; 9W; 9W; 9W; 9W; 9W; 9W; 9W; 9W; 9W; 9W; 9W; 9W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W

Beam Angle: 23°; 23°; 23°; 37°; 37°; 37°; 48°; 48°; 48°; 15X46°; 15X46°; 15X46°; 27X43°; 27X43°; 27X43°; 23°; 23°; 23°; 37°; 37°; 37°; 48°; 48°; 48°; 15X46°; 15X46°; 15X46°; 27X43°; 27X43°; 27X43°; 23°; 23°; 23°; 37°; 37°; 37°; 48°; 48°; 48°; 15X46°; 15X46°; 15X46°; 27X43°; 27X43°; 27X43°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K
