MIZAR 52

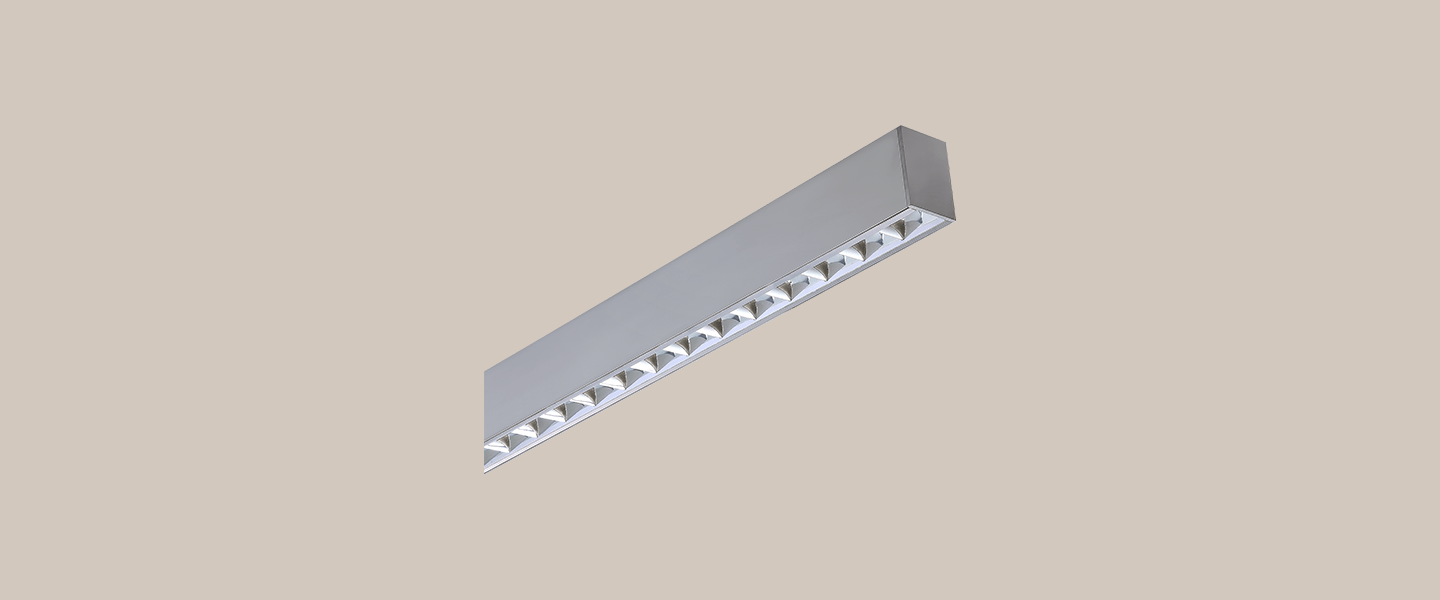

251mm Mid Power LED Surface-mounted Linear Light
MIZAR 52
Mid Power LED Surface-mounted Linear Light
As the first linear lighting product in the true sense, MIZAR can help designers to achieve a variety of lighting effects in a single building with a same lamp appearance, so as to ensure the overall harmony of construction and decoration, to embody their "mix" and "proper". The functional realizing is come from its rich grading angle: 23° , 33° , 37° , 43 ° , 48 ° , 24*40 ° , 27*43 ° , 15*46 ° , then to couple with the way of installing of lamps: recessed mounted, surface mounted. It ensures that this series can be used for wall reflected glare lighting, wall washer lighting, accent lighting and basic lighting in various space environments.
Upholding VISUAI FEAST lighting idea, VISUAI COMFORT is one of important part and also the most significant lighting experience brought by MIZAR series to customer. With its unique dim light reflector technology, the UGR of this series lamp can be effectively controlled within 16, and it even can bring better visual experience to customer if cooperated with LED light source of high indication (RA90).
Lighting Effects
- Products Specification:
- Type:Mid Power LED Surface-mounted Linear Light
- Beam Angle:23D 33D 43D 24*40D
- Power:3W 5W 6W
- CCT:2700K 3000K 4000K
- Weight:0.44kg
- Heat-Sink:Aluminum
- Surface-Treatment:painting+plating
- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
- Power(W)
- 3W
- 5W
- 6W
- Beam Angle
- 23°
- 24*40°
- 33°
- 43°
- CRI
- Ra>90
- Color
- 2700K
- 3000K
- 4000K
- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- Finish
- 02-Black
- Reflector
- 3-Mirror
- IP Rating
- 20-IP20
- Accessory
- N/A
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
LS00201-251-03239027
LS00201-251-03239030
LS00201-251-03239040
LS00201-251-03339027
LS00201-251-03339030
LS00201-251-03339040
LS00201-251-03439027
LS00201-251-03439030
LS00201-251-03439040
LS00201-251-0324X409027
LS00201-251-0324X409030
LS00201-251-0324X409040
LS00201-251-05239027
LS00201-251-05239030
LS00201-251-05239040
LS00201-251-05339027
LS00201-251-05339030
LS00201-251-05339040
LS00201-251-05439027
LS00201-251-05439030
LS00201-251-05439040
LS00201-251-0524X409027
LS00201-251-0524X409030
LS00201-251-0524X409040
LS00201-251-06239027
LS00201-251-06239030
LS00201-251-06239040
LS00201-251-06339027
LS00201-251-06339030
LS00201-251-06339040
LS00201-251-06439027
LS00201-251-06439030
LS00201-251-06439040
LS00201-251-0624X409027
LS00201-251-0624X409030
LS00201-251-0624X409040
- Luminous Flux (LM)
225LM
239LM
252LM
232LM
244LM
255LM
223LM
235LM
240LM
195LM
207LM
214LM
374LM
381LM
403LM
371LM
386LM
407LM
354LM
369LM
380LM
316LM
319LM
335LM
448LM
468LM
474LM
449LM
478LM
489LM
432LM
446LM
461LM
377LM
391LM
411LM
- Power (W)
3W
3W
3W
3W
3W
3W
3W
3W
3W
3W
3W
3W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
6W
6W
6W
6W
6W
6W
6W
6W
6W
6W
6W
6W
- Beam Angle
23°
23°
23°
33°
33°
33°
43°
43°
43°
24*40°
24*40°
24*40°
23°
23°
23°
33°
33°
33°
43°
43°
43°
24*40°
24*40°
24*40°
23°
23°
23°
33°
33°
33°
43°
43°
43°
24*40°
24*40°
24*40°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
- Specification
- IES
- DWG
- manual
- Favorite
