IF

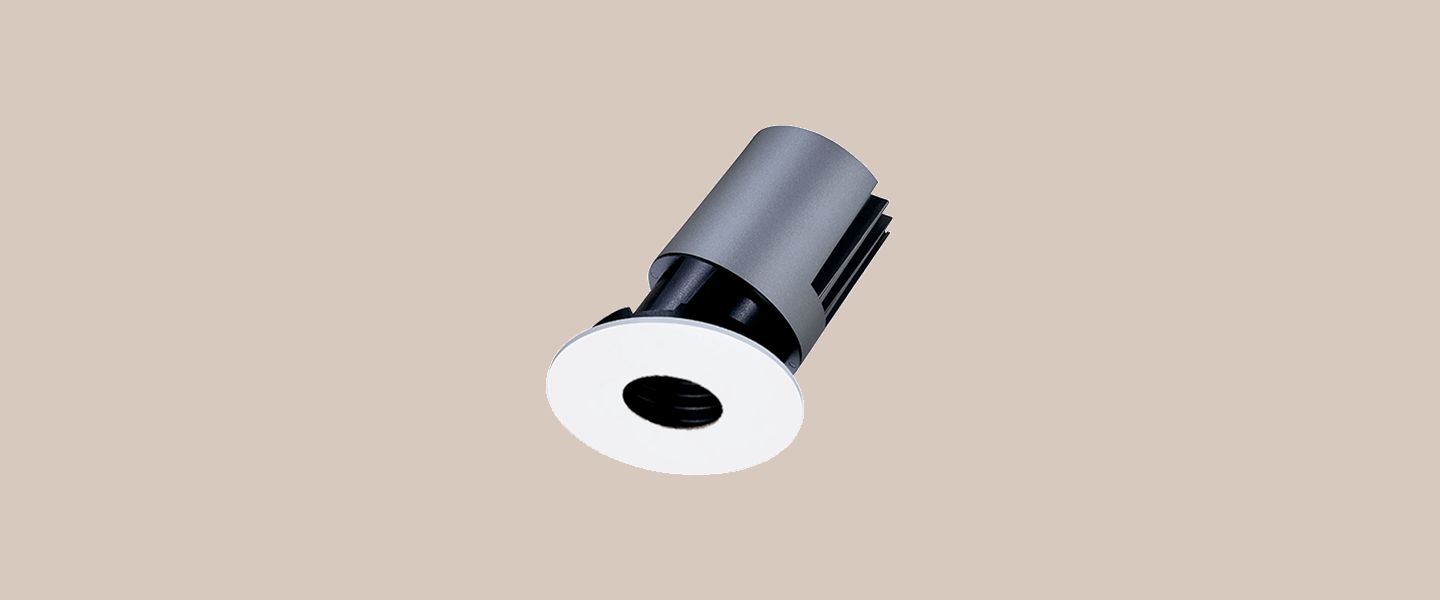

Round Pin Hole Recessed Downlight
IF
LED COB Round Pin Hole Recessed Downlight
IF series is the classic product series of VF, the lamp is small and exquisite, the lamp height is only 90mm, and it can be widely adapted to the installation space with limited height of the lamp. Even the lamp height is only 90mm, but the Anti-glare is well controlled, 8D, 15D, 25D, 32D, 36D, 50D light distribution with excellent light quality.
Lamps style have round open type, round pin hole, round oval hole, equipped with mirror reflector or champagne gold reflector, which can achieve different interior design and lighting design styles.

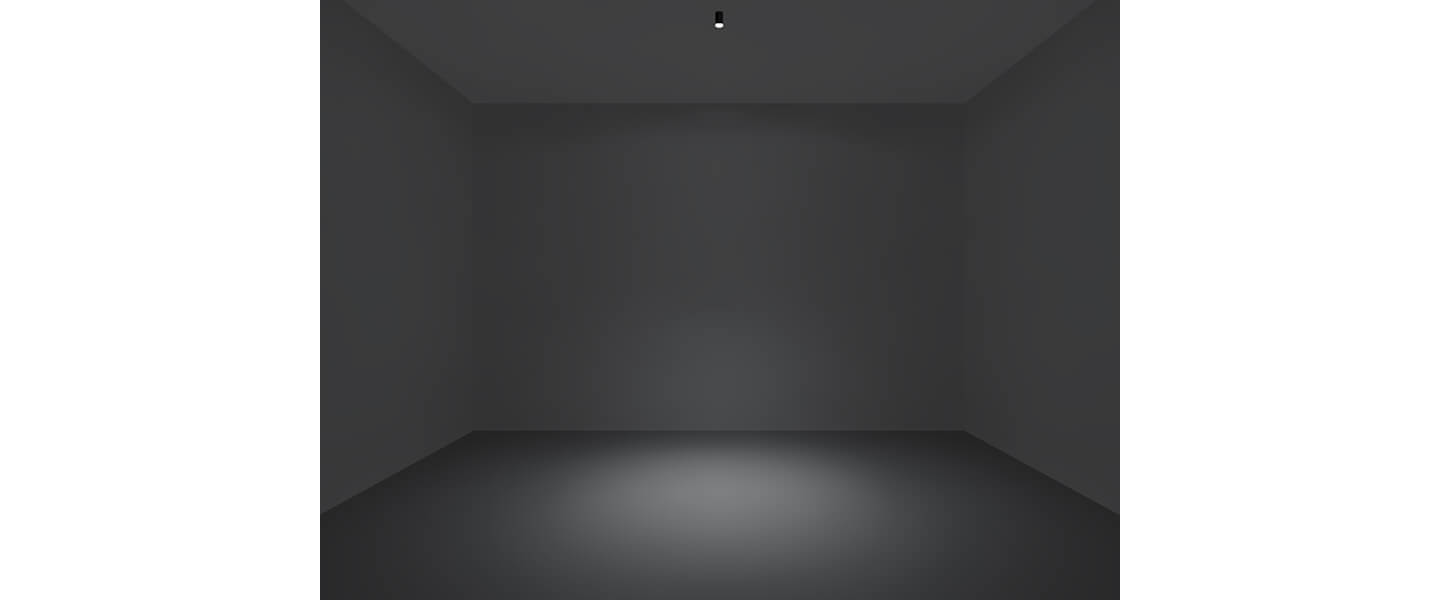

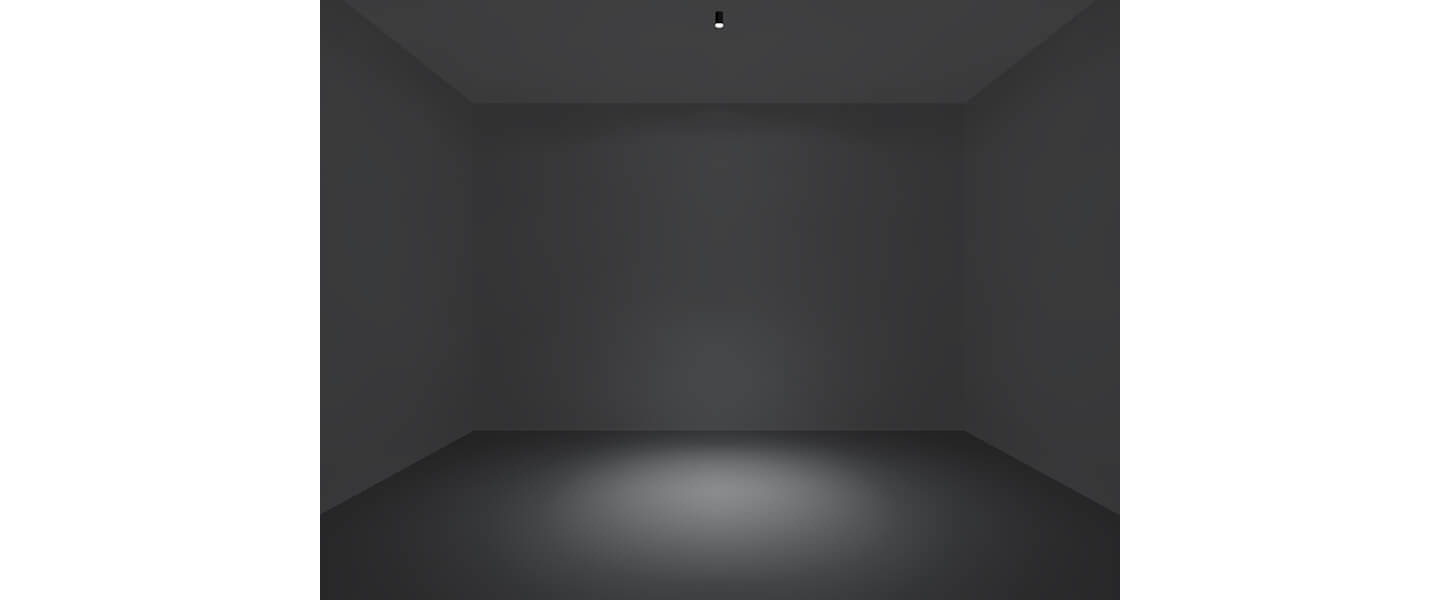

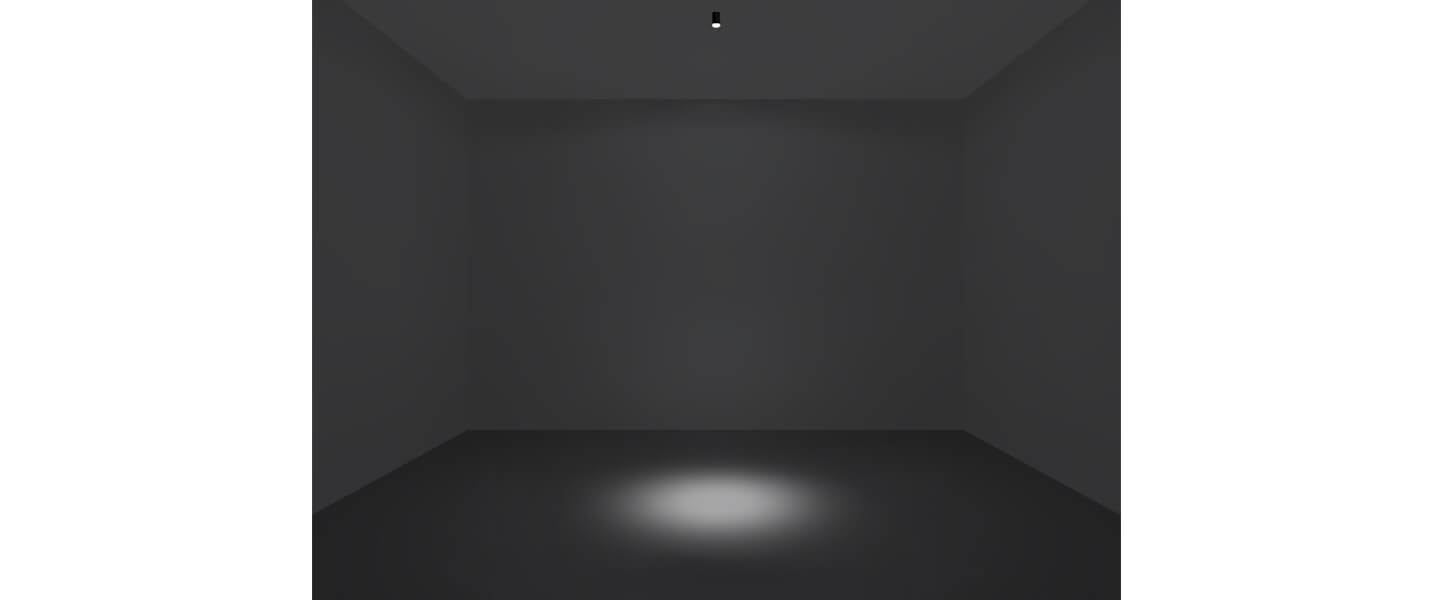

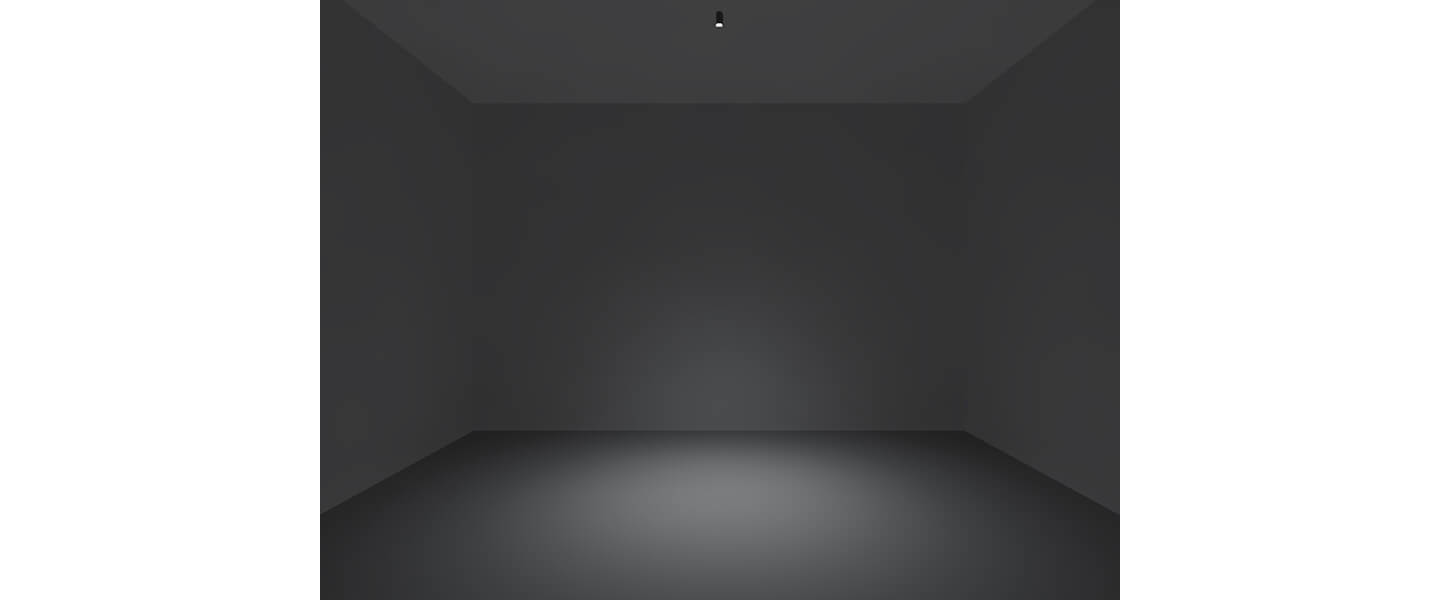

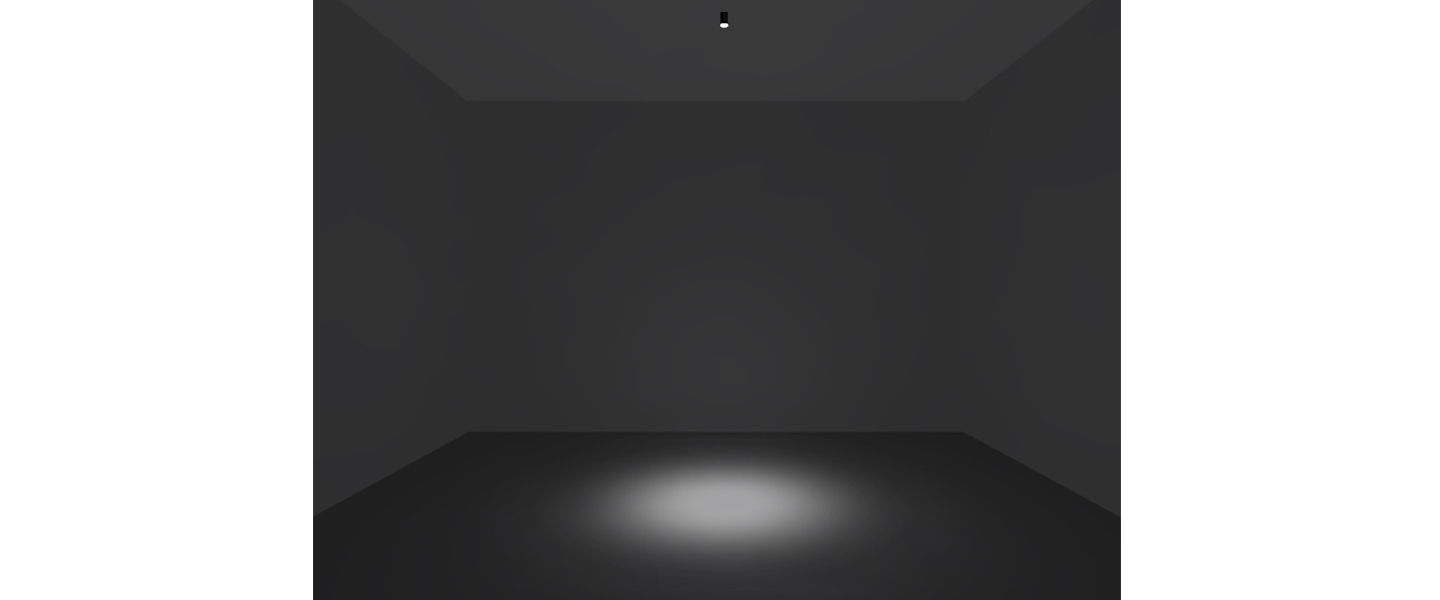

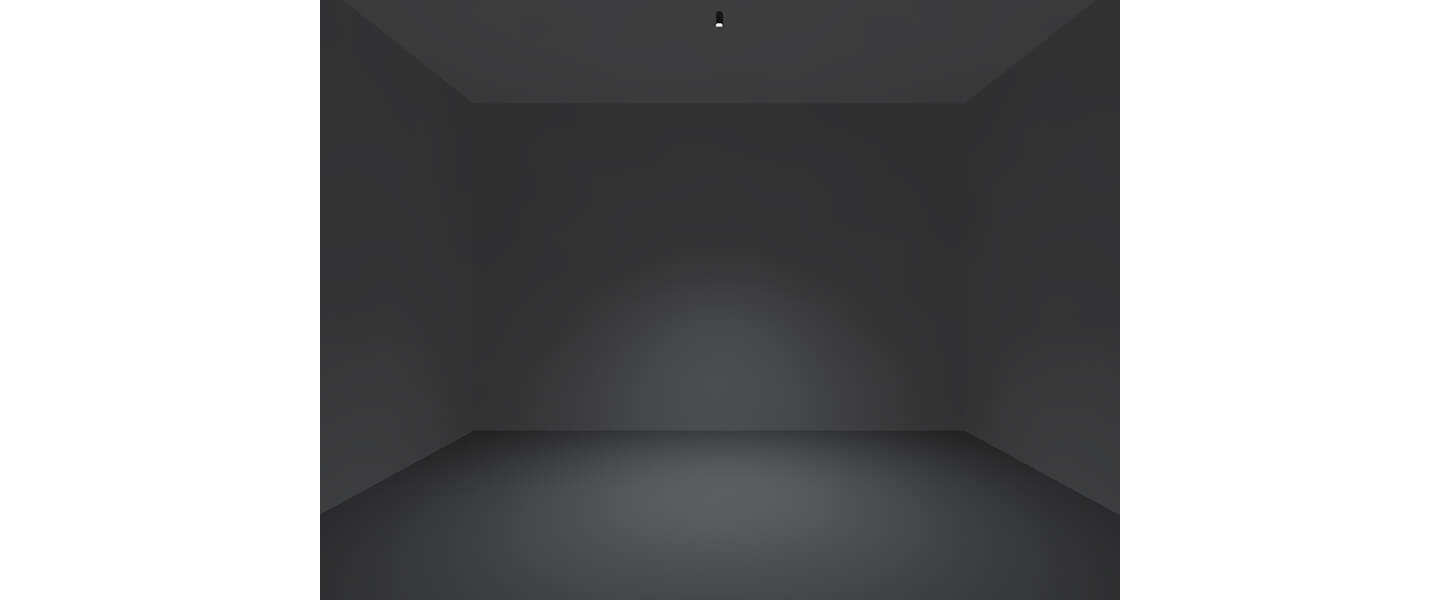

Lighting Effects
- Products Specification:
- Type:Round Pin Hole Recessed Downlight
- Cut-Out:ø 80 mm
- Beam Angle:8D 15D 25D 30D 36D 50D
- Power:5W 8W 10W 12W 15W
- CCT:2700K 3000K 4000K
- Weight:0.46kg
- Heat-Sink:Aluminum
- Surface-Treatment:painting+plating
- Remarks:IP44 for visible body of fitting after installation, not avaible for using with honeycomb louver.
- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
- Power(W)
- 5W
- 8W
- 10W
- 12W
- 15W
- Beam Angle
- 8°
- 15°
- 25°
- 32°
- 36°
- 50°
- CRI
- Ra>90
- Color
- 2700K
- 3000K
- 4000K
- Dimming type
- Finish
- 01-White
- 02-Black
- Reflector
- N/A
- IP Rating
- 44-IP44
- Accessory
- 1-Honeycomb louver
- 4-Linear lens
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
DR00211-05369027
DR00211-05369030
DR00211-05369040
DR00211-05509027
DR00211-05509030
DR00211-05509040
DR00211-08089027
DR00211-08089030
DR00211-08159027
DR00211-08159030
DR00211-08159040
DR00211-08259027
DR00211-08259030
DR00211-08259040
DR00211-08329027
DR00211-08329030
DR00211-08329040
DR00211-08369027
DR00211-08369030
DR00211-08369040
DR00211-08509027
DR00211-08509030
DR00211-08509040
DR00211-10089027
DR00211-10089030
DR00211-12159027
DR00211-12159030
DR00211-12159040
DR00211-12259027
DR00211-12259030
DR00211-12259040
DR00211-12329027
DR00211-12329030
DR00211-12329040
DR00211-12369027
DR00211-12369030
DR00211-12369040
DR00211-12509027
DR00211-12509030
DR00211-12509040
DR00211-15159027
DR00211-15159030
DR00211-15159040
DR00211-15259027
DR00211-15259030
DR00211-15259040
DR00211-15329027
DR00211-15329030
DR00211-15329040
DR00211-15369027
DR00211-15369030
DR00211-15369040
DR00211-15509027
DR00211-15509030
DR00211-15509040
- Luminous Flux (LM)
269LM
273LM
279LM
230LM
229LM
241LM
340LM
347LM
360LM
357LM
393LM
303LM
357LM
360LM
232LM
247LM
249LM
378LM
387LM
401LM
319LM
334LM
344LM
376LM
389LM
372LM
410LM
418LM
363LM
465LM
477LM
264LM
315LM
321LM
537LM
554LM
578LM
454LM
475LM
492LM
458LM
506LM
516LM
562LM
580LM
620LM
371LM
379LM
405LM
721LM
692LM
755LM
595LM
570LM
659LM
- Power (W)
5W
5W
5W
5W
5W
5W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
10W
10W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
15W
15W
15W
15W
15W
15W
15W
15W
15W
15W
15W
15W
15W
15W
15W
- Beam Angle
36°
36°
36°
50°
50°
50°
8°
8°
15°
15°
15°
25°
25°
25°
32°
32°
32°
36°
36°
36°
50°
50°
50°
8°
8°
15°
15°
15°
25°
25°
25°
32°
32°
32°
36°
36°
36°
50°
50°
50°
15°
15°
15°
25°
25°
25°
32°
32°
32°
36°
36°
36°
50°
50°
50°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
