MIZAR 30
Surface-mounted Linear Light
MIZAR 30
MIZAR 30
Lighting Effects
- Products Specification:
- Type:Surface-mounted Linear Light
- Power:36W
- Beam Angle:24x38D 17D 25D 32D 45D
- Weight:1.15kg
- CCT:2700K 3000K 4000K
- Heat-Sink:Aluminum
- Surface-Treatment:painting+plating

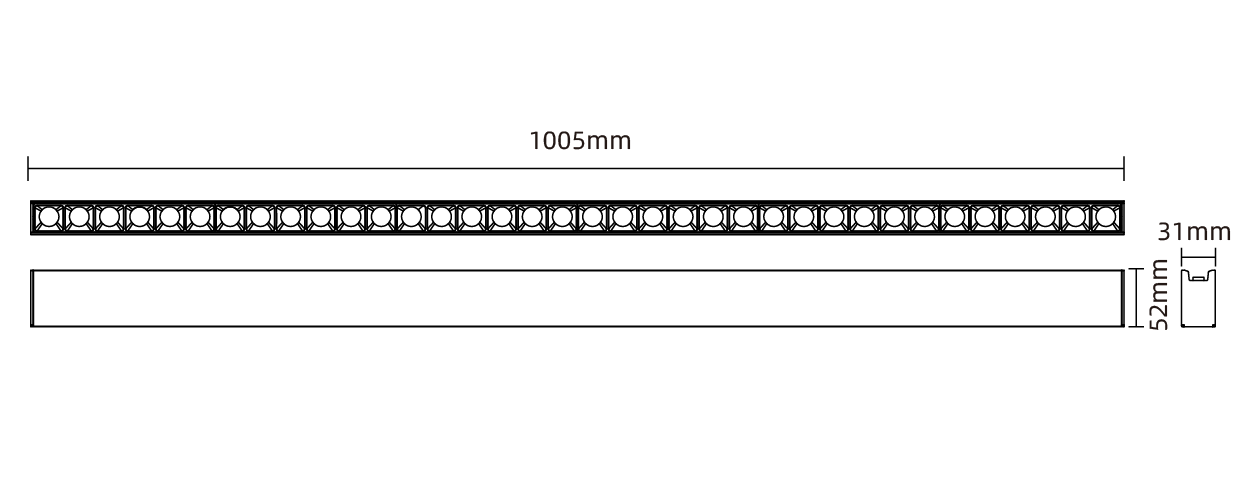

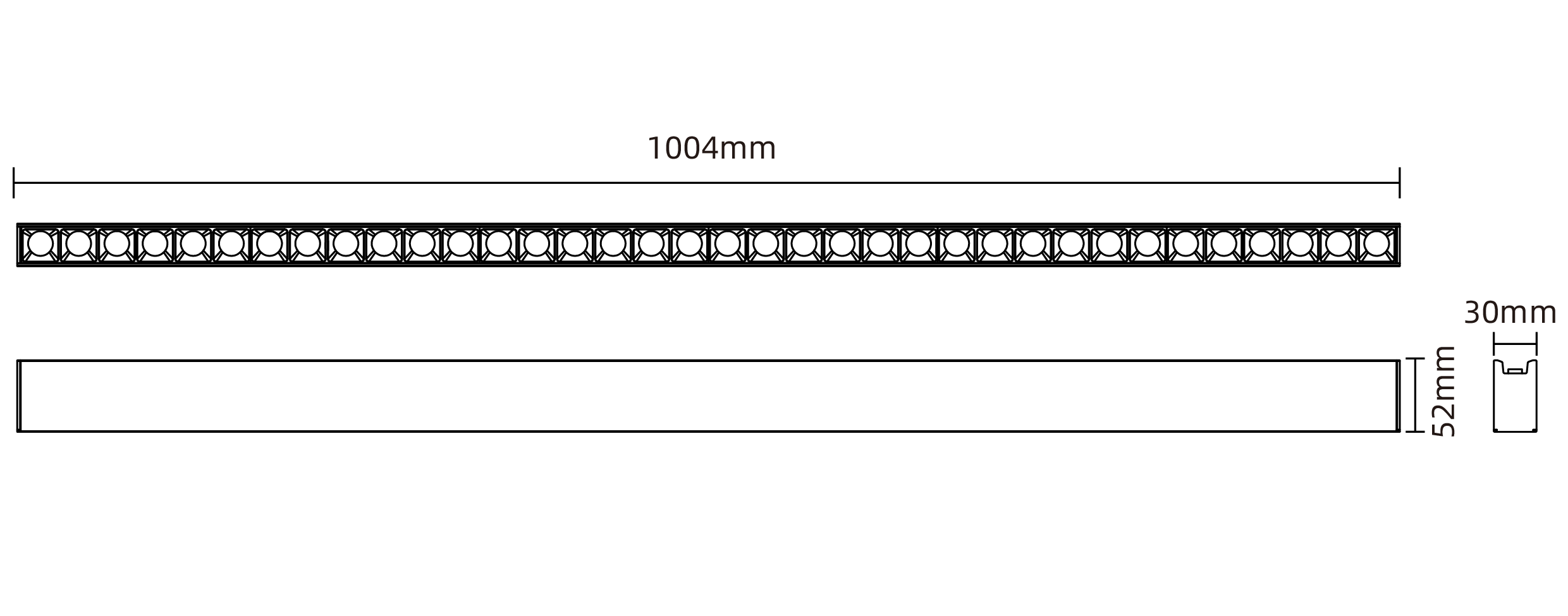

- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
- Power(W)
- 36W/1004mm
- Beam Angle
- 17°
- 24x38°
- 25°
- 32°
- 45°
- CRI
- Ra>90
- Color
- 2700K
- 3000K
- 4000K
- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- Finish
- White
- Black
- Grey
- Reflector
- Black
- IP Rating
- 20-IP20
- 54-IP54
- Accessory
- Honeycomb louver
- Linear lens
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
LS00205-36A39027
LS00205-36A39030
LS00205-36A39040
LS00205-36179027
LS00205-36179030
LS00205-36179040
LS00205-36259027
LS00205-36259030
LS00205-36259040
LS00205-36329027
LS00205-36329030
LS00205-36329040
LS00205-36459027
LS00205-36459030
LS00205-36459040
- Luminous Flux (LM)
2166LM
2280LM
2394LM
2451LM
2581LM
2710LM
2639LM
2778LM
2916LM
2606LM
2743LM
2880LM
2277LM
2397LM
2517LM
- Power (W)
36W/1004mm
36W/1004mm
36W/1004mm
36W/1004mm
36W/1004mm
36W/1004mm
36W/1004mm
36W/1004mm
36W/1004mm
36W/1004mm
36W/1004mm
36W/1004mm
36W/1004mm
36W/1004mm
36W/1004mm
- Beam Angle
24x38°
24x38°
24x38°
17°
17°
17°
25°
25°
25°
32°
32°
32°
45°
45°
45°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
- Specification
- IES
- DWG
- manual
- Favorite
