MIZAR 30

High Power LED Surface-mounted Linear Light

MIZAR 30

MIZAR 30

Lighting Effects

Products Specification:: Type:High Power LED Surface-mounted Linear Light; Power:12W 25W 40W 75W; Beam Angle:24x38D 17D 28D 35D 45D; Weight:0.25kg 0.48kg 0.75kg 1.35kg; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:painting+plating

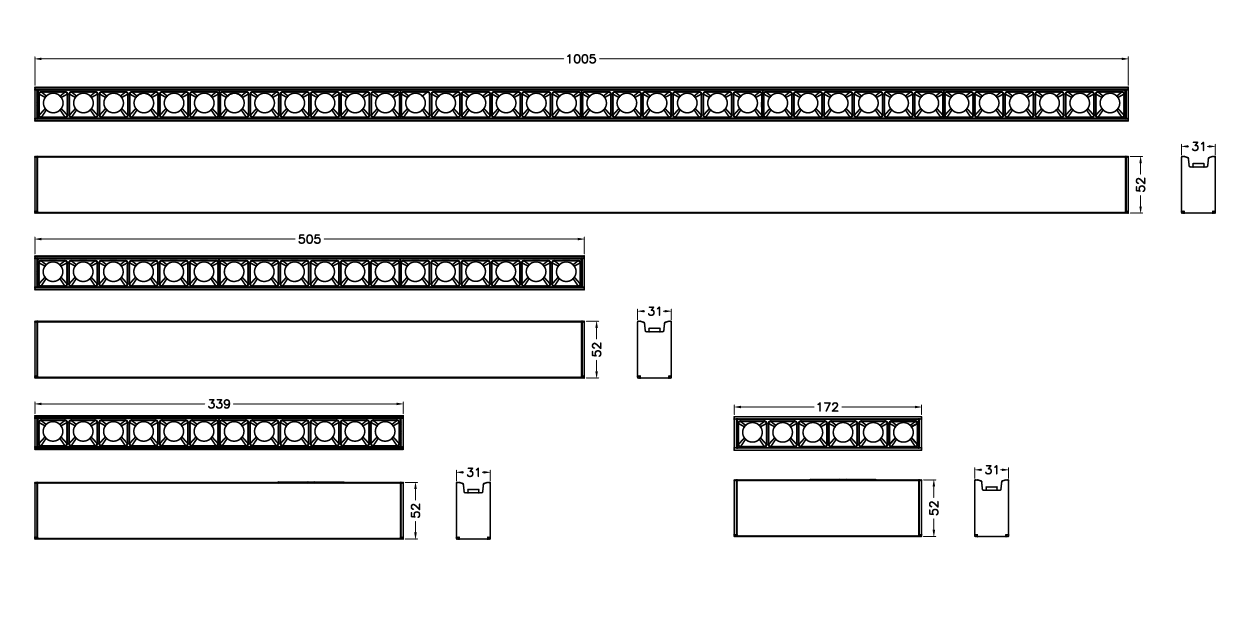

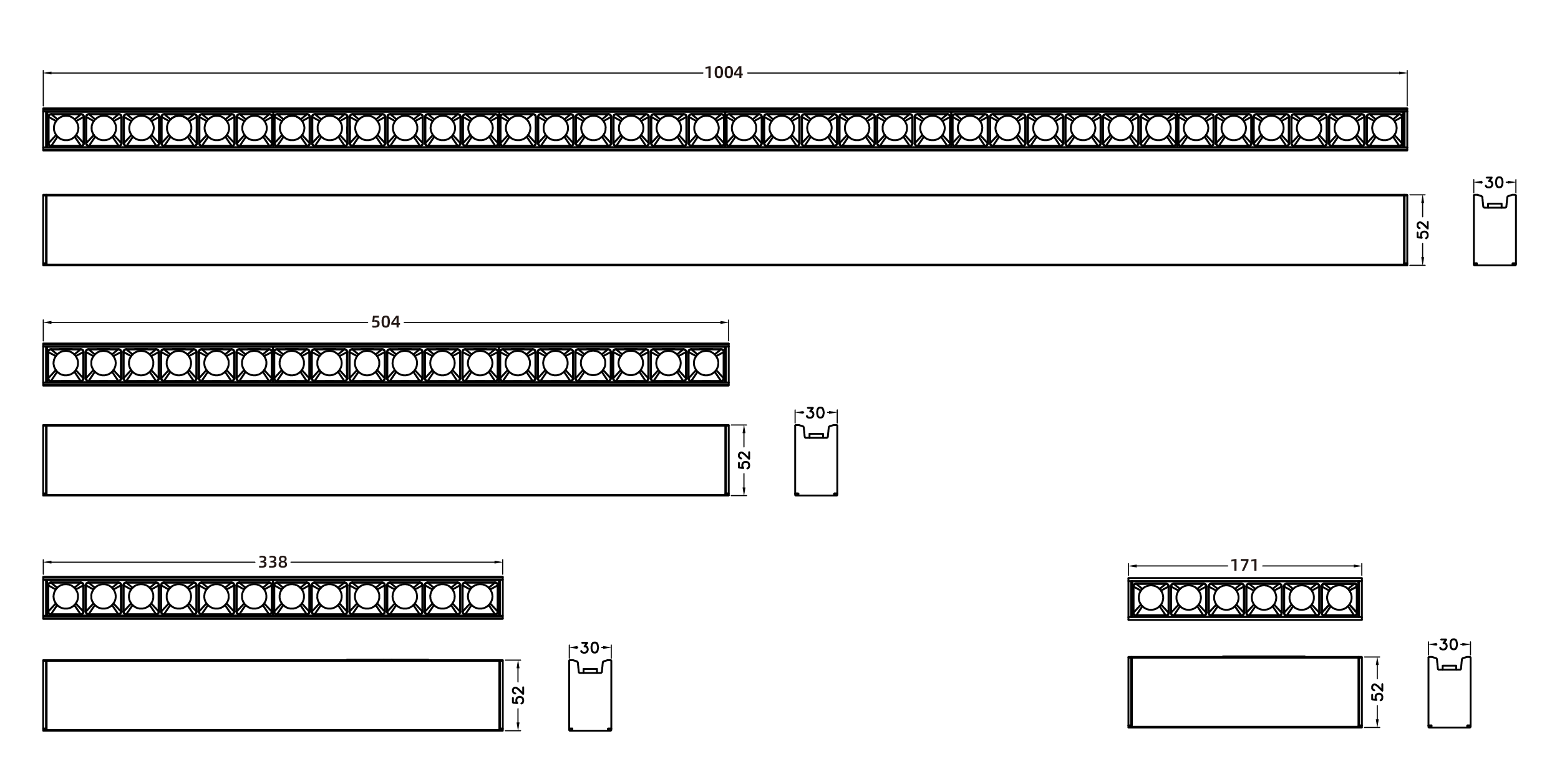

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
12W/172mm
25W/339mm
40W/505mm
75W/1005mm

Beam Angle

Beam Angle
17°
24x38°
28°
35°
45°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming

Finish

Finish
White
Black
Grey

Reflector

Reflector
Black

IP Rating

IP Rating
20-IP20
54-IP54

Accessory

Accessory
Honeycomb louver
Linear lens

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: LS00203-1005-75A39027; LS00203-1005-75A39030; LS00203-1005-75A39040; LS00203-1005-75459027; LS00203-1005-75459030; LS00203-1005-75459040; LS00203-1005-75359027; LS00203-1005-75359030; LS00203-1005-75359040; LS00203-1005-75289027; LS00203-1005-75289030; LS00203-1005-75289040; LS00203-1005-75179027; LS00203-1005-75179030; LS00203-1005-75179040; LS00203-505-40A39027; LS00203-505-40A39030; LS00203-505-40A39040; LS00203-505-40459027; LS00203-505-40459030; LS00203-505-40459040; LS00203-505-40359027; LS00203-505-40359030; LS00203-505-40359040; LS00203-505-40289027; LS00203-505-40289030; LS00203-505-40289040; LS00203-505-40179027; LS00203-505-40179030; LS00203-505-40179040; LS00203-339-25A39027; LS00203-339-25A39030; LS00203-339-25A39040; LS00203-339-25459027; LS00203-339-25459030; LS00203-339-25459040; LS00203-339-25359027; LS00203-339-25359030; LS00203-339-25359040; LS00203-339-25289027; LS00203-339-25289030; LS00203-339-25289040; LS00203-339-25179027; LS00203-339-25179030; LS00203-339-25179040; LS00203-172-12A39027; LS00203-172-12A39030; LS00203-172-12A39040; LS00203-172-12459027; LS00203-172-12459030; LS00203-172-12459040; LS00203-172-12359027; LS00203-172-12359030; LS00203-172-12359040; LS00203-172-12289027; LS00203-172-12289030; LS00203-172-12289040; LS00203-172-12179027; LS00203-172-12179030; LS00203-172-12179040

Luminous Flux (LM): 4230LM; 4453LM; 4676LM; 3805LM; 4005LM; 4206LM; 4687LM; 4934LM; 5181LM; 4770LM; 5021LM; 5272LM; 4708LM; 4955LM; 5203LM; 2130LM; 2242LM; 2354LM; 1952LM; 2055LM; 2158LM; 2378LM; 2503LM; 2628LM; 2410LM; 2537LM; 2664LM; 2324LM; 2447LM; 2569LM; 1284LM; 1351LM; 1419LM; 1136LM; 1196LM; 1256LM; 1420LM; 1495LM; 1570LM; 1464LM; 1541LM; 1618LM; 1373LM; 1445LM; 1517LM; 659LM; 694LM; 729LM; 551LM; 580LM; 609LM; 683LM; 719LM; 755LM; 720LM; 758LM; 796LM; 700LM; 737LM; 774LM

Power (W): 75W/1005mm; 75W/1005mm; 75W/1005mm; 75W/1005mm; 75W/1005mm; 75W/1005mm; 75W/1005mm; 75W/1005mm; 75W/1005mm; 75W/1005mm; 75W/1005mm; 75W/1005mm; 75W/1005mm; 75W/1005mm; 75W/1005mm; 40W/505mm; 40W/505mm; 40W/505mm; 40W/505mm; 40W/505mm; 40W/505mm; 40W/505mm; 40W/505mm; 40W/505mm; 40W/505mm; 40W/505mm; 40W/505mm; 40W/505mm; 40W/505mm; 40W/505mm; 25W/339mm; 25W/339mm; 25W/339mm; 25W/339mm; 25W/339mm; 25W/339mm; 25W/339mm; 25W/339mm; 25W/339mm; 25W/339mm; 25W/339mm; 25W/339mm; 25W/339mm; 25W/339mm; 25W/339mm; 12W/172mm; 12W/172mm; 12W/172mm; 12W/172mm; 12W/172mm; 12W/172mm; 12W/172mm; 12W/172mm; 12W/172mm; 12W/172mm; 12W/172mm; 12W/172mm; 12W/172mm; 12W/172mm; 12W/172mm

Beam Angle: 24x38°; 24x38°; 24x38°; 45°; 45°; 45°; 35°; 35°; 35°; 28°; 28°; 28°; 17°; 17°; 17°; 24x38°; 24x38°; 24x38°; 45°; 45°; 45°; 35°; 35°; 35°; 28°; 28°; 28°; 17°; 17°; 17°; 24x38°; 24x38°; 24x38°; 45°; 45°; 45°; 35°; 35°; 35°; 28°; 28°; 28°; 17°; 17°; 17°; 24x38°; 24x38°; 24x38°; 45°; 45°; 45°; 35°; 35°; 35°; 28°; 28°; 28°; 17°; 17°; 17°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K

Specification

IES

DWG

manual

Favorite

Application
