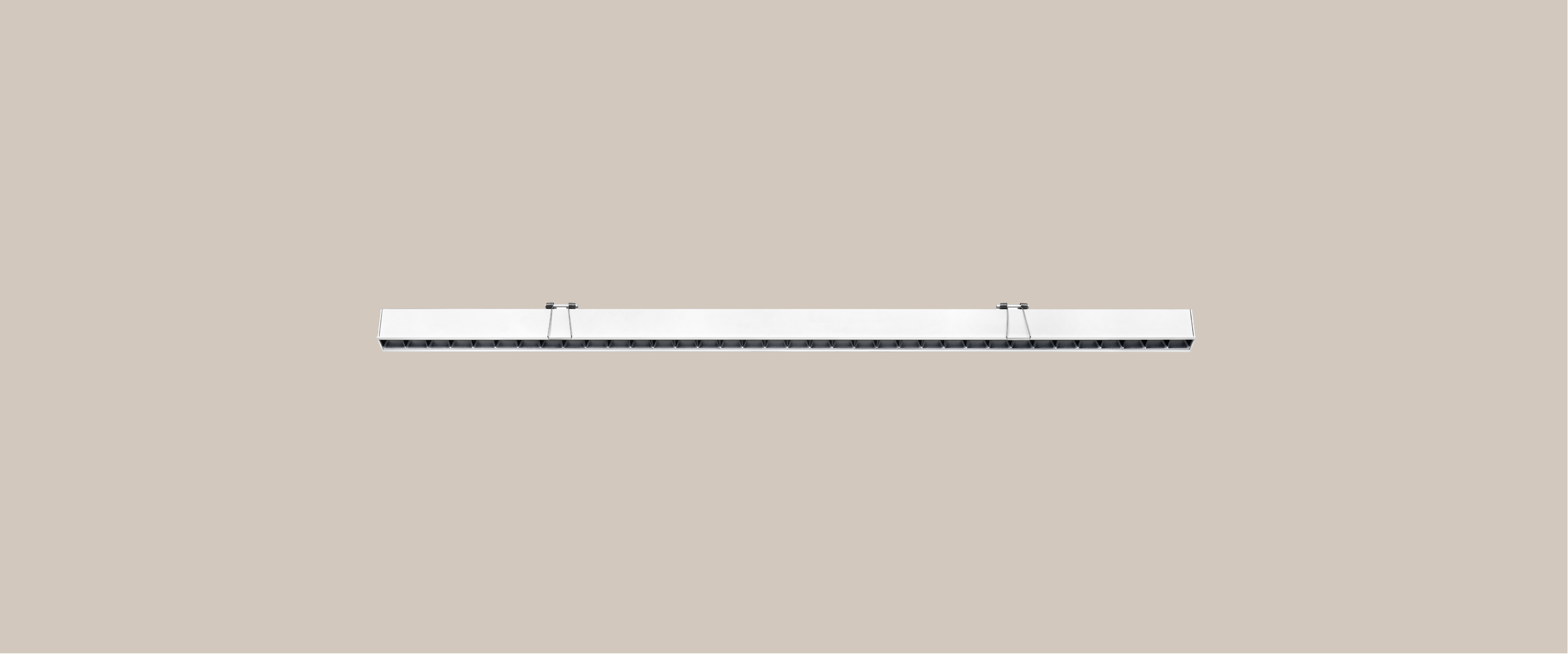

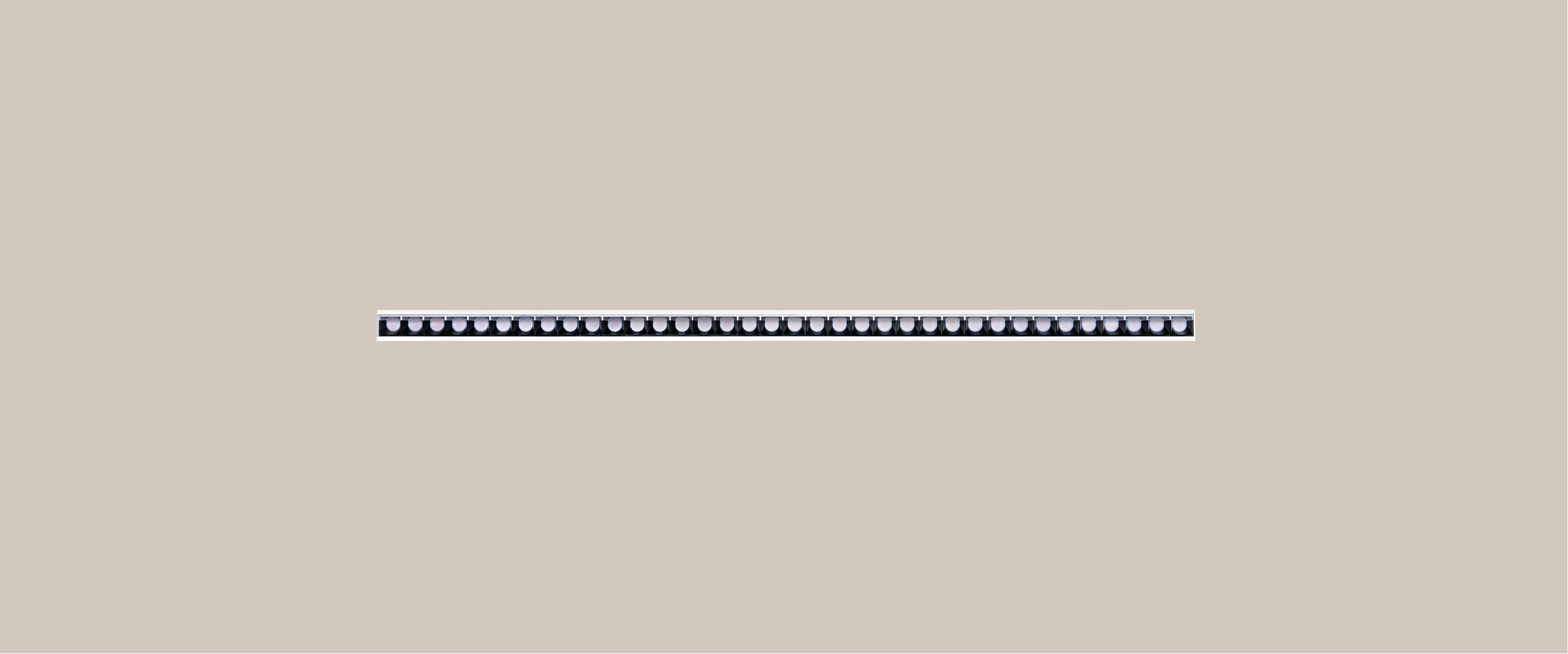

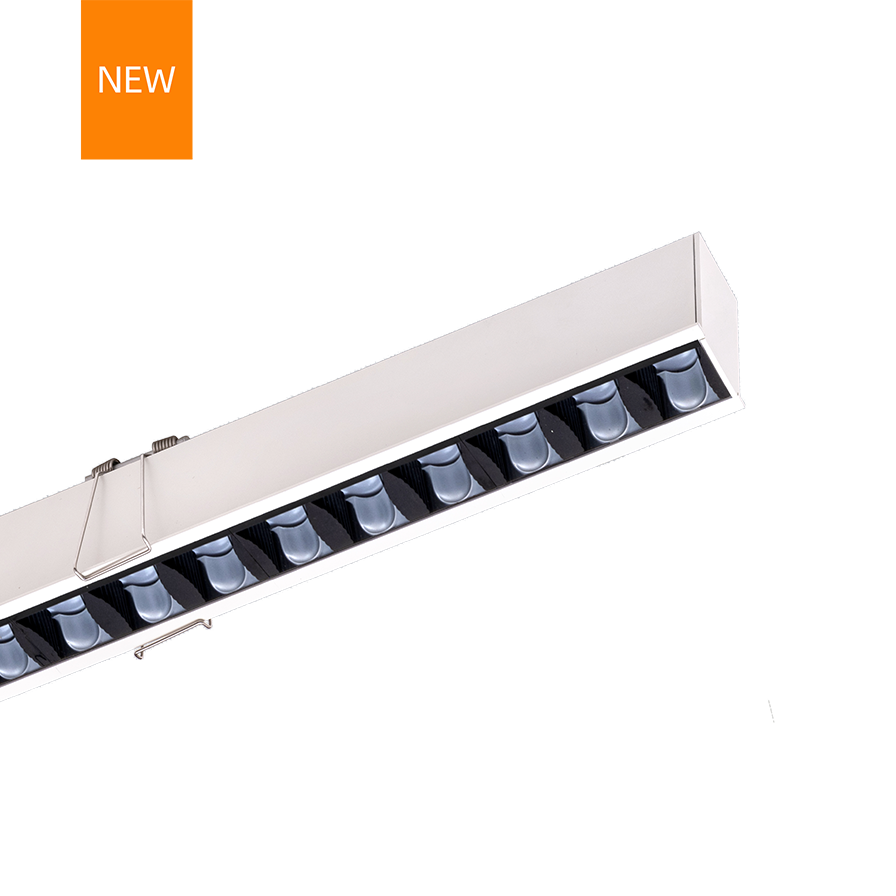

MIZAR 30
Recessed Linear Wall Washer Light
MIZAR 30
MIZAR 30

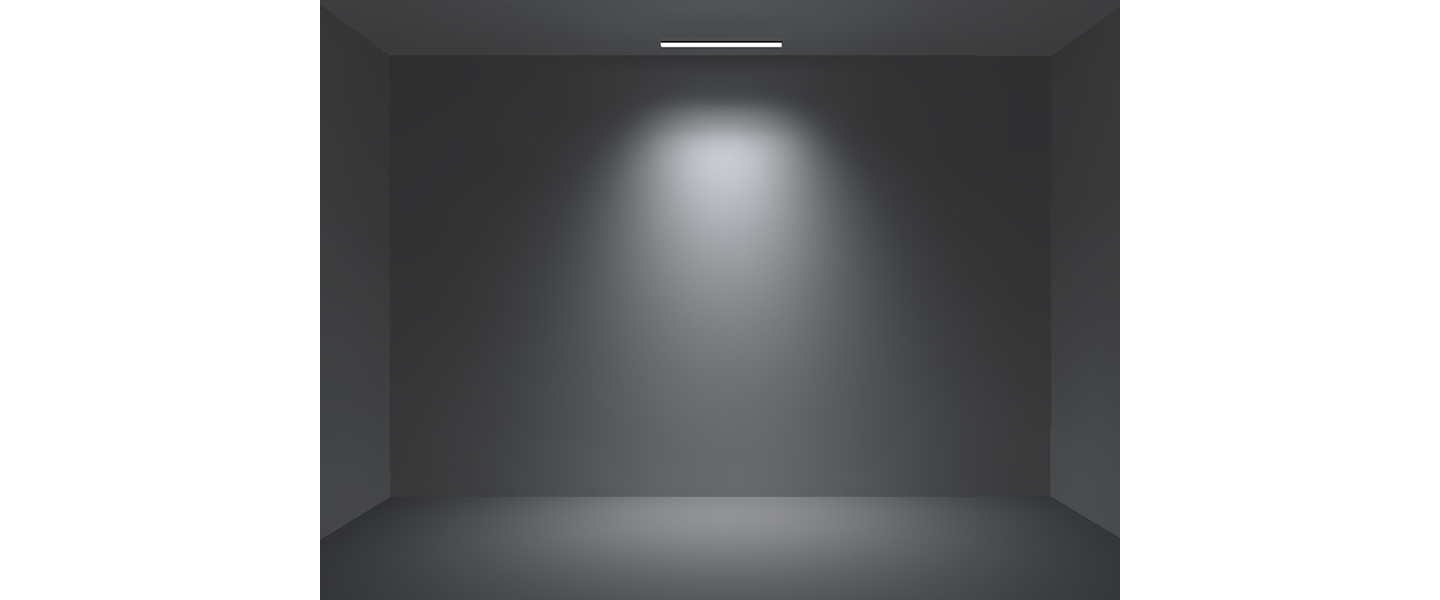

Lighting Effects
- Products Specification:
- Type:Recessed Linear Wall Washer Light
- Cut-Out:32x1005mm
- Power:36W
- Beam Angle:18x40D 25x65D
- Weight:1.1kg
- CCT:2700K 3000K 4000K
- Heat-Sink:Aluminum
- Surface-Treatment:painting+plating

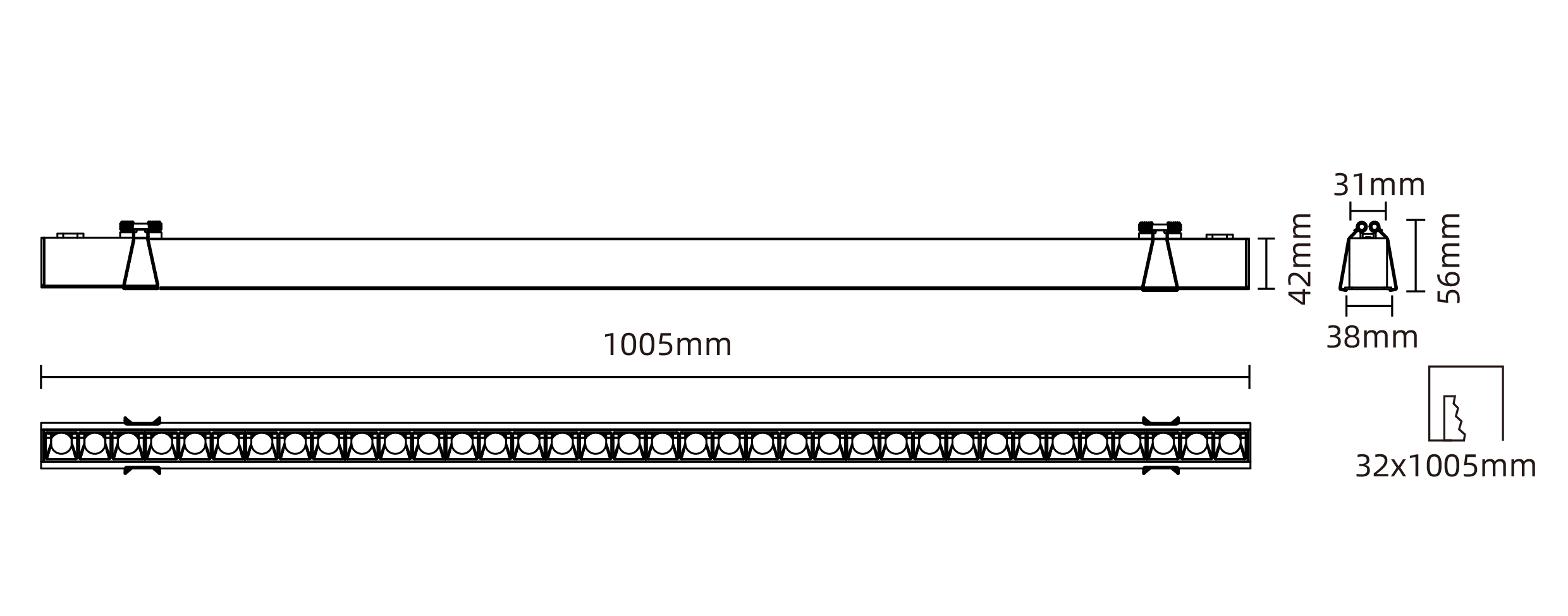

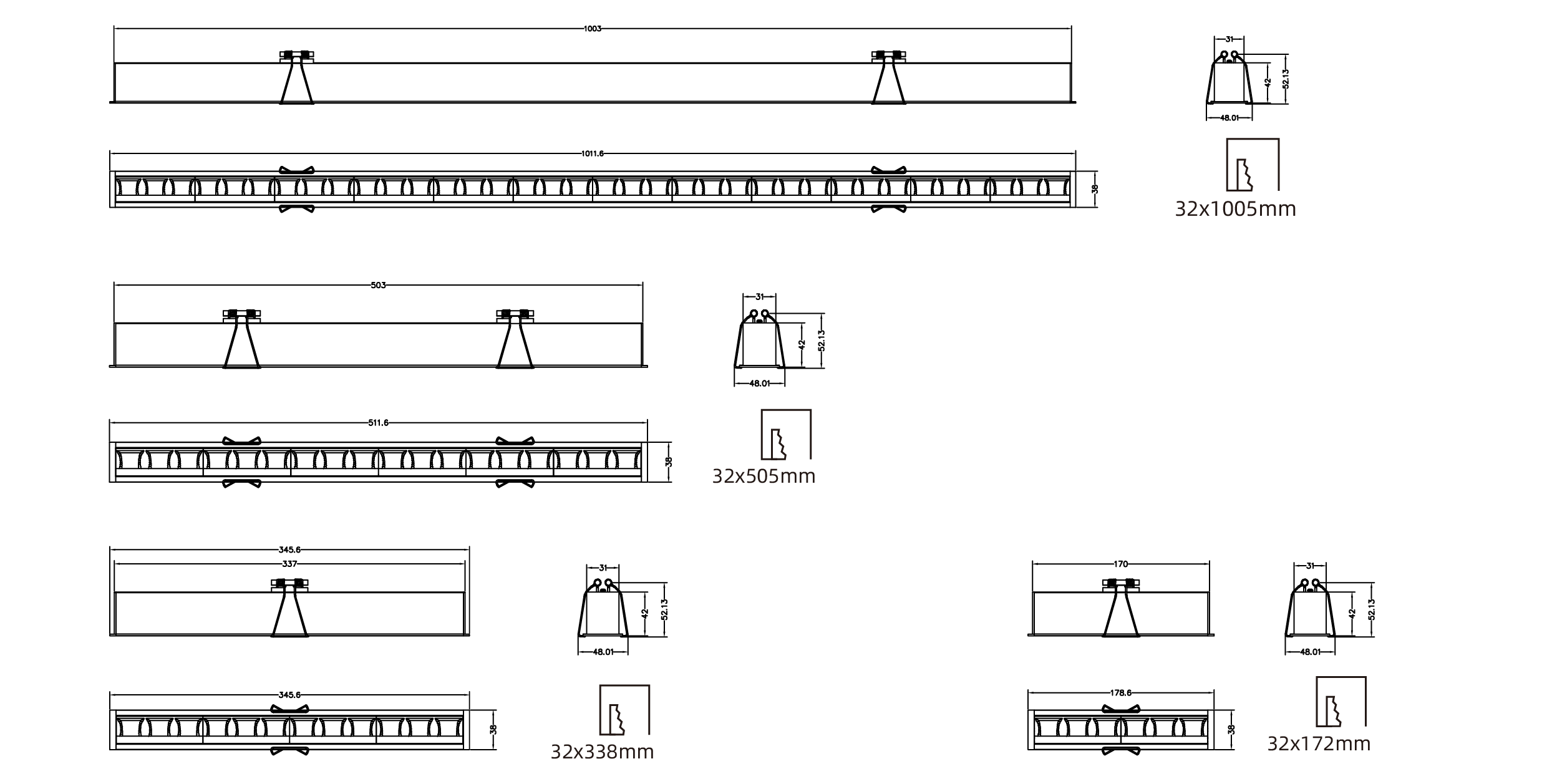

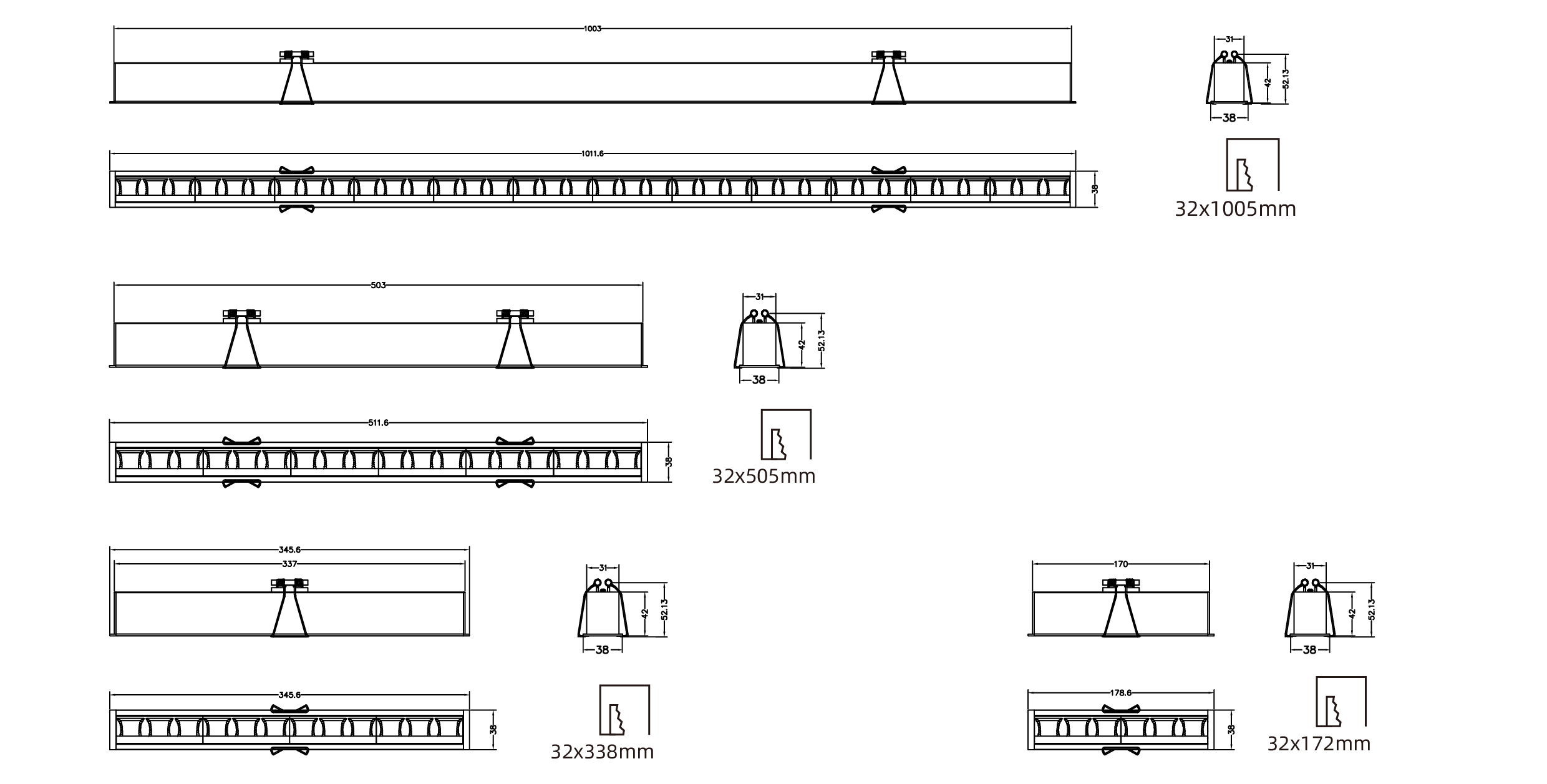

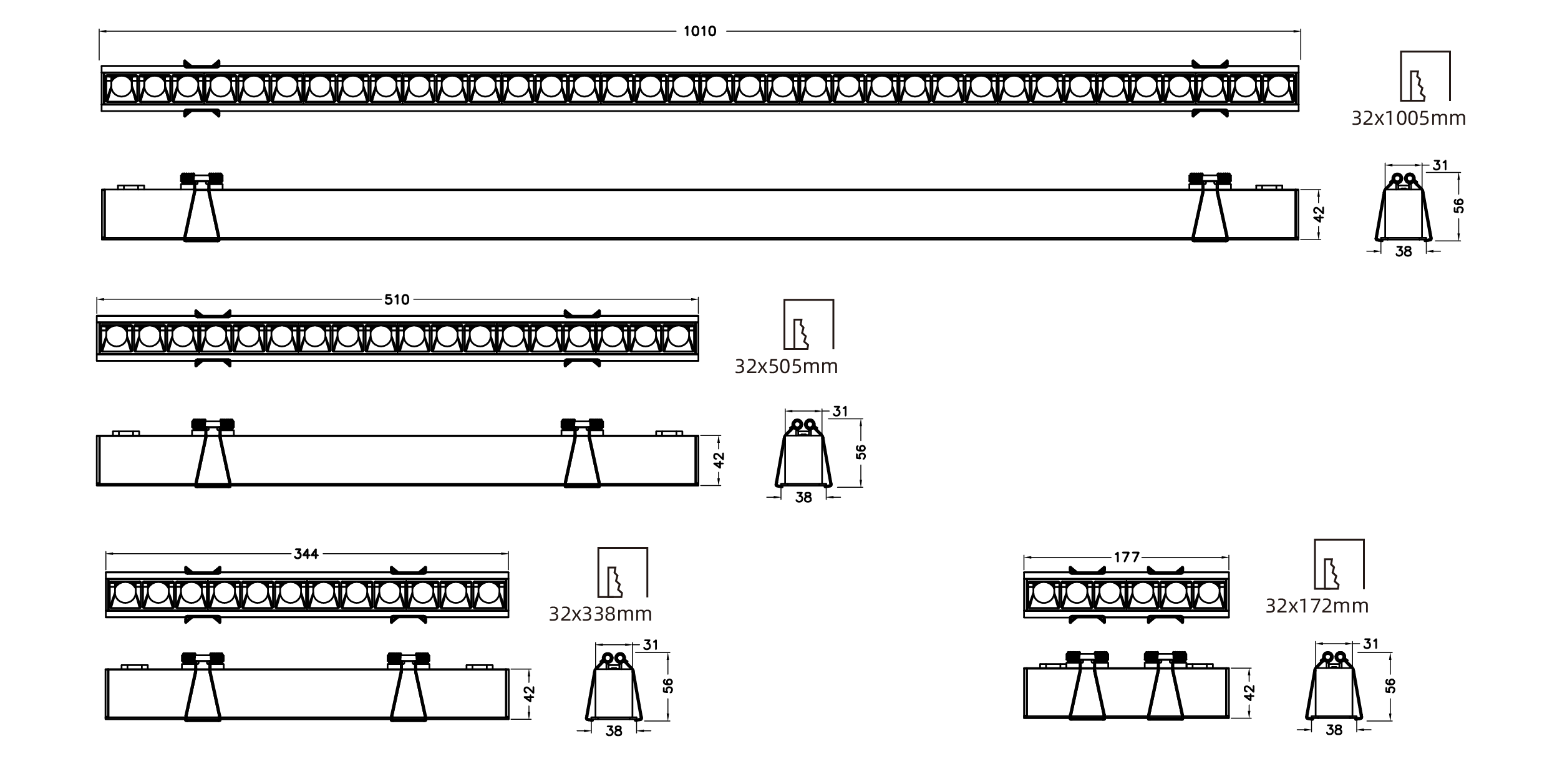

- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
Power(W)
- Power(W)
- 36W
Beam Angle
- Beam Angle
- 18x40°
- 25x65°
CRI
- CRI
- Ra>90
Color
- Color
- 2700K
- 3000K
- 4000K
Dimming type
- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
Finish
- Finish
- White
- Black
- Grey
Reflector
- Reflector
- Silver&black
IP Rating
- IP Rating
- 20-IP20
- 54-IP54
Accessory
- Accessory
- Honeycomb louver
- Linear lens
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
LR00207-36A19027
LR00207-36A19030
LR00207-36A19040
LR00207-36A29027
LR00207-36A29030
LR00207-36A29040
- Luminous Flux (LM)
2445LM
2574LM
2702LM
1981LM
2086LM
2190LM
- Power (W)
36W
36W
36W
36W
36W
36W
- Beam Angle
18x40°
18x40°
18x40°
25x65°
25x65°
25x65°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
