MIZAR 30

High Power LED Recessed Trimless Linear Wall Washer Light

MIZAR 30

MIZAR 30

Lighting Effects

Products Specification:: Type:High Power LED Recessed Trimless Linear Wall Washer Light; Cut-Out:45x176mm/343mm/510mm/1010mm; Beam Angle:18x40D 25x65D; Power:12W 25W 40W 75W; Weight:0.45KG 1KG 1.1KG 2.1KG; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:painting+plating

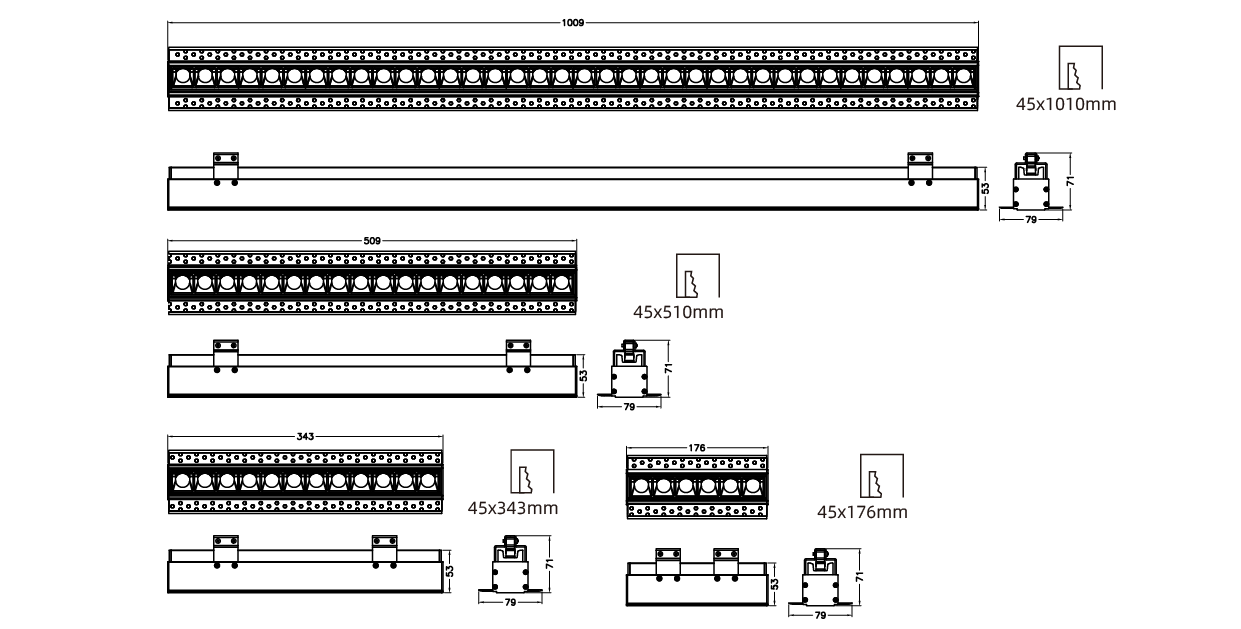

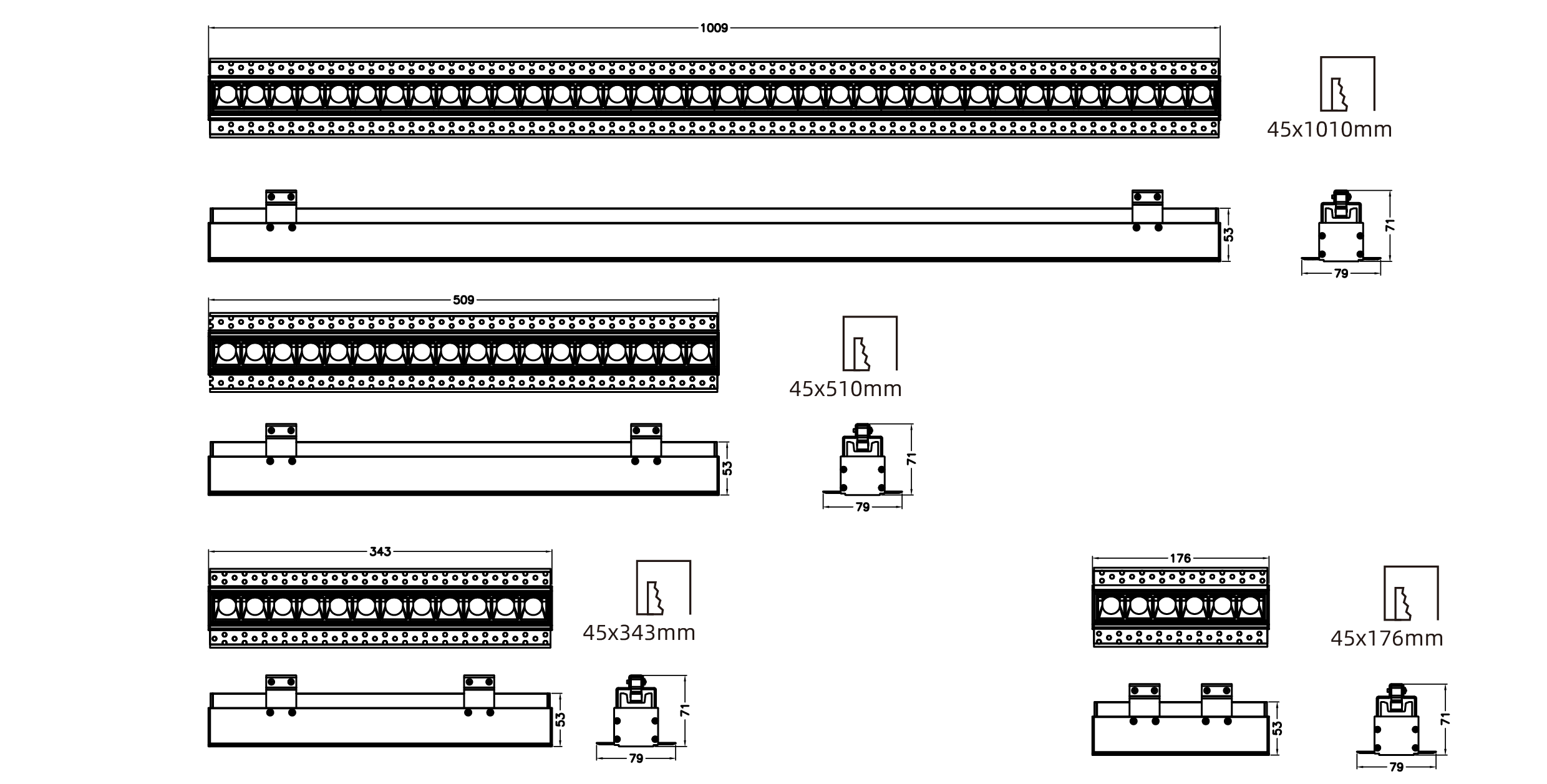

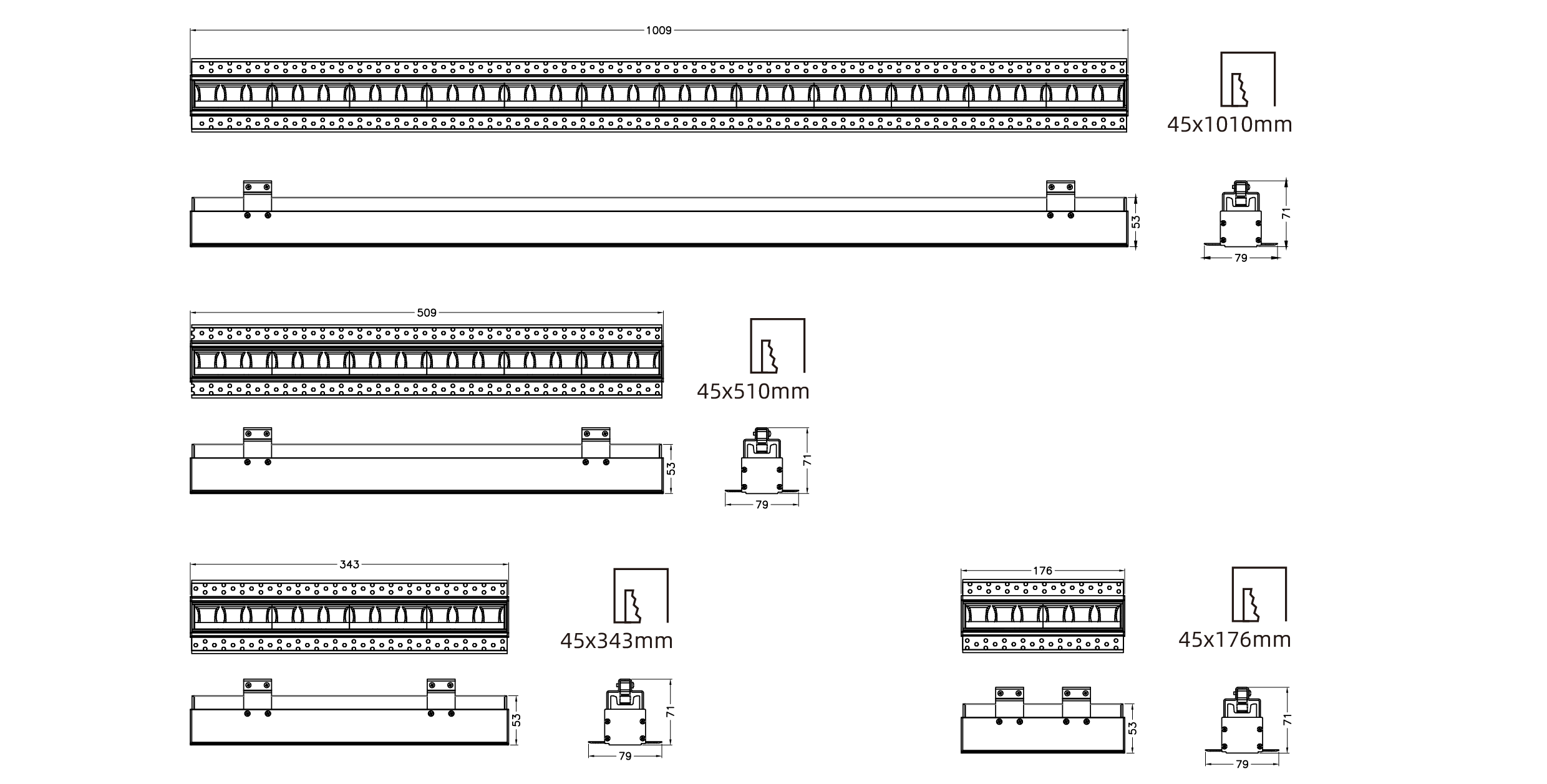

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
12W/176mm
25W/343mm
40W/510mm
75W/1010mm

Beam Angle

Beam Angle
18x40°
25x65°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming

Finish

Finish
White
Black
Grey

Reflector

Reflector
Silver&black

IP Rating

IP Rating
20-IP20
54-IP54

Accessory

Accessory
Honeycomb louver
Linear lens

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: LR00209-1010-75A19027; LR00209-1010-75A19030; LR00209-1010-75A19040; LR00209-1010-75A29027; LR00209-1010-75A29030; LR00209-1010-75A29040; LR00209-510-40A19027; LR00209-510-40A19030; LR00209-510-40A19040; LR00209-510-40A29027; LR00209-510-40A29030; LR00209-510-40A29040; LR00209-343-25A19027; LR00209-343-25A19030; LR00209-343-25A19040; LR00209-343-25A29027; LR00209-343-25A29030; LR00209-343-25A29040; LR00209-176-12A19027; LR00209-176-12A19030; LR00209-176-12A19040; LR00209-176-12A29027; LR00209-176-12A29030; LR00209-176-12A29040

Luminous Flux (LM): 4294LM; 4520LM; 4746LM; 3470LM; 3653LM; 3835LM; 2280LM; 2400LM; 2520LM; 1817LM; 1913LM; 2008LM; 1367LM; 1439LM; 1510LM; 1108LM; 1167LM; 1225LM; 668LM; 703LM; 738LM; 536LM; 565LM; 593LM

Power (W): 75W/1010mm; 75W/1010mm; 75W/1010mm; 75W/1010mm; 75W/1010mm; 75W/1010mm; 40W/510mm; 40W/510mm; 40W/510mm; 40W/510mm; 40W/510mm; 40W/510mm; 25W/343mm; 25W/343mm; 25W/343mm; 25W/343mm; 25W/343mm; 25W/343mm; 12W/176mm; 12W/176mm; 12W/176mm; 12W/176mm; 12W/176mm; 12W/176mm

Beam Angle: 18x40°; 18x40°; 18x40°; 25x65°; 25x65°; 25x65°; 18x40°; 18x40°; 18x40°; 25x65°; 25x65°; 25x65°; 18x40°; 18x40°; 18x40°; 25x65°; 25x65°; 25x65°; 18x40°; 18x40°; 18x40°; 25x65°; 25x65°; 25x65°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K

Specification

IES

DWG

manual

Favorite

Application
