Home Products Indoor CESTA 65 - Fixed Recessed Downlight

CESTA 65

Fixed Recessed Downlight

CESTA 65

CESTA 65

Lighting Effects

Products Specification:: Type:Fixed Recessed Downlight; Cut-Out:ø65 mm; Beam Angle:11D 15D 25D 38D 55D; Power:5W 8W 10W 12W 15W 18W; Weight:0.25 kg 0.4kg; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:Painting+Plating

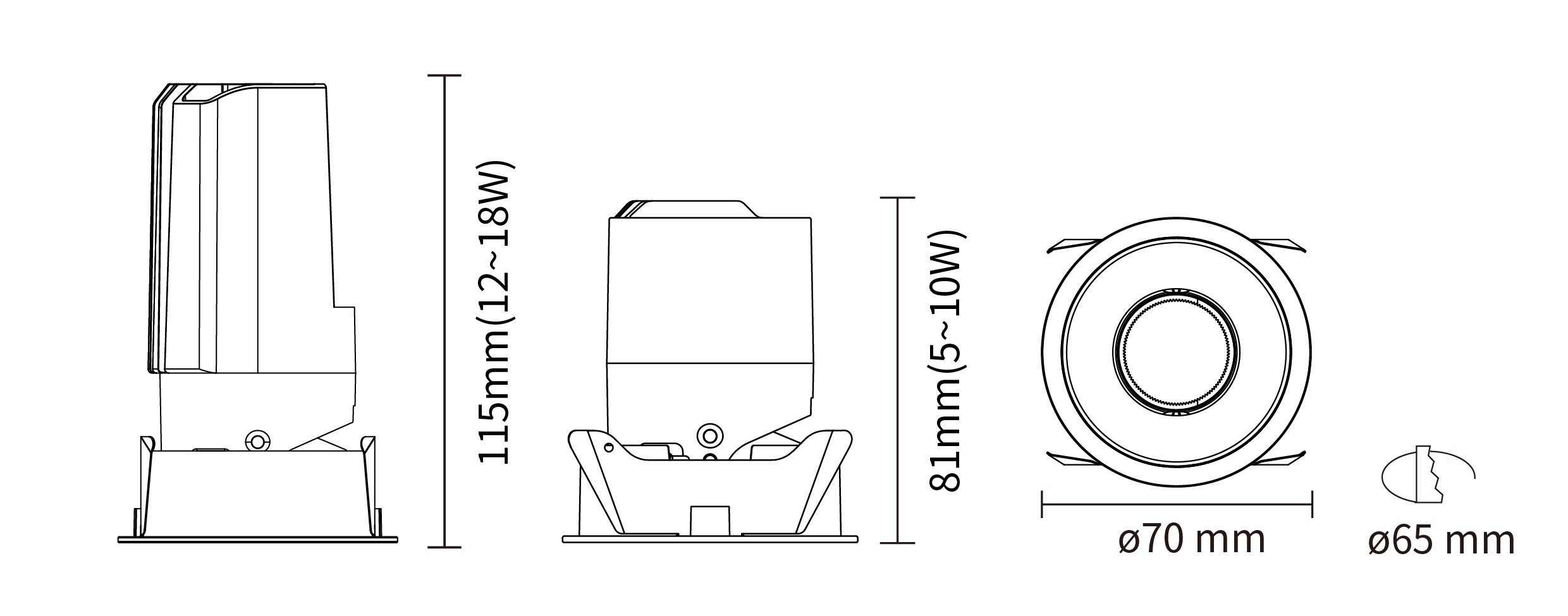

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
5W
8W
10W
12W
15W
18W

Beam Angle

Beam Angle
11°
15°
25°
38°
55°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
3500K
4000K

Dimming type

Dimming type
1-Non Dim
2-Phase dimming
3-0-10V dimming
4-DALI dimming

Finish

Finish
Black
White

Reflector

Reflector
Mirror
Black chromium plating

IP Rating

IP Rating
20-IP20

Accessory

Accessory
Honeycomb louver
Linear lens

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: DR01301-05119027; DR01301-05119030; DR01301-05119035; DR01301-05119040; DR01301-05159027; DR01301-05159030; DR01301-05159035; DR01301-05159040; DR01301-05259027; DR01301-05259030; DR01301-05259035; DR01301-05259040; DR01301-05389027; DR01301-05389030; DR01301-05389035; DR01301-05389040; DR01301-05559027; DR01301-05559030; DR01301-05559035; DR01301-05559040; DR01301-08119027; DR01301-08119030; DR01301-08119035; DR01301-08119040; DR01301-08159027; DR01301-08159030; DR01301-08159035; DR01301-08159040; DR01301-08259027; DR01301-08259030; DR01301-08259035; DR01301-08259040; DR01301-08389027; DR01301-08389030; DR01301-08389035; DR01301-08389040; DR01301-08559027; DR01301-08559030; DR01301-08559035; DR01301-08559040; DR01301-10119027; DR01301-10119030; DR01301-10119035; DR01301-10119040; DR01301-10159027; DR01301-10159030; DR01301-10159035; DR01301-10159040; DR01301-10259027; DR01301-10259030; DR01301-10259035; DR01301-10259040; DR01301-10389027; DR01301-10389030; DR01301-10389035; DR01301-10389040; DR01301-10559027; DR01301-10559030; DR01301-10559035; DR01301-10559040; DR01301-12259027; DR01301-12259030; DR01301-12259035; DR01301-12259040; DR01301-12389027; DR01301-12389030; DR01301-12389035; DR01301-12389040; DR01301-12559027; DR01301-12559030; DR01301-12559035; DR01301-12559040; DR01301-15259027; DR01301-15259030; DR01301-15259035; DR01301-15259040; DR01301-15389027; DR01301-15389030; DR01301-15389035; DR01301-15389040; DR01301-15559027; DR01301-15559030; DR01301-15559035; DR01301-15559040; DR01301-18259027; DR01301-18259030; DR01301-18259035; DR01301-18259040; DR01301-18389027; DR01301-18389030; DR01301-18389035; DR01301-18389040; DR01301-18559027; DR01301-18559030; DR01301-18559035; DR01301-18559040

Luminous Flux (LM): 122LM; 129LM; 132LM; 153LM; 285LM; 300LM; 309LM; 338LM; 321LM; 338LM; 348LM; 411LM; 361LM; 380LM; 391LM; 401LM; 347LM; 366LM; 376LM; 400LM; 203LM; 214LM; 220LM; 217LM; 408LM; 430LM; 442LM; 471LM; 450LM; 474LM; 488LM; 586LM; 522LM; 550LM; 566LM; 577LM; 507LM; 534LM; 550LM; 581LM; 268LM; 283LM; 291LM; 289LM; 541LM; 570LM; 587LM; 616LM; 631LM; 665LM; 684LM; 798LM; 714LM; 752LM; 774LM; 777LM; 685LM; 722LM; 743LM; 788LM; 798LM; 840LM; 865LM; 852LM; 867LM; 913LM; 940LM; 985LM; 841LM; 886LM; 912LM; 934LM; 902LM; 950LM; 978LM; 978LM; 987LM; 1039LM; 1071LM; 1123LM; 950LM; 1000LM; 1030LM; 1081LM; 1141LM; 1202LM; 1238LM; 1203LM; 1270LM; 1337LM; 1377LM; 1426LM; 1199LM; 1262LM; 1300LM; 1392LM

Power (W): 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W; 18W

Beam Angle: 11°; 11°; 11°; 11°; 15°; 15°; 15°; 15°; 25°; 25°; 25°; 25°; 38°; 38°; 38°; 38°; 55°; 55°; 55°; 55°; 11°; 11°; 11°; 11°; 15°; 15°; 15°; 15°; 25°; 25°; 25°; 25°; 38°; 38°; 38°; 38°; 55°; 55°; 55°; 55°; 11°; 11°; 11°; 11°; 15°; 15°; 15°; 15°; 25°; 25°; 25°; 25°; 38°; 38°; 38°; 38°; 55°; 55°; 55°; 55°; 25°; 25°; 25°; 25°; 38°; 38°; 38°; 38°; 55°; 55°; 55°; 55°; 25°; 25°; 25°; 25°; 38°; 38°; 38°; 38°; 55°; 55°; 55°; 55°; 25°; 25°; 25°; 25°; 38°; 38°; 38°; 38°; 55°; 55°; 55°; 55°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K

Specification

IES

DWG

manual

Favorite

Application
