Home Products Indoor MIZAR 30 - High Power LED Surface-mounted Wall Washer Light

MIZAR 30

High Power LED Surface-mounted Wall Washer Light

MIZAR 30

MIZAR 30

Lighting Effects

Products Specification:: Type:High Power LED Surface-mounted Wall Washer Light; Power:6W 12W 25W 18W 40W 36W 75W; Beam Angle:18x40D; Weight:0.25kg 0.48kg 0.75kg 1.15kg; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:painting+plating

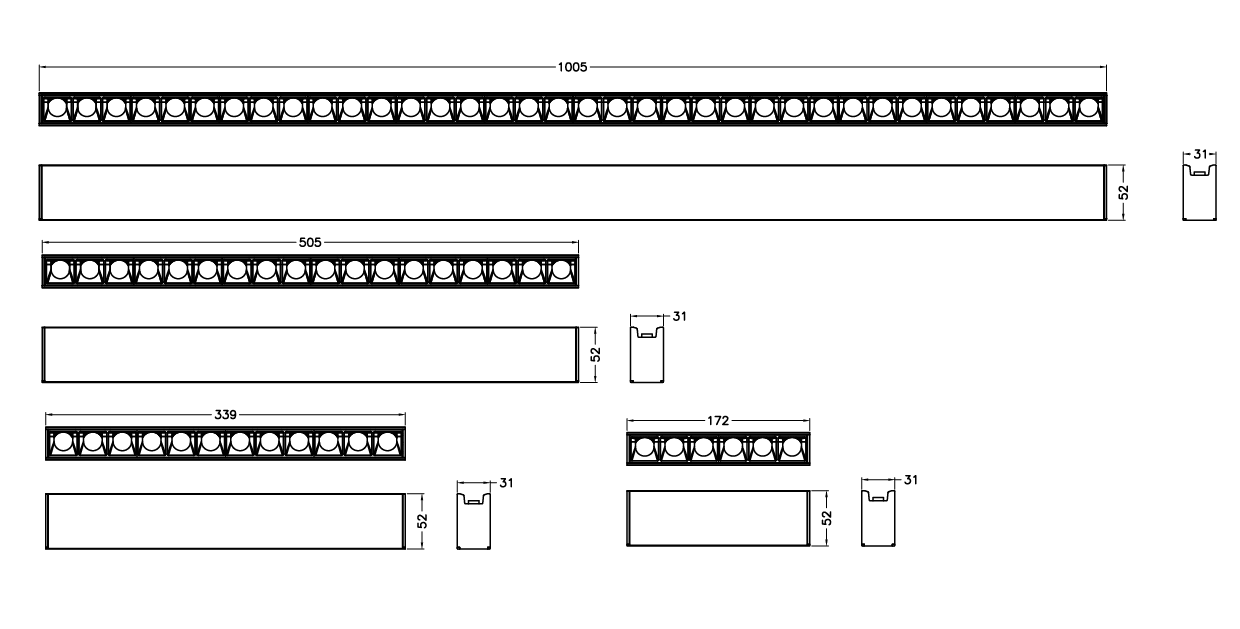

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
6W/171mm
12W/171mm
12W/338mm
18W/504mm
25W/338mm
36W/1004mm
40W/504mm
75W/1004mm

Beam Angle

Beam Angle
18x40°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming

Finish

Finish
White
Black
Grey

Reflector

Reflector
N/A

IP Rating

IP Rating
20-IP20
54-IP54

Accessory

Accessory
Honeycomb louver
Linear lens

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: LS00203-1004-75A19027; LS00203-1004-75A19030; LS00203-1004-75A19040; LS00203-1004-36A19027; LS00203-1004-36A19030; LS00203-1004-36A19040; LS00203-504-40A19027; LS00203-504-40A19030; LS00203-504-40A19040; LS00203-504-18A19027; LS00203-504-18A19030; LS00203-504-18A19040; LS00203-338-25A19027; LS00203-338-25A19030; LS00203-338-25A19040; LS00203-338-12A19027; LS00203-338-12A19030; LS00203-338-12A19040; LS00203-171-12A19027; LS00203-171-12A19030; LS00203-171-12A19040; LS00203-171-06A19027; LS00203-171-06A19030; LS00203-171-06A19040

Luminous Flux (LM): 4003LM; 4214LM; 4424LM; 2274LM; 2394LM; 2514LM; 2099LM; 2210LM; 2320LM; 1134LM; 1194LM; 1253LM; 1362LM; 1434LM; 1505LM; 770LM; 810LM; 851LM; 626LM; 659LM; 692LM; 352LM; 371LM; 389LM

Power (W): 75W/1004mm; 75W/1004mm; 75W/1004mm; 36W/1004mm; 36W/1004mm; 36W/1004mm; 40W/504mm; 40W/504mm; 40W/504mm; 18W/504mm; 18W/504mm; 18W/504mm; 25W/338mm; 25W/338mm; 25W/338mm; 12W/338mm; 12W/338mm; 12W/338mm; 12W/171mm; 12W/171mm; 12W/171mm; 6W/171mm; 6W/171mm; 6W/171mm

Beam Angle: 18x40°; 18x40°; 18x40°; 18x40°; 18x40°; 18x40°; 18x40°; 18x40°; 18x40°; 18x40°; 18x40°; 18x40°; 18x40°; 18x40°; 18x40°; 18x40°; 18x40°; 18x40°; 18x40°; 18x40°; 18x40°; 18x40°; 18x40°; 18x40°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K

Specification

IES

DWG

manual

Favorite

Application
